Start Relay for starter Bosch 0001231013 / 0001241001
for starter Bosch
| 0001241003 |
| 0001241007 |
| 0001241014 |
| 0001241019 |
| 0001261001 |
| 0001261002 |
| 0001261005 |
| 0001261105 |
| 0001330003 |
| 0001330008 |
| 0001340501 |
More info

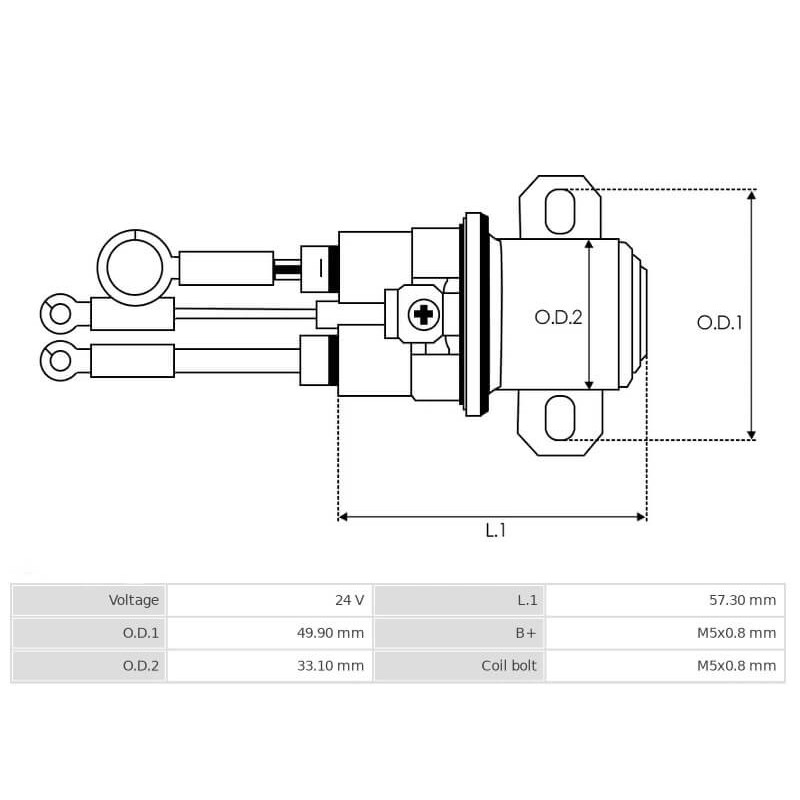

| Starter safety switches | |
| Voltage [ V ] | 24 |
| O.D.1 [ mm ] | 49.90 |
| O.D.2 [ mm ] | 33.10 |
| L.1 [ mm ] | 57.30 |
| B+ [ mm ] | M5x0.8 |
| Coil bolt [ mm ] | M5x0.8 |
for starter
| S0137 | AS-PL | 0001231013 | BOSCH |
| S0138 | AS-PL | 0001241001 | BOSCH |
| S0160 | AS-PL | 0001241003 | BOSCH |
| S0173 | AS-PL | 0001241007 | BOSCH |
| S0450 | AS-PL | 0001241014 | BOSCH |
| S0481 | AS-PL | 0001241019 | BOSCH |
| S0683S | AS-PL | 0001261001 | BOSCH |
| S0782S | AS-PL | 0001261002 | BOSCH |
| S0846S | AS-PL | 0001261005 | BOSCH |
| S0883S | AS-PL | 0001261105 | BOSCH |
| 0001330003 | BOSCH | ||
| 0001330008 | BOSCH | ||
| 0001340501 | BOSCH |
