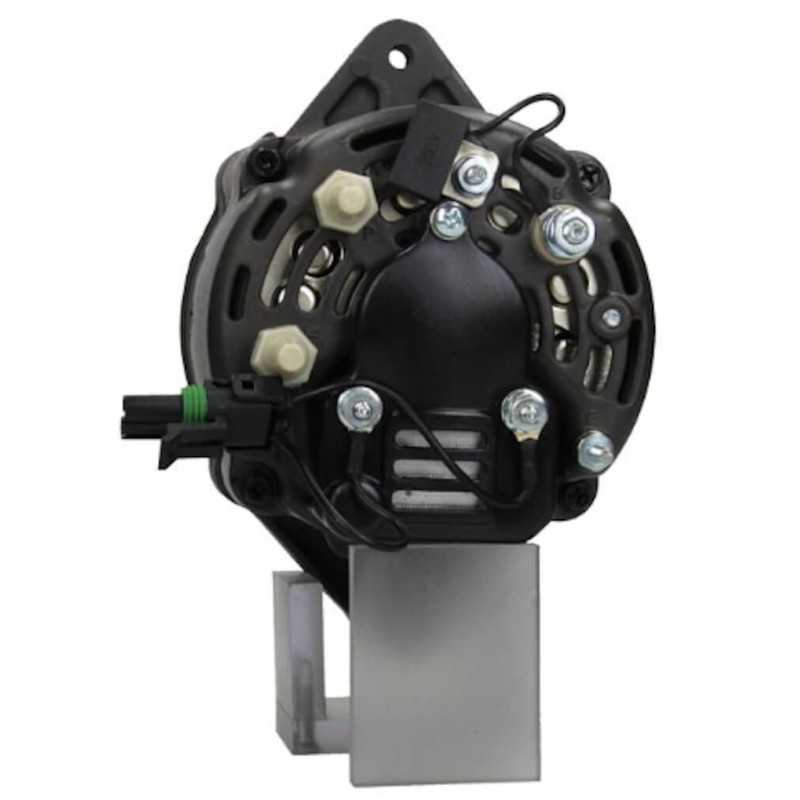

Alternator replacing VALEO AC155604 / AC155603 / AC155602

Information:

Rotation Cr

Amp 55

Voltage 14

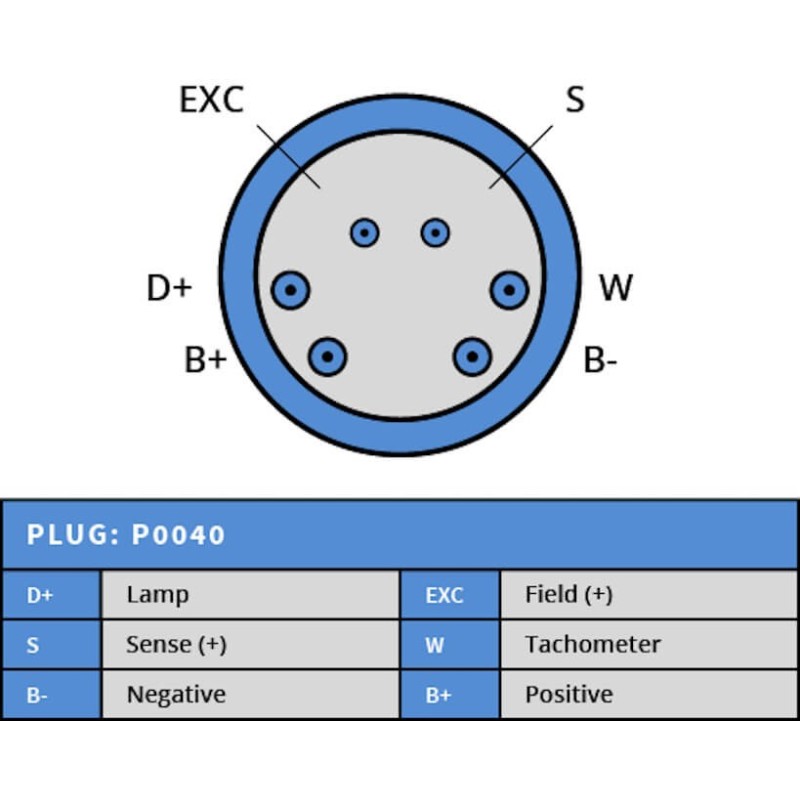

Plug type W

D = Bracket hole 3/8"

G = Belt. adj. bracket hole 5/16"-13UNC

B = Width/holder arm 50.70

E = Belt. adj. brackethole pos. 60

H = Pulley dia. 74.25

A = Pulley dist. 76.35

Grooves/pulley 1

J = Radius 81.35

J = Radius 2 82.50

Position B + M8

Fan Ef

Pulley Pulley

Tipo regulator Ir

Tipo prise W Plug

R = Total length mm 162.00

Remarks Purple wire = +15. Red wire =S (+)

Brand / wai

= Aqua power 1926

= Marine Power 1210-000

= MERCURY MARINE 12449 / 19685 / 817119 / 817119-1 / 817119-2 817119A1 / 817119A4 / 92497 / 92497A3 / 98555

= MOTOROLA 10-358 / 10-374 / 8EM2007K / 8EM2007KA / 8EM2010K 8EM2010KA

= OMC 3854809 / 3860769

= PRESTOLITE 110-358 / 110-374 / 110-517 / 20130179

= VALEO A000B0331 / AC155603 / AC155604 / AR150 / AR150AA / AR150AR / AR150BA

= VOLVO-PENTA 3850927-9 / 3853853-4 / 3854809-5

fits:

1985-On CHRYSLER Various Models
All Crusader Various Models
1989-On Glenwood Various Models
1985-On Hardin Various Models
1985-On Indmar Various Models
1985-On Jacuzzi Jet Various Models
1973-On Lehman 4D254
1973-On Lehman 6D363,TC
1985-On LUCAS Various Models
1985-On MANDO Various Models
1989-On Medalist Various Models
1989-83 MERCRUISER Model 120
1986-83 MERCRUISER Model 140
1992-87 MERCRUISER Model 175
1987-83 MERCRUISER Model 185
1989-87 MERCRUISER Model 2.5L
1987-85 MERCRUISER Model 200
1991-85 MERCRUISER Model 205
1984-82 MERCRUISER Model 228
1987-85 MERCRUISER Model 230
1995-81 MERCRUISER Model 230 MIE
1987-82 MERCRUISER Model 260
1987-81 MERCRUISER Model 260 MIE
1995-87 MERCRUISER Model 3.0 / 3.0LX
1986-85 MERCRUISER Model 300 Tempest
1987 MERCRUISER Model 320 (EFI)
1987-82 MERCRUISER Model 330
1995-86 MERCRUISER Model 350 Mag Alpha
1996 MERCRUISER Model 350 Mag Alpha (4-BBL)
1996-91 MERCRUISER Model 350 Mag Ski
1987-78 MERCRUISER Model 370 TRS
1992-88 MERCRUISER Model 4.3L (2-BBL)
1996-92 MERCRUISER Model 4.3L (Gen II)
1996-92 MERCRUISER Model 4.3L (Gen II) (2-BBL)
1992-88 MERCRUISER Model 4.3LX (4-BBL)
1996-92 MERCRUISER Model 4.3LX (Gen II) (4-BBL)
1986-80 MERCRUISER Model 400 TRS (Cyclone)
1989-87 MERCRUISER Model 420
1992-90 MERCRUISER Model 425
1993-92 MERCRUISER Model 425 (Gen V)
1986-83 MERCRUISER Model 440 TRS (Cyclone)
1996-95 MERCRUISER Model 450 (Gen V)
1988-86 MERCRUISER Model 454 Mag Alpha
1992-88 MERCRUISER Model 454 Mag Bravo
1996-92 MERCRUISER Model 454 Mag Bravo (Gen V)
1997-96 MERCRUISER Model 454 Mag Bravo (Gen VI)
1986-83 MERCRUISER Model 460 TRS (Cyclone)
1992-90 MERCRUISER Model 465
1994-92 MERCRUISER Model 465 (Gen V)
1995-87 MERCRUISER Model 5.0L (4-BBL)

1995-88 MERCRUISER Model 5.0LX
1996 MERCRUISER Model 5.7L (2-BBL)
1995-88 MERCRUISER Model 5.7L Bravo
1996-87 MERCRUISER Model 5.7L Competition Ski
1996-88 MERCRUISER Model 5.7L MIE
1987-85 MERCRUISER Model 5.7L Ski
1996 MERCRUISER Model 5.7LX (4-BBL)
2000-99 MERCRUISER Model 500 (Gen +)
1996-94 MERCRUISER Model 500 (Gen V)
1998-97 MERCRUISER Model 500 (Gen VI)
2001-90 MERCRUISER Model 500 Bulldog
1992-90 MERCRUISER Model 502 Mag Bravo
1993-92 MERCRUISER Model 502 Mag Bravo (Gen V)
1992-91 MERCRUISER Model 525SC
1996-92 MERCRUISER Model 525SC (Gen V)
1997-On MERCRUISER Model 525SC (Gen VI)
1996-91 MERCRUISER Model 600SC (Gen IV & V)
1998-97 MERCRUISER Model 600SC (Gen VI)
1991-88 MERCRUISER Model 7.4L Bravo
1996-92 MERCRUISER Model 7.4L Bravo (Gen V)
1997-96 MERCRUISER Model 7.4L Bravo (Gen VI)
1996-92 MERCRUISER Model 7.4L MIE (LH) (Gen V)
1997-96 MERCRUISER Model 7.4L MIE (LH) (Gen VI)
1992-89 MERCRUISER Model 7.4L MIE (LH) w/Hurth MK4
1996-93 MERCRUISER Model 8.2L MIE (Gen V)
1992-90 MERCRUISER Model 8.2L MIE w/Hurth
1998-93 MERCRUISER Model 800SC (Gen V)
1984-83 MERCRUISER Model 898
1985-On MOTOROLA Various Models
1996-85 OMC INBOARD & V-DRIVE
1989-On Panther Various Models
1985-On Pleaonecraft Various Models
1985-On Rex Various Models
1988-On Stewart & Stevenson Various Models
1999-93 VOLVO PENTA 3.0GL
1999-93 VOLVO PENTA 3.0GS
1999-93 VOLVO PENTA 4.3Gi
1999-93 VOLVO PENTA 4.3GL
1999-93 VOLVO PENTA 4.3GS
1999-93 VOLVO PENTA 5.0Fi
1999-93 VOLVO PENTA 5.0FL
1999-93 VOLVO PENTA 5.7Gi
1999-93 VOLVO PENTA 5.7GL
1999-93 VOLVO PENTA 5.7GS
1999-93 VOLVO PENTA 5.7GSi
1996-93 VOLVO PENTA 5.8Fi
1996-93 VOLVO PENTA 5.8L
1999-94 VOLVO PENTA 7.4GL
1999-94 VOLVO PENTA 8.2GL

120/2.5 L GM 4 1983-1989 n° from série 6229718 to C853255

140/3.0 LX GM 4 1992 & after n° from série D831101 & after

175/4.3 L GM V-6 1987-1992n° from série  B527955 to D714106

185 GM V-6 1983-1984 n° from série 6330183 to 6919655

185 GM V-6 1985-1987 n° from série A331455 to B527954

205 GM V-6 1985-1991 n° from série A331455 to D714369

200 GM V-8 1985-1986 n° from série 6218462 to B525981

200/5.0 L GM V-8 1987-1995 n° from série B525982 to F600999

228/230 GM V-8 1977-1986 n° from série 4765100 to B525981

230/5.0 LX GM V-8 1987-1995 n° from série B525982 to F600999

230/5.0 L MIE GM V-8 1987-1988 n° from série 5907058 to B788151

260 GM V-8 1982-1986 n° from série 6218462 to B525981

260/5.7 L GM V-8 1987-1995 n° from série B525982 to F600999

260/5.7 L MIE GM V-8 1987-1995 n° from série 5907058 to F746099

5.7 L/LX GM V-8 1996n° from série F601000 to K001526

5.7 L MIE GM V-8 1994-1996 n° from série F622151 to K040306

5.7 L Ski GM V-8 1985-1995 n° from série A338533 to F775199

5.7 L Ski GM V-8 1996 n° from série F775200 to K040003

350 Mag. Alpha GM V-8 1986-1995 n° from série A635178 to F600999

350 Mag. Alpha GM V-8 1987-1996 n° from série B525982 to K001526

350 Mag. Ski GM V-8 1991-1996 n° from série D505450 to K040399

300 TR TEMPEST GM V-8 1985-1986 n° from série 6668677 to B430367

320 EFI GM V-8 1987-1989 n° from série A543604 to C622418

340/7.4 L MIEw/BW GM V-8 1981-1992 n° from série 5889914 to D715493

7.4 L GM V-8 1988-1991 n° from série B771113 to D603117

7.4 L GM V-8 1988-1996 n° from série B771113 to F800699

7.4 L GM V-8 1992-1997 n° from série D603118 to K999999

7.4 L MIE GM V-8 1989-1996 n° from série C391564 to F820141

7.4 L MIE GM V-8 1992-1997 n° from série D715494 to K999999

502 Mag. Bravo GM V-8 1990-1993 n° from série C878221 to F114528

525 SC GM V-8 1991-1993 n° from série D456000 to D763831

525 SC GM V-8 1993-1997 n° D763871 & after

8.2 L MIE GM V-8 1990-1996 N° from C878221 to F819619

8.2 L MIE GM V-8 1993-1996 n° from D857200 to  F819619

                     NO CORE EXCHANGE NEEDED

                                        TWO YEARS WARRANTY
