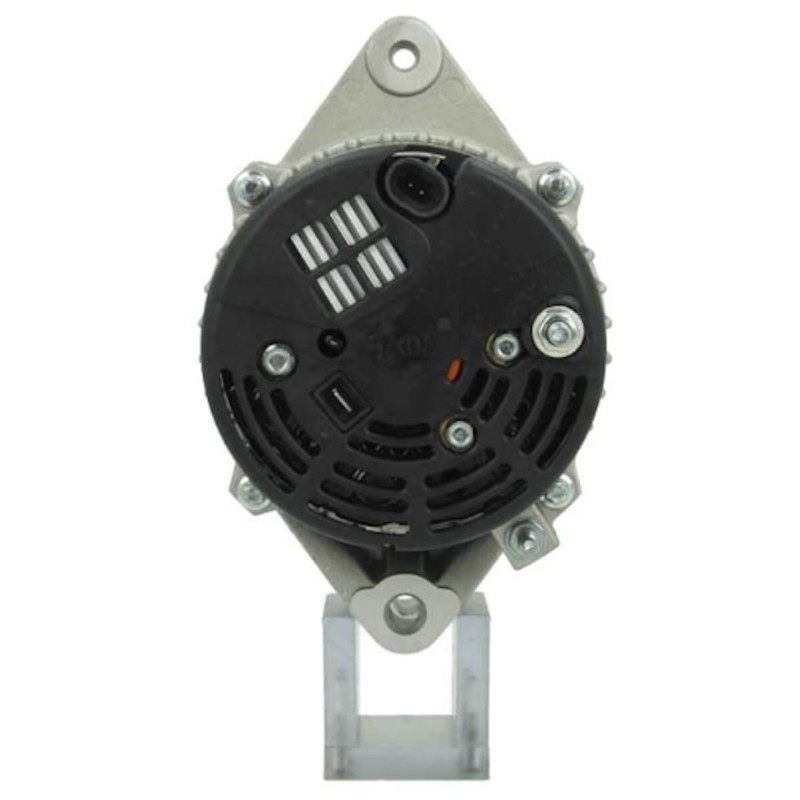

Alternator DELCO REMY 19020614 replacing 19020615 / 19020606
Alternator NEW for Pleaonecraft 305CI, 5.0L / 350CI, 5.7L / 496CI, 8.1L
Voltage : 14 Amp: 70 Plug type: W
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info

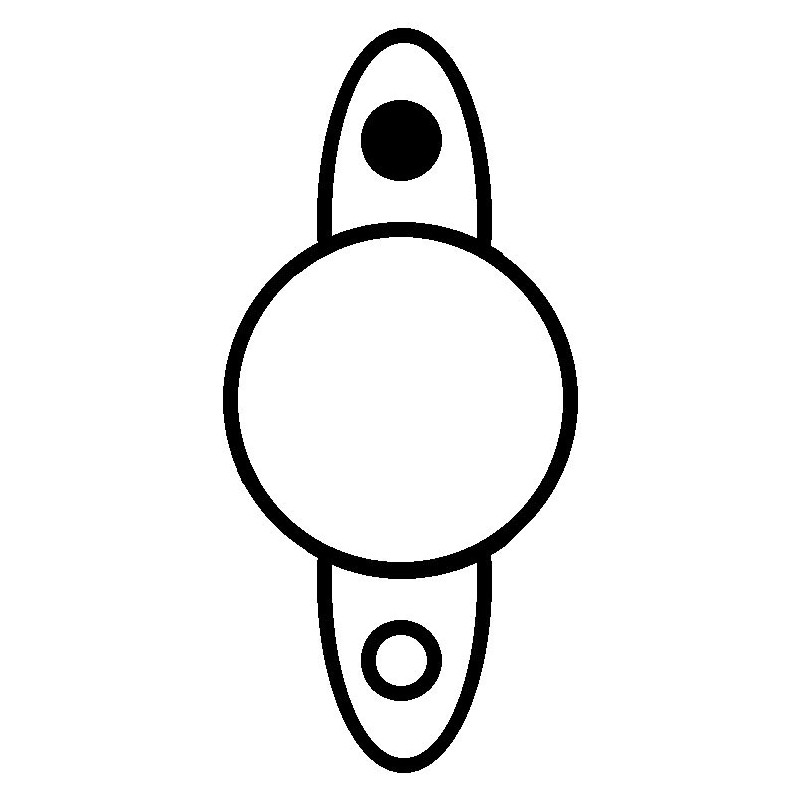

Physical Information | ||
|---|---|---|
| D | Bracket hole | 10.10 |
| G | Belt. adj. bracket hole | M8 |
| B | Width/holder arm | 50.80 |
| E | Belt. adj. brackethole pos. | 60 |
| H | Pulley dia. | 62.75 |
| A | Pulley dist. | 72.50 |
| I | Grooves/pulley | 6 |
| j | Radius | 84.00 |
| j | Radius 2 | 84.00 |
| k | Position B + | M6 |
| n | Rotation | Cr |

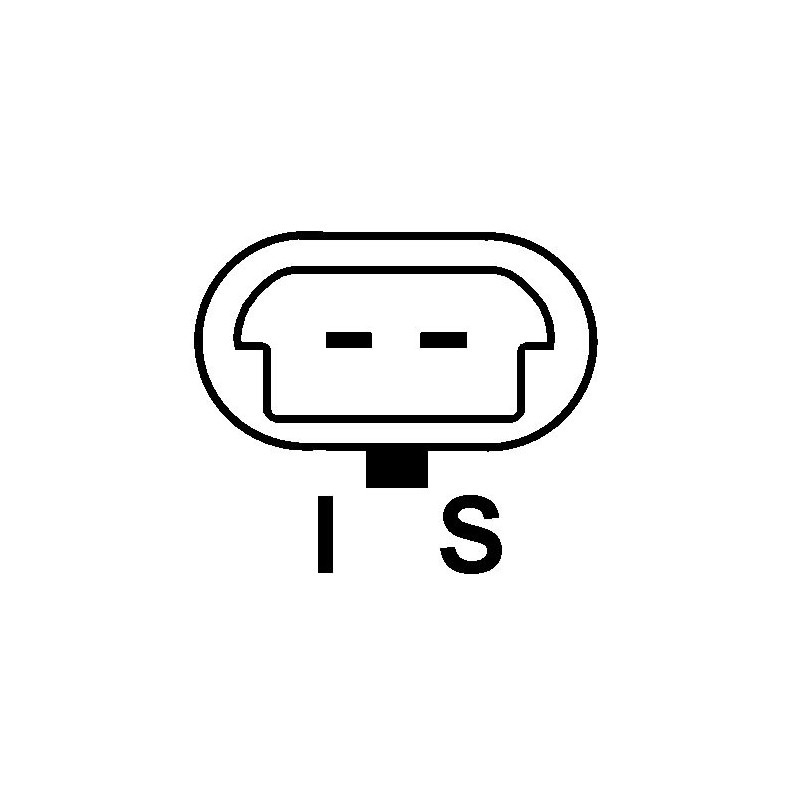

| o | Plug no. 1 | PL145 |
| Q | Tipo prise W | 6.3 |
| R | Total length mm | 177.00 |
| Fan | If | |
| Pulley | Serpentine Pulley | |
| Tipo regulator | Ir | |
| Vaccum pump | Without | |
Replacing :
19020606 | DELCO REMY |
| 19020615 | DELCO REMY |
| 575011 | Indmar |
| 20115014TBA | PRESTOLITE |
| 5800268-29 | YALE |
| RA097007 | PLEASURECRAFT MARINE |
Mounted on :
2004-02 Crusader 305
2004-02 Crusader 350
2004-01 Crusader 496
2008-97 Marine Power Various Models
2004-02 Pleaonecraft 305CI, 5.0L
2004-02 Pleaonecraft 350CI, 5.7L
2004-01 Pleaonecraft 496CI, 8.1L
also on forklift HYSTER.
