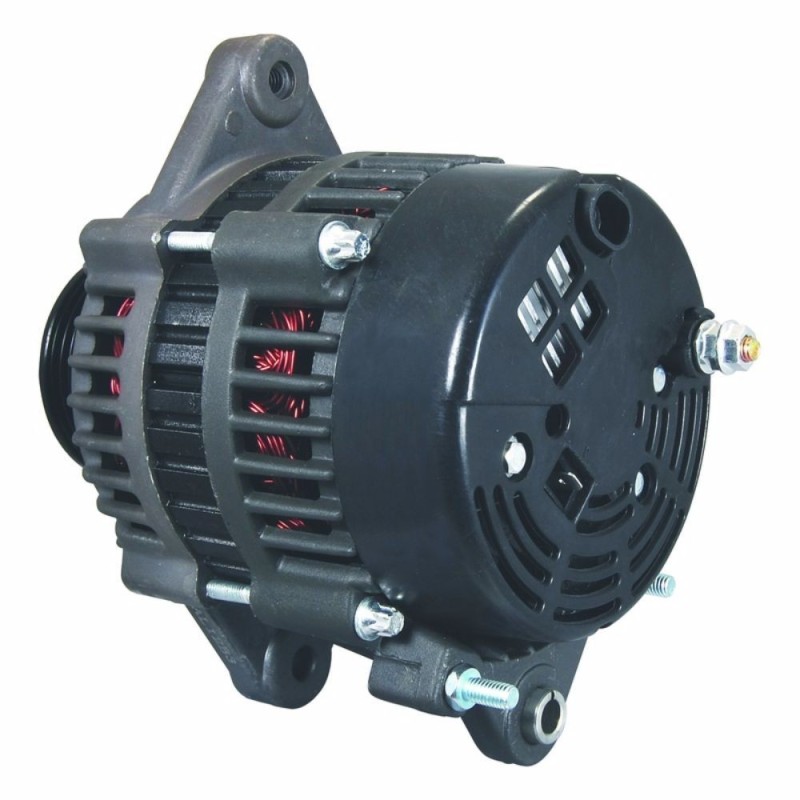

Alternator replacing DELCO REMY 19020609 / 19020601

Information:

Rotation Cr

Amp 70

Voltage 14

Plug type W

D =  Bracket hole 8.50

G = Belt. adj. bracket hole M8

B = Width/holder arm 16.80

E = Belt. adj. brackethole pos. 60

C = Mount. bracket dist 65.20

H = Pulley dia. 62.80

A = Pulley dist. 41.00

Grooves/pulley 6

J = Radius 78.00

J = Radius 2 78.00

Position B + M6

Plug no. 1 PL145

Fan If

Pulley Serpentine Pulley

Tipo regulator Ir

Tipo prise W 6.30

R = Total length mm 180.00

Alternator NEW / wai

affectation :

1999-On MERCRUISER Model 350 Mag MPI (Gen +)
1998-On MERCRUISER Model 350 Mag MPI Alpha & Bravo
2001-On MERCRUISER Model 350 Mag MPI Hor Alpha & Bravo
1999-On MERCRUISER Model 350 Mag MPI Horizon
1998-On MERCRUISER Model 350 Mag MPI Ski (Gen +)
1998-On MERCRUISER Model 4.3L (Gen +)
1999 MERCRUISER Model 4.3L EFI
1998-On MERCRUISER Model 4.3L EFI (Gen +) TBI
2002-01 MERCRUISER Model 4.3L MPI
1998-On MERCRUISER Model 4.3LH (Gen +) (4-BBL)
2000-On MERCRUISER Model 454 Mag Bravo MPI (Gen VI)
2001-On MERCRUISER Model 454 Mag MPI (Gen VI)
2001-On MERCRUISER Model 454 Mag MPI Horizon
1998-On MERCRUISER Model 454 Mag MPI Horizon (Gen VI)
2002-98 MERCRUISER Model 5.0L (2-BBL) (Gen +)
2001-99 MERCRUISER Model 5.0L EFI (Gen +)
2001-On MERCRUISER Model 5.0L MPI Alpha & Bravo
2002-98 MERCRUISER Model 5.7L (2-BBL) (Gen +)
1998-On MERCRUISER Model 5.7L EFI (Gen +)
1997-On MERCRUISER Model 5.7L EFI (Gen +) MIE
1999-On MERCRUISER Model 5.7L MIE
1998-On MERCRUISER Model 5.7L Ski (Gen +)
1998-On MERCRUISER Model 502 Mag MPI (Gen VI)
2000-98 MERCRUISER Model 7.4L MIE MPI (L29) (Gen VI)
2000-98 MERCRUISER Model 7.4LX MPI (Gen VI) (L29)
2000-On MERCRUISER Model 8.2L MIE MPI (LH) (Gen VI)
2000-On MERCRUISER Model MX 6.2L MPI
2000-On MERCRUISER Model MX 6.2L MPI Horizon

                             NO CORE EXCHANGE NEEDED

                                              TWO YEARS WARRANTY
