Warning: Last items in stock!
Availability date:
w115691
New product
2 Item Items

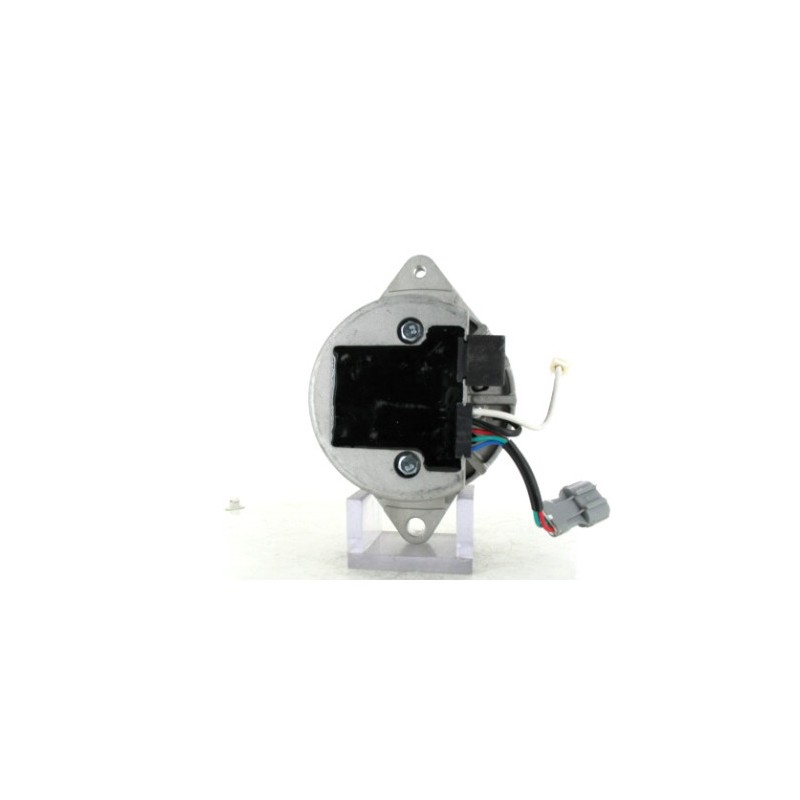

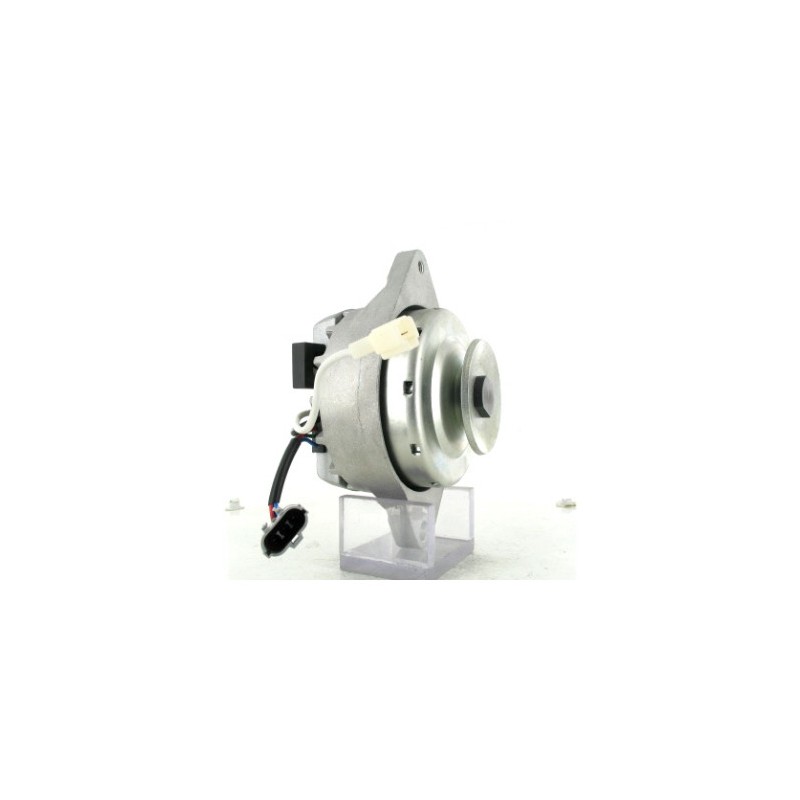

Alternator NEW replacing 8970489700 / 8970489701 / 8970489702
fits engine ISUZU
Engine 3LD1 /3LB1
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
Information:
Electrical Information | ||
---|---|---|
Voltage | 14 | |
Amp | 20 |
Physical Information | ||
---|---|---|
D | Bracket hole | 10.50 |
G | Belt. adj. bracket hole | M8 |
B | Width/holder arm | 15.00 |
E | Belt. adj. brackethole pos. | 60 |
H | Pulley dia. | 65.00 |
A | Pulley dist. | 44.00 |
i | Grooves/pulley | 1 |
j | Radius | 78.00 |
j | Radius 2 | 78.00 |
k | Position B + | 6.30 |

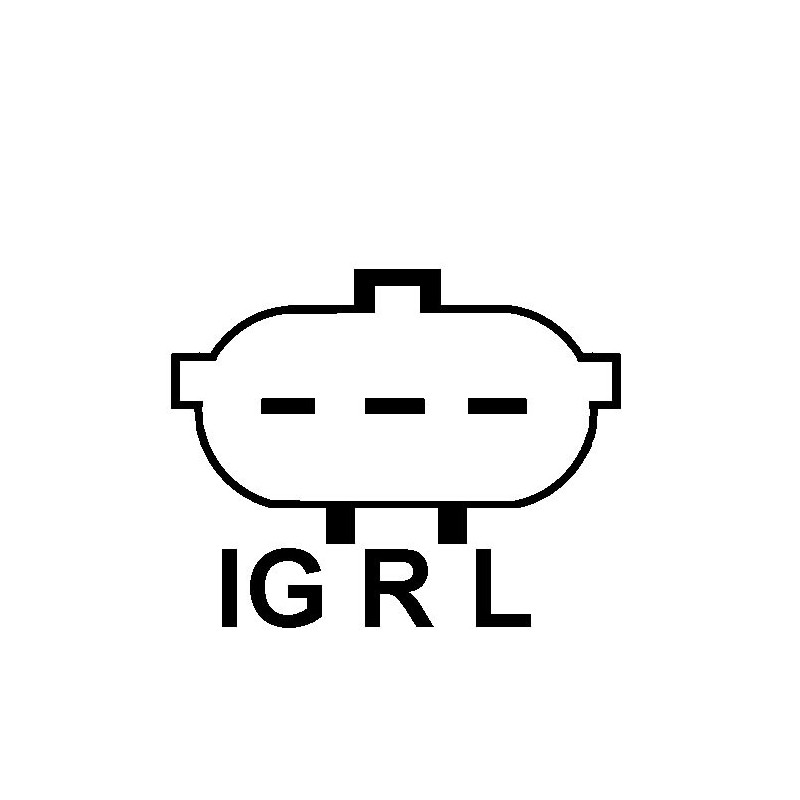

o | Plug no. 1 | PL155 |
R | Total length mm | 97.00 |
Replacing | |
---|---|
8970489700 | ISUZU |
8970489701 | ISUZU |
8970489702 | ISUZU |
gp9901 | KOKUSAN-DENKI |
gp9905 | KOKUSAN-DENKI |
generic brand
Mounted on : Engine 3LD1 /3LB1
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
