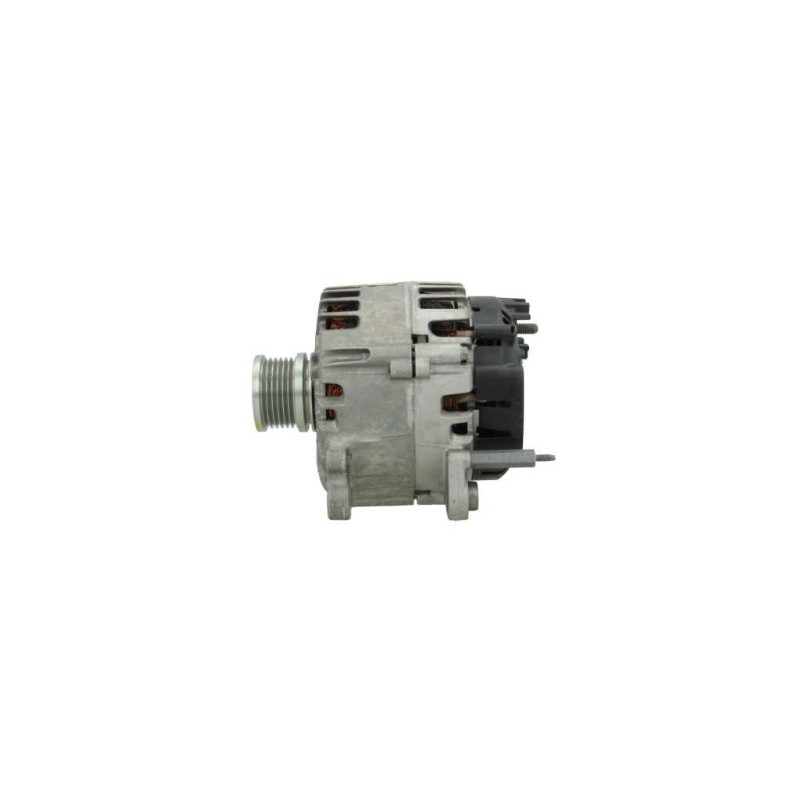

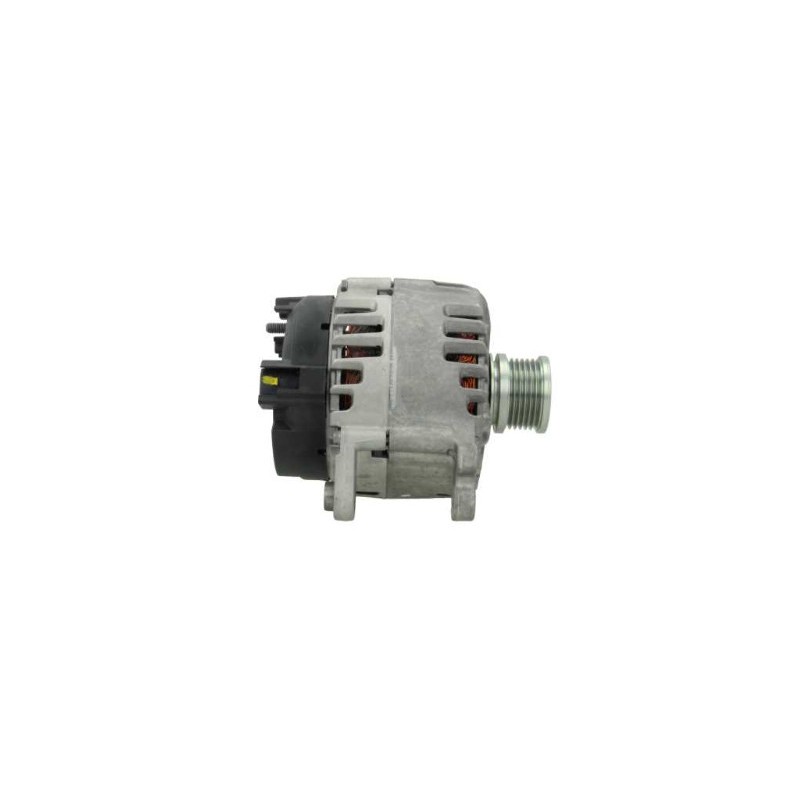

Alternator replacing TG14C043 / TG14C051 / TG14C095 / 0986083130
Alternator replacing :
DELCO REMY DRA1212 / LUCAS LRA03185 / VALEO 439791 / 440428
VW 03L903023KX / 03L903023L / 03L903023LX / 03L903024D / 04L903021A / 04L903024D
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Information:
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 140 | |
Brand VALEO
Physical Information | ||
|---|---|---|
| D | Bracket hole | 8.50 |
| G | Belt. adj. bracket hole | 8.50 |
| B | Width/holder arm | 14.00 |
| E | Belt. adj. brackethole pos. | 15 |
| C | Mount. bracket dist | 61.00 |
| H | Pulley dia. | 49.35 |
| A | Pulley dist. | 39.50 |
| i | Grooves/pulley | 6 |
| j | Radius | 90.00 |
| j | Radius 2 | 90.00 |
| k | Position B + | M8 |
| n | Rotation | CW |

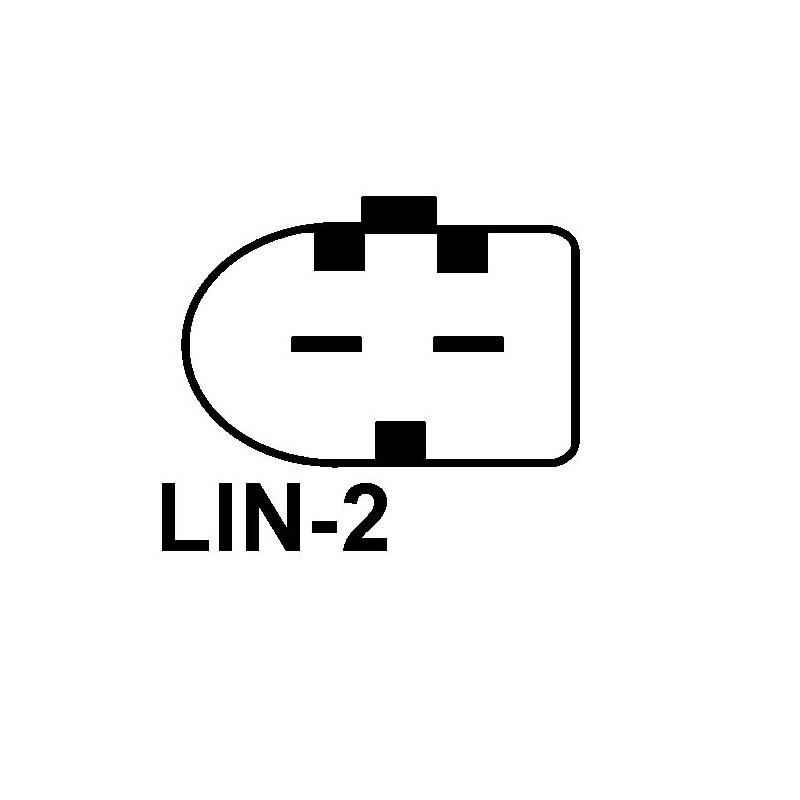

| o | Plug no. 1 | PL181 |
| R | Total length mm | 195.00 |
generic brand
replacing
| 03L903023KX | VW |
| 03L903023L | VW |
| 03L903023LX | VW |
| 03L903024D | VW |
| 04L903021A | VW |
| 04L903024D | VW |
| 0986083130 | BOSCH ruil |
| 0986UR6374 | BOSCH |
| 115826 | Cargo |
| 116359 | Cargo |
| 12090347 | EuroTec |
| 12090498 | EuroTec |
| 2113571402 | DRI |
| 2612004E | VALEO |
| 285797 | Elstock |
| 305922140 | PSH |
| 439791 | VALEO |
| 440428 | VALEO |
| 4662 | CEVAM |
| 50102827 | RE-EX |
| 612004 | VALEO |
| 747137 | VALEO |
| 931212 | EDR |
| CAL15567 | Casco |
| DRA1212 | DELCO REMY |
| HVW0009060900 | MERCEDES-BENZ |
| LRA03185 | LUCAS |
| TG14C043 | VALEO |
| TG14C051 | VALEO |
| TG14C095 | VALEO |
Mounted on :
VOLKSWAGEN
AUDI
SKODA
SEAT
