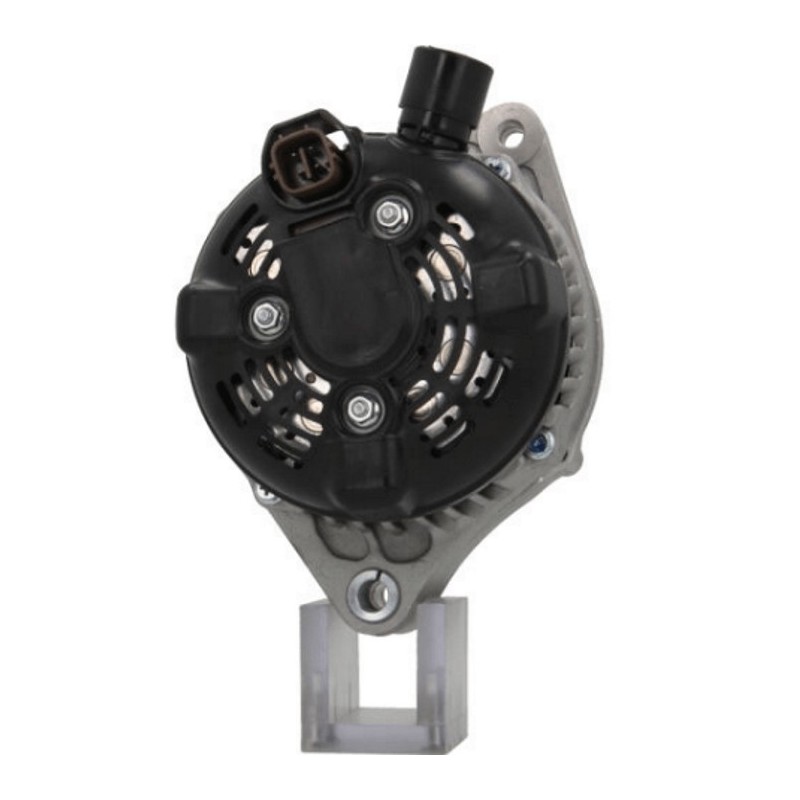

Alternator replacing 104210-4690 / 31100-RJA-A01/ 31100-RJA-A02
| 0986CN0854 | Bosch ruil |
| 0986CR0800 | Bosch ruil |
| 0986CR0854 | Bosch ruil |
| 0986JR1609 | Bosch ruil |
| 0986UR0800 | Bosch ruil |
| 1042103100 | Denso |
| 1042104290 | Denso |
| 1042104300 | Denso |
| 1042104301 | Denso |
| 1042104690 | Denso |
| 11151 | EAI |
| 11151 | Lester |
| 116767 | Cargo |
| 12061055 | EuroTec |
More info

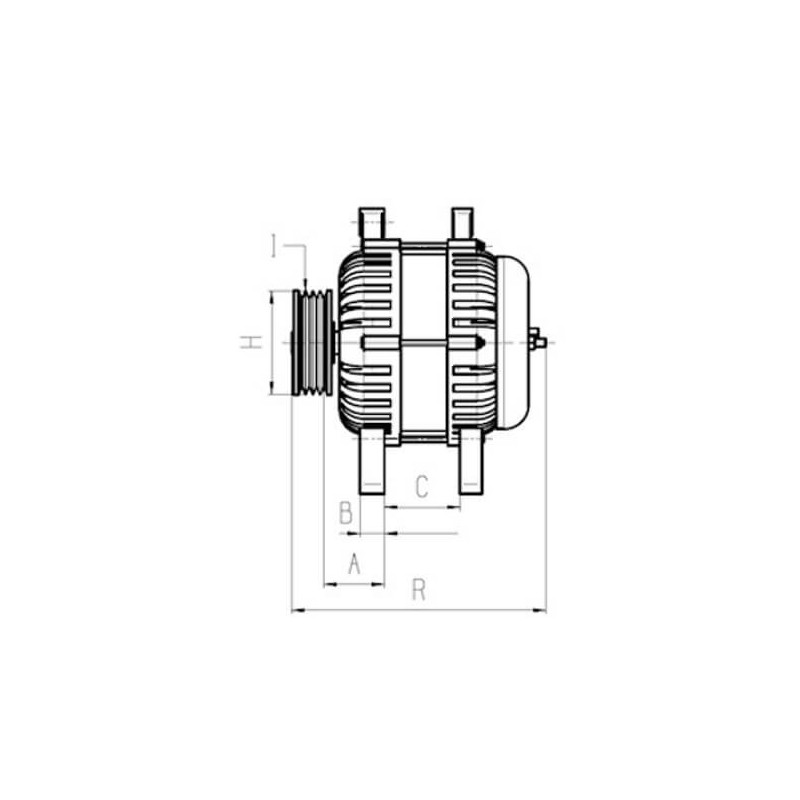

Physical information | ||
|---|---|---|
| A | Pulley dist. | 85.00 |
| B | Width/holder arm | 47.00 |
| D | Bracket hole | 10.00 |
| E | Belt. adj. brackethole pos. | 56 |
| G | Belt. adj. bracket hole | 8.50 |
| H | Pulley dia. | 65.00 |
| I | Grooves/pulley | 6 |
| J | Radius | 88.00 |
| J | Radius 2 | 84.00 |
| K | B+ | M8 |
| K | Position/B+ in min. | 3 |
| N | Rotation | CW |
| O | Plug no. | PL60 |
| R | Total length mm | 162.00 |
Electrical information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 130 | |
generic brand
replacing
| 0986CN0854 | Bosch ruil |
| 0986CR0800 | Bosch ruil |
| 0986CR0854 | Bosch ruil |
| 0986JR1609 | Bosch ruil |
| 0986UR0800 | Bosch ruil |
| 1042103100 | Denso |
| 1042104290 | Denso |
| 1042104300 | Denso |
| 1042104301 | Denso |
| 1042104690 | Denso |
| 11151 | EAI |
| 11151 | Lester |
| 116767 | Cargo |
| 12061055 | EuroTec |
| 125572130 | PSH |
| 2221721302 | DRI |
| 287780 | Elstock |
| 31100RDJA01 | Honda |
| 31100RGLA01 | Honda |
| 31100RGMA01 | Honda |
| 31100RJAA01 | Suzuki |
| 31100RJAA02 | Suzuki |
| 31100RYPA01 | Honda |
| 931443 | EDR |
| AA7579 | Auto Charge |
| AEG1226 | Auto Electro |
| AL1297N | Bosch (USA) |
| AL1297X | Bosch (USA) |
| AL1300X | Bosch (USA) |
| CSD29 | Honda |
| CSD30 | Honda |
| CSD69 | Honda |
| DRA1443 | Remy |
| LRA04171 | Lucas |
| RNL1042103100 | RNL |
| RNL1042104290 | RNL |
| RNL1042104300 | RNL |
| RNL1042104690 | RNL |
| TN1042104690 | Denso |
for
| Brand | Model | Typ | Year |
| ACURA | MDX 3.7 | 01.2007-12.2008 | |
| ACURA | RL 3.5 | 01.2005-12.2007 | |
| HONDA | Ridgeline 3.5 | 01.2006-12.2008 | |
| HONDA | Accord 3.0 | 01/01/07 |
