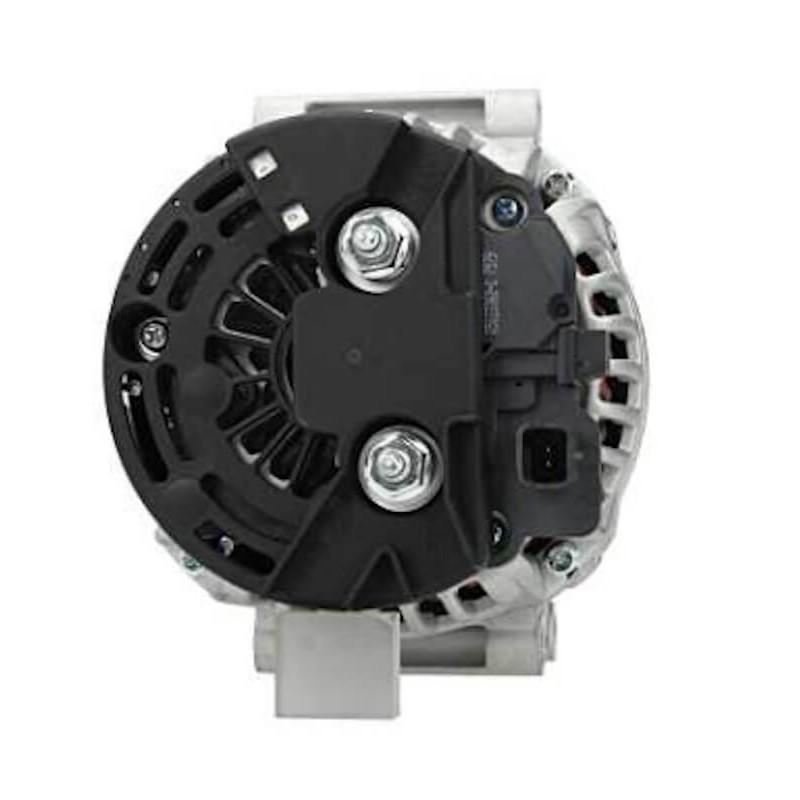

Alternator replacing 0124325024 / 0124325175 / 7700427932
| 0124325175 | Bosch |
| 27060165FL | Toyota |
| 283669 | Elstock |
| 575573087 | PSH |
| 7700427932 | Renault |
| 7701477693 | Renault |
| 7711497096 | Renault |
| 8200692866 | Renault |
| CA1544IR | HC |
| DRA0303 | Remy |
| DRB2720 | Remy |
| DREDRA0303 | Dapex |
| LRB00504 | Lucas |
More info
Information:
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 85 | |
Replacing :
Physical Information | ||
|---|---|---|
| D | Bracket hole | 9.50 |
| G | Belt. adj. bracket hole | 10.50x9.50 |
| B | Width/holder arm | 80.10 |
| C | Mount. bracket dist | 40.50 |
| H | Pulley dia. | 54.50 |
| A | Pulley dist. | 19.50 |
| i | Grooves/pulley | 6 |
| k | Position B + | M8 |
| n | Rotation | Cr |

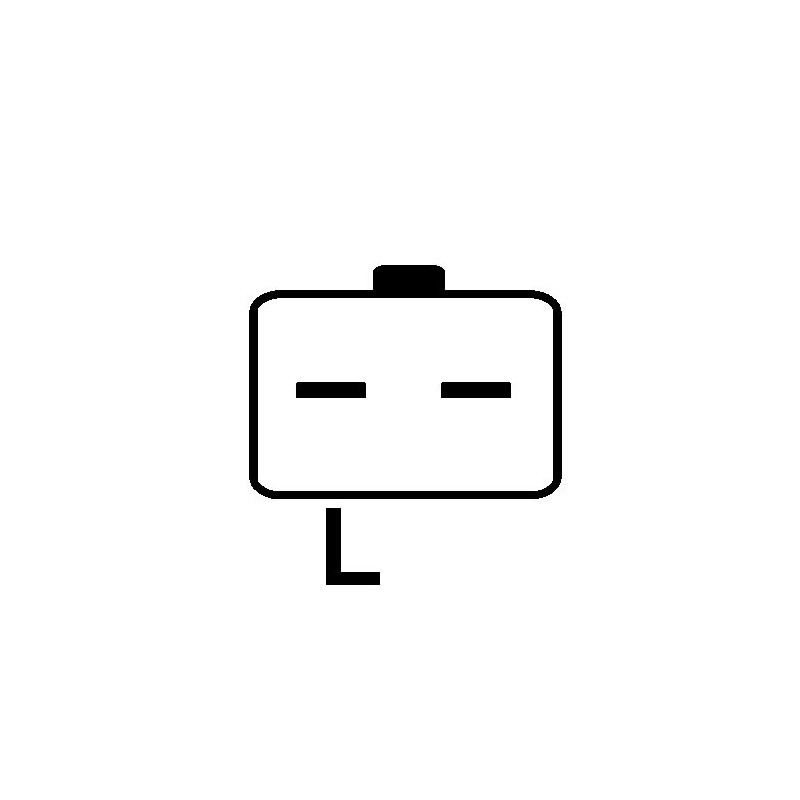

| o | Plug no. 1 | PL55 |
| R | Total length mm | 194.00 |
Generic brand
Replacing :
| 0124325024 |
| 0124325175 |
| 20130111 |
| 21504 |
| 2205122D |
| 27060165FL |
| 283669 |
| 575573087 |
| 7700427932 |
| 7711497096 |
| 9042720F |
| 930303 |
| 930303X |
| 942720 |
| CA1544IR |
| DRA0303 |
| DRB2720 |
| LRB00504 |
Mounted on :
RENAULT - DACIA - NISSAN
NO CORE EXCHANGE NEEDED E
TWO YEARS WARRANTY
