Physical information |
|---|
| A | Pulley dist. | 40.00 |
| B | Width/holder arm | 90.00 |
| C | Mount. bracket dist. | 52.00 |
| D | Bracket hole | 8.10x9.70 |
| D | Bracket hole 2 | 9.00 |
| G | Belt. adj. bracket hole | 8.10 |
| G | Belt. adj. bracket hole 2 | 9.00 |
| H | Pulley dia. | 50.00 |
| I | Grooves/pulley | 8 |
| J | Radius | 83.00 |
| J | Radius 2 | 82.00 |
| K | B+ | M8 |
| K | Position/B+ in min. | 15 |
| N | Rotation | CW |

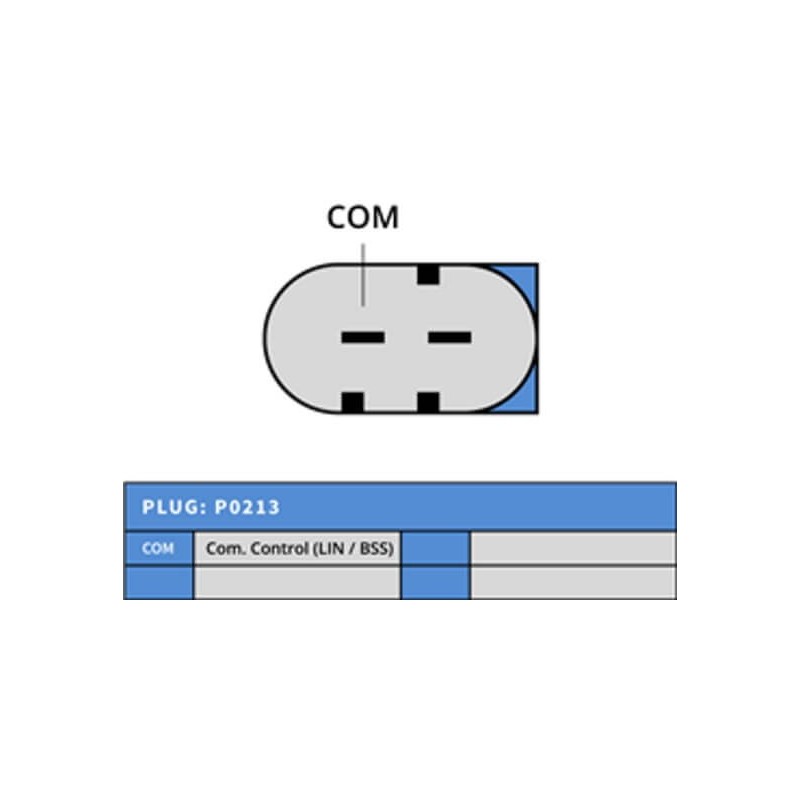

| O | Plug no. | PL166 |
| R | Total length mm | 184.00 |
| Terminal type | COM |
Electrical information |
|---|
| Voltage | 14 |
| Amp | 220 |
Catalogue information |
|---|
| Pulley | SP/FW |
| Regulator type | IR |
| Remarks | This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering |
Generic brand replacing :
| 0121813004 | Bosch |
| 0121813104 | Bosch |
| 0986047620 | Bosch ruil |
| 116143 | Cargo |
| 12047620 | EuroTec |
| 2251872202 | DRI |
| 285901 | Elstock |
| 555520220 | PSH |
| 6291500050 | Mercedes-Benz |
| 629150005080 | Mercedes-Benz |
| 947620 | EDR |
| A6291500050 | Mercedes-Benz |
| A629150005080 | Mercedes-Benz |
| DRB7620 | Remy |
| LRA03289 | Lucas |
| RNL4762 | RNL |
