Alternator replacing HITACHI LR160-138 / LR160-137 / LR155-25

Information:

Voltage 14

Amp 55

D = Bracket hole 8.00

G = Belt. adj. bracket hole M8

B = Width/holder arm 13.00

E = Belt. adj. brackethole pos. 60

C = Mount. bracket dist 81.00

H = Pulley dia. 75.20

A = Pulley dist. 42.00

Grooves/pulley 1

J = Radius 87.90

J = Radius 86.15

Position B + M5

Rotation Cr

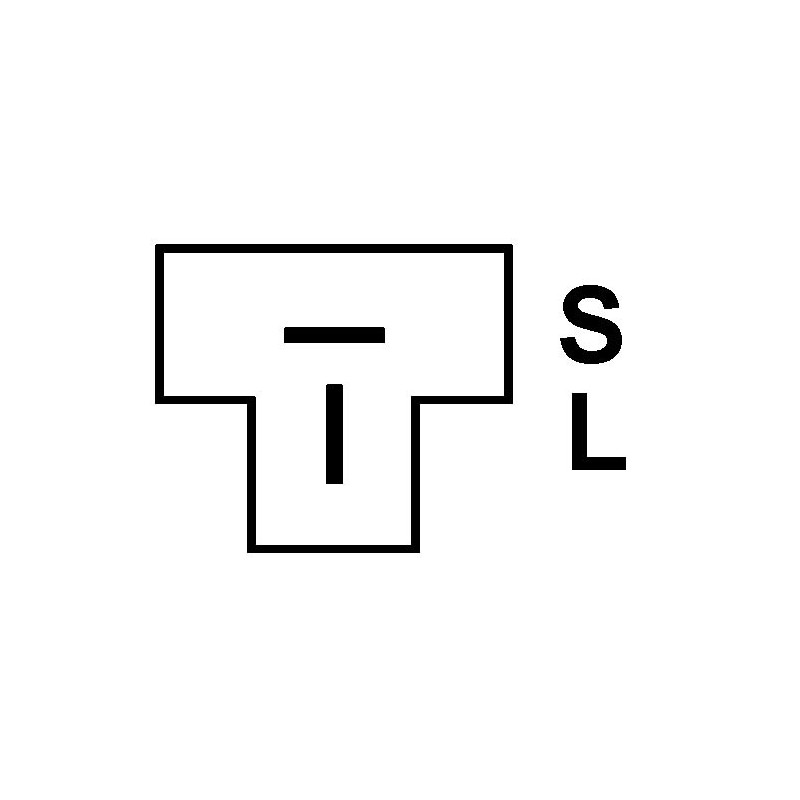

Plug no. 1 PL08

Fan Ef

Pulley Pulley

R = Total length mm 172.00

= HITACHI LR160-138 / LR160-137 / LR155-25 / LR155-18

LR155-17 / LR155-15C / LR155-15B / LR155-15 / LR150-110C

lr150-110

= SUBARU 23700-aa000 / 23700-aa020 / 42990-7330

42990-7340 / 42990-7400

                   NO CORE EXCHANGE NEEDED

                                       TWO YEARS WARRANTY
