w115364

Replacing
1986A00572 Bosch
1986A00771 Bosch
2605547 Valeo
2605547A Valeo
2614016A Valeo
2618013 Valeo
2618013A Valeo
2618013C Valeo
2621087A Valeo
2624310A Valeo
2624310B Valeo
9664779680 Peugeot
9678048880 Peugeot
9803049980 Peugeot
9810525380 Peugeot
Read more
€148.90 Tax included
Price may vary according to your VAT rate
Last items in stock Fast delivery
Add product to favorites
2-year warranty
No instructions, no return of the old
Secure payments

Features

Physical information
A Pulley dist. 42.50
B Width/holder arm 21.00
C Mount. bracket dist. 45.50
D Bracket hole 10.00
E Belt. adj. brackethole pos. 47
G Belt. adj. bracket hole 10.50
G Belt. adj. bracket hole 2 M10
H Pulley dia. 54.50
I Grooves/pulley 6
J Radius 89.00
J Radius 2 89.00
K B+ M8
K Position/B+ in min. 1
N Rotation CW
O Plug no. PL132
R Total length mm 180.00

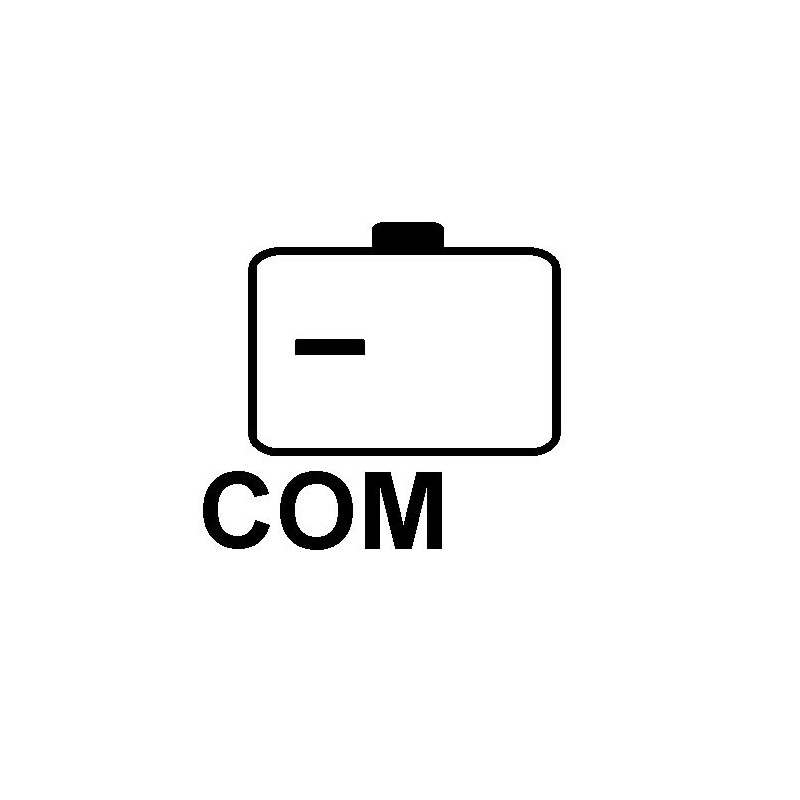

Terminal type COM
Electrical information
Voltage 14
Amp 150

generic brand

Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering

replacing

0986082240 Bosch ruil
115364 Cargo
12090499 EuroTec
1606859180 PSA
1612458880 PSA
1800A350 Mitsubishi
209433 Messmer
225549150 PSH
2291511502 DRI
2605547 Valeo
2605547A Valeo
2605547B Valeo
26140016A Valeo
26140016B Valeo
2614016 Valeo
2614016A Valeo
2614016B Valeo
2618013A Valeo
2621087A Valeo
2624310A Valeo
2624310C Valeo
2624327A Valeo
286567 Elstock
439701 Valeo
439933 Valeo
440286 Valeo
440677 Valeo
4892 CEVAM
5702J9 PSA
5705KV PSA
614016 Valeo
6484SP Spidan
9090610 Friesen
9090610F Friesen
930895 EDR
944390906100 Magneti Marelli
9664779680 PSA
9678048880 PSA
9678058680 PSA
9803049980 PSA
9803050280 PSA
9810525380 PSA
CA2033IR HC
DRA0895 Remy
FG15T195 Valeo
HCA2033IR HC
K9678048880 Fiat
LRA03457 Lucas
LRA3457 Lucas
OAN12728 Optimum
SP6484 Spidan
TG15C135 Valeo
TG15C135OR +line
TG15C189 Valeo
TG15C195 Valeo
TG15C211 Valeo
TG15S205 Valeo
TG15S218 Valeo
