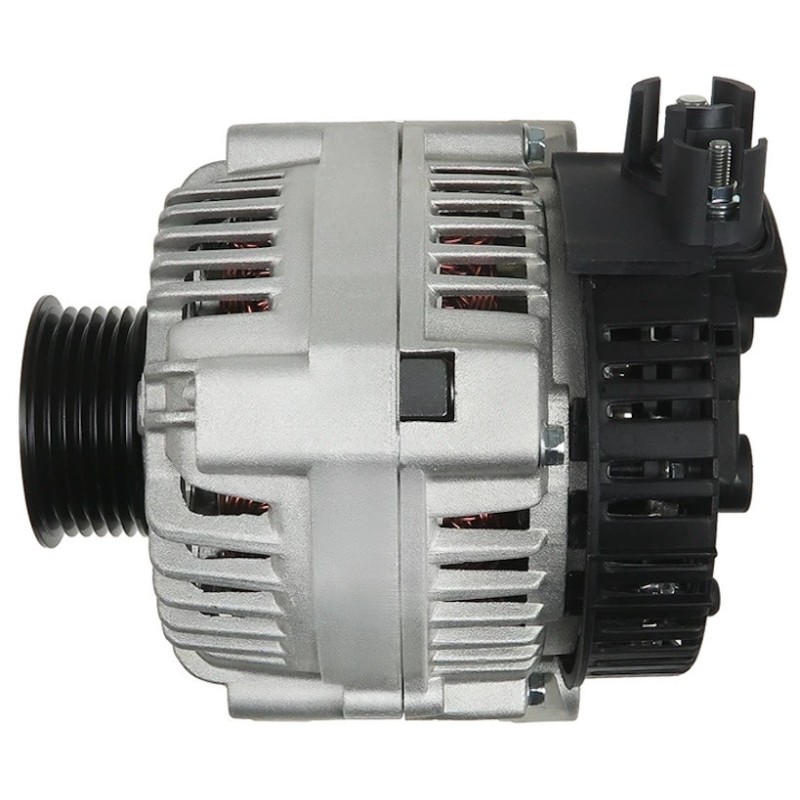

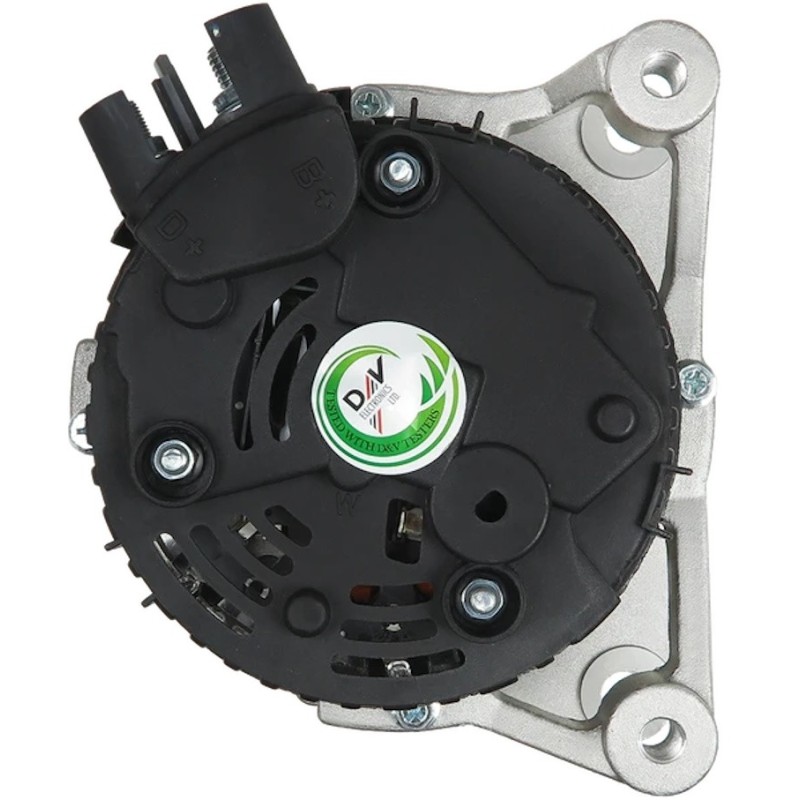

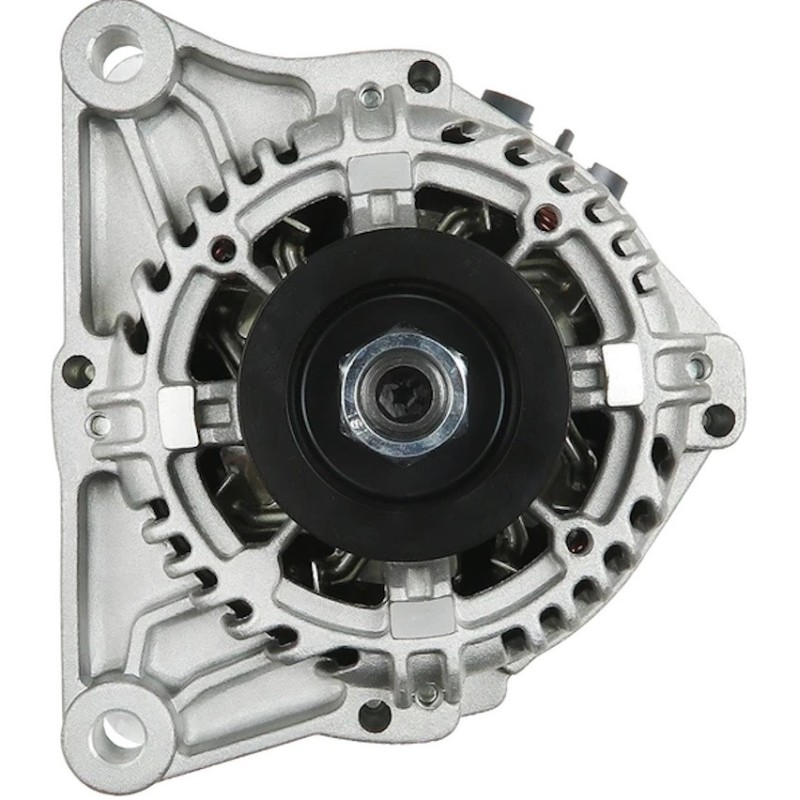

Alternator replacing VALEO SG7S024 / SG7S014 / A11VI91 / 2542678

Information:

Voltage 14

Amp 70

D = Bracket hole 10.30

G = Belt. adj. bracket hole 10.60

B = Width/holder arm 22.00

E = Belt. adj. brackethole pos. 46

C = Mount. bracket dist 45.00

H = Pulley dia. 54.00

A = Pulley dist. 42.50

Grooves/pulley 6

J = Radius 89.00

J = Radius 89.00

Position B + M8

Rotation Cr

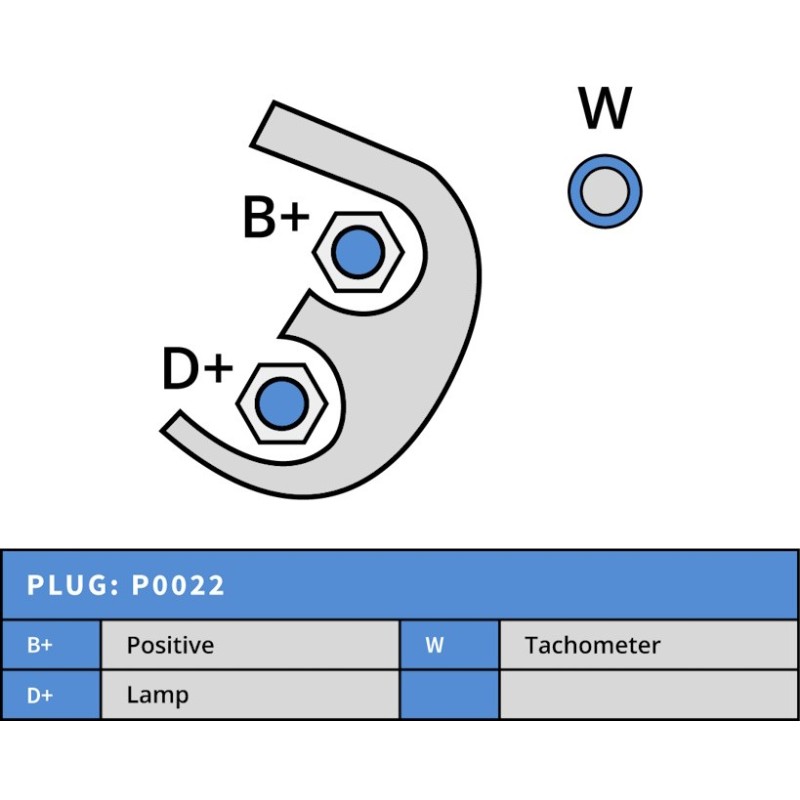

Plug no. 1 PL_NA

Fan If

Pulley Serpentine Pulley

R = Total length mm 171.50

generic brand

= BOSCH 0986042071

= CITROEN 57054T / 5705-2A / 5705-FW / 5705-4T / 5705FW / 57052A

= DELCO REMY DRS2301 / DRA3706

= Elstock 28-3761

= HELLA CA1442IR / 8EL737-639-001 / 8EL737639-001 / 8EL011360-041

= VALEO A11VI91 / 2542483 / SG7S024 / 439246 / SG7S014 / 2542678 / 746011 / 746811 / 2541969 / 2541969a / 437137

= LUCAS LEA0463 / LRB436 / LRB00436

= MAGNETI MARELLI 943355151010 / 943355014 / 944390420710 / 943355151

= PRESTOLITE 20110438

= PEUGEOT 9621791680 / 9623727180 / 9627727180 / 9642880280 / 9646153680

5705-4T / 5705FW / 5705-4R / 5705-FW / 57052A / 57054T / 5705-2A / 57054R

= FIAT 71716607 / 9621791680

fits:

CITROEN BERLINGO (MF) 1.9 D 4WD (MFWJZ) (1998-...)
CITROEN BERLINGO (MF) 1.9 D (MFWJZ) (1998-2005)
CITROEN BERLINGO (MF) 2.0 HDi 4x4 (MFRHY) (2002-2005)
CITROEN BERLINGO (M_) 1.9 D 70 4WD (MBWJZ, MCWJZ) (1998-...)
CITROEN BERLINGO (M_) 1.9 D 70 (MBWJZ, MCWJZ) (1999-...)
CITROEN BERLINGO (M_) 2.0 HDI 90 4WD (MBRHY, MCRHY) (2000-...)
CITROEN C15 (VD-_) 1.9 D (2000-2005)
CITROEN DISPATCH (U6U) 1.9 D 70 (1998-...)
CITROEN DISPATCH Van (BS_, BT_, BY_, BZ_) 1.9 D 70 (1998-...)
CITROEN DISPATCH c (BU_, BV_, BW_, 1.9 TD (1999-...)
CITROEN JUMPY (U6U) 1.9 D 70 (1998-...)
CITROEN JUMPY c (BU_, BV_, BW_, BX 1.9 TD (1999-...)
CITROEN JUMPY (BS_, BT_, BY_, BZ_) 1.9 D 70 (1998-...)
CITROEN XSARA (N1) 1.9 D (1998-2005)
CITROEN XSARA Break (N2) 1.9 D (1998-2005)
CITROEN XSARA PICASSO (N68) 1.6 (2002-...)
CITROEN XSARA купе (N0) 1.9 D (1999-2005)
FIAT SCUDO Combinato (220P) 1.9 D (1998-2006)
FIAT SCUDO (220L) 1.9 D (1998-2006)
PEUGEOT 206 CC (2D) 2.0 S16 (2000-...)
PEUGEOT 206 CC (2D) 1.6 16V (2000-...)
PEUGEOT 206 (2A/C) 1.1 i (1998-...)
PEUGEOT 206 (2A/C) 1.4 i (1998-...)
PEUGEOT 206 (2A/C) 2.0 S16 (1999-...)
PEUGEOT 206 (2A/C) 1.6 16V (2000-...)
PEUGEOT 206 (2A/C) 1.6 i (1998-2000)
PEUGEOT 206 (2A/C) 2.0 S16 (1999-2000)
PEUGEOT 206 (2A/C) 1.9 D (1998-2001)
PEUGEOT 206 (2A/C) 1.4 LPG (2006-2007)
PEUGEOT 306 (7B, N3, N5) 1.9 D (1998-2001)
PEUGEOT 306 Break (7E, N3, N5) 1.9 D (1998-2002)
PEUGEOT 306 (7A, 7C, N3, N5) 1.9 D (1998-2001)
PEUGEOT EXPERT Van (222) 1.9 D 70 (1998-...)
PEUGEOT EXPERT (222) 1.9 D 70 (1998-...)
PEUGEOT GRAND RAID (5F) 1.9 D (1998-...)
PEUGEOT PARTNER Combispace (5F) 1.9 D (1998-...)
PEUGEOT PARTNER Van (5) 1.9 D (1996-...)
PEUGEOT PARTNER Van (5) 1.9 D 4x4 (2004-...)
PEUGEOT PARTNER Van (5) 2.0 HDi 4x4 (2004-...)
PEUGEOT PARTNER (5) 1.9 D (1996-...)
PEUGEOT PARTNER (5) 1.9 D 4x4 (2004-...)

TWO YEARS WARRANTY

NO CORE EXCHANGE NEEDED
