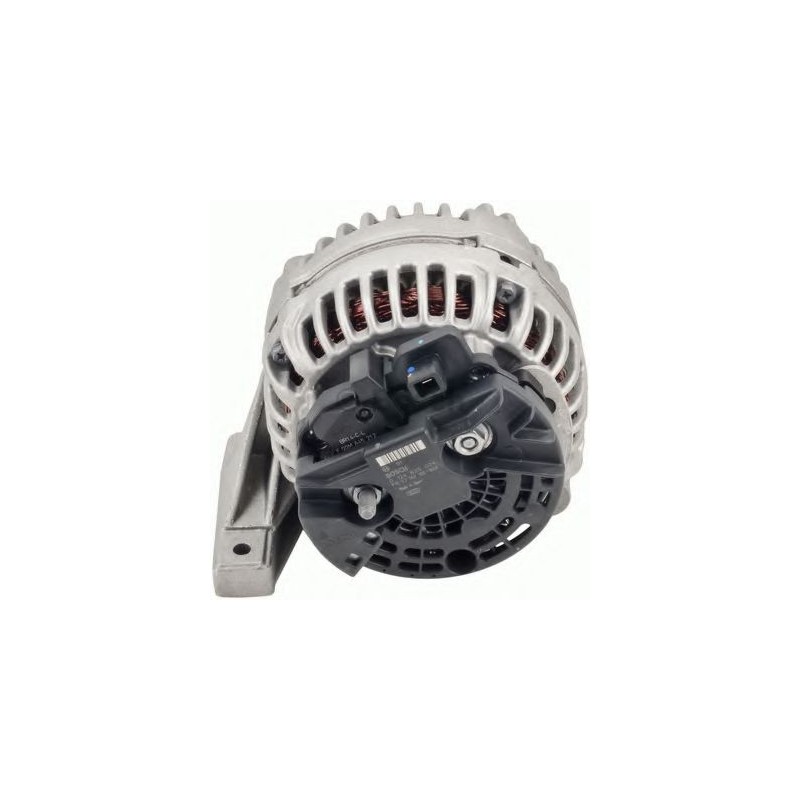

Alternator replacing 0124625024 / 0124625025 / 0986047500 / 0986047510
Alternator NEW for VOLVO
= BOSCH 0124625024 / 0124625025 / 0986047500 / 0986047510
= DELCO REMY DRB7500
= HELLA 8EL738212431
= LUCAS LRA03119
= VOLVO 30658086 / 30658087 / 30667788 / 30667895 / 36050266
8603265
NO CORE EXCHANGE NEEDED
More info
Information:
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 160 | |
Physical Information | ||
|---|---|---|
| D | Bracket hole | 8.60 |
| G | Belt. adj. bracket hole | M8 |
| B | Width/holder arm | 20.00 |
| E | Belt. adj. brackethole pos. | 52 |
| C | Mount. bracket dist | 82.00 |
| H | Pulley dia. | 55.80 |
| A | Pulley dist. | 45.50 |
| i | Grooves/pulley | 6 |
| j | Radius | 88.00 |
| j | Radius 2 | 90.00 |
| k | Position B + | M8 |
| n | Rotation | COUNTER CLOCKWISE |
| o | Plug no. 1 | PL150 |
| D | Trou from fixation support 2 | 8.60 |
| R | Total length mm | 198.00 |
| Source | BOSCH | |

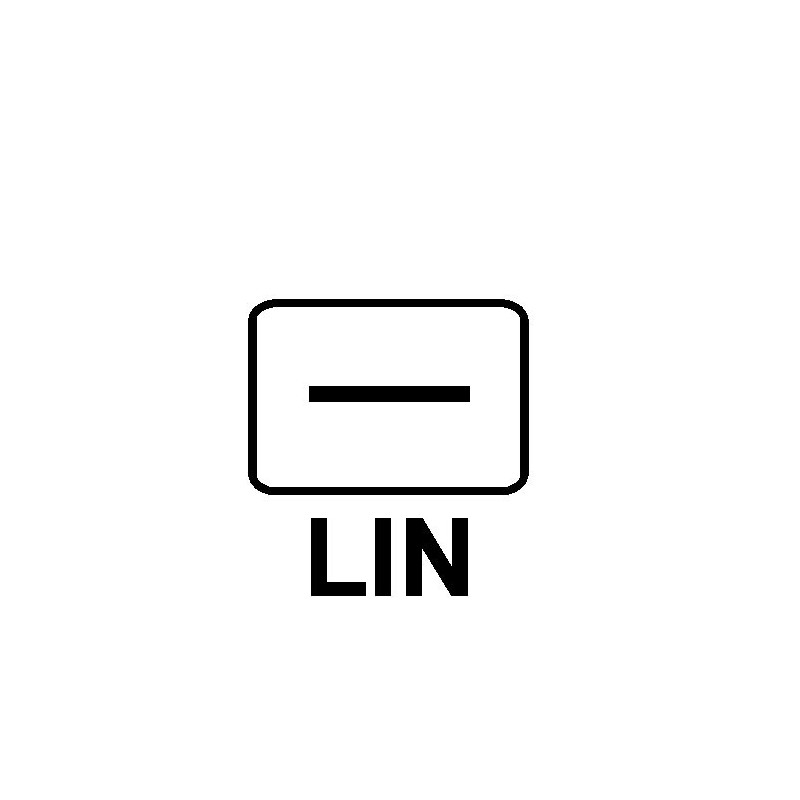

| Tipo borne | LIN | |
| Communication | LIN | |
Replacing | |
|---|---|
| 0124625024 | BOSCH |
| 0124625025 | BOSCH |
| 30658086 | VOLVO |
| 30658087 | VOLVO |
| 30667788 | VOLVO |
| 30667895 | VOLVO |
| 36050266 | VOLVO |
| 8603265 | VOLVO |
| ca2028ir | HC-PARTS |
| 0124625024 |
| 0124625024+ |
| 0124625024ASS |
| 0124625024CO |
| 0124625024OR+ |
| 0124625025 |
| 0124625025CO |
| 0986047500 |
| 0986047510 |
| 11488 |
| 12047500 |
| 2205154A |
| 285731 |
| 30658087 |
| 30667788 |
| 30667895 |
| 36050266 |
| 36050269 |
| 815518160 |
| 815518160010 |
| 815518160014 |
| 815518160210 |
| 815518160210001 |
| 815518160210002 |
| 815518160550 |
| 815518160990 |
| 8603264 |
| 8603265 |
| 8EL738212431 |
| 947500 |
| CA2028IR |
| DRB7500 |
| HCA2028IR |
| LRA03119 |
Generic Brand
fitsVOLVO :
S60 / S80 / V70 / XC
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
