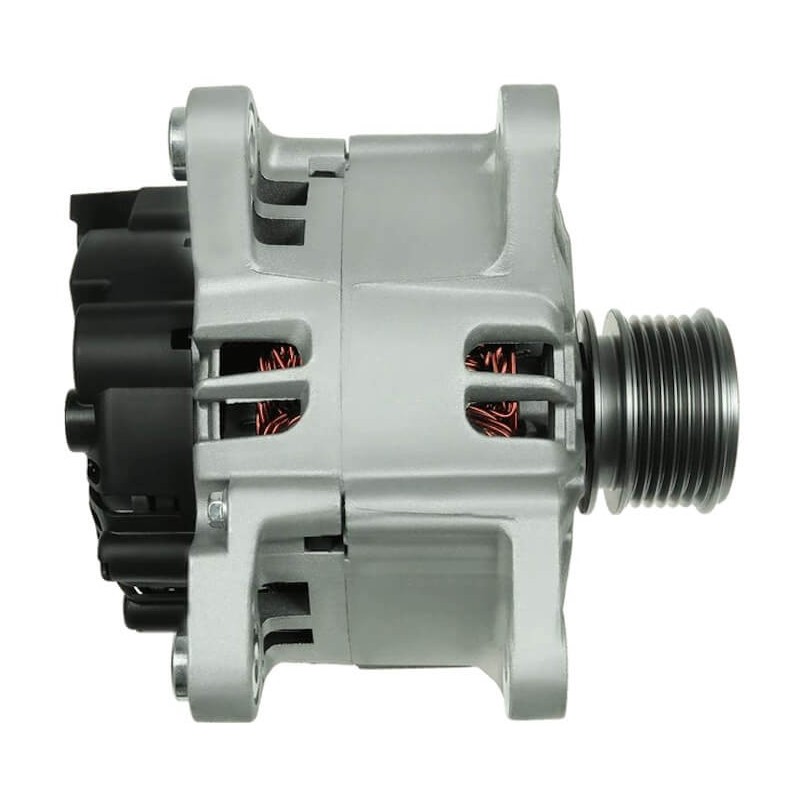

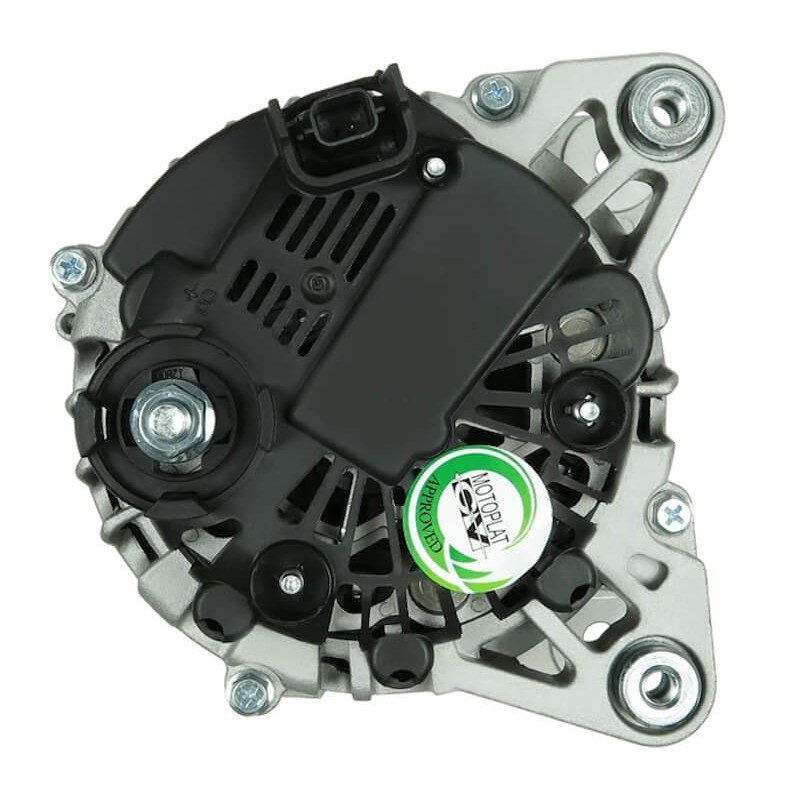

Alternator replacing TG12C241 / 2627732A / 23100-1318R / 231008918R
| 439829 | Valeo |
| 439983 | Valeo |
| 440503 | Valeo |
| 440755 | Valeo |
| 575947120 | PSH |
| 612718 | Valeo |
| 714146 | Valeo |
| DRA1396 | Remy |
| DRA1468 | Remy |
| DRA1591 | Remy |
| LRA03716 | Lucas |
| LRA3716 | Lucas |
| RNLTG12C124 | RNL |
| TG12C124 | Valeo |
| TG12C241 | Valeo |
More info
Physical information | ||
|---|---|---|
| A | Pulley dist. | 38.50 |
| B | Width/holder arm | 13.90 |
| C | Mount. bracket dist. | 60.50 |
| D | Bracket hole | 8.70 |
| E | Belt. adj. brackethole pos. | 45 |
| G | Belt. adj. bracket hole | 8.70 |
| H | Pulley dia. | 55.00 |
| I | Grooves/pulley | 6 |
| J | Radius | 90.00 |
| J | Radius 2 | 90.00 |
| K | B+ | M8 |
| K | Position/B+ in min. | 50 |
| N | Rotation | CW |

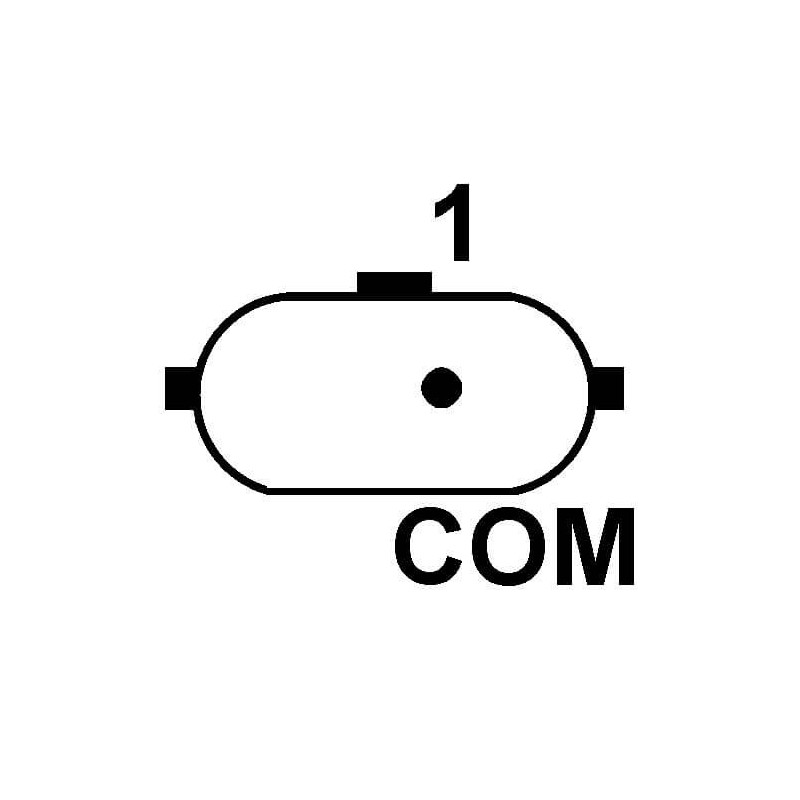

| O | Plug no. 1 | PL131 |
| R | Total length mm | 195.00 |
Electrical information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 120 | |
Catalogue information | ||
|---|---|---|
| Pulley | SP/FW | |
| Fan | IF | |
| Vac. pump | No | |
| Remarks | This Alternator has a COM terminal on the regulator, It is recommended that the OEM number is used to check suitability before ordering | |
generic brand
replacing
| 0986084780 | Bosch ruil |
| 115903 | Cargo |
| 14201382 | AES |
| 200271 | Valeo |
| 2310007865 | Nissan |
| 2310007865A | Nissan |
| 2310007865R | Nissan |
| 231001318 | Renault |
| 231001318R | Nissan |
| 231003424 | Renault |
| 231003424R | Nissan |
| 231007865 | Renault |
| 231007865R | Nissan |
| 231007865RA | Nissan |
| 231008918 | Renault |
| 231008918R | Nissan |
| 2612718 | Valeo |
| 2612718A | Valeo |
| 2627732A | Valeo |
| 2714146A | Valeo |
| 286827 | Elstock |
| 439829 | Valeo |
| 439983 | Valeo |
| 440503 | Valeo |
| 440755 | Valeo |
| 575947120 | PSH |
| 612718 | Valeo |
| 714146 | Valeo |
| ALT14541 | Wood Auto |
| DRA1396 | Remy |
| DRA1468 | Remy |
| DRA1591 | Remy |
| LRA03716 | Lucas |
| LRA3716 | Lucas |
| RNLTG12C124 | RNL |
| TG12C124 | Valeo |
| TG12C241 | Valeo |
| TG12S275 | Valeo |
