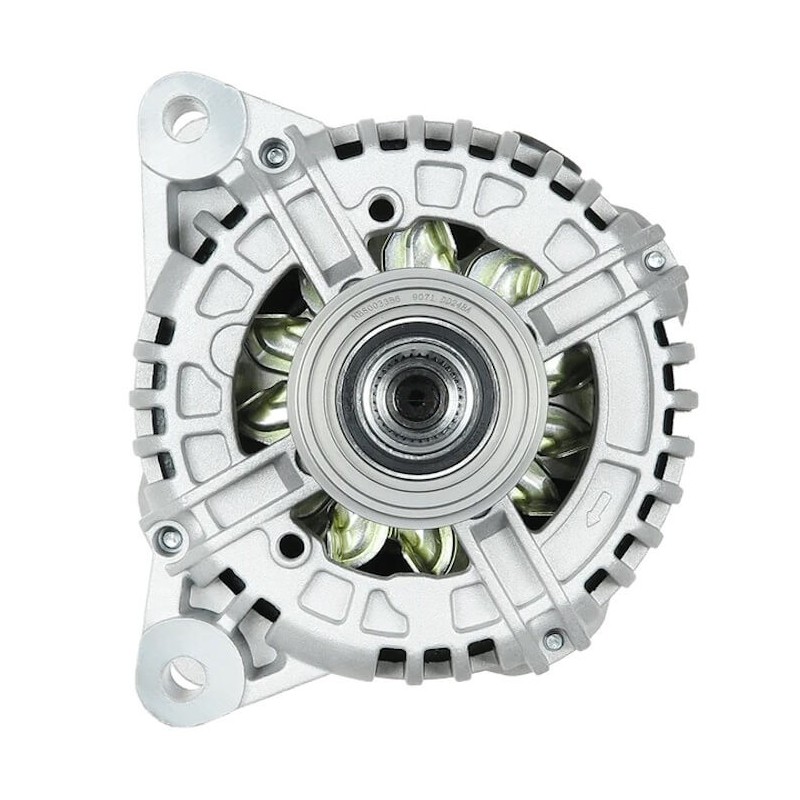

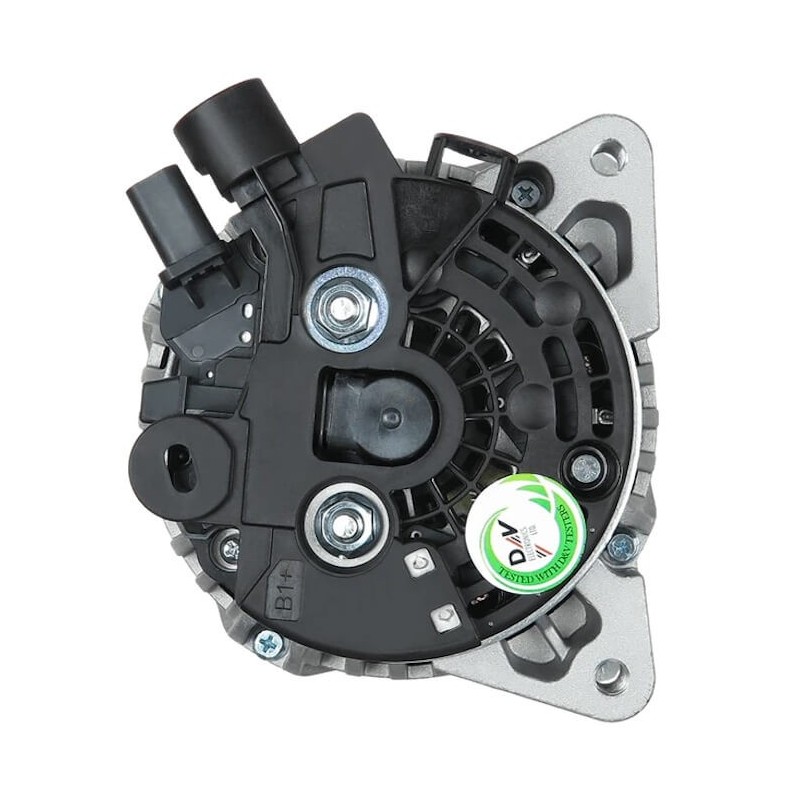

Alternator replacing VALEO TG15C118 / TG15C053 / TG15C028 / TG15C020
w113640
Alternator NEW for CITROEN, FIAT, LANCIA, PEUGEOT
= BOSCH 0124525035 / 0986046240
= CITROEN 5702-K9 / 5705-NH / 5702000 / 5705AS / 96463218 / 5705AR / 5705NH / 5705EX / 5705-EX / 5702-E3
9646321880 / 5705EY / 5705-AR / 5705-EY / 5702C2 / 5702K9 / 5702E3 / 9646321780 / 5705-AS
= DELCO REMY DRA4128
Features
Information:
Voltage 14
Amp 150
D = Bracket hole 10.20
G = Belt. adj. bracket hole 10.20
B = Width/holder arm 21.20
E = Belt. adj. brackethole pos. 48
C = Mount. bracket dist 45.80
H = Pulley dia. 54.50
A = Pulley dist. 42.50
Grooves/pulley 6
J = Radius 90.00
J = Radius 90.00
Position B + M8
Rotation Cr

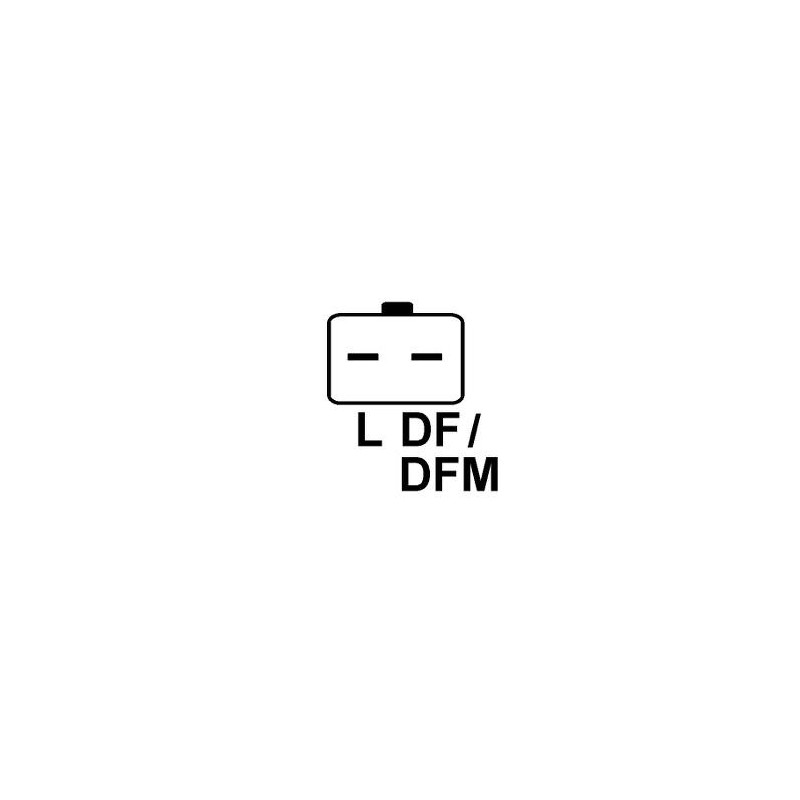

Plug no. 1 PL72
Fan If
Pulley Serpentine Pulley/ Freewheel pulley
R = Total length mm 177.50
generic brand
replacing
= BOSCH 0124525035 / 0986046240
= CITROEN 5702-K9 / 5705-NH / 5702000 / 5705AS / 96463218 / 5705AR / 5705NH / 5705EX / 5705-EX / 5702-E3
9646321880 / 5705EY / 5705-AR / 5705-EY / 5702C2 / 5702K9 / 5702E3 / 9646321780 / 5705-AS
= DELCO REMY DRA4128
= Elstock 28-4700
= HELLA CA1761IR / 8EL 738 144-001 / 8EL738-144-001
= ISKRA AAN5549 / 11.204.006 / 11.203.512 / ia1430
= LUCAS LRA2226 / LRA02226
= MAGNETI MARELLI 944390901710
= VALEO TG15C118 / TG15C053 / TG15C028 / TG15C020 / TC15C020 / SG15S024 / A14VI49
A14VI48 / 2543526A / 2543526 / 437471 / 439674 / / 2542693
= PEUGEOT 9644103580 / 96460654 / 9646065480 / 9646321780 / 96463218 / 9646321880/ 9650358580
5705NH / 5702-K9 / 5702-E2 / 5705-AG / 5705-EX / 5705-AR / 5705-AS / 5705EY / 5705EX / 5705AR / 5702K9
5705AG / 5705AS / 5705-NH / 5702-E3 / 5702E3 / 5705-EY / 5702E2
= FIAT 71732307 / 71733552 / 9646065480 / 9646321780 / 9646321880
fits :
CITROEN BERLINGO (MF) 1.6 HDI 75 (MF9HW) (2005-...)
CITROEN BERLINGO (MF) 1.6 HDI 90 (MF9HX) (2005-...)
CITROEN BERLINGO (MF) 2.0 HDi 4x4 (MFRHY) (2002-2005)
CITROEN BERLINGO c 1.6 HDi 90 (2008-...)
CITROEN BERLINGO c (B9) 1.6 HDi 90 (2008-...)
CITROEN BERLINGO 1.6 HDi 75 (2008-...)
CITROEN BERLINGO (B9) 1.6 HDi 75 (2008-...)
CITROEN BERLINGO (M_) 1.6 HDI 75 (MB9HW) (2005-...)
CITROEN C2 (JM_) 1.4 HDi (2003-...)
CITROEN C3 I (FC_) 1.6 16V HDi (2005-...)
CITROEN C3 II 1.4 HDi 70 (2009-...)
CITROEN C3 Pluriel (HB_) 1.4 HDi (2004-...)
CITROEN C4 Grand Picasso I (UA_) 1.6 HDi (2006-...)
CITROEN C4 Grand Picasso I (UA_) 2.0 HDi 138 (2006-...)
CITROEN C4 I (LC_) 1.6 HDi (2004-2011)
CITROEN C4 I (LC_) 2.0 HDi (2004-2011)
CITROEN C4 Picasso I (UD_) 1.6 HDi (2007-2013)
CITROEN C4 Picasso I (UD_) 2.0 HDi 138 (2007-2013)
CITROEN C4 купе (LA_) 2.0 HDi (2004-2010)
CITROEN C4 купе (LA_) 1.6 HDi (2004-2011)
CITROEN C5 I (DC_) 2.0 HDi (2001-2004)
CITROEN C5 I Break (DE_) 2.0 HDi (2001-2004)
CITROEN C5 II (RC_) 1.6 HDi (RC8HZB) (2004-...)
CITROEN C5 II (RC_) 2.0 HDi (RCRHRH) (2004-...)
CITROEN C5 II (RC_) 2.2 HDi (RC4HXE) (2004-...)
CITROEN C5 II Break (RE_) 1.6 HDi (RE8HZB) (2004-...)
CITROEN C5 II Break (RE_) 2.0 HDi (RERHRH) (2004-...)
CITROEN C5 II Break (RE_) 2.2 HDi (RE4HXE) (2004-...)
CITROEN C5 III (RD_) 2.0 HDi (2008-...)
CITROEN C5 III Break (TD_) 2.0 HDi (2008-...)
CITROEN C8 (EA_, EB_) 2.0 HDi (2002-...)
CITROEN C8 (EA_, EB_) 2.2 HDi (2002-...)
CITROEN C8 (EA_, EB_) 2.0 HDi (2002-...)
CITROEN C8 (EA_, EB_) 2.0 HDi 135 (2006-...)
CITROEN C8 (EA_, EB_) 2.0 HDi (2007-...)
CITROEN C8 (EA_, EB_) 2.2 HDi (2007-...)
CITROEN DISPATCH 1.6 HDi 90 16V (2007-...)
CITROEN DISPATCH 2.0 HDi 120 (2007-...)
CITROEN DISPATCH 2.0 HDi 140 (2007-...)
CITROEN DISPATCH (U6U) 2.0 HDi 95 (1999-...)
CITROEN DISPATCH (U6U) 2.0 HDi 110 (2000-...)
CITROEN DISPATCH Van (BS_, BT_, BY_, BZ_) 2.0 HDi 95 (1999-...)
CITROEN DISPATCH Van (BS_, BT_, BY_, BZ_) 2.0 HDi 110 (2002-...)
CITROEN DISPATCH c б (BU_, BV_, BW_, 2.0 HDi 110 (2003-2006)
CITROEN DISPATCH 1.6 HDi 90 16V (2007-...)
CITROEN DISPATCH 2.0 HDi 120 (2007-...)
CITROEN DISPATCH 2.0 HDi 140 (2007-...)
CITROEN JUMPER c (244) 2.0 HDi (2002-...)
CITROEN JUMPER c (244) 2.2 HDi (2002-...)
CITROEN JUMPER c (244) 2.2 HDi (2002-2006)
CITROEN JUMPER (244, Z_) 2.0 HDi (2002-...)
CITROEN JUMPER (244, Z_) 2.2 HDi (2002-...)
CITROEN JUMPER (244) 2.0 HDi (2002-...)
CITROEN JUMPER (244) 2.2 HDi (2002-...)
CITROEN JUMPY 1.6 HDi 90 (2007-...)
CITROEN JUMPY 1.6 HDi 90 16V (2007-...)
CITROEN JUMPY 2.0 HDi 120 (2007-...)
CITROEN JUMPY 2.0 HDi 140 (2007-...)
CITROEN JUMPY (U6U) 2.0 HDi 95 (1999-...)
CITROEN JUMPY (U6U) 2.0 HDi 110 (2000-...)
CITROEN JUMPY c (BU_, BV_, BW_, BX 2.0 HDi 110 (2003-2006)
CITROEN JUMPY 1.6 HDi 90 (2007-...)
CITROEN JUMPY 1.6 HDi 90 16V (2007-...)
CITROEN JUMPY 2.0 HDi 120 (2007-...)
CITROEN JUMPY 2.0 HDi 140 (2007-...)
CITROEN JUMPY (BS_, BT_, BY_, BZ_) 2.0 HDi 95 (1999-...)
CITROEN JUMPY (BS_, BT_, BY_, BZ_) 2.0 HDi 110 (2002-...)
CITROEN XSARA PICASSO (N68) 1.6 HDi (2004-...)
FIAT DUCATO c (244) 2.0 JTD (2002-2006)
FIAT DUCATO (230) 2.0 JTD (2001-2002)
FIAT DUCATO (244, Z_) 2.0 JTD (2002-...)
FIAT DUCATO (230L) 2.0 JTD (2001-2002)
FIAT DUCATO (244) 2.0 JTD (2002-...)
FIAT SCUDO (270_) 2.0 D Multijet 4x4 (2007-...)
FIAT SCUDO (270_) 1.6 D Multijet (2007-...)
FIAT SCUDO (270_) 2.0 D Multijet (2007-...)
FIAT SCUDO (270_) 2.0 D Multijet (2011-...)
FIAT SCUDO (270_) 2.0 D Multijet 4x4 (2011-...)
FIAT SCUDO c (270_) 1.6 D Multijet (2007-...)
FIAT SCUDO c (270_) 2.0 D Multijet (2007-...)
FIAT SCUDO c (270_) 2.0 D Multijet (2011-...)
FIAT SCUDO (270_) 2.0 D Multijet 4x4 (2007-...)
FIAT SCUDO (270_) 1.6 D Multijet (2007-...)
FIAT SCUDO (270_) 2.0 D Multijet (2007-...)
FIAT SCUDO (270_) 2.0 D Multijet (2011-...)
FIAT ULYSSE (179AX) 2.0 JTD (2002-2006)
FIAT ULYSSE (179AX) 2.2 JTD (2002-2006)
FIAT ULYSSE (179AX) 2.0 JTD (2003-2006)
FIAT ULYSSE (179AX) 2.0 (2002-2011)
FIAT ULYSSE (179AX) 2.0 D Multijet (2006-2011)
FIAT ULYSSE (179AX) 2.2 JTD (2008-2011)
LANCIA PHEDRA (179) 2.2 JTD (179AXC1A) (2002-2010)
LANCIA PHEDRA (179) 2.2 JTD (2006-2010)
LANCIA PHEDRA (179) 2.0 JTD (2006-2010)
LANCIA PHEDRA (179) 2.0 D Multijet (2006-2010)
LANCIA PHEDRA (179) 2.2 D Multijet (2008-2010)
PEUGEOT 1007 (KM_) 1.6 HDi (2007-...)
PEUGEOT 206 CC (2D) 1.6 HDi 110 (2005-...)
PEUGEOT 206 SW (2E/K) 1.6 HDi 110 (2004-...)
PEUGEOT 206 (2A/C) 2.0 HDI 90 (1999-...)
PEUGEOT 206 (2A/C) 1.6 HDi 110 (2004-...)
PEUGEOT 207 (WA_, WC_) 1.6 HDi (2006-...)
PEUGEOT 207 (WA_, WC_) 1.4 HDi (2006-...)
PEUGEOT 207 (WA_, WC_) 1.6 HDi 110 (2009-...)
PEUGEOT 207 CC (WD_) 1.6 HDi (2007-...)
PEUGEOT 207 CC (WD_) 1.6 HDi (2009-...)
PEUGEOT 207 SW (WK_) 1.6 HDi (2007-...)
PEUGEOT 307 (3A/C) 2.0 HDi 90 (2000-...)
PEUGEOT 307 (3A/C) 2.0 HDi 110 (2000-...)
PEUGEOT 307 (3A/C) 2.0 HDi 135 (2003-...)
PEUGEOT 307 (3A/C) 1.6 HDi 110 (2004-...)
PEUGEOT 307 (3A/C) 1.6 HDi (2005-...)
PEUGEOT 307 Break (3E) 2.0 HDI 90 (2002-...)
PEUGEOT 307 Break (3E) 2.0 HDI 110 (2002-...)
PEUGEOT 307 Break (3E) 1.6 HDi 110 (2004-...)
PEUGEOT 307 Break (3E) 2.0 HDi 135 (2004-...)
PEUGEOT 307 Break (3E) 1.6 HDi (2005-...)
PEUGEOT 307 CC (3B) 2.0 HDi 135 (2005-...)
PEUGEOT 307 SW (3H) 1.6 HDI 110 (2004-...)
PEUGEOT 307 SW (3H) 2.0 HDi 135 (2004-...)
PEUGEOT 308 (4A_, 4C_) 1.6 HDi (2007-...)
PEUGEOT 308 (4A_, 4C_) 2.0 HDi (2007-...)
PEUGEOT 308 SW 2.0 HDi (2009-...)
PEUGEOT 407 (6D_) 2.0 HDi 135 (2004-...)
PEUGEOT 407 (6D_) 1.6 HDi 110 (2004-...)
PEUGEOT 407 SW (6E_) 1.6 HDi 110 (2004-...)
PEUGEOT 407 SW (6E_) 2.0 HDi 135 (2004-...)
PEUGEOT 407 (6C_) 2.0 HDi (2008-2009)
PEUGEOT 607 (9D, 9U) 2.2 HDI (2000-...)
PEUGEOT 607 (9D, 9U) 2.0 HDI (2001-2004)
PEUGEOT 607 (9D, 9U) 2.0 HDi (2001-2004)
PEUGEOT 807 (E) 2.0 HDI (2006-...)
PEUGEOT 807 (E) 2.0 HDi (2006-...)
PEUGEOT BOXER c (244) 2.0 HDi (2002-...)
PEUGEOT BOXER c (244) 2.2 HDi (2002-...)
PEUGEOT BOXER (244, Z_) 2.0 HDi (2002-...)
PEUGEOT BOXER (244, Z_) 2.2 HDi (2002-...)
PEUGEOT BOXER (244) 2.0 HDi (2002-...)
PEUGEOT BOXER (244) 2.2 HDi (2002-...)
PEUGEOT EXPERT (224) 2.0 HDI (2000-...)
PEUGEOT EXPERT (224) 2.0 HDI 16V (2000-...)
PEUGEOT EXPERT (224) 2.0 HDI (2000-2003)
PEUGEOT EXPERT (224) 2.0 HDi (2000-2003)
PEUGEOT EXPERT Tepee (VF3V_) 2.0 HDi 120 4x4 (2007-...)
PEUGEOT EXPERT Tepee (VF3V_) 1.6 HDi 90 (2007-...)
PEUGEOT EXPERT Tepee (VF3V_) 1.6 HDi 90 16V (2007-...)
PEUGEOT EXPERT Tepee (VF3V_) 2.0 HDi 120 (2007-...)
PEUGEOT EXPERT Tepee (VF3V_) 2.0 HDi 140 (2007-...)
PEUGEOT EXPERT Van (222) 1.9 D 70 (1998-...)
PEUGEOT EXPERT Van (222) 2.0 HDI (2000-...)
PEUGEOT EXPERT c 1.6 HDi 90 (2007-...)
PEUGEOT EXPERT c 2.0 HDi 120 (2007-...)
PEUGEOT EXPERT c 2.0 HDi 140 (2007-...)
PEUGEOT EXPERT (222) 1.9 D 70 (1998-...)
PEUGEOT EXPERT (222) 2.0 HDI (2000-...)
PEUGEOT EXPERT (VF3A_, VF3U_, VF3X_) 1.6 HDi 90 (2007-...)
PEUGEOT EXPERT (VF3A_, VF3U_, VF3X_) 1.6 HDi 90 16V (2007-...)
PEUGEOT EXPERT (VF3A_, VF3U_, VF3X_) 2.0 HDi 120 (2007-...)
PEUGEOT EXPERT (VF3A_, VF3U_, VF3X_) 2.0 HDi 140 (2007-...)
PEUGEOT GRAND RAID 1.6 HDi (2008-...)
PEUGEOT GRAND RAID 1.6 HDi 16V (2008-...)
PEUGEOT GRAND RAID вэн (5F) 1.6 HDi 90 (2006-...)
PEUGEOT GRAND RAID вэн (5F) 1.6 HDi 75 (2006-...)
PEUGEOT GRAND RAID 1.6 HDi (2008-...)
PEUGEOT GRAND RAID 1.6 HDi 16V (2008-...)
PEUGEOT PARTNER Combispace (5F) 1.6 HDi 90 (2006-...)
PEUGEOT PARTNER Combispace (5F) 1.6 HDi 75 (2006-...)
PEUGEOT PARTNER Tepee 1.6 HDi (2008-...)
PEUGEOT PARTNER Van (5) 1.6 HDi 75 (2006-...)
PEUGEOT PARTNER Van (5) 1.6 HDi 90 (2006-...)
PEUGEOT PARTNER c 1.6 HDi (2009-...)
PEUGEOT PARTNER c 1.6 HDi 16V (2009-...)
PEUGEOT PARTNER 1.6 HDi (2008-...)
PEUGEOT PARTNER (5) 1.6 HDi 75 (2006-...)
PEUGEOT PARTNER (5) 1.6 HDi 90 (2006-...)
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
Customer reviews
Reviews about this product
-
Franck c.
Published Jul 13, 2024 at 10:50 pm (Order date: Jun 30, 2024)working for now ras (Translated review)
16 other products in the same category:
Automotive Alternators
Alternator 0124525585 rplacing 0124525034 / 0986047360
€239.90
Alternator for PEUGEOT / CITROEN
Alternator replacing TG12C147 / 439931 / 440675 / 9678730980
€179.90
Alternator
Alternator BOSCH 0125811021 / 0125811029
€379.90
Alternator for PEUGEOT / CITROEN
Alternator replacing VALEO A13VI84 / 2541726 / 2541726B
€129.90
Automotive Alternators
Alternator replacing VALEO A11VI102 / A11VI108 / A13VI245 / A13VI256
€129.90
Alternator for PEUGEOT / CITROEN
Alternator NEW VALEO FG18T112 / FGN18T112
€329.90
Alternator for PEUGEOT / CITROEN
Alternator replacing 2541711 / A14VI10 / A14VI30 / A14VI31
€168.90
Automotive Alternators
Alternator replacing 104211-3490 / 27060-0Q190 / B000911980
€199.90
Alternator for PEUGEOT / CITROEN
Alternator replacing MITSUBISHI A5TA6291ZEC / A5TA6291ZEB / A5TA6291H
€119.90
Alternator for SUZUKI / NISSAN / HONDA / MITSUBISHI / TOYOTA
Alternator replacing BOSCH 0120335012 / 0120335011 / VALEO A11VI47
€129.90
Alternator for PEUGEOT / CITROEN
Alternator replacing BOSCH 0120489270 / 0120489259 / 0120489258 / 0120489158
€99.90
Alternator for PEUGEOT / CITROEN
Alternator replacing MAGNETI MARELLI 63321712 / 63321848 / 63321600
€109.90
Alternator for PEUGEOT / CITROEN
Alternator VALEO IST60C016 / IST60C017 / IST60C018 / IST60C028
€689.90
Alternator FIAT / LANCIA / ALFA ROMEO
Alternator replacing VALEO 2541679 / 2541679C / a13vi73
€148.90
Alternator for PEUGEOT / CITROEN
Alternator VALEO 605546 replacing TG15C134 / SG15S025
€169.90
Do you have any questions?
Spare parts warranties with Wagendass
- New parts
- No deposits
- 2-year warranty for all vehicle types
How to find your replacement part on the Wagendass website?
The reference number of your defective part is essential to determine the right replacement part. Each brand has its own nomenclature for authenticating its spare parts.
The part number can be numeric or alphanumeric, and can be found on your part.
Once you've found the part number, enter it in the search bar at the top center of our site.
The result will be the replacement part matching your part number.
New parts
Original and adaptable
No deposits
No return of the old
Secure payments
Amex,CB,Visa,MasterCard in 3D Secure and PayPal
Fast delivery
France and International
