Alternator replacing 1202117 / 1202261 / 13500186 / 13579662

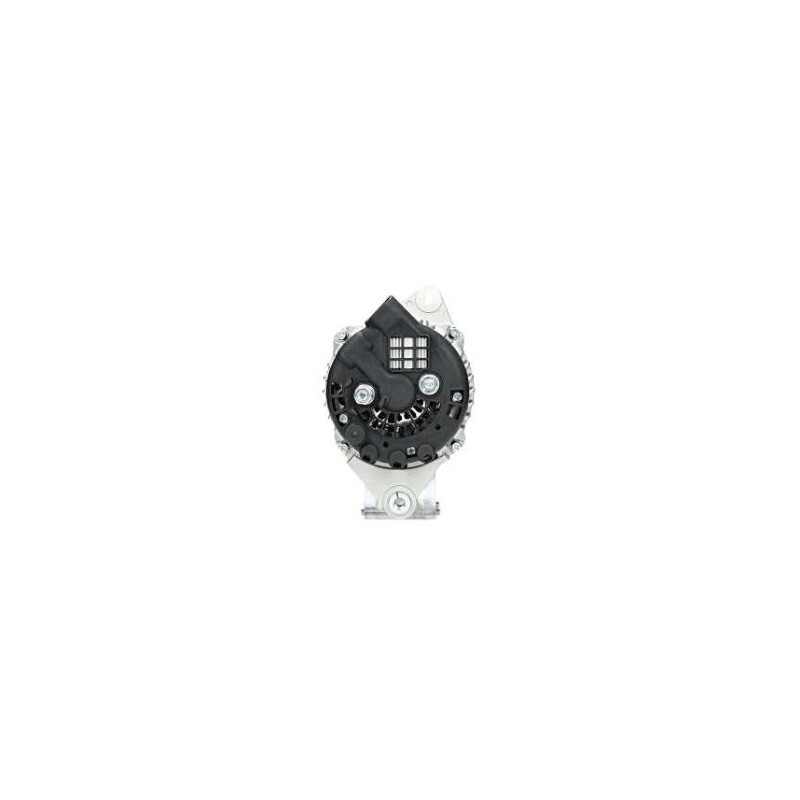

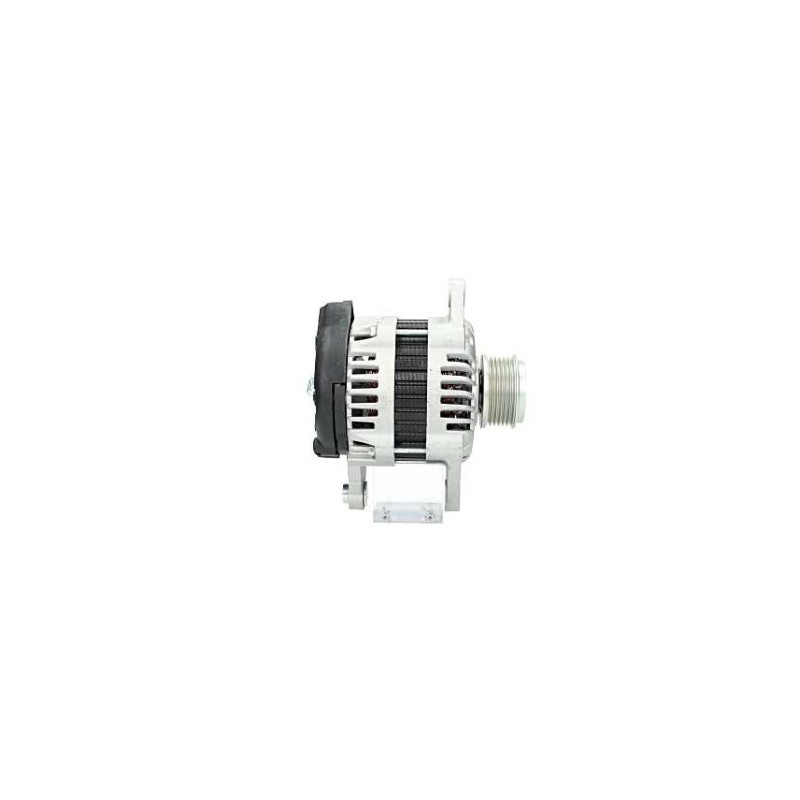

Alternator NEW replacing
DELCO REMY 13500186, 13579662, GM 1202117, 1202261, 13500186, 13579662, OPEL 1202117, 1202261, 13500186, 13579662
DRA1127 / LRA03418
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 100 | |
| A | Pulley dist. | 35.00 |
| B | Width/holder arm | 13.00 |
| C | Mount. bracket dist | 66.00 |
| D | Bracket hole | 10.00 |
| E | Belt. adj. brackethole pos. | 60 |
| G | Belt. adj. bracket hole | 8.00 |
| H | Pulley dia. | 60.00 |
| I | Grooves/pulley | 6 |
| J | Radius | 88.00 |
| J | Radius 2 | 85.00 |
| K | Position B + | M8 |
| K | B+ position en min. | 45 |
| N | Rotation | Cr |

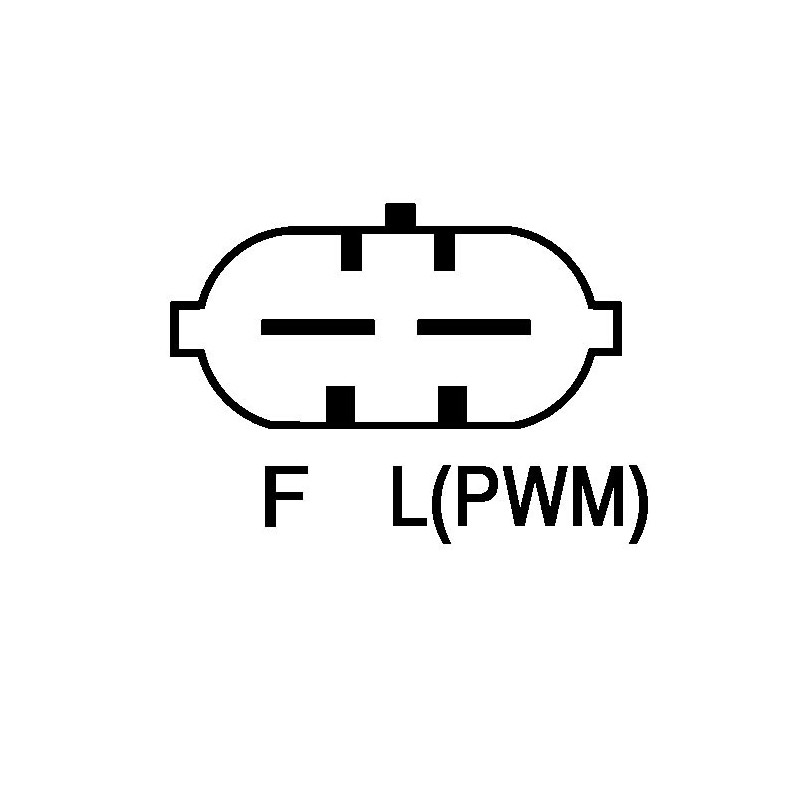

| O | Plug n° 1 | PL180 |
| R | Total length mm | 187.00 |
Replacing | |
|---|---|
| 1202117 | OPEL |
| 1202261 | OPEL |
| 13500186 | OPEL |
| 13579662 | OPEL |
Generic Brand
Mounted on :
| Brand | Model | Tipo | Year |
| OPEL | Astra J 1.7 CDTi | [A17DTC] | 01/01/10 |
| OPEL | Astra J 1.7 CDTi | [A17DTE] | 01/01/10 |
| OPEL | Astra J 1.7 CDTi | [A17DTF] | 01/01/10 |
| OPEL | Astra J 1.7 CDTi | [A17DTJ] | 01/01/10 |
| OPEL | Astra J 1.7 CDTi | [A17DTL] | 01/01/10 |
| OPEL | Astra J 1.7 CDTi | [A17DTR] | 01/01/10 |
| OPEL | Astra J 1.7 CDTi | [A17DTS] | 01/01/10 |
| VAUXHALL | Astra J 1.7 CDTi | [A17DTC] | 01/01/10 |
| VAUXHALL | Astra J 1.7 CDTi | [A17DTE] | 01/01/10 |
| VAUXHALL | Astra J 1.7 CDTi | [A17DTF] | 01/01/10 |
| VAUXHALL | Astra J 1.7 CDTi | [A17DTJ] | 01/01/10 |
| VAUXHALL | Astra J 1.7 CDTi | [A17DTL] | 01/01/10 |
| VAUXHALL | Astra J 1.7 CDTi | [A17DTR] | 01/01/10 |
Data sheet
| Poulie | serpentine |
| Connecteur régulateur | PL6 |
| Ampérage | 140 |
| Voltage | 14 |
