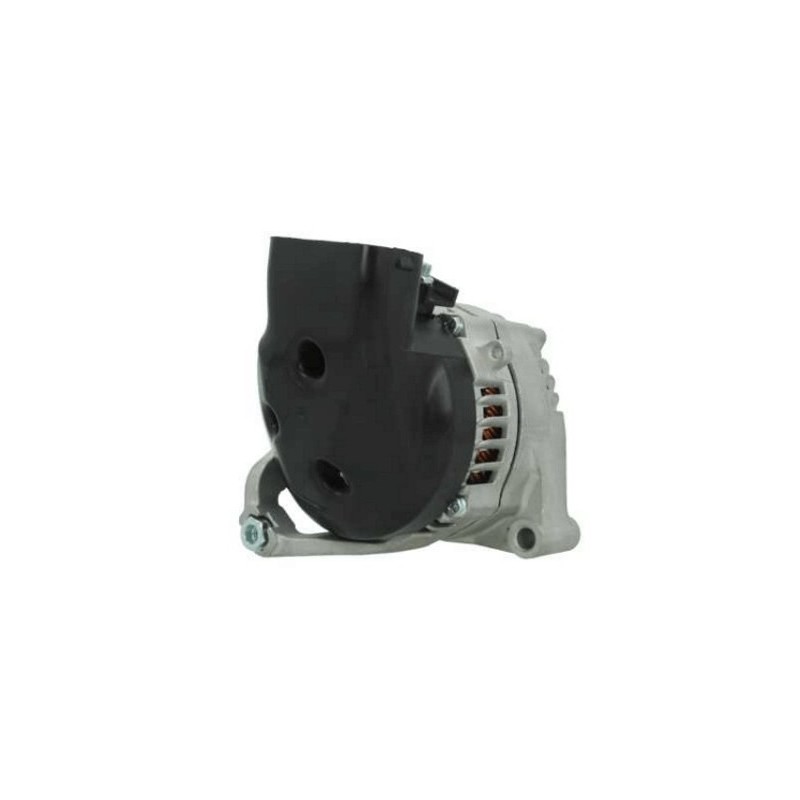

Alternator replacing 104210-6330 / 12317605060 / 1986A00610
Alternator replacing 104210-6330 / 12317605060 / 1986A00610
Alternator replacing 104210-6330 / 12317605060 / 1986A00610
Alternator replacing 104210-6330 / 12317605060 / 1986A00610
Previous
Next
Alternator replacing 104210-6330 / 12317605060 / 1986A00610
Alternator replacing 104210-6330 / 12317605060 / 1986A00610
Alternator replacing 104210-6330 / 12317605060 / 1986A00610
Alternator replacing 104210-6330 / 12317605060 / 1986A00610

Alternator replacing 104210-6330 / 12317605060 / 1986A00610

w115693

0210801130 Denso
063377578010 Magneti Marelli
1042106330 Denso
1042106331 Denso
1042106331OR +line
1042106331SEL +line
1042106332 Denso
1042106333 Denso
1042106334 Denso
12090620 EuroTec
12317605060 BMW
Read more
€269.90 Tax included
Price may vary according to your VAT rate
Last items in stock Fast delivery
Add product to favorites
2-year warranty
No instructions, no return of the old
Secure payments

Features

Electrical information
Voltage 14
Amp 170

Physical information
A Pulley dist. 49.50
B Width/holder arm 27.50
C Mount. bracket dist. 75.50
D Bracket hole 10.30
E Belt. adj. brackethole pos. 45
G Belt. adj. bracket hole 10.80
H Pulley dia. 49.00
I Grooves/pulley 6
J Radius 93.00
J Radius 2 93.00
K B+ M8
K Position/B+ in min. 58
N Rotation CW
O Plug no. 1 PL166
R Total length mm 223.00

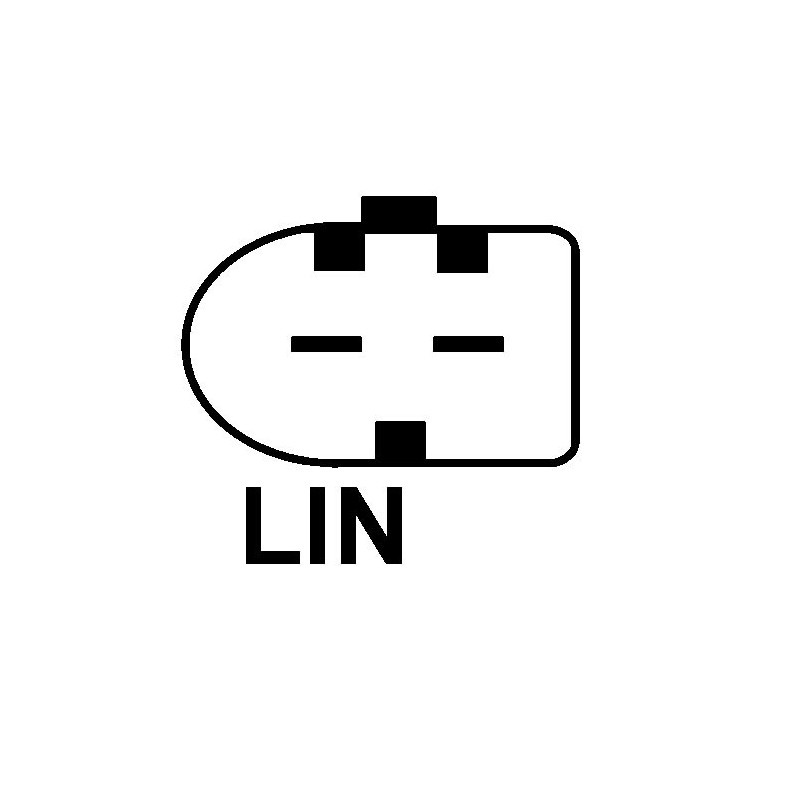

Terminal type LIN

Catalogue information
Pulley SP/FW
Fan IF
Regulator type IR
Vac. pump No


0210801130		 Denso
063377578010 Magneti Marelli
1042106330 Denso
1042106331 Denso
1042106331OR +line
1042106331SEL +line
1042106332 Denso
1042106333 Denso
1042106334 Denso
12090620 EuroTec
12317605060 BMW
1231760506003
12317610260 BMW
2153071702 DRI
215587170 PSH
287605 Elstock
440961 Valeo
7605060 Fiat
7610260 Fiat
9186 CEVAM
ALT6696sa Electrolog
DAN1125 Denso
DRA1477 Remy
LRA03995 Lucas
MAN7578 Magneti Marelli
Generic brand
