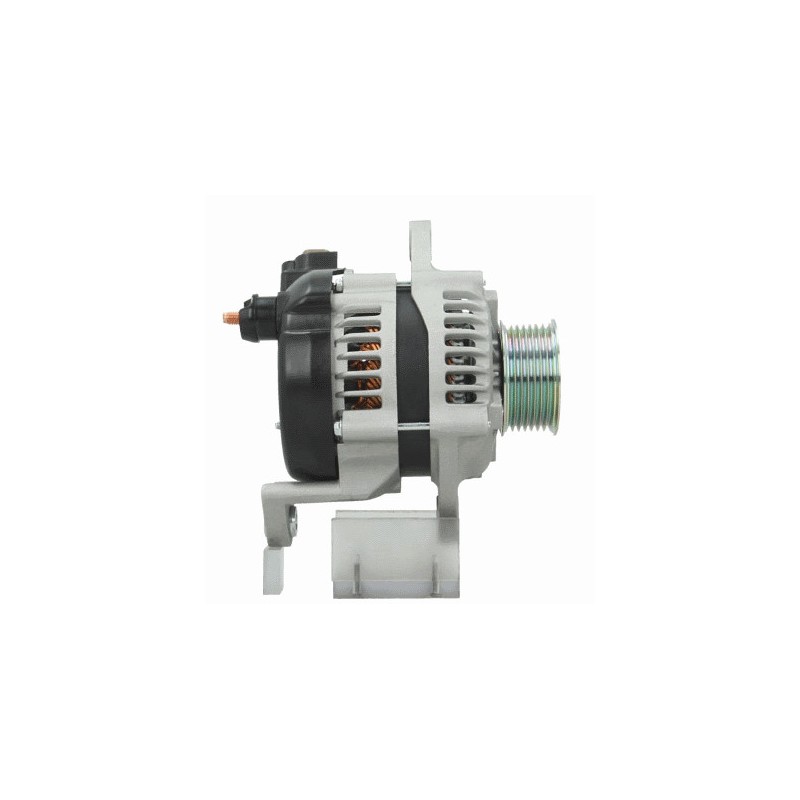

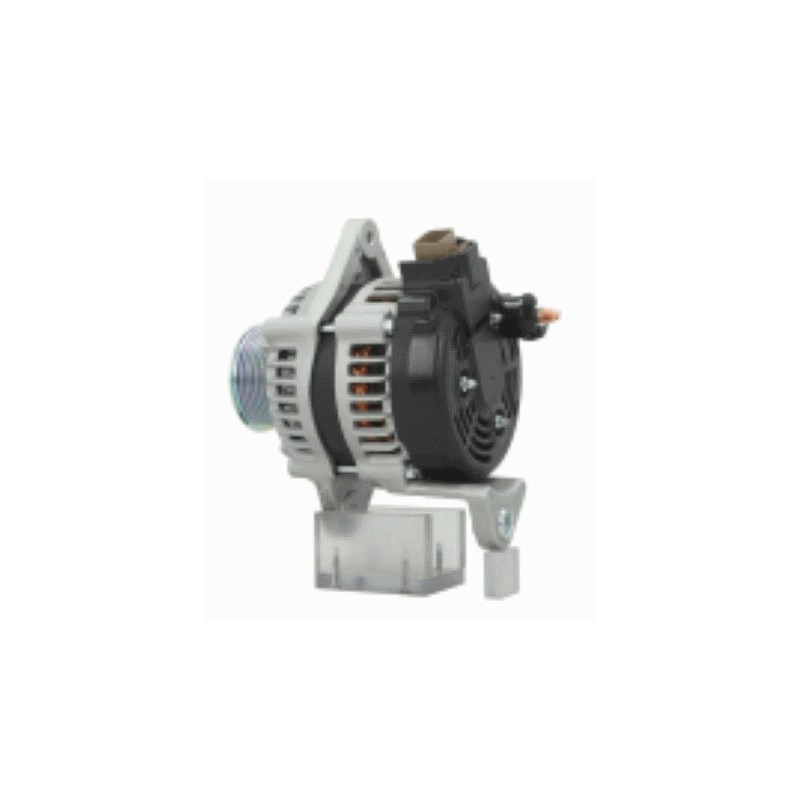

Alternator replacing 104210-9031 / 104210-9032 / 104210-9033
Alternator replacing :
DENSO 104210-9031 / 104210-9032 / 104210-9033
ISUZU 8981965850 / 8973697161
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 85 | |
Physical Information | ||
|---|---|---|
| D | Bracket hole | 10.20 |
| G | Belt. adj. bracket hole | M8 |
| B | Width/holder arm | 13.00 |
| E | Belt. adj. brackethole pos. | 60 |
| C | Mount. bracket dist | 80.00 |
| H | Pulley dia. | 62.50 |
| A | Pulley dist. | 43.00 |
| i | Grooves/pulley | 7 |
| j | Radius | 80.50 |
| j | Radius 2 | 80.50 |
| k | Position B + | M8 |
| n | Rotation | CW |

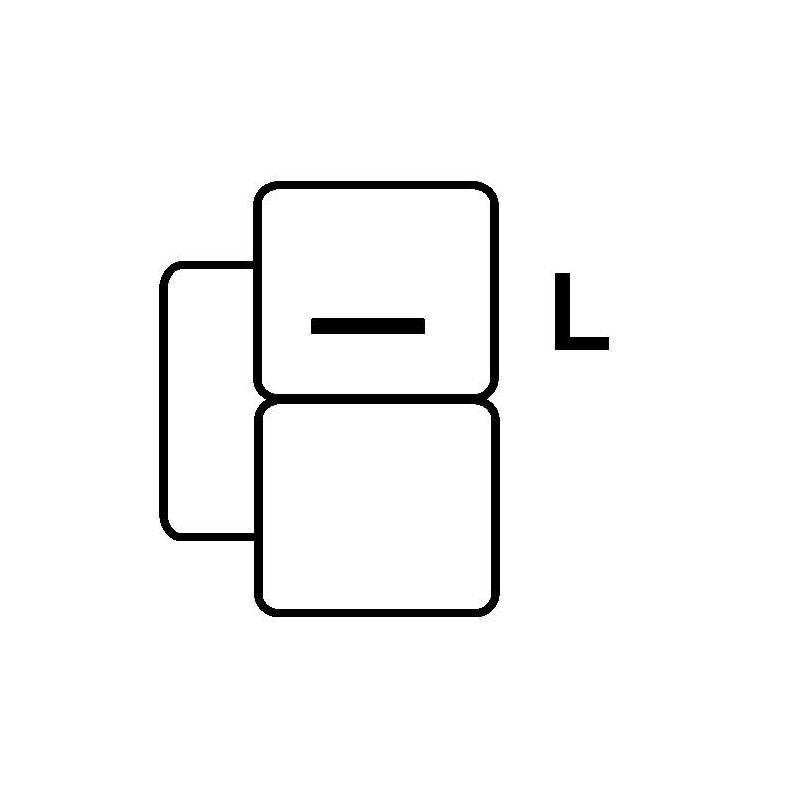

| o | Plug no. 1 | PL100 |
| R | Total length mm | 185.00 |
generic brand
Replacing | |
|---|---|
| 104210-9031 | DENSO |
| 104210-9032 | DENSO |
| 104210-9033 | DENSO |
| 8973697161 | ISUZU |
| 8981965850 | ISUZU |
fits:
| Model | Model série | Reference d origine du produit | Tipo of Gas | Start build | Tipo engine | Engine Tipo | KW | Horse Power | Chassi type | Tipoe modèle | Engine in cm3 | Cylindres | Descrip- tion du type from |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D-MAX | D-MAX | 2.5 | Diesel | 2007 01 | 4JK1-TC | Diesel | 100 | 136 | Pick Up | 2499 | 4 | 8DH |
