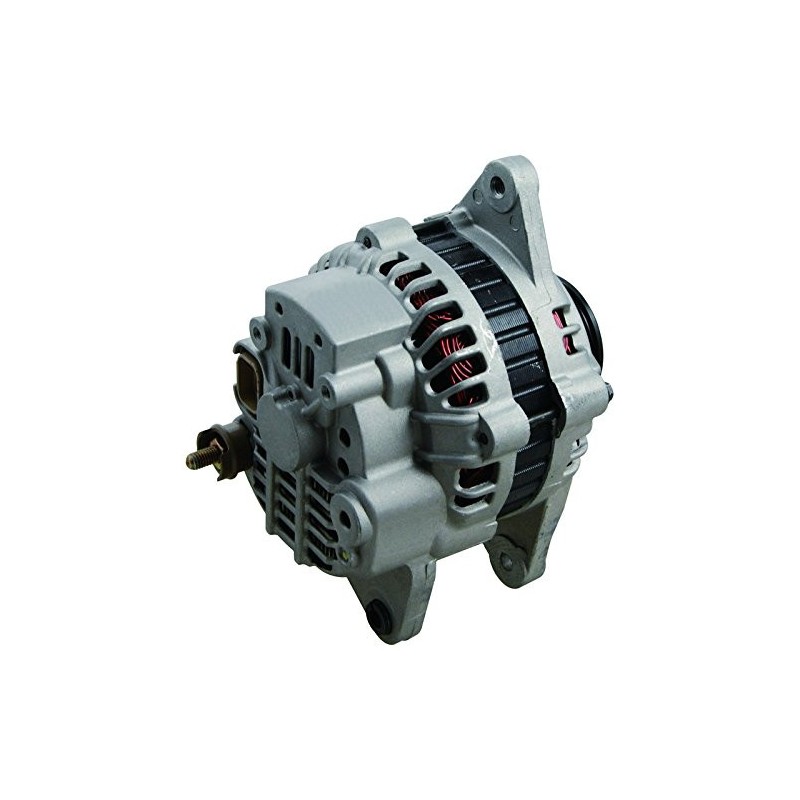

Alternator replacing TA000A14501 / 063532611010 / AB190058 / 3730022200AT / 37300-22200
Alternator NEW replacing :
HYUNDAI 37300-22200 / 3730022200AT
MANDO AB190058
MAGNETI MARELLI 063532611010
VALEO TA000A14501
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Electrical information | ||
|---|---|---|
| Voltage | 14 | |
| Amp. | 90 | |

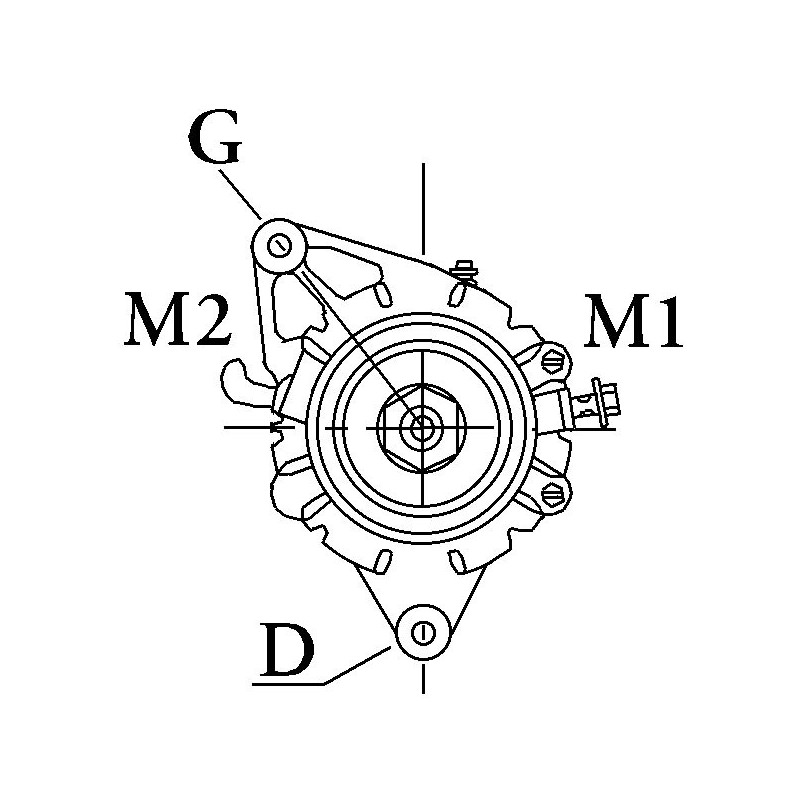

Physical Information | ||
|---|---|---|
| A | Pulley dist. | 35.00 |
| B | Width/holder arm | 13.25 |
| C | Mount. bracket dist | 55.45 |
| D | Bracket hole | 8.50 |
| E | Belt. adj. brackethole pos. | 55 |
| G | Belt. adj. bracket hole | M8 |
| H | Pulley dia. | 60.00 |
| I | Grooves/pulley | 4 |

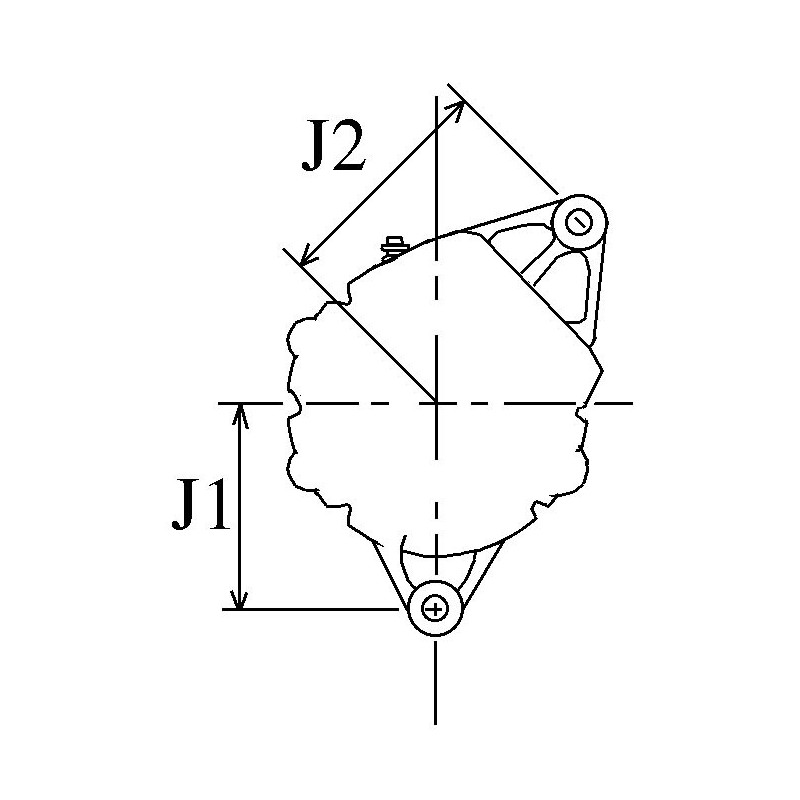

| J | Radius | 89.50 |
| J | Radius 2 | 89.50 |
| K | Position B + | M6 |
| K | B+ position en min. | 47 |
| N | Rotation | Cr |

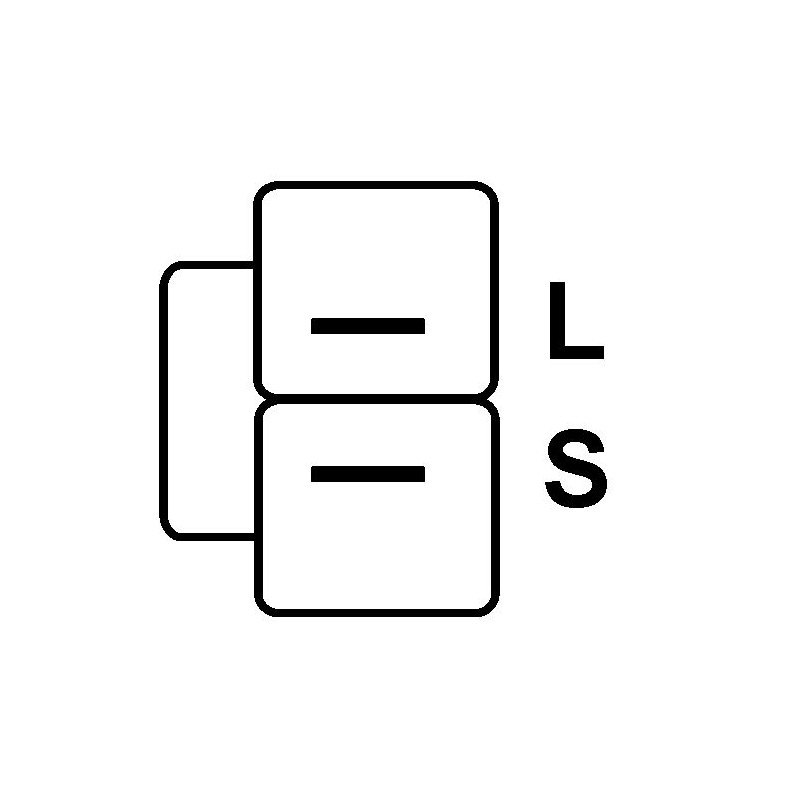

| O | Plug n° 1 | PL07 |
| R | Total length mm | 160.00 |
generic brand
Replacing :
HYUNDAI 37300-22200 / 3730022200AT
MANDO AB190058
MAGNETI MARELLI 063532611010
VALEO TA000A14501
| Reference | Maker |
|---|---|
| 2032103 | SANDO |
| AEA2232 | AUTOELECTRO |
| 0986042881 | BOSCH |
| 111405 | CARGO |
| CAL32103GS | CASCO |
| CAL32103OS | CASCO |
| 9024 | CEVAM |
| DRA3439 | DELCO |
| DRA3439N | DELCO |
| EAA-221418 | EAA |
| 56672 | EAI |
| 28-2861 | ELSTOCK |
| 9090047 | FRIESEN |
| HAB190140 | HALLA |
| JA994IR | HC PARTS |
| 8EL737068-001 | HELLA |
| 37300-22200 | HYUNDAI / KIA |
| 11.0994 | LAUBER |
| LRB00232 | LUCAS |
| AB190058 | MANDO |
| 89213166 | POWERMAX |
| 9213166 | POWERMAX |
| 20110232 | PRESTOLITE |
| SA017 | SOVEREIGN |
| 437338 | VALEO |
| 439385 | VALEO |
| TA000A14501 | VALEO |
| 13702N | WAI / TRANSPO |
| ALT35003 | WOODAUTO |
| 20193301OE | REAL |
Mounted on :
HYUNDAI (1996-2001)
HYUNDAI - Europe (1995-2002)
| Brand | Model | Tipo | Year | Remarks |
|---|---|---|---|---|
| HYUNDAI | Accent 1.3 | [G4EH] | 07.1994-07.1999 | |
| HYUNDAI | Accent 1.3 i 12V | [G4EH] | 10.1994-07.1999 | |
| HYUNDAI | Accent 1.5 i 12V | [G4EK] | 10.1994-07.1999 | |
| HYUNDAI | Accent 1.5 i 16V | [G4FK] | 12.1995-01.2000 | |
| HYUNDAI | Coupe 1.6 16V | [G4GR] | 05.1996-05.2000 | |
| HYUNDAI | Coupe 1.6 i 16V | [4G61] | 05.1996-05.2000 | |
| HYUNDAI | Coupe 2.0 16V | [G4GF] | 08.1996-04.2002 | |
| HYUNDAI | Lantra 1.5 12V | [G4EK] | 12.1996- | |
| HYUNDAI | Lantra 1.6 | [G4GR] | 11.1995-09.2000 | |
| HYUNDAI | Lantra 1.6 16V | [4G61] | 11.1995-09.2000 | |
| HYUNDAI | Lantra 1.8 16V | [G4GM] | 11.1995-09.2000 | |
| HYUNDAI | Lantra 2.0 16V | [G4GF] | 08.1996- |
NO CORE EXCHANGE NEEDED
Two Years Warranty
