Alternator MAHLE ISKRA 11.201.146 / 11.201.230 / AAK1151 / AAK1193
Alternator NEW brand MAHLE ISKRA 11201146 / 11201230 / AAK1151 / AAK1193 / IA0230
BOSCH 0120489533 / 0120489534 / 0986031070
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Information:
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 55 | |

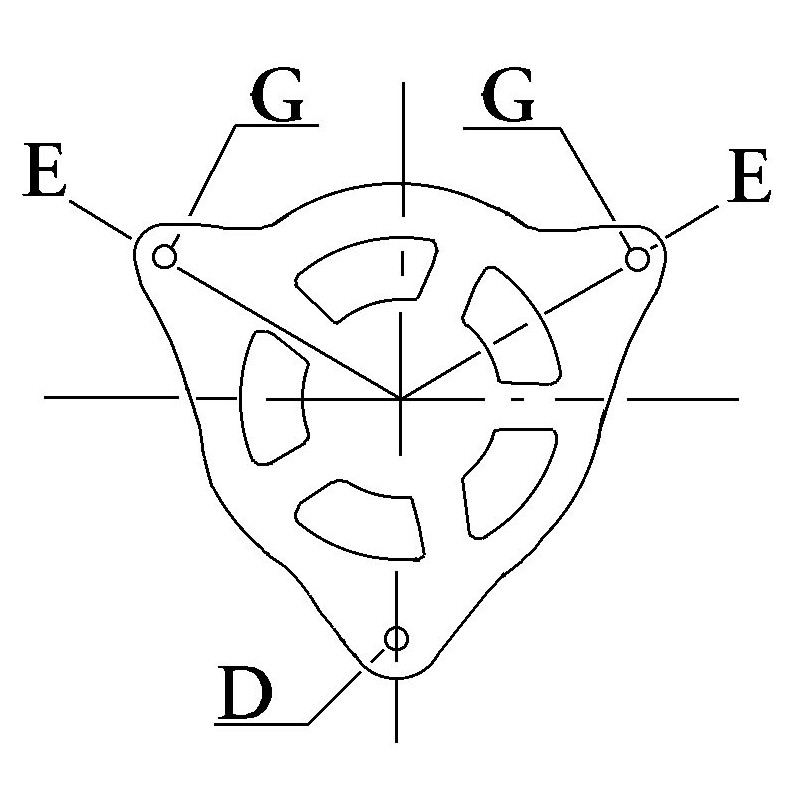

Physical Information | ||
|---|---|---|
| D | Bracket hole | 8.30 |
| G | Belt. adj. bracket hole | 8.30 |
| B | Width/holder arm | 50.70 |
| E | Belt. adj. brackethole pos. | 10 |
| E | Ceinture from soutien réglable/ pos. 2 | 50 |
| H | Pulley dia. | 78.00 |
| A | Pulley dist. | 74.00 |
| i | Grooves/pulley | 1 |
| j | Radius | 86.00 |
| j | Radius 2 | 80.00 |
| j | Radius 3 | 80.00 |
| k | Position B + | M6 |
| n | Rotation | Cr |
| o | Plug no. 1 | PL_NA |
| G | Belt. adj. bracket hole 2 2 | 8.30 |
| R | Total length mm | 168.00 |
Replacing :
Replacing | |
|---|---|
| 0120489533 | BOSCH |
| 0120489534 | BOSCH |
| 0986031070 | BOSCH |
| 11.201.146 | ISKRA |
| 11.201.230 | ISKRA |
| 9ar2715f | MOTOROLA |
| aak1151 | ISKRA |
| aak1193 | ISKRA |
| 0120489533 |
| 0120489534 |
| 0986031070 |
| 11201230 |
| 12311352708 |
| 215025055 |
| 9031070F |
| AAK1151 |
| AAK1193 |
| DRA0680 |
| DRA0700 |
| IA0230 |
| LRA00396 |
| MG228 |
Mounted on :
| BMW | 316 | M20B25 | 2,0 | 08.75-03.77 | |
| BMW | 316 | M40B16 | 2,0 | 08.75-03.77 | |
| BMW | 320 | M40B18 | 2,0 | 08.75-03.77 | |
| BMW | 518 | M20B25 | 1,6 | 07.74-01.78 | |
| BMW | 520 | .4 | M10B18 | 2,0 | 08.72-03.77 |
| VOLVO (BM) | BM 2200 | PERKINS 4.236 | - | ||
| VOLVO (BM) | BM 2204 | PERKINS 4.236 | - | ||
| VOLVO (BM) | BM 320/400/430 | - | |||
| VOLVO (BM) | BM 500/620 | - | |||
| VOLVO (BM) | BM 640/650 | - | |||
| VOLVO (BM) | BM 700/840 | - | |||
| VOLVO (BM) | BM BOXER | 350/600 | - | ||
| VOLVO (BM) | BM T800 | - | |||
| VOLVO (BM) | BM T810/T814 | - |
