Alternator replacing HITACHI LR155-414G / LR155-414F / LR155- 414B / LR155-414 / LR155-410G

Information:

Voltage 14

Amp 50

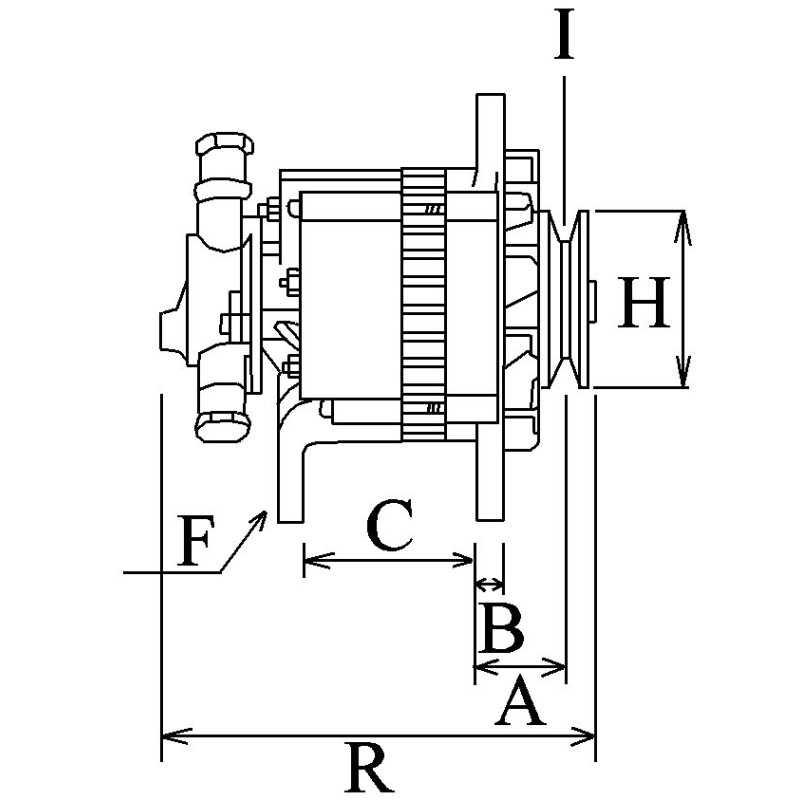

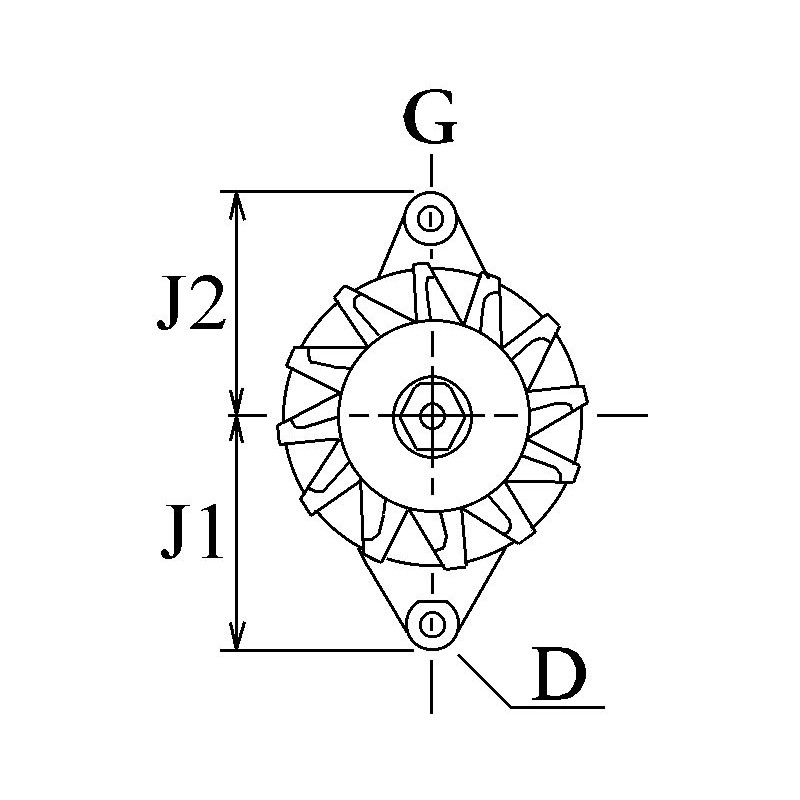

D = Bracket hole 10.50

G = Belt. adj. bracket hole M8

B = Width/holder arm 13.00

E = Belt. adj. brackethole pos. 60

C = Mount. bracket dist 80.25

H = Pulley dia. 73.25

A = Pulley dist. 50.90

Grooves/pulley 1

J = Radius 89.25

J = Radius 84.35

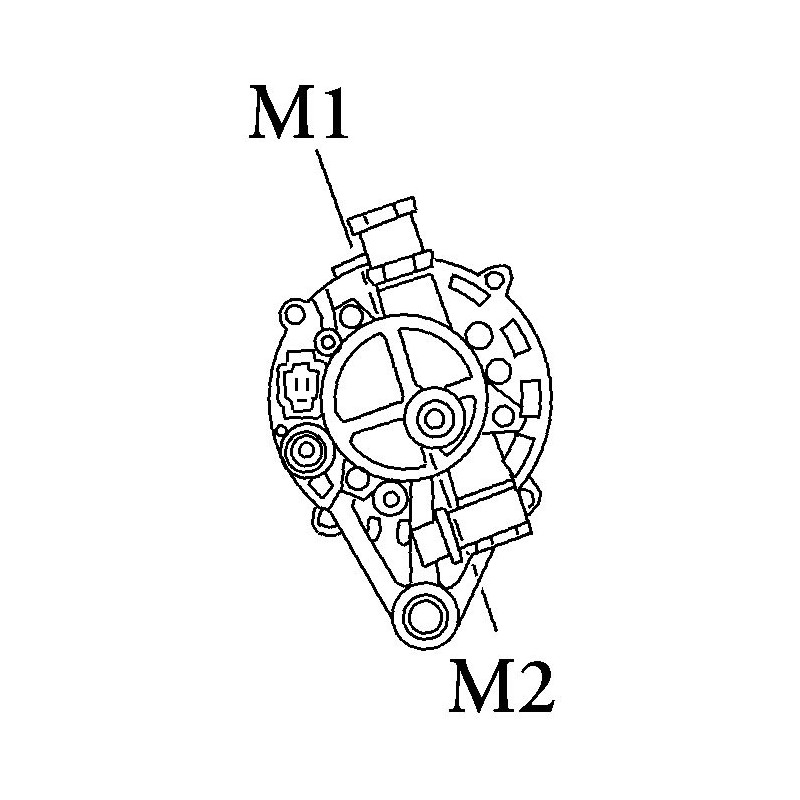

Position B + M5

Rotation Cr

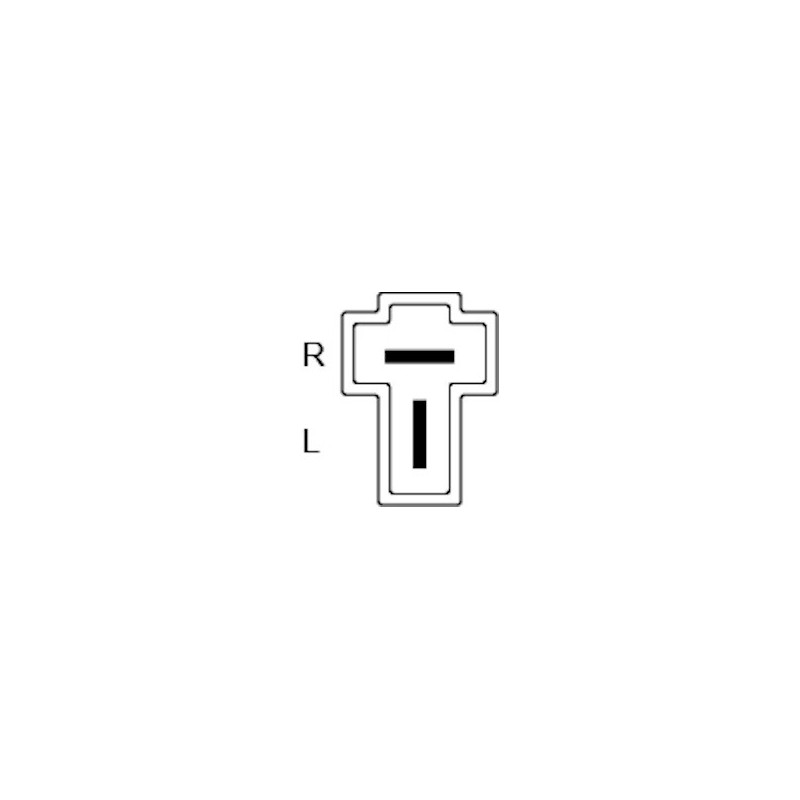

Plug no. 1 PL09

Fan Ef

Pulley Pulley

R = Total length mm 248.50

replacing

= HITACHI lr150-407 / lr150-410 / lr150-410b / lr150-410c / lr150-410ca / lr150-410f / lr150-410g / lr150-419 / lr150-419b / lr150-419ba / lr150-419f / lr150-419g / LR155-404 / lr155-406b / lr155-407 / lr155-407b / lr155-407c / lr155-407ca / lr155-407f / lr155-407g / lr155-409 / lr155-410 / lr155-410b / lr155-410ba / lr155-410f / lr155-410g / lr155-414 / LR155-414B / lr155-414f / lr155-414g

= MAZDA r201-18-300 / R201-18-300A / R201-18-300B / R201-18-300C / R201-18-300D / R201-18-300E / R202-18-300 / R202-18-300E / R264-18-300 / R264-18-300B / R2D3-18-300A / RF01-18-300 / RF09-18-300 / RF09-18-300E / RF30-18-300 / RF30-18-300B / RF30-18-300C / RF30-18-300D

= VALEO a000b015 / ad155325 / M36710

                                               TWO YEARS WARRANTY

                            NO CORE EXCHANGE NEEDED
