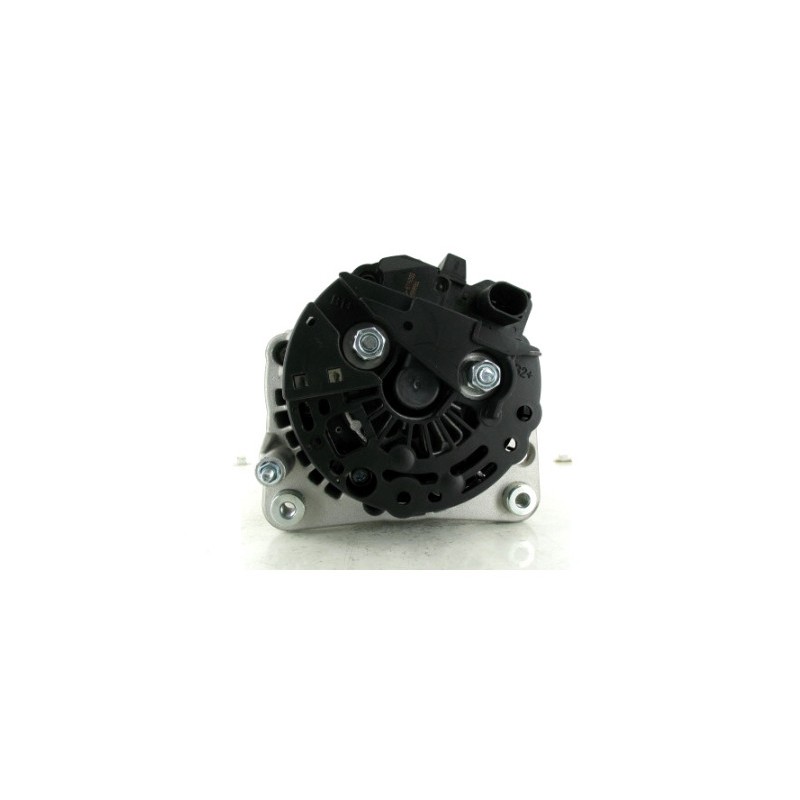

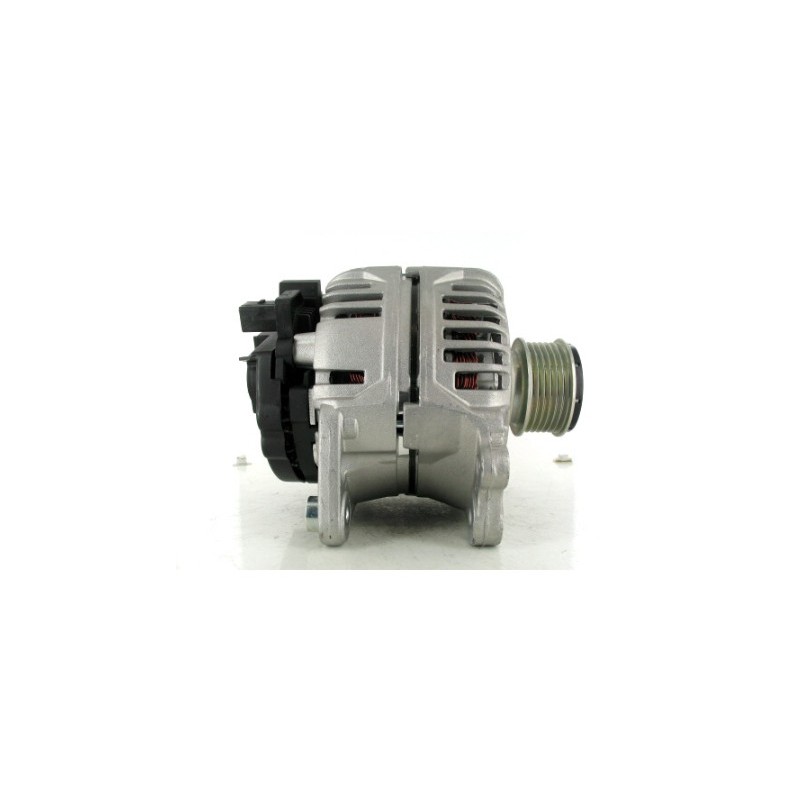

Alternator replacing BOSCH 0124325178 / VM 38522319F
Alternator BOSCH 0124325178 / VM 38522319F
= DRA0034 / LRA03279 / 528110010
Alternator BOSCH brand available here w114019
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 110 | |
Physical Information | ||
|---|---|---|
| D | Bracket hole | 8.50 |
| G | Belt. adj. bracket hole | 8.50 |
| B | Width/holder arm | 14.00 |
| E | Belt. adj. brackethole pos. | 45 |
| C | Mount. bracket dist | 61.10 |
| H | Pulley dia. | 56.00 |
| A | Pulley dist. | 39.00 |
| i | Grooves/pulley | 6 |
| j | Radius | 90.00 |
| j | Radius 2 | 90.00 |
| k | Position B + | M8 |
| n | Rotation | Cr |
| o | Plug no. 1 | PL61 |
| R | Total length mm | 192.00 |
Generic Brand
Replacing | |
|---|---|
| 0124325178 | BOSCH |
| 3.852.2319F | VM |
| 0124325178 |
| 285891 |
| 38522319F |
| 425502110 |
| 528110010 |
| 9090736F |
| 9203126 |
| 930034 |
| DRA0034 |
| LRA03279 |
| OAN12405 |
Mounted on :
| Model | Model série | Reference d origine du produit | Tipo of Gas | Start build | End built | Tipo engine | Engine Tipo | KW | Horse Power | Chassi type | Tipoe modèle | Engine in cm3 | Cylindres |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Maxus | Maxus | 2.5 | Diesel | 2005 02 | - | VM39C | CDi | 88 | 120 | De bus | 2499 | 4 | |
| Maxus | Maxus | 2.5 | Diesel | 2005 02 | - | VM39C | CRD | 70 | 95 | Pick-up | 2499 | 4 | |
| Maxus | Maxus | 2.5 | Diesel | 2005 02 | - | VM39C, VM40C | CDi | 70 | 95 | De bus | 2499 | 4 | |
| Maxus | Maxus | 2.5 | Diesel | 2005 02 | - | VM39C, VM40C | CDi | 70 | 95 | Boîte/Trucksnette | 2499 | 4 |
