w116698

A5TG1291AM MITSUBISHI
A5TG1291 MITSUBISHI
A005TG1291 MITSUBISHI
A005TG1291AM MITSUBISHI
554783RI KUHNER
0986085160 BOSCH
1986A00643 BOSCH
225.579.085.370 PSH
CAL35342GS CASCO
28-6902 ELSTOCK
LRA03792 LUCAS
20629N WAI / TRANSPO
4315 CEVAM
LRA3792 LUCAS
20137243OE REAL
Read more
€169.90 Tax included
Price may vary according to your VAT rate
Last items in stock Fast delivery
Add product to favorites
2-year warranty
No instructions, no return of the old
Secure payments

Features

Electrical information
Voltage 14
Amp 85

Catalogue information
Pulley SP
Fan IF
Regulator type IR

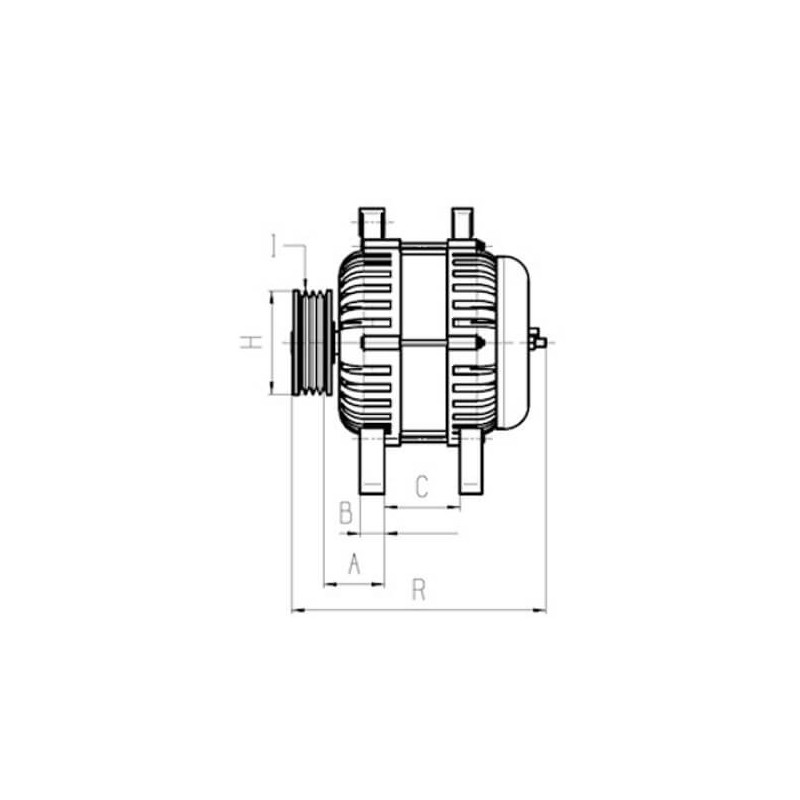

Physical information
A Pulley dist. 47.80
B Width/holder arm 13.00
C Mount. bracket dist. 46.00
D Bracket hole 10.50
E Belt. adj. brackethole pos. 60
G Belt. adj. bracket hole 8.50
H Pulley dia. 55.00
I Grooves/pulley 5
J Radius 90.00
J Radius 2 90.00
K B+ M8
K Position/B+ in min. 51
L D+ Size Plug
N Rotation CW

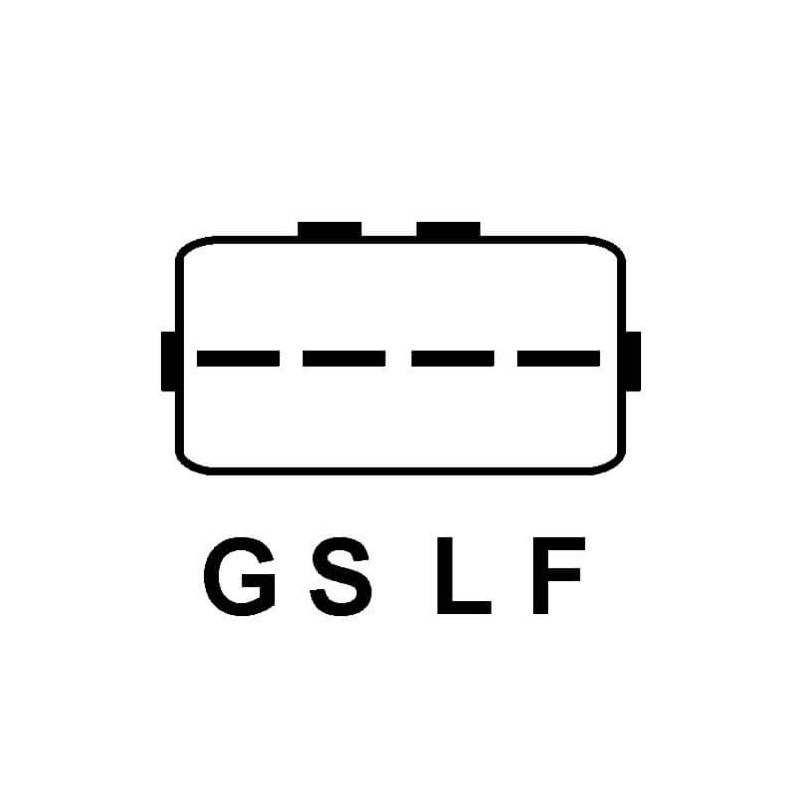

O Plug no. PL68
R Total length mm 169.00

Generic brand replaces :

A5TG1291AM MITSUBISHI
A5TG1291 MITSUBISHI
A005TG1291 MITSUBISHI
A005TG1291AM MITSUBISHI
554783RI KUHNER
0986085160 BOSCH
1986A00643 BOSCH
225.579.085.370 PSH
CAL35342GS CASCO
28-6902 ELSTOCK
LRA03792 LUCAS
20629N WAI / TRANSPO
4315 CEVAM
LRA3792 LUCAS
20137243OE REAL
2035342.1 SANDO
ALTE820 3EFFE
PRAE820 3EFFE
1607835580 PEUGEOT
89215831 POWERMAX
UD19985(MITSUBISHI)A AS-PL
1800A123 MITSUBISHI
