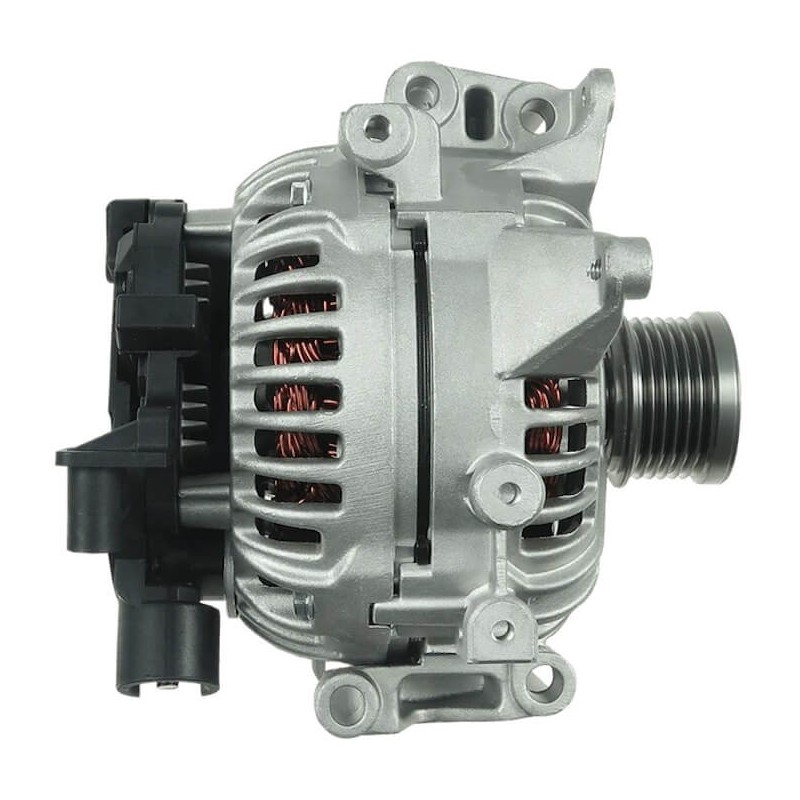

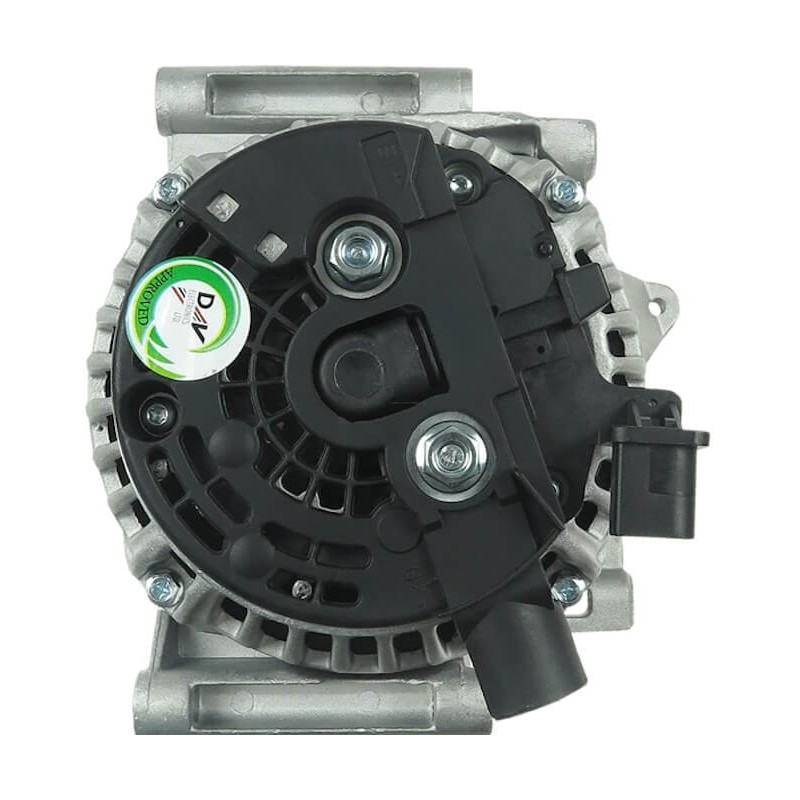

Alternator replacing 0124625014 / 0124625045 / A0131540002 / A0141540702
Alternator NEW replacing BOSCH 0124625014, 0124625045, 0986048550, 0986048557, MERCEDES-BENZ 013-154-00-02, A0131540002, A0141540702
NO CORE EXCHANGE NEEDED
More info
Spécification Electricals | ||
|---|---|---|
| Voltage | 14 | |
| Amp. | 200 | |
Spécification Physique | ||
|---|---|---|
| A | Pulley dist. | 30.50 |
| B | Width/holder arm | 93.20 |
| C | Mount. bracket dist | 55.50 |
| D | Bracket hole | 9.50 |
| E | Belt. adj. brackethole pos. | 60 |
| G | Belt. adj. bracket hole | 9.50 |
| H | Pulley dia. | 50.00 |
| I | Grooves/pulley | 6 |
| K | Position B + | M8 |
| K | B+ position en min. | 25 |
| N | Rotation | Cr |

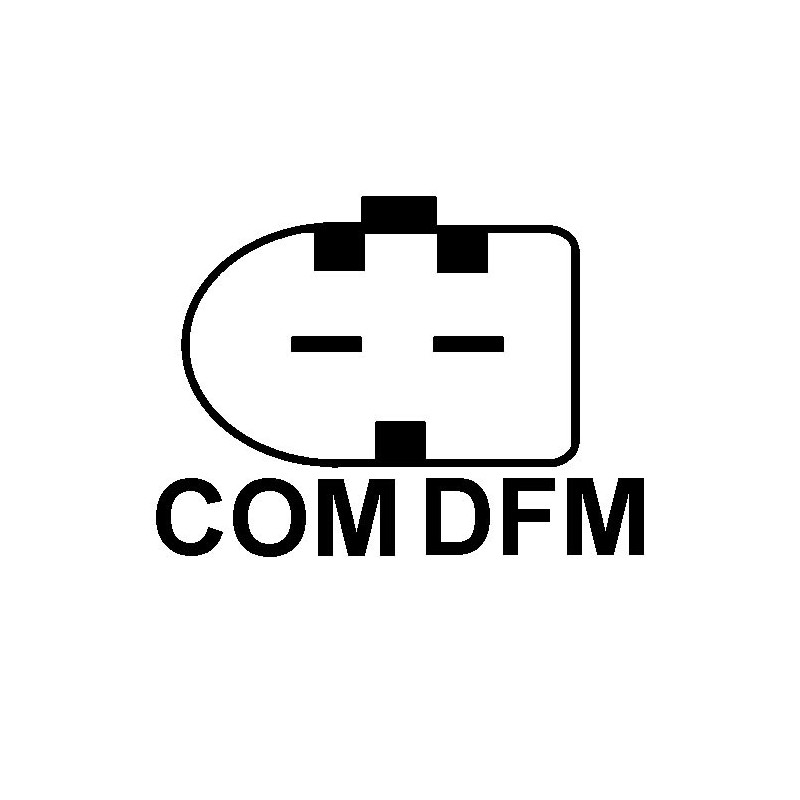

| O | Plug n° 1 | PL114 |
Replacing | |
|---|---|
| 0124625014 | BOSCH |
| 0124625045 | BOSCH |
| 0131540002 | MERCEDES-BENZ |
| 0141540702 | MERCEDES-BENZ |
| A0131540002 | MERCEDES-BENZ |
| A0141540702 | MERCEDES-BENZ |
| CA1859IR | HC-PARTS |
generic brand
replacing
| 0121615045 | BOSCH |
| 0124625014 | BOSCH |
| 0124625015 | BOSCH |
| 0124625045 | BOSCH |
| 0124625045OR | Generic |
| 0131540002 | MERCEDES-BENZ |
| 0141540702 | MERCEDES-BENZ |
| 014154702 | MERCEDES-BENZ |
| 0986046330 | BOSCH |
| 0986048550 | BOSCH |
| 11216 | EAI |
| 11216N | WAI |
| 11216R | WAI |
| 112362 | FARC |
| 113953 | Cargo |
| 12046330 | EuroTec |
| 12048550 | EuroTec |
| 12201219 | AES |
| 2205466 | PIC |
| 2251512002 | DRI |
| 284945 | Elstock |
| 4810 | CEVAM |
| 555558200 | PSH |
| 56924 | EAI |
| 57006 | EAI |
| 6309SP | Spidan |
| 738211091 | HELLA |
| 8EL012428791 | HELLA |
| 8EL738159001 | HELLA |
| 8EL738211091 | HELLA |
| 8EL738211101 | HELLA |
| 90156527 | WILSON |
| 9046330 | Friesen |
| 9046330F | Friesen |
| 946330 | EDR |
| A0131540002 | MERCEDES-BENZ |
| A0141540702 | MERCEDES-BENZ |
| A014154702 | MERCEDES-BENZ |
| ALTH181 | UNIPOINT |
| CA1859IR | HC |
| DRB6330 | DELCO REMY |
| F042A0H181 | BOSCH |
| HCA1859IR | HC |
| L48110 | ATL |
| L48550 | ATL |
| LRA02827 | LUCAS |
| LRA2827 | LUCAS |
| OAN11407 | Optimum |
| SP6309 | Spidan |
Mounted on :
MERCEDES-BENZ
| MERCEDES BENZ | C 200 2.1 CDi | (203)[OM646.962] | 03.2003- |
| MERCEDES BENZ | C 200 2.2 CDi | (203)[OM646.962] | 03.2003- |
| MERCEDES BENZ | C 220 2.2 CDi | (203)[OM646.963] | 03.2003- |
| MERCEDES BENZ | CLC 220 2.1 CDi | [OM646.962] | 05.2008- |
| MERCEDES BENZ | CLC 220 2.1 CDi | [OM646.963] | 05.2008- |
| MERCEDES BENZ | CLK 220 2.1 CDi | (209)[OM646.966] | 04.2005- |
| MERCEDES BENZ | E 220 2.1 CDi | (211)[OM646.961] | 03.2002- |
| MERCEDES BENZ | E 280 3.2 CDi | -211 | 02.2004-03.2005 |
| MERCEDES BENZ | E 320 3.2 CDi | (211)[OM648.961] | 11.2002-03.2005 |
