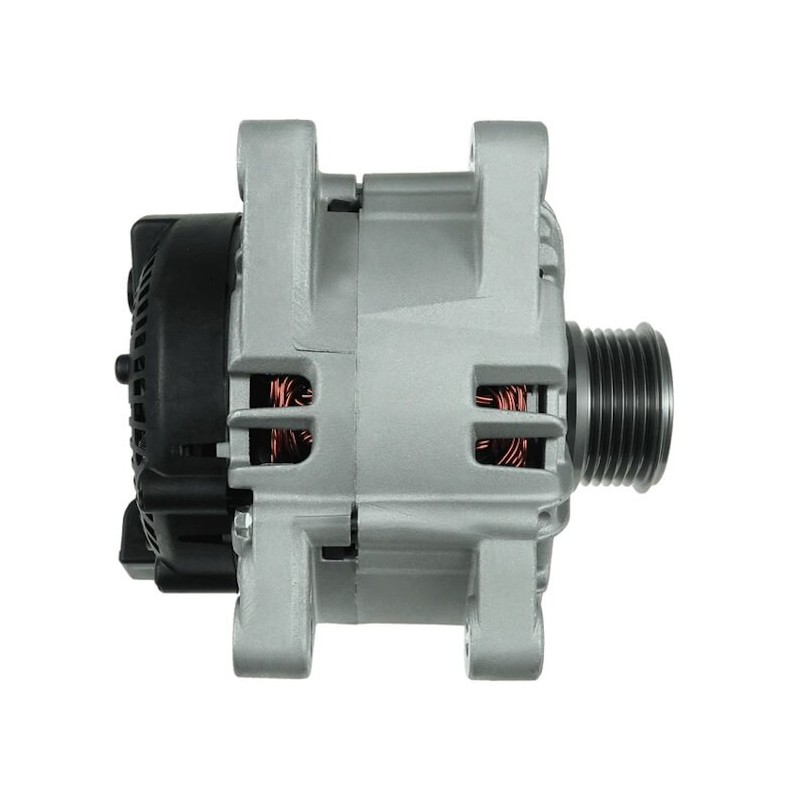

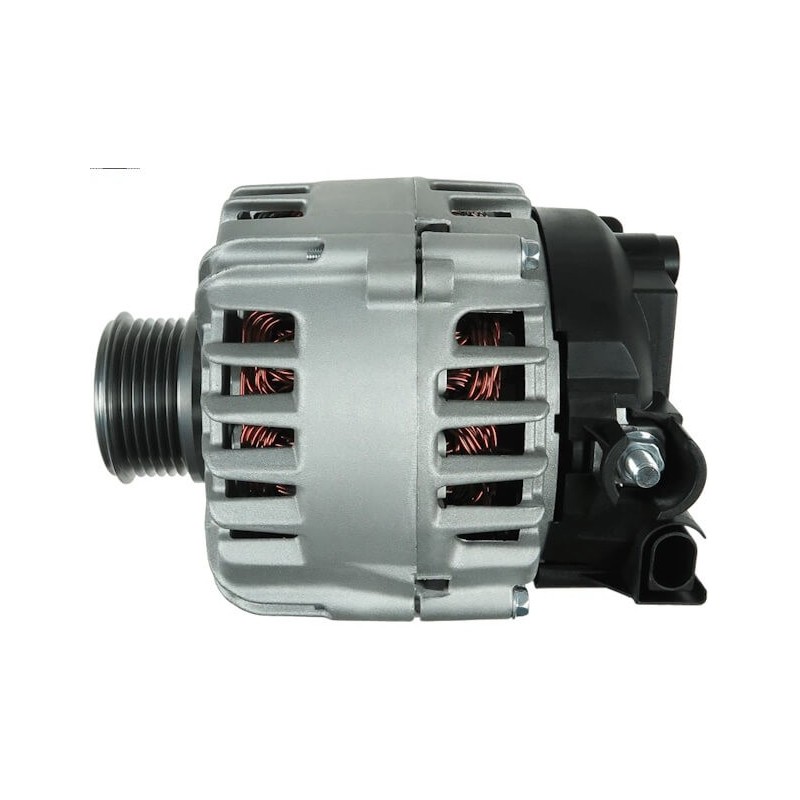

Alternator replacing TG15C103 / TG15C152 / 8V2110300BB
| 0986084230 | Bosch ruil |
| 1762869 | Ford |
| 2543428 | Valeo |
| 2543428A | Valeo |
| 2609244 | Valeo |
| 285825 | Elstock |
| 31285808 | Volvo |
| 36000909 | Volvo |
| 439633 | Valeo |
| 439916 | Valeo |
| 440200 | Valeo |
| 440585 | Valeo |
| 543428 | Valeo |
More info
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 150 | |

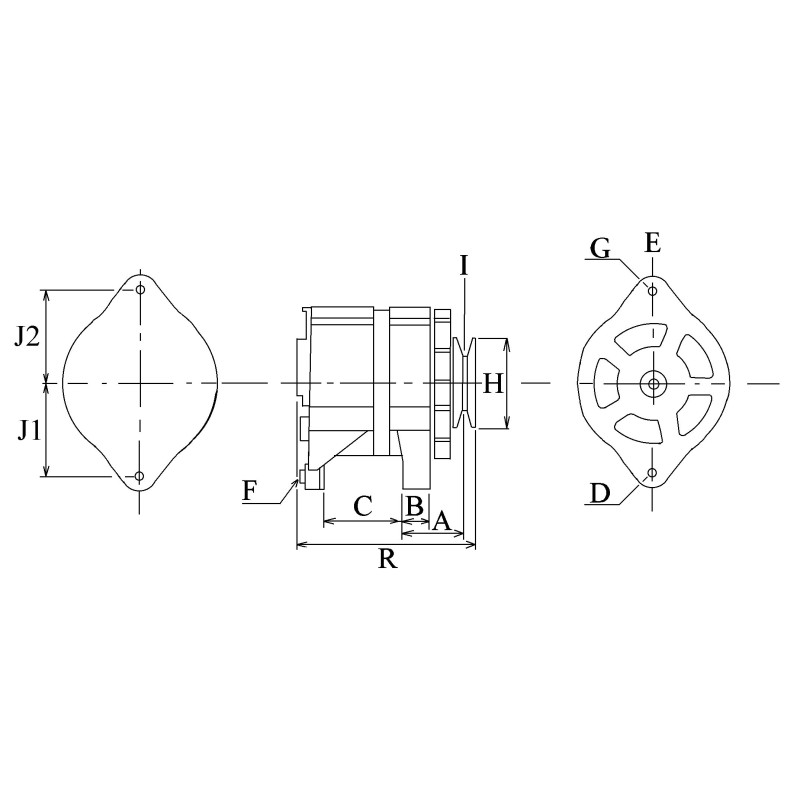

Physical Information | ||
|---|---|---|
| D | Bracket hole | 10.20 |
| G | Belt. adj. bracket hole | 10.50 |
| B | Width/holder arm | 21.00 |
| E | Belt. adj. brackethole pos. | 45 |
| C | Mount. bracket dist | 46.50 |
| H | Pulley dia. | 54.50 |
| A | Pulley dist. | 42.90 |
| i | Grooves/pulley | 6 |
| j | Radius | 90.00 |
| j | Radius 2 | 90.00 |
| k | Position B + | M8 |
| n | Rotation | Cr |
| o | Plug no. 1 | PL137 |
| R | Total length mm | 170.00 |

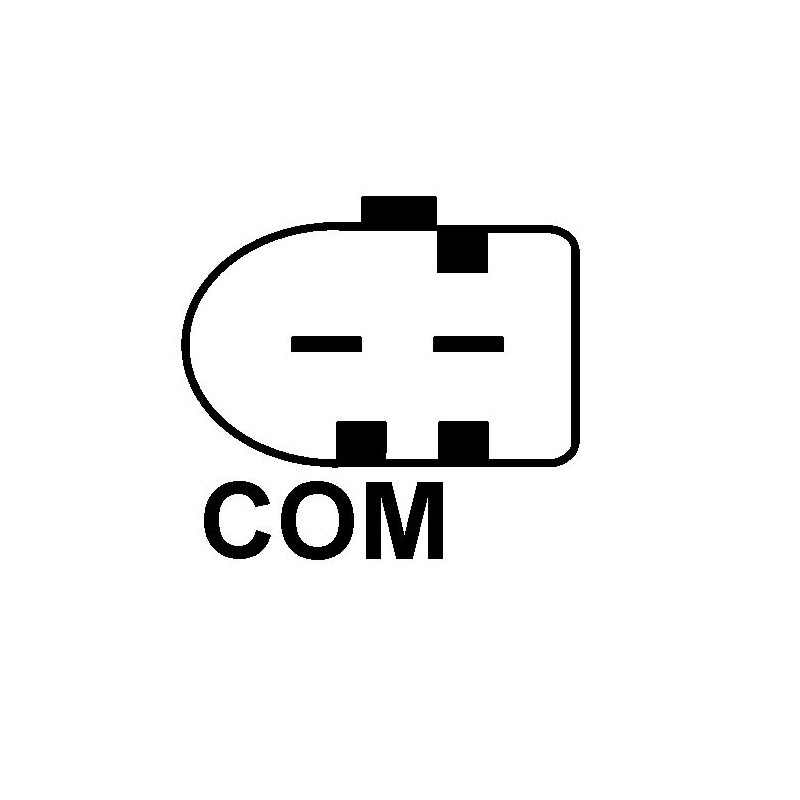

| Tipo borne | COM | |
| Communication | LIN | |
Generic brand
replacing
| 0986084230 | Bosch ruil |
| 1762869 | Ford |
| 2543428 | Valeo |
| 2543428A | Valeo |
| 2609244 | Valeo |
| 285825 | Elstock |
| 31285808 | Volvo |
| 36000909 | Volvo |
| 439633 | Valeo |
| 439916 | Valeo |
| 440200 | Valeo |
| 440585 | Valeo |
| 543428 | Valeo |
| 595561150 | PSH |
| 639402 | Valeo |
| 8V2110300BB | Ford |
| 9G9N10300CA | Ford |
| ALT14216 | Wood Auto |
| DRA0527 | Remy |
| LRA03213 | Lucas |
| LRA3213 | Lucas |
| RAA11638 | Remy |
| RM6G9N10300XC | Ford |
| RNLTG15C103 | RNL |
| TG15C103 | Valeo |
| TG15C152 | Valeo |
| VAL439633 | Wood Auto |
| VAL439916 | Wood Auto |
| VALTG15C103 | Wood Auto |
| WOOALT14216 | Wood Auto |
| Y40618300 | Mazda |
Mounted on :
FORD : BMAX - ECOSPORT - FIESTA - FOCUS - GALAXY - Grand C-Max - KUGA - S-max - Tourneo - Transit
VOLVO :
| Model | Model série | Reference d origine du produit | Tipo of Gas | Start build | End built | Tipo engine | Engine Tipo | KW | Horse Power | Chassi type | Tipoe modèle | Engine in cm3 | Cylindres |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| C30 | C30 | 1.6 | Diesel | 2010 10 | - | D4162T | Diesel | 84 | 115 | Hayon | 1560 | 4 | |
| S80 | S80 | 1.6 | Diesel | 2011 06 | - | D4162T | Diesel | 84 | 114 | DRIVe | 1560 | 4 | |
| V40 | V40 | 1.6 | Diesel | 2012 03 | - | D4162T | Diesel | 84 | 114 | Hayon | 1560 | 4 | |
| V70 | V70 | 1.6 | Diesel | 2011 06 | - | D4162T | Diesel | 84 | 114 | Break | D5 AWD | 1560 | 4 |
| V70 | V70 | 1.6 | Diesel | 2010 01 | - | D4164T | Diesel | 80 | 109 | Break | DRIVe | 1560 | 4 |
MAZDA :
| Model | Model série | Reference d origine du produit | Tipo of Gas | Start build | End built | Tipo engine | Engine Tipo | KW | Horse Power | Chassi type | Tipoe modèle | Engine in cm3 | Cylindres |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2 | 2 | 1.4 | Diesel | 2008 01 | - | Y404 | diesel | 50 | 68 | Hayon | MZR | 1399 | 4 |
| 2 | 2 | 1.6 | Diesel | 2008 10 | - | Y406 | CD | 66 | 90 | Hayon | MZ | 1560 | 4 |
| 2 | 2 | 1.6 | Diesel | 2008 10 | - | Y646 | CD | 66 | 90 | Hayon | MZ | 1560 | 4 |
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
Data sheet
| Poulie | serpentine |
| Connecteur régulateur | PL6 |
| Ampérage | 140 |
| Voltage | 14 |
