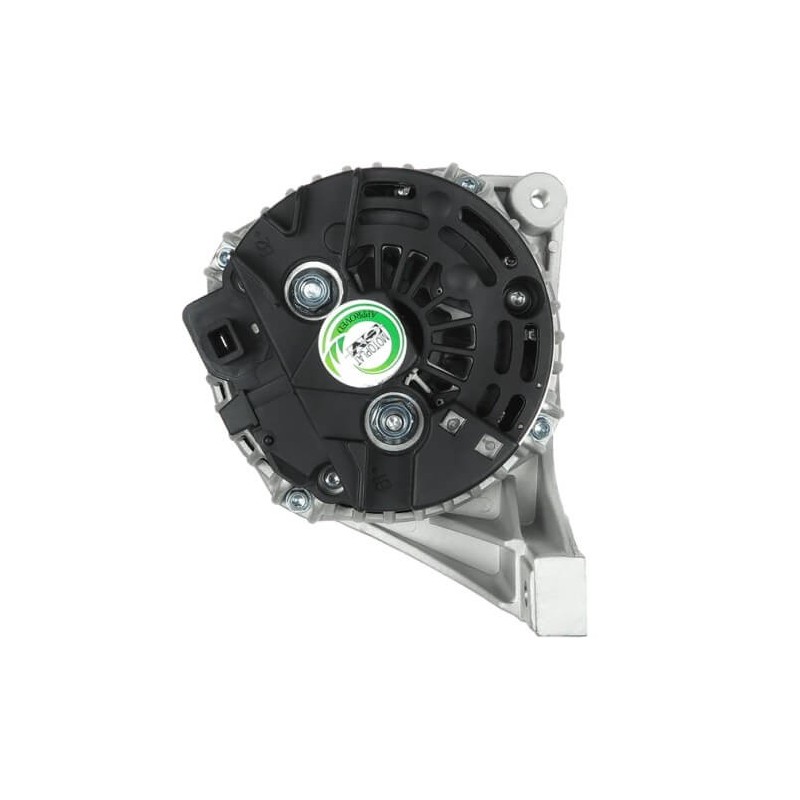

Alternator replacing 0124515017 / 0124515018 / 0986041150
| 0986041153 | BOSCH |
| 11.1443 | LAUBER |
| 11.1443M | LAUBER |
| 13802N | WAI / TRANSPO |
| 20101223OE | REAL |
| 2010322 | SANDO |
| 28-3637 | ELSTOCK |
| 301443RI | KUHNER |
| 310823 | RHIAG |
| 437802 | VALEO |
| 4634 | CEVAM |
| 56862 | EAI |
| 8111001 | VOLVO |
| 815.517.120 | PSH |
| 8602277 | VOLVO |
More info
Physical information | ||
|---|---|---|
| A | Pulley dist. | 44.50 |
| C | Mount. bracket dist. | 82.00 |
| D | Bracket hole | M8 |
| E | Belt. adj. brackethole pos. | 50 |
| G | Belt. adj. bracket hole | 8.50 |
| G | Belt. adj. bracket hole 2 | 8.50 |
| H | Pulley dia. | 55.70 |
| I | Grooves/pulley | 6 |
| J | Radius 2 | 87.00 |
| K | B+ | M8 |
| K | Position/B+ in min. | 30 |
| N | Rotation | CCW |
| O | Plug no. | PL_NA |
| R | Total length mm | 194.00 |
Electrical information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 120 | |
generic brand
replacing
| 0124515017 | Bosch |
| 0124515222 | Bosch |
| 0986041150 | Bosch ruil |
| 0986041153 | Bosch ruil |
| 0986041157 | Bosch ruil |
| 112078 | Cargo |
| 12041150 | EuroTec |
| 13802 | Lester |
| 2205050 | PIC |
| 2381351202 | DRI |
| 283637 | Elstock |
| 32041150 | Herth Buss |
| 437802 | Valeo |
| 4634 | CEVAM |
| 56862 | EAI |
| 5746SP | Spidan |
| 811001 | Volvo |
| 8111001 | Volvo |
| 81110017 | Volvo |
| 815517120 | PSH |
| 8602277 | Volvo |
| 8EL737641001 | Hella |
| 90156360 | Wilson |
| 9041150 | Friesen |
| 9041150F | Friesen |
| 9442841 | Volvo |
| 94428414 | Volvo |
| 9459038 | Volvo |
| 9559038 | Volvo |
| AL0756N | Bosch (USA) |
| AL0756X | Bosch (USA) |
| CA1443IR | HC |
| DRB1150 | Remy |
| HCA1443IR | HC |
| LRA01817 | Lucas |
| OAN10352 | Optimum |
| SP5746 | Spidan |
| WSD23934 | Stabeco |
for
| Brand | Model | Typ | Year |
| VOLVO | XC70 2.4 Turbo AWD | [B5244T3] | 09.2000-09.2002 |
| VOLVO | S60 2.4 Bifuel | [B5244SG2] | 06.2002-08.2004 |
| VOLVO | V70 2.3 T5 | [B5234T3] | 03.2000-07.2004 |
| VOLVO | S80 2.0 Turbo | [B5204T3] | 06.1998-07.2000 |
| VOLVO | S80 2.0 Turbo | [B5204T5] | 08.1999-07.2006 |
| VOLVO | S60 R 2.5 Turbo AWD | [B5254T4] | 01/03/03 |
| VOLVO | S80 2.4 | [B5244S2] | 01.1999-07.2006 |
| VOLVO | V70 2.4 | [B5244S2] | 03.2000-07.2007 |
| VOLVO | S80 2.4 | [B5244S] | 01.1999-07.2006 |
| VOLVO | S80 2.4 Bifuel | [B5244SG2] | 09.2001-07.2006 |
| VOLVO | V70 2.4 | [B5244S] | 03.2000-07.2007 |
| VOLVO | S80 2.8 T6 | [B6284T] | 05.1998-07.2001 |
| VOLVO | S80 2.9 | [B6294S] | 03.1999-07.2001 |
| VOLVO | S80 2.9 24V | [B6304S3] | 05.1998-08.1999 |
| VOLVO | S80 3.0 | [B6294S2] | 08.2001-07.2006 |
| VOLVO | S80 3.0 T6 | [B6294T] | 06.2001-07.2006 |
| VOLVO | V70 2.4 Turbo | [B5244T3] | 03.2000-07.2002 |
| VOLVO | V70 2.4 Bifuel | [B5244SG] | 09.2001-07.2006 |
| VOLVO | V70 2.4 Turbo AWD | [B5244T3] | 03.2000-07.2003 |
| VOLVO | S60 2.4 Turbo | [B5244T3] | 11.2000-07.2004 |
| VOLVO | S60 2.0 Turbo | [B5204T5] | 11.2000-08.2004 |
| VOLVO | S60 2.3 T5 | [B5234T3] | 11.2000-03.2004 |
| VOLVO | S60 2.4 Turbo AWD | [B5244T3] | 11.2001-07.2003 |
| VOLVO | S60 2.4 Turbo AWD | [B5244T3] | 11.2001-07.2003 |
| VOLVO | S80 2.0 | [B5204T4] | 06.1998-07.2000 |
| VOLVO | S60 2.4 | [B5244S2] | 11.2000-08.2004 |
| VOLVO | S60 2.4 | [B5244S] | 11.2000-08.2004 |
| VOLVO | S80 2.4 Turbo | [B5244T3] | 06.2000-07.2003 |
