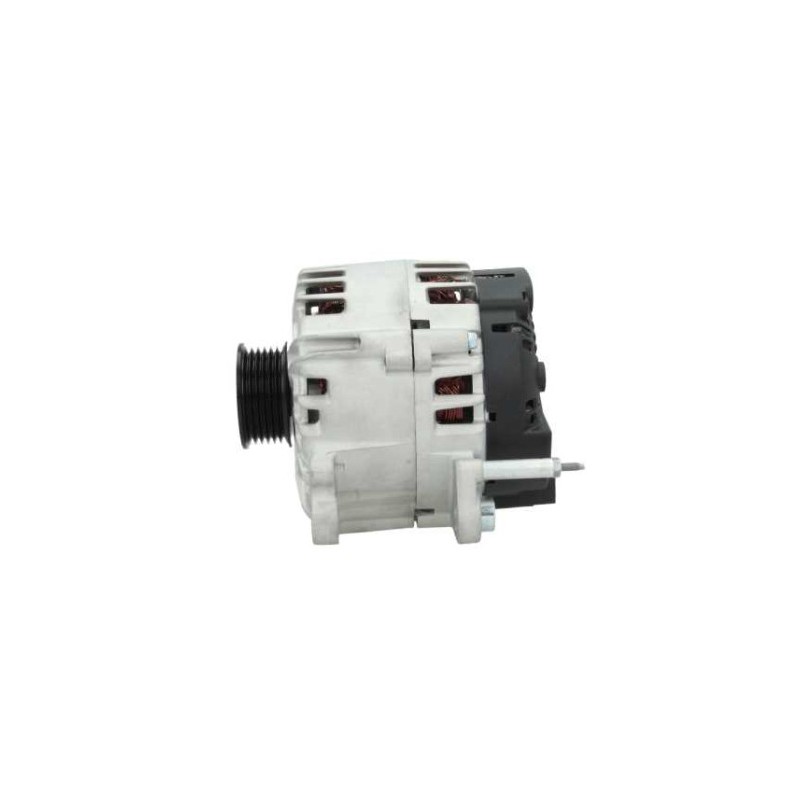

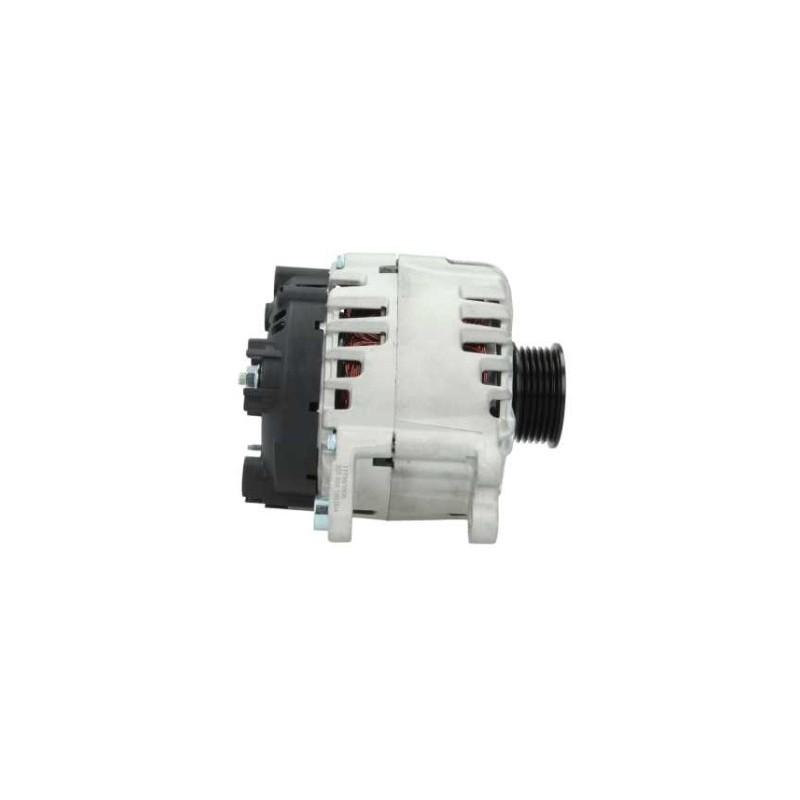

Alternator replacing FG18T042 / 2606617A / 2606617 / 059903023GX / 059903023G
Alternator NEW replacing :
DELCO REMY DRA1074
VALEO FG18T042 / 2606617A / 2606617 / 439687 / 440272
VOLKSWAGEN 059903023GX / 059903023G
fitsTouareg 3.0 Diesel
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Information:
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 180 | |
Physical Information | ||
|---|---|---|
| D | Bracket hole | 8.50 |
| G | Belt. adj. bracket hole | 8.50 |
| B | Width/holder arm | 13.50 |
| E | Belt. adj. brackethole pos. | 45 |
| C | Mount. bracket dist | 61.00 |
| H | Pulley dia. | 57.00 |
| A | Pulley dist. | 30.00 |
| i | Grooves/pulley | 6 |
| j | Radius | 90.00 |
| j | Radius 2 | 90.00 |
| k | Position B + | M8 |
| n | Rotation | CW |
| o | Plug no. 1 | PL86 |
| R | Total length mm | 176.00 |
Replacing | |
|---|---|
| 059903023G | VOLKSWAGEN |
| 059903023GX | VOLKSWAGEN |
| 2606617 | VALEO |
| 2606617A | VALEO |
| FG18T042 | VALEO |
Generic Brand
Mounted on :
| Touareg | Touareg | 3.0 | Diesel | 2006 12 | - | CASB | TDi | 155 | 211 | SUV | 2967 | 6 | 7LA, 7L6, 7L7 | |
| Touareg | Touareg | 3.0 | Diesel | 2006 12 | - | BUN | TDi | 155 | 211 | SUV | 2967 | 6 | 7LA, 7L6, 7L7 | |
| Touareg | Touareg | 3.0 | Diesel | 2004 11 | - | CATA | TDi | 165 | 224 | SUV | 2967 | 6 | 7LA | |
| Touareg | Touareg | 3.0 | Diesel | 2007 11 | - | CASA | V6 TDi | 176 | 240 | SUV | 2967 | 6 | 7LA, 7L6, 7L7 | |
| Touareg | Touareg | 3.0 | Diesel | 2007 11 | - | CASC | V6 TDi | 176 | 240 | SUV | 2967 | 6 | 7LA, 7L6, 7L7 | |
| Touareg | Touareg | 3.0 | Diesel | 2004 11 | - | BKS | TDi | 165 | 224 | SUV | 2967 | 6 | 7LA |
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
