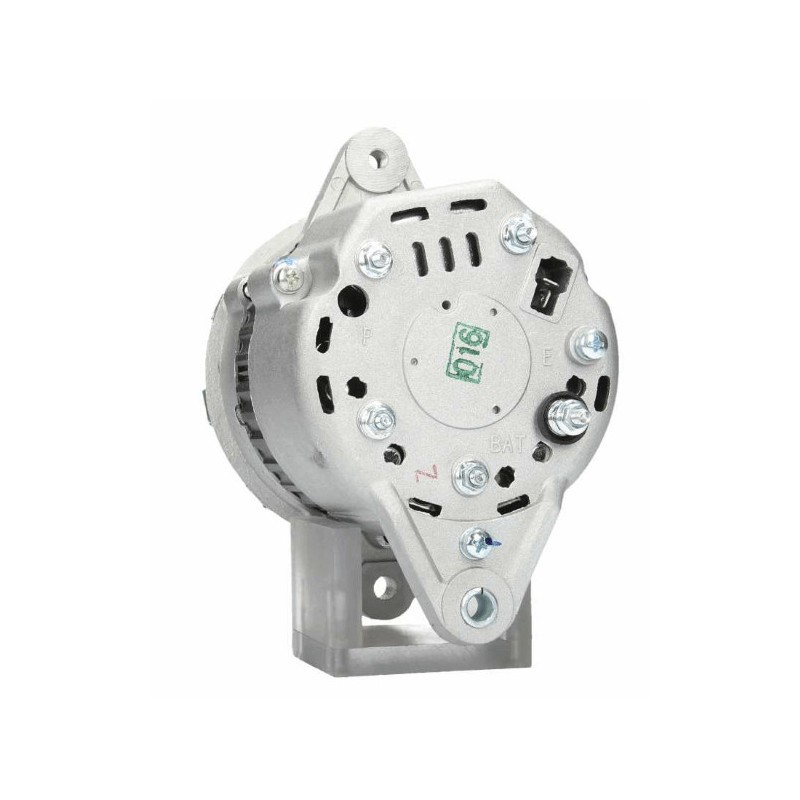

Alternator replacing HITACHI LR120-23 for BOBCAT / ISUZU

Information:

Amp 20

Voltage 14

D = Bracket hole 8.15

G = Belt. adj. bracket hole M8

B = Width/holder arm 14.50

E = Belt. adj. brackethole pos. 60

C = Mount. bracket dist 80.50

H = Pulley dia. 75.00

A = Pulley dist. 42.50

Grooves/pulley 1

J = Radius 77.50

J = Radius 2 77.50

Position B + M5

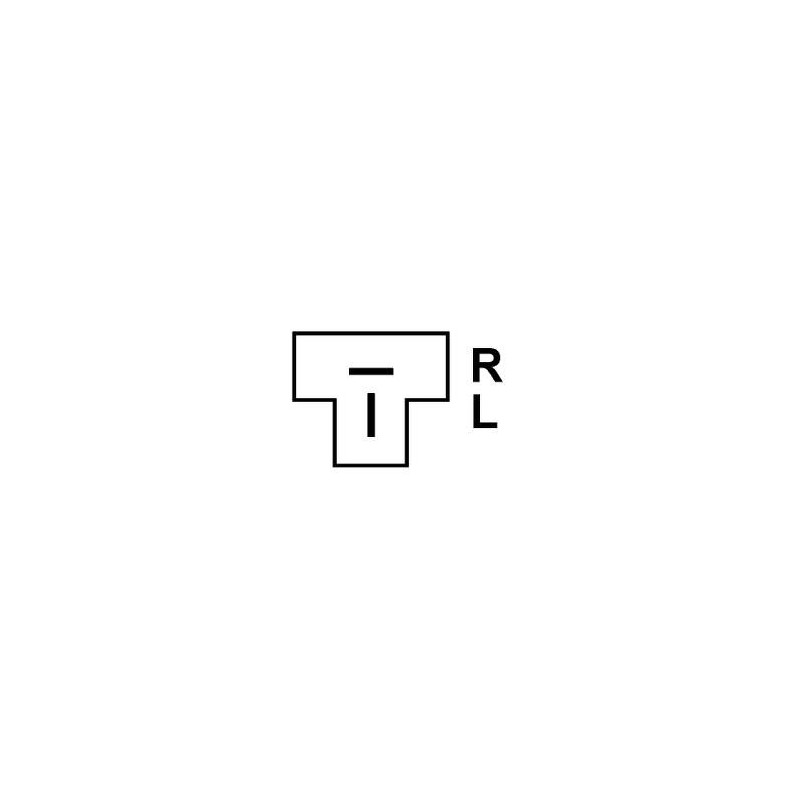

Plug no. 1 PL09

Fan Ef

Pulley Pulley

R = Total length mm 162.00

generic brand

= ISUZU 5812003580 / 5812210540

                                NO CORE EXCHANGE NEEDED

                                                      TWO YEARS WARRANTY
