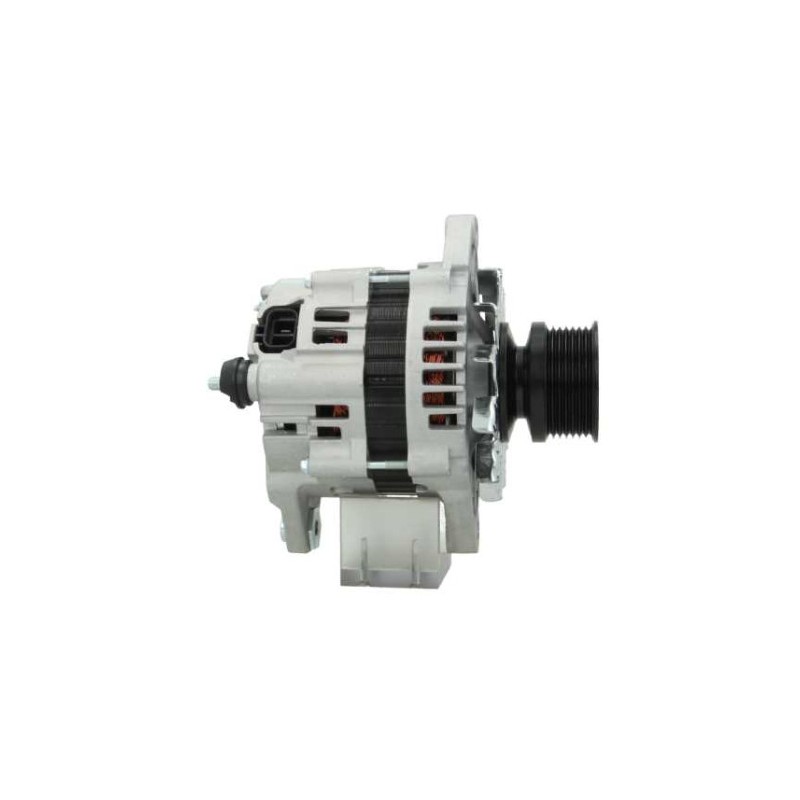

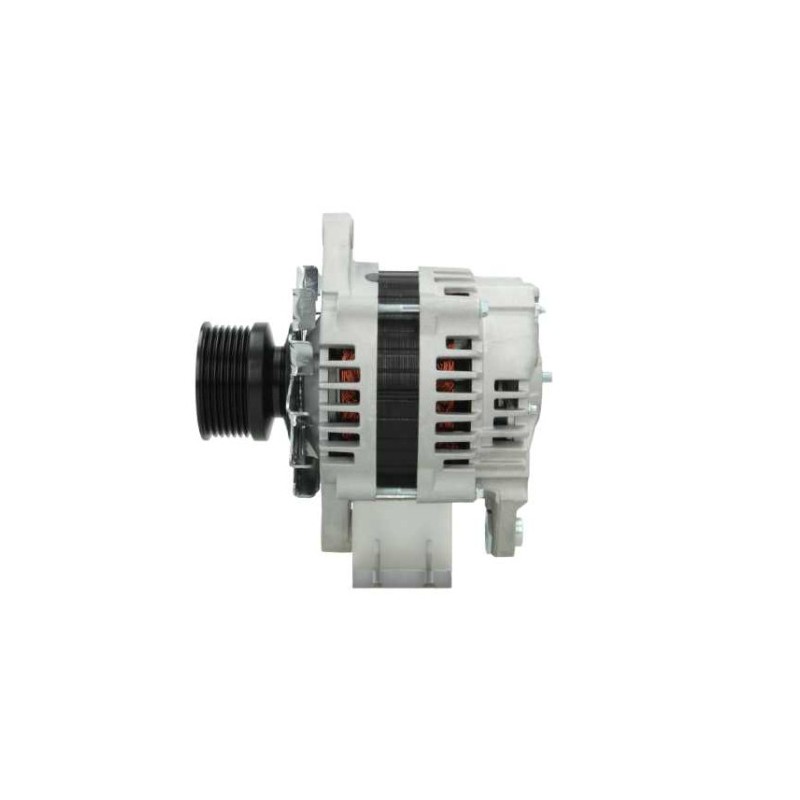

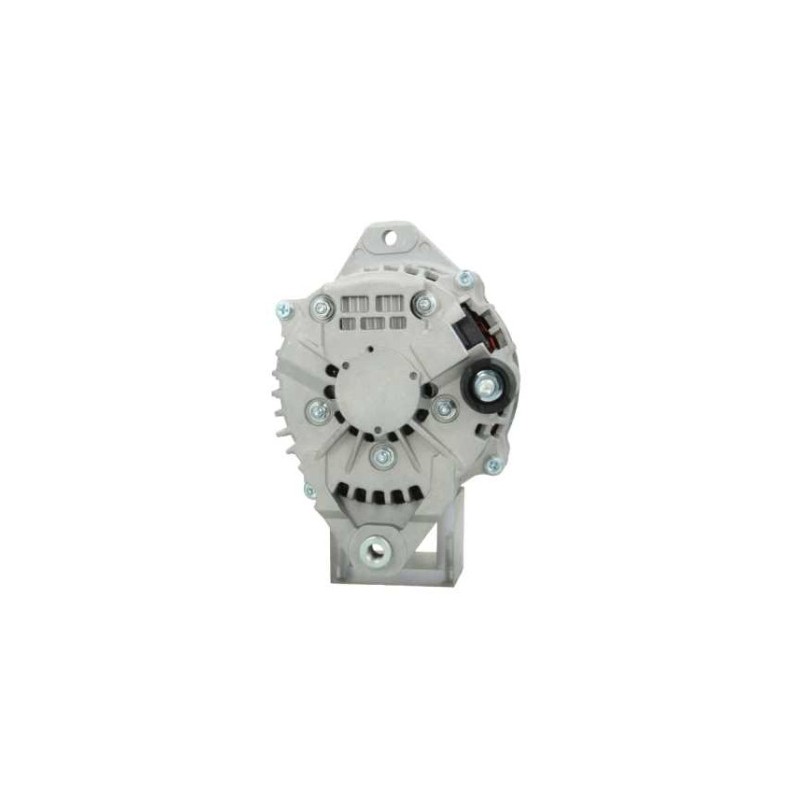

Alternator replacing HITACHI LR250-707 / LR250-707C / LR250-708 / LR250-708B / LR250-708E
Alternator replacing HITACHI LR250-707 / LR250-707C / LR250-708 / LR250-708B / LR250-708E
ISUZU 8980298872 / 8980750260 / 8989298872
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Information:
Electrical Information | ||
|---|---|---|
| Voltage | 28 | |
| Amp | 50 | |
Physical Information | ||
|---|---|---|
| D | Bracket hole | 10.50 |
| G | Belt. adj. bracket hole | M8 |
| B | Width/holder arm | 17.50 |
| E | Belt. adj. brackethole pos. | 2 |
| C | Mount. bracket dist | 76.20 |
| H | Pulley dia. | 64.80 |
| A | Pulley dist. | 55.30 |
| i | Grooves/pulley | 7 |
| j | Radius | 85.40 |
| j | Radius 2 | 84.60 |
| k | Position B + | M8 |
| n | Rotation | CW |

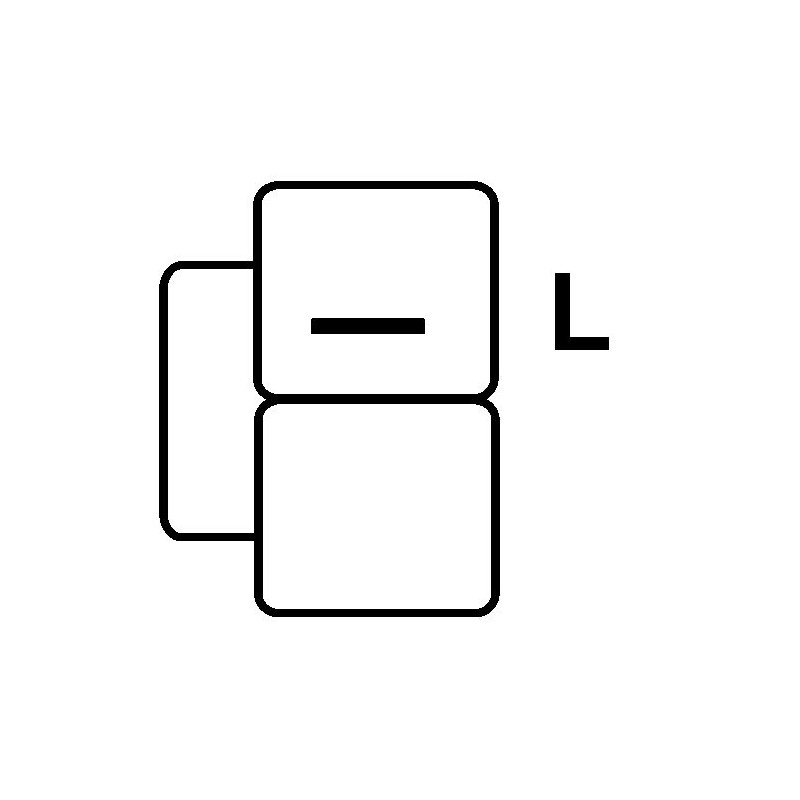

| o | Plug no. 1 | PL100 |
| R | Total length mm | 205.00 |
Replacing | |
|---|---|
| 8980298872 | ISUZU |
| LR250-707 | HITACHI |
| LR250-707C | HITACHI |
| LR250-708 | HITACHI |
| LR250-708B | HITACHI |
| LR250-708E | HITACHI |
| 71440523 | JCB |
| 8980298872 | ISUZU |
| 8980750260 | ISUZU |
| KTR273004100 | KTR |
| ALT3122sa | Electrolog |
| ALT3142sa | Electrolog |
| 136502050 |
| 71440523 |
| 8980298872 |
| 8980750260 |
| 8989298872 |
| ALT3122sa |
| ALT3142sa |
| KTR273004100 |
| LR250707 |
| LR250707C |
| LR250708E |
Mounted on :
| ISUZU | NPR300 | 4HK1 |
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
Data sheet
| Poulie | serpentine |
| Connecteur régulateur | PL6 |
| Ampérage | 140 |
| Voltage | 14 |
