Alternator repalcing 8SC3068V / 8SC3068VC for Caterpillar / Cummins

Display all pictures

Alternator repalcing 8SC3068V / 8SC3068VC for Caterpillar / Cummins

Reference: w114347

Condition: New product

1 Item Items

Replacing
10R7946	Caterpillar
110-431	Motorola USA
3640732	Cummins
8SC3068V	Motorola USA
8SC3068VC	Motorola USA

WITHOUT PULLEY

NO CORE EXCHNAGE NEEDED

More info

More info

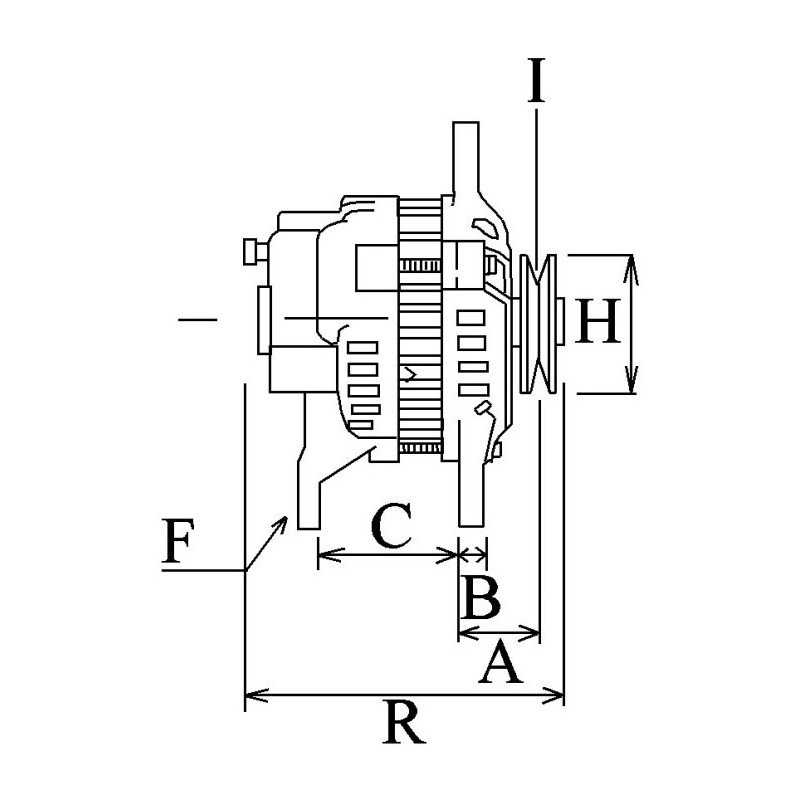

Physical information
B	Width/holder arm	14.50
C	Mount. bracket dist.	102.00
D	Bracket hole	13.00
E	Belt. adj. brackethole pos.	60
G	Belt. adj. bracket hole	½"-13 UNC
J	Radius	108.00
J	Radius 2	103.80
K	B+	5/16" UNC
K	Position/B+ in min.	30
N	Rotation	CW
O	Plug no. 1	PL_NA
R	Total length mm	249.00

Electrical information
	Voltage	28
	Amp	150

Catalogue information
	Pulley	w/o
	Fan	EF
	Vac. pump	No
	Info	Not insulated return

generic brand

replacing

0R7942	Caterpillar
110431	Prestolite
110431SEL	+line
11204021	Mahle
114347	Cargo
114349	Cargo
1501935	Caterpillar
3640732	Cummins
646036150	PSH
8SC3068V	Prestolite
8SC3068VC	Motorola
8SC3160V	Prestolite
90059201	Wilson
AAT3312	Mahle
ALT0190	Unipoint
F042308015	Bosch
F042308016	Bosch
F042A08015	Bosch
IA1433	Mahle
