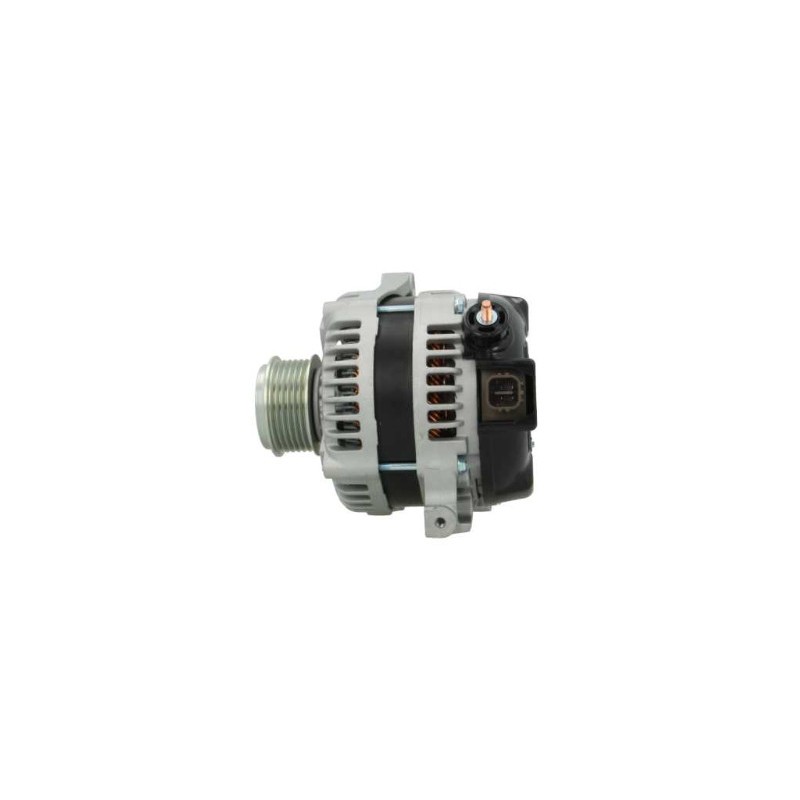

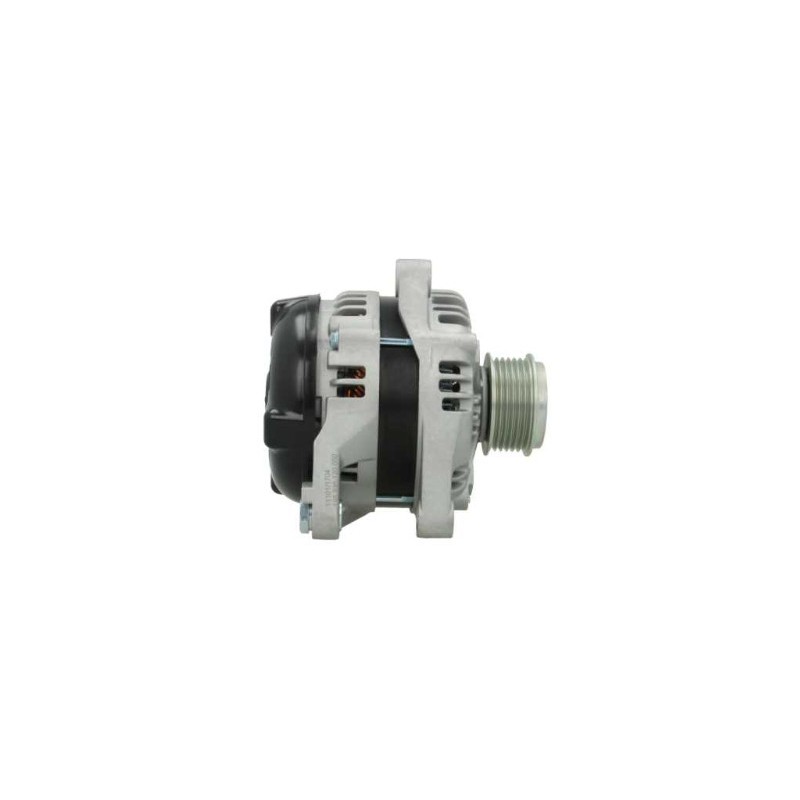

Alternator replacing DENSO 104210-2320 / 104210-2520 / TOYOTA 27060-0N040 / 27060-33100
Alternator NEW replacing DENSO 104210-2320 / 104210-2520 / TOYOTA 27060-0N040 / 27060-33100
DAN1018 / 0986082450 / LRA03633
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Information:
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 100 | |

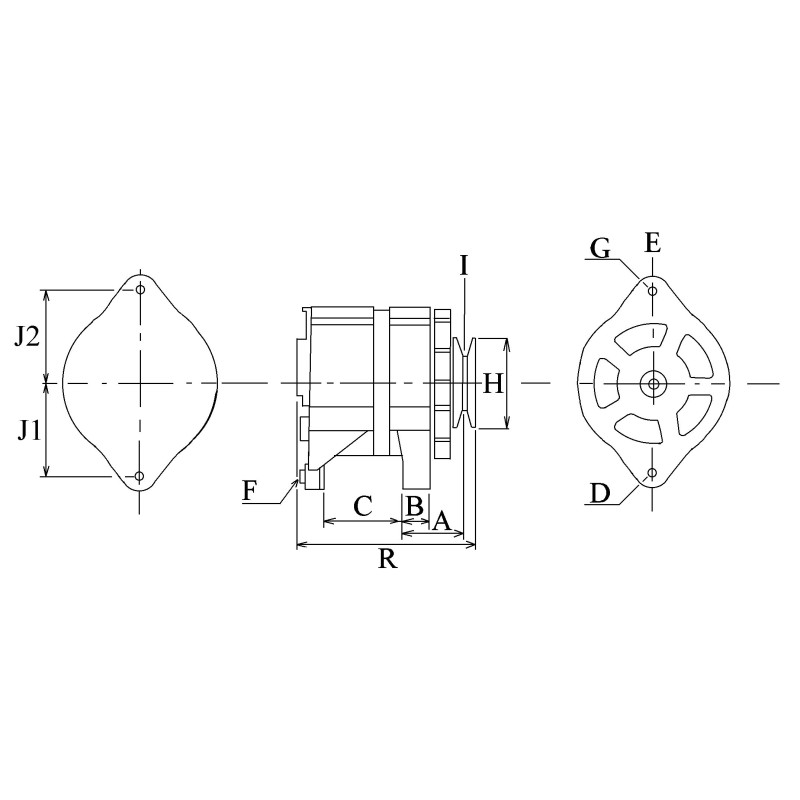

Physical Information | ||
|---|---|---|
| D | Bracket hole | 11.00 |
| G | Belt. adj. bracket hole | M8 |
| B | Width/holder arm | 20.00 |
| E | Belt. adj. brackethole pos. | 48 |
| C | Mount. bracket dist | 42.50 |
| H | Pulley dia. | 58.00 |
| A | Pulley dist. | 47.00 |
| i | Grooves/pulley | 6 |
| j | Radius | 88.00 |
| j | Radius 2 | 82.00 |
| k | Position B + | M6 |
| n | Rotation | CW |

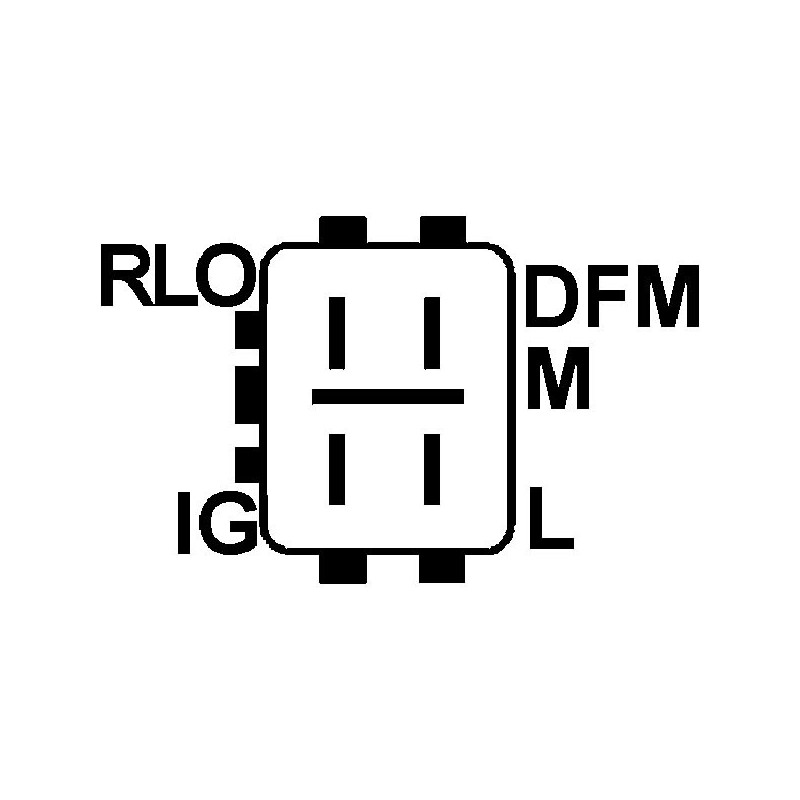

| o | Plug no. 1 | PL146 |
| R | Total length mm | 169.50 |
Replacing | |
|---|---|
| 104210-2320 | DENSO |
| 104210-2520 | DENSO |
| 27060-0N040 | TOYOTA |
| 27060-33100 | TOYOTA |
| ca2097ir | HC-PARTS |
| 0986082450 |
| 1042102320 |
| 1042102321 |
| 1042102322 |
| 1042102520 |
| 1042102521 |
| 1042102522 |
| 1042102530 |
| 1042102531 |
| 1042102532 |
| 195936100 |
| 195936120 |
| 270600N040 |
| 270600N050 |
| 2706033100 |
| 931286 |
| ATA926 |
| CA2097IR |
| DAN1018 |
| DRA1286 |
| LRA03633 |
| TRA319 |
Generic brand
Mounted on : TOYOTA
| Model | Model série | Reference d origine du produit | Tipo of Gas | Start build | End built | Tipo engine | Engine Tipo | KW | Horse Power | Chassi type | Tipoe modèle | Engine in cm3 | Cylindres | Descrip- tion du type from | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Auris | Auris | 1.4 | Diesel | 2007 03 | - | 1ND-TV | D-4D | 66 | 90 | Hayon | 1364 | 4 | NDE150 | ||||
| Yaris | Yaris | 1.4 | Diesel | 2005 05 | 2005 09 | 1ND-TV | D-4D | 66 | 90 | Hayon | 1364 | 4 | SCP1_, NLP1_, NCP1_ | ||||
| Yaris | Yaris | 1.4 | Diesel | 2005 08 | - | 1ND-TV | D-4D | 66 | 90 | Hayon | 1364 | 4 | NLP90 |
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
