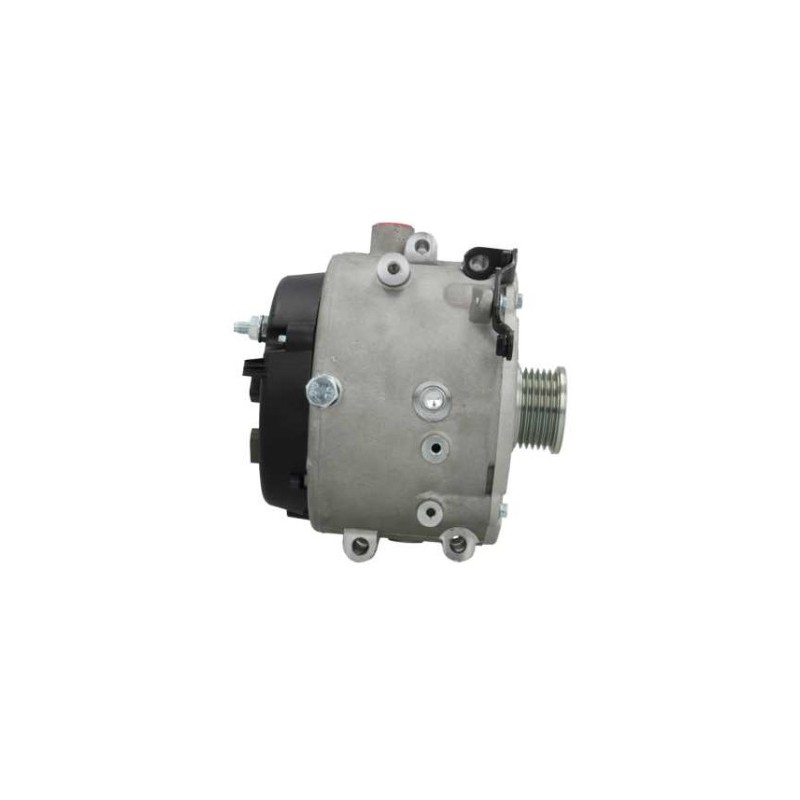

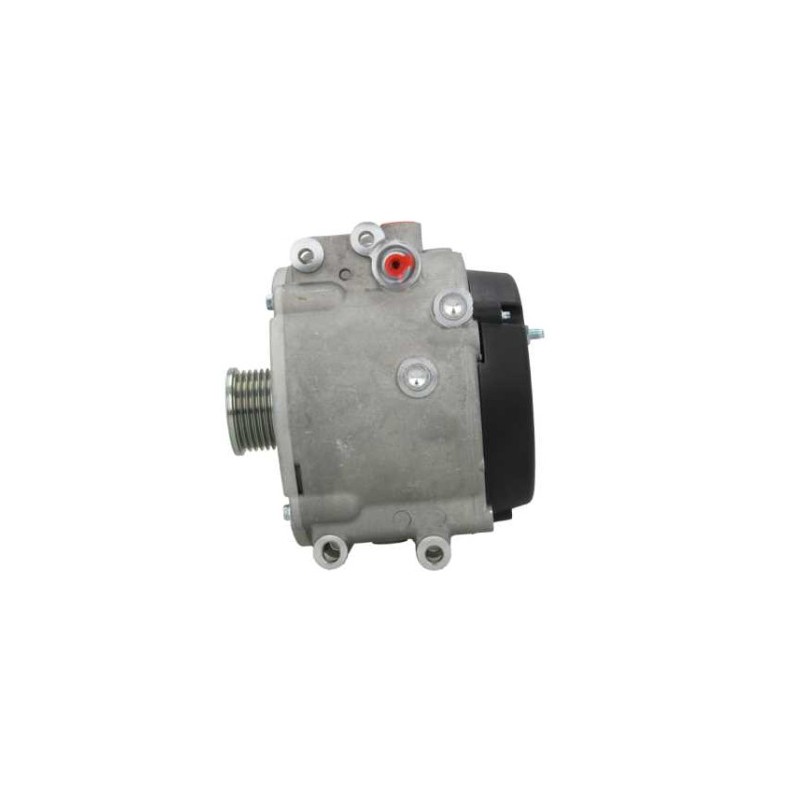

Alternator replacing 00011502550 / 001501750 / 0001502550 / 10480404 / 10480408
Alternator replacing MERCEDES-BENZ 00011502550 / 001501750 / 0001502550 / 10480404 / 10480408
0986048990 / 10480404 / 10480408 / DRA4035 / IA1260 / LRA02162
WATER COOLED
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Information:
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 190 | |
Physical Information | ||
|---|---|---|
| D | Bracket hole | 8.00 |
| G | Belt. adj. bracket hole | 8.00 |
| B | Width/holder arm | 93.50 |
| E | Belt. adj. brackethole pos. | 60 |
| C | Mount. bracket dist | 56.00 |
| H | Pulley dia. | 49.70 |
| A | Pulley dist. | 31.00 |
| i | Grooves/pulley | 6 |
| k | Position B + | M8 |
| n | Rotation | CW |

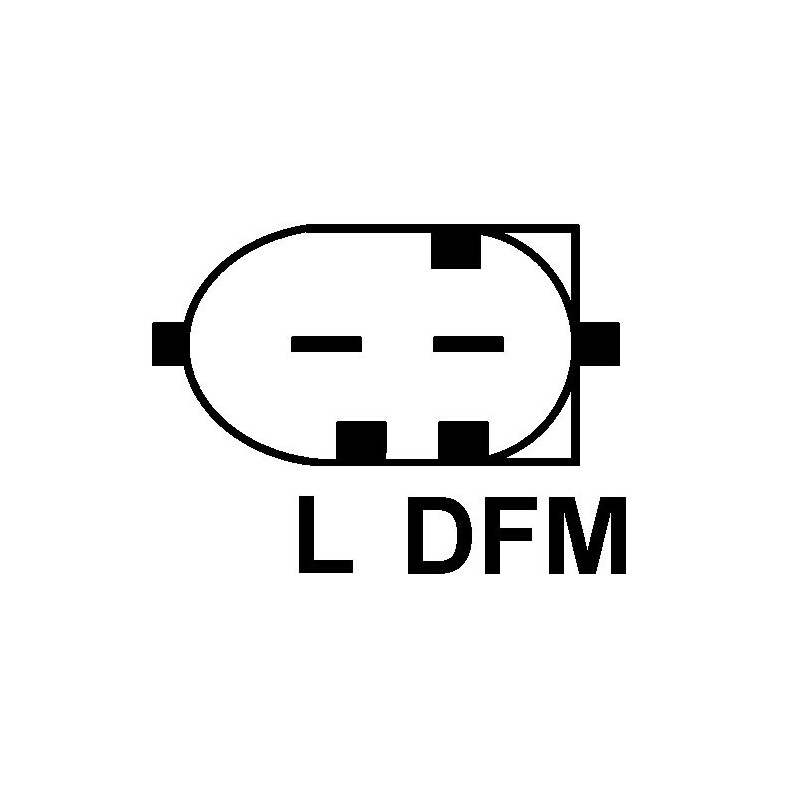

| o | Plug no. 1 | PL112 |
| D | Trou from fixation support 2 | 9.20 |
| G | Belt. adj. bracket hole 2 2 | 9.20 |
| R | Total length mm | 195.00 |
Replacing | |
|---|---|
| 00011502550 | MERCEDES BENZ |
| 0001501750 | MERCEDES BENZ |
| 0001502550 | MERCEDES BENZ |
| 10480404 | DELPHI |
| 10480408 | DELPHI |
| 11.203.632 | ISKRA |
| A00011502550 | MERCEDES BENZ |
| A0001501750 | MERCEDES BENZ |
| A0001502550 | MERCEDES BENZ |
| aan7112 | ISKRA |
generic brand
Mounted on :
| Model | Model série | Reference d origine du produit | Tipo of Gas | Start build | End built | Tipo engine | Engine Tipo | KW | Horse Power | Chassi type | Tipoe modèle | Engine in cm3 | Cylindres | Descrip- tion du type from |
| 200 | C 200 | 02/01/19 | Diesel | 2000 09 | - | OM611.962 | CDi | 85 | 116 | 2148 | 4 | 203 | ||
| 200 | E 200 | 02/01/19 | Diesel | 1999 07 | 2002 03 | OM611.961 | CDi | 85 | 116 | 2148 | 4 | 210 | ||
| 200 | C 200 | 02/01/19 | Diesel | 2001 03 | - | OM611.962 | CDi | 85 | 116 | Break | 2148 | 4 | 203 | |
| 220 | E 220 | 02/02/19 | Diesel | 1999 07 | 2002 03 | OM611.961 | CDi | 105 | 143 | 2148 | 4 | 210 | ||
| 220 | C 220 | 02/01/19 | Diesel | 2000 05 | - | OM611.962 | CDi | 105 | 143 | 2148 | 4 | 203 | ||
| 220 | C 220 | 02/01/19 | Diesel | 2000 05 | 2007 02 | OM611.962 | CDI | 100 | 136 | 2148 | 4 | W203 | ||
| 220 | C 220 | 02/01/19 | Diesel | 2001 03 | 2008 05 | OM611.962 | CDi | 105 | 143 | Coupé | 2148 | 4 | 203 | |
| 220 | C 220 | 02/01/19 | Diesel | 2001 03 | - | OM611.962 | CDi | 105 | 143 | Break | 2148 | 4 | 203 | |
| 220 | E 220 | 02/02/19 | Diesel | 1999 07 | 2003 03 | OM611.961 | CDi | 105 | 143 | Break | 2148 | 4 | 210 | |
| 270 | ML 270 | 02/07/19 | Diesel | 1999 12 | 2005 06 | OM612.963 | CDi | 120 | 163 | 2685 | 5 | 163 | ||
| 270 | CLK 270 | 02/07/19 | Diesel | 2002 10 | - | OM612.967 | CDi | 125 | 170 | Coupé | 2685 | 5 | 209 | |
| 270 | 270 | 02/07/19 | Diesel | 2003 02 | 2005 06 | OM612.967 | CDI | 120 | 163 | Décapotable | 2685 | 5 | A209 | |
| 270 | C 270 | 02/08/19 | Diesel | 2000 12 | 2007 02 | OM612.962 | CDi | 120 | 163 | 2685 | 5 | W203 | ||
| 270 | CLK 270 | 02/07/19 | Diesel | 2002 10 | - | OM612.962 | CDi | 125 | 170 | Coupé | 2685 | 5 | 209 | |
| 270 | C 270 | 02/07/19 | Diesel | 2001 03 | - | OM612.962 | CDi | 125 | 170 | Break | 2685 | 5 | 203 | |
| 270 | C 270 | 02/08/19 | Diesel | 2001 03 | 2007 08 | OM612.962 | CDi | 120 | 163 | Break | 2685 | 5 | S203 | |
| 270 | C 270 | 02/07/19 | Diesel | 2000 12 | - | OM612.962 | CDi | 125 | 170 | 2685 | 5 | 203 | ||
| 270 | G 270 | 02/07/19 | Diesel | 2001 10 | - | OM612.965 | CDi | 115 | 156 | 2685 | 5 | 463 | ||
| 270 | E 270 | 02/07/19 | Diesel | 1999 07 | 2002 03 | OM612.961 | CDi | 125 | 170 | 2685 | 5 | 210 | ||
| 320 | E 320 | 03/02/19 | Diesel | 1999 07 | 2002 03 | OM613.961 | CDi | 145 | 197 | 3226 | 6 | 210 | ||
| 320 | E 320 | 03/02/19 | Diesel | 1999 07 | 2002 03 | OM613.961 | CDi | 145 | 197 | 3226 | 6 | 210 | ||
| 320 | E 320 T | 03/02/19 | Diesel | 1999 07 | 2003 03 | OM613.961 | CDi | 145 | 197 | Break | 3226 | 6 | 210 | |
| 320 | S 320 | 03/02/19 | Diesel | 1999 08 | 2002 09 | OM613.960 | CDi | 145 | 197 | 3222 | 6 | 220 | ||
| 320 | E 320 | 03/02/19 | Diesel | 2003 03 | - | OM648.961 | CDi | 150 | 204 | Break | 3222 | 6 | ||
| C-Class Coupe | C 220 | 02/01/19 | Diesel | 2001 03 | 2008 05 | OM611.962 | CDI | 100 | 136 | Coupé | 2148 | 4 | CL203 |
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
