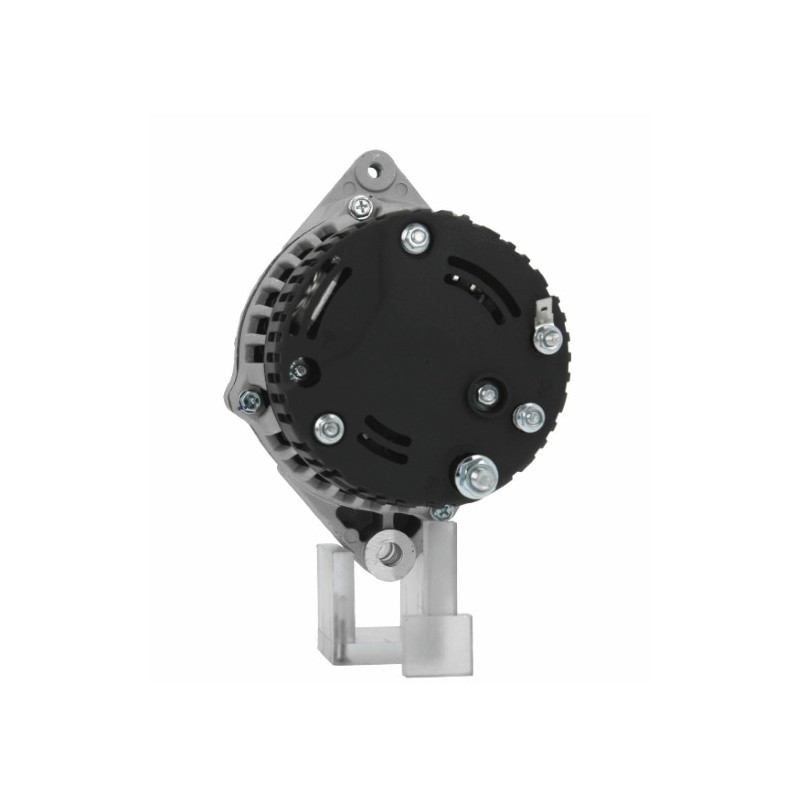

Alternator replacing AAK5581 / 87371504 / 504193811 / 2855467 / 11.203.434
Alternator replacing Case 2855467, 87371504, Fiat 2855467, 87371504, Iveco 504193811, Letrika (Iskra) 11.203.434, Letrika (Iskra) Tech. AAK5581
for Iveco industries / New Holland agricultural machines
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Electrical information | |
|---|---|
| Voltage | 14 |
| Amp | 120 |
| Terminal | W |

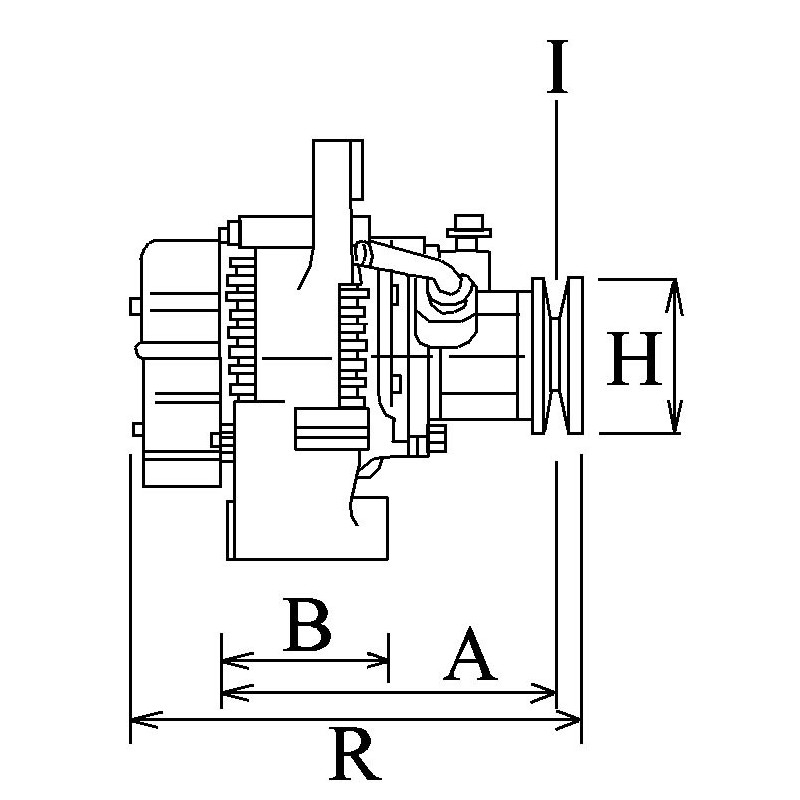

Physical information | ||
|---|---|---|
| A | Pulley dist. | 74.50 |
| B | Width/holder arm | 50.80 |

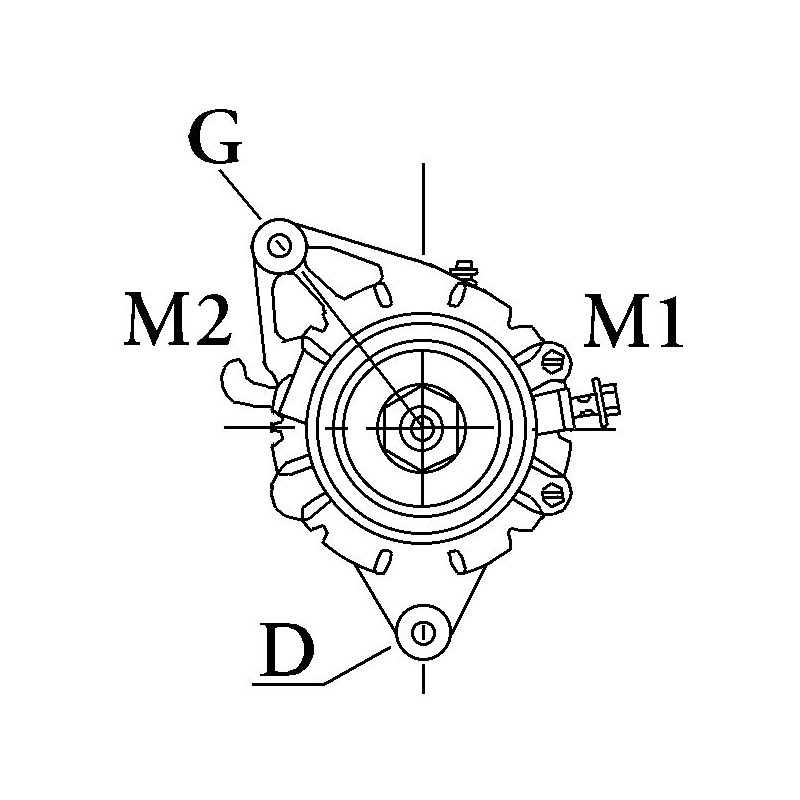

| D | Bracket hole | 10.30 |
| E | Belt. adj. brackethole pos. | 60 |
| G | Belt. adj. bracket hole | M8 |
| H | Pulley dia. | 55.00 |
| I | Grooves/pulley | 8 |

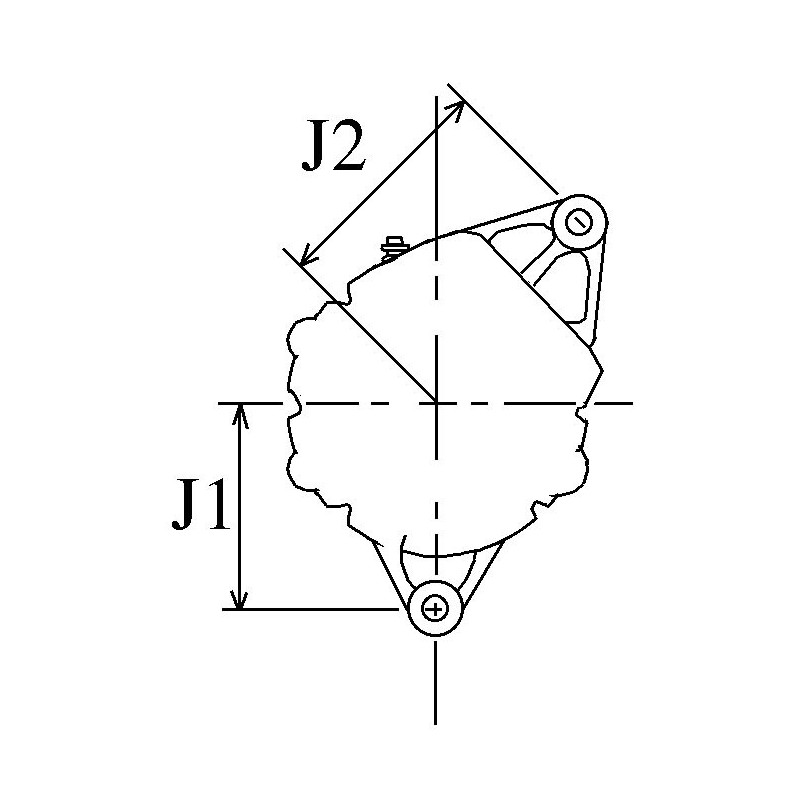

| J | Radius | 86.00 |
| J | Radius 2 | 87.00 |
| K | B+ | M8 |
| K | Position/B+ in min. | 15 |
| N | Rotation | CW |
| O | Plug no. 1 | PL_NA |
| Q | W plug type | M5-6.30 |
Replacing | |
|---|---|
| 11.203.434 | Mahle Letrika |
| 2855467 | New Holland |
| 504193811 | Iveco |
| 87371504 | Fiat |
| AAK5581 | Mahle Letrika |
generic brand
