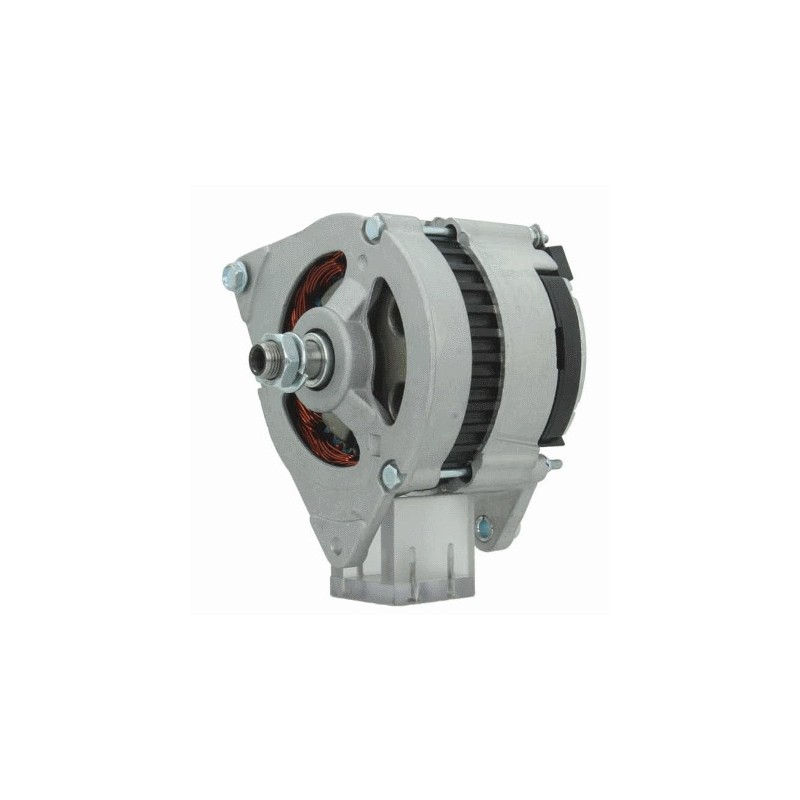

Alternator replacing MAHLE MG283 / IA0504 / AAK1344 / 11.201.504
Alternator NEW replacing MAHLE MG281 / IA0501 / AAG1339 / 11201501
= LUCAS 24186 / 24186a / 24186b / 24186D / 24250 / 24250a / 24250B / 24274 / 24274a / 24400 / 24448
= FORD E4NN10B376AB / e7nn10b376aa / e7nn10b376ab / e7nn10b376ba
= PERKINS 2871A159
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Information:
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 70 | |
| Plug type | BS/W | |

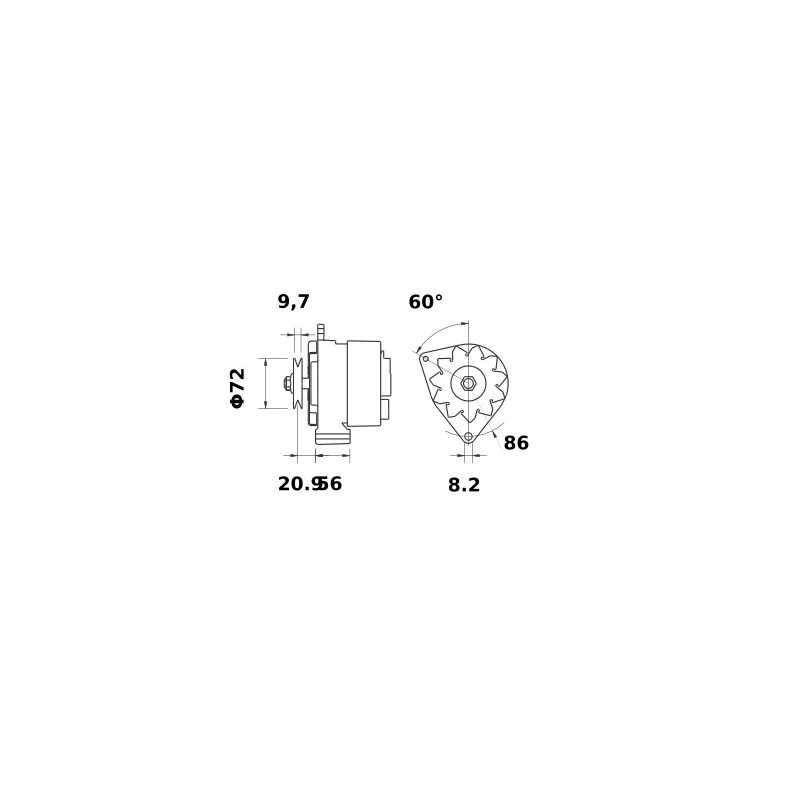

Physical Information | ||
|---|---|---|

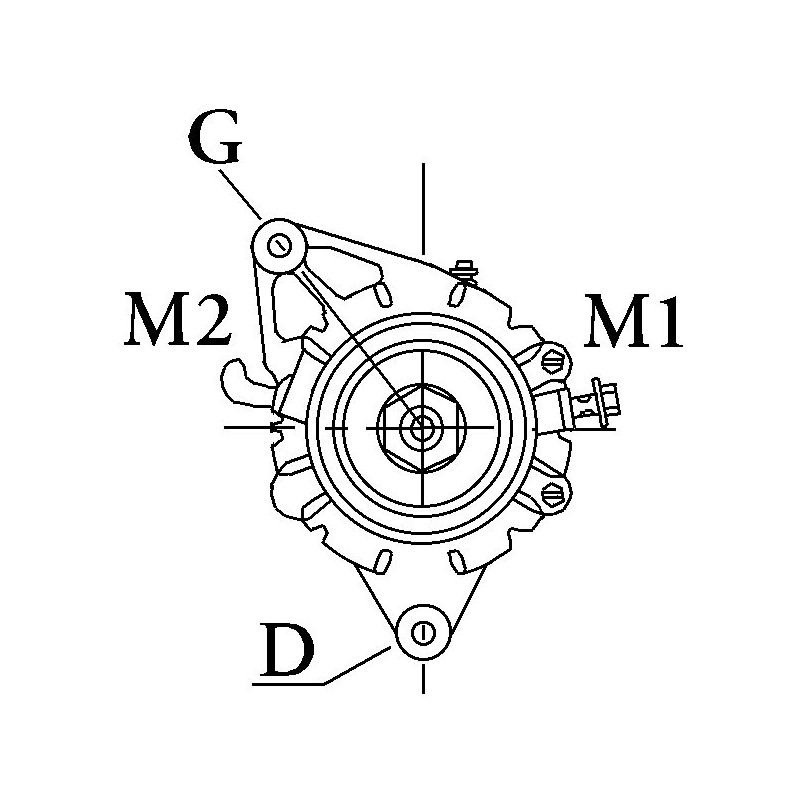

| D | Bracket hole | 8.50 |
| G | Belt. adj. bracket hole | M8 |
| B | Width/holder arm | 11.00 |
| E | Belt. adj. brackethole pos. | 50 |
| C | Mount. bracket dist | 82.70 |
| H | Pulley dia. | 80.00 |
| A | Pulley dist. | 36.00 |
| i | Grooves/pulley | 1 |

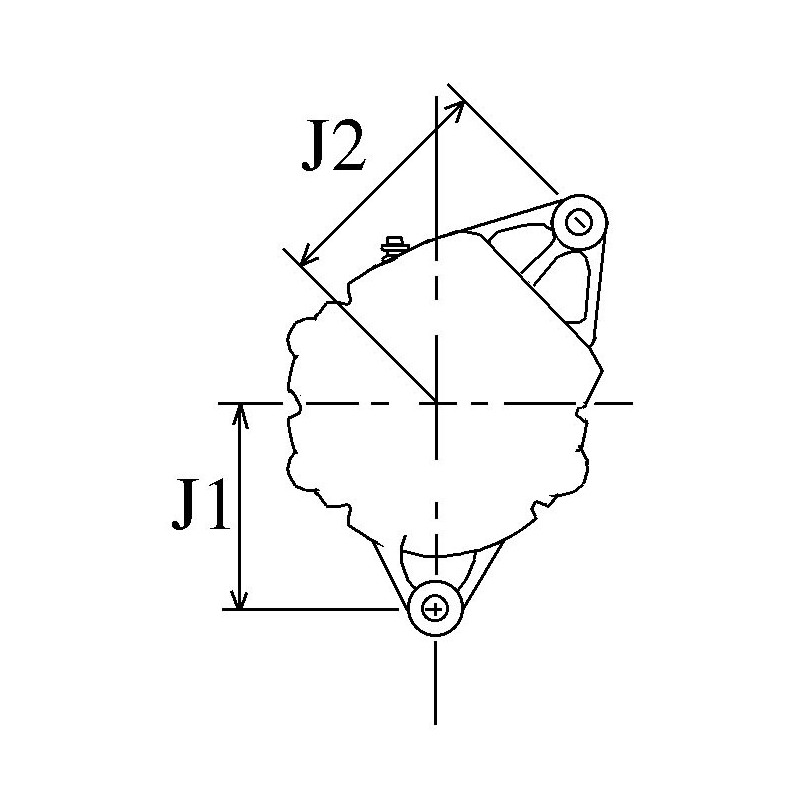

| j | Radius | 86.00 |
| j | Radius 2 | 86.00 |
| k | Position B + | M6 |
| n | Rotation | Cr |
| o | Plug no. 1 | PL22 |
| Q | Tipo prise W | M5 |
| R | Total length mm | 167.00 |
Replacing | |
|---|---|
| 11.201.503 | ISKRA |
| 11.201.504 | ISKRA |
| 24186 | LUCAS |
| 24186a | LUCAS |
| 24186b | LUCAS |
| 24186D | LUCAS |
| 24250 | LUCAS |
| 24250a | LUCAS |
| 24250B | LUCAS |
| 24274 | LUCAS |
| 24274a | LUCAS |
| 24400 | LUCAS |
| 24448 | LUCAS |
| 2871A159 | PERKINS |
| 54022337 | LUCAS |
| 63324274 | MAGNETI MARELLI |
| 835339189 | VALMET |
| AAK1343 | ISKRA |
| AAK1344 | ISKRA |
| ca1330ir | HC-PARTS |
| E4NN10B376AB | FORD |
| e7nn10b376aa | FORD |
| e7nn10b376ab | FORD |
| e7nn10b376ba | FORD |
| e7nn10b376bb | FORD |
| PRC5449 | ROVER GROUP |
| RTC5053 | ROVER GROUP |
FORD E7NN-10B376-AB, F0NN-10B376-BB,
LETRIKA (ISKRA) 11.201.504, LUCAS 24273, 24273A, 54022336, 54022336D, 54022776, 63324273,
MAGNETI MARELLI 063324273010, 54022776D, 63324273, MAN141,
NEW HOLLAND 81863039, E7NN10B376BA
Mounted on :
FORD (1984-1999)
NEW HOLLAND Industrial (1984-2013)
