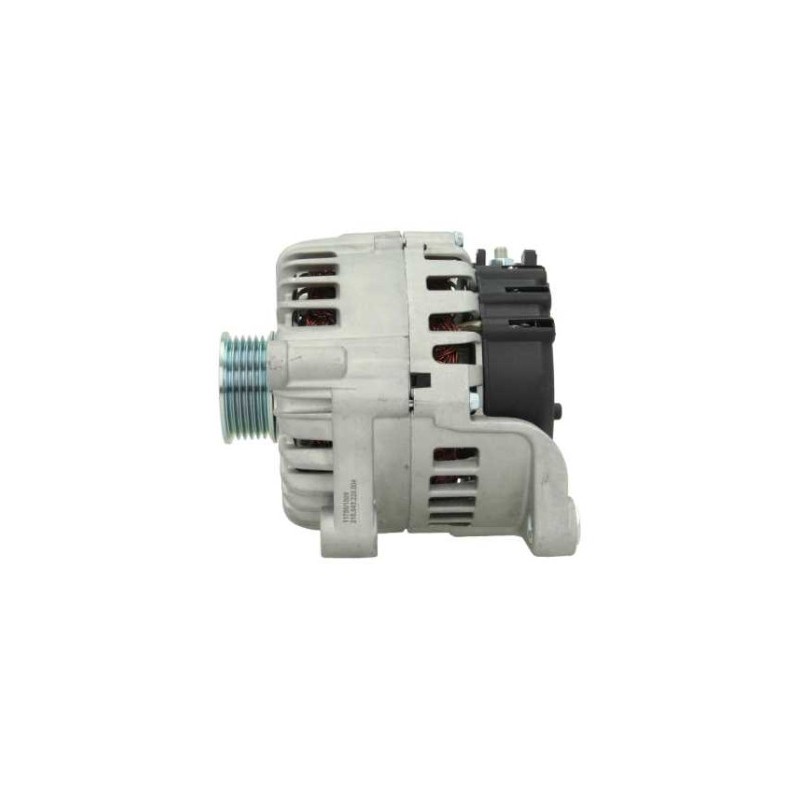

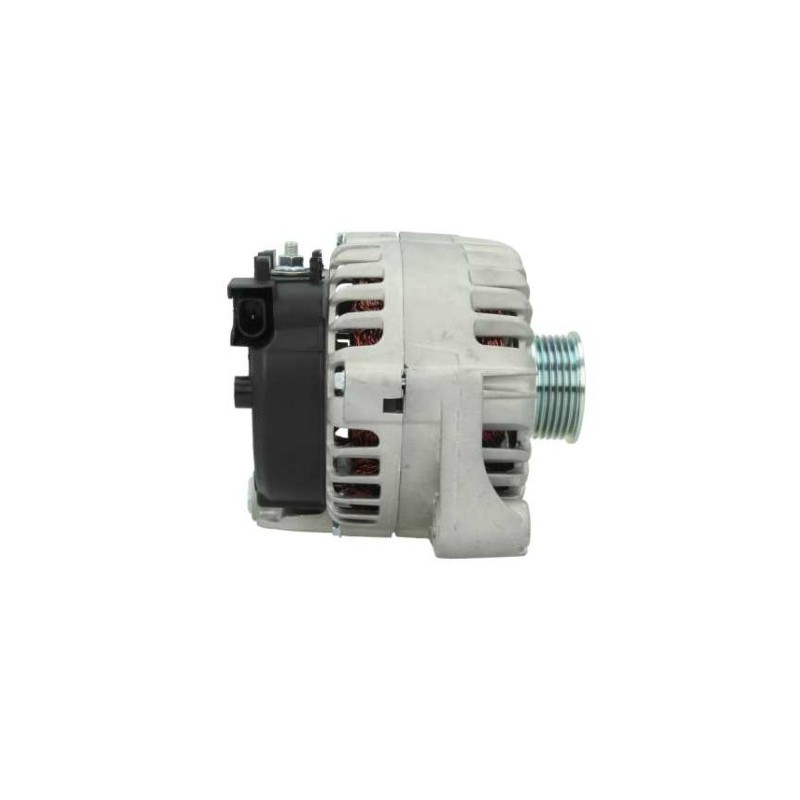

Alternator replacing 12317801124 / 12317804266 / 2543223 / TG23C012
Alternator NEW replacing BMW 12-31-7-801-124, 12-31-7-804-266, BOSCH 0986083460, DELCO REMY DRA0593 , LUCAS LRA03242 ,VALEO TG23C012 , 439606, 440109
NO CORE EXCHANGE NEEDED
More info
Specs Electricals | ||
|---|---|---|
| Voltage | 14 | |
| Amp. | 220 | |
Specs Physique | ||
|---|---|---|
| A | Pulley dist. | 56.50 |
| B | Width/holder arm | 28.00 |
| C | Mount. bracket dist | 75.00 |
| D | Bracket hole | 10.50 |
| E | Belt. adj. brackethole pos. | 45 |
| G | Belt. adj. bracket hole | 10.50 |
| H | Pulley dia. | 57.00 |
| I | Grooves/pulley | 6 |
| J | Radius | 93.00 |
| J | Radius 2 | 93.00 |
| K | Position B + | M8 |
| K | B+ position en min. | 55 |
| N | Rotation | Cr |

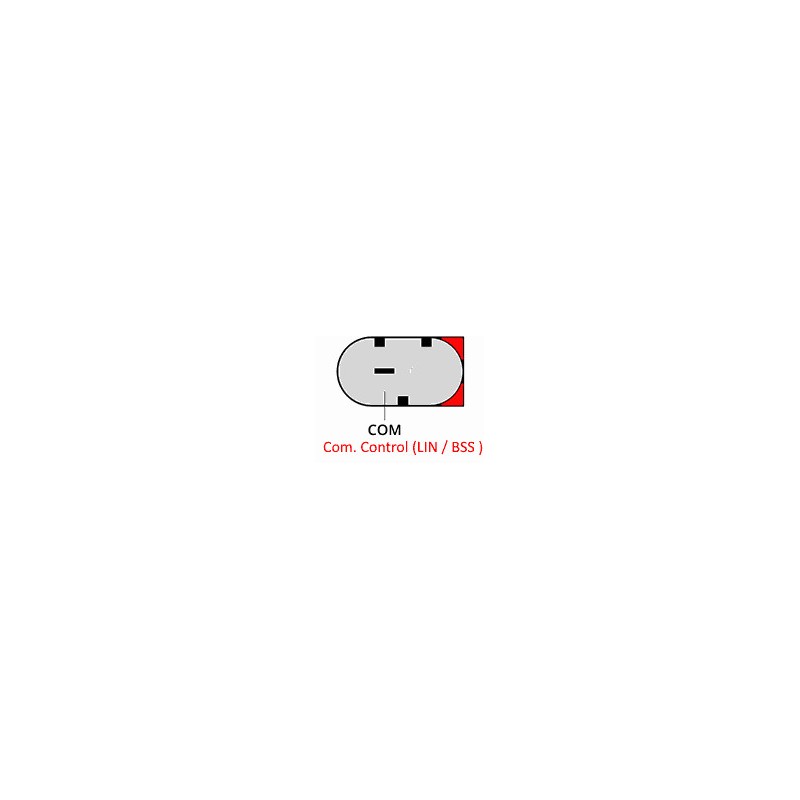

| O | Plug n° 1 | PL125 |
| R | Total length mm | 180.00 |
Replacing | |
|---|---|
| 12317801124 | BMW |
| 12317804266 | BMW |
| 2543223 | VALEO |
| TG23C012 | VALEO |
generic brand
Mounted on :
| X5 | X5 | 3.0 | Diesel | 2008 09 | 2013 06 | M57N306D5 | Diesel | 210 | 286 | Xdrive | 2993 | 6 | E70 | |
| X5 | X5 | 3.0 | Diesel | 2007 02 | 2008 09 | M57D30 (306D3) | Diesel | 173 | 235 | 2993 | 6 | E70 | ||
| X5 | X5 | 3.0 | Diesel | 2007 09 | 2009 02 | M57D30 (306D5) | Diesel | 210 | 286 | Sdrive | 2993 | 6 | E70 | |
| X5 | X5 | 3.0 | Diesel | 2007 02 | 2008 09 | M57306D3 | Diesel | 173 | 235 | 2993 | 6 | E70 | ||
| X5 | X5 | 3.0 | Diesel | 2008 09 | 2013 06 | N57D30A | Diesel | 173 | 235 | Xdrive | 2993 | 6 | E70 | |
| X5 | X5 | 3.0 | Diesel | 2011 08 | 2013 06 | N57D30C | Diesel | 280 | 381 | 2993 | 6 | E70 | ||
| X6 | X6 | 3.0 | Diesel | 2008 05 | - | M57N2306D3 | Diesel | 173 | 235 | MPV | Xdrive | 2993 | 6 | E71 |
| X6 | X6 | 3.0 | Diesel | 2008 09 | - | M57D30 (306D5) | Diesel | 210 | 286 | MPV | Xdrive | 2993 | 6 | E71 |
| X6 | X6 | 3.0 | Diesel | 2010 09 | - | N57D30A | Diesel | 180 | 245 | xDrive30d | 2993 | 6 | E71, E72 | |
| X6 | X6 | 3.0 | Diesel | 2010 09 | - | M57D30 (306D3) | Diesel | 180 | 245 | xDrive30d | 2993 | 6 | E71, E72 |
| X6 | X6 | 3.0 | Diesel | 2008 05 | - | M57D30 (306D5) | Diesel | 210 | 286 | MPV | Xdrive | 2993 | 6 | E71, E72 |
BMW (2009-2013)
BMW - Europe (2007-2014)
