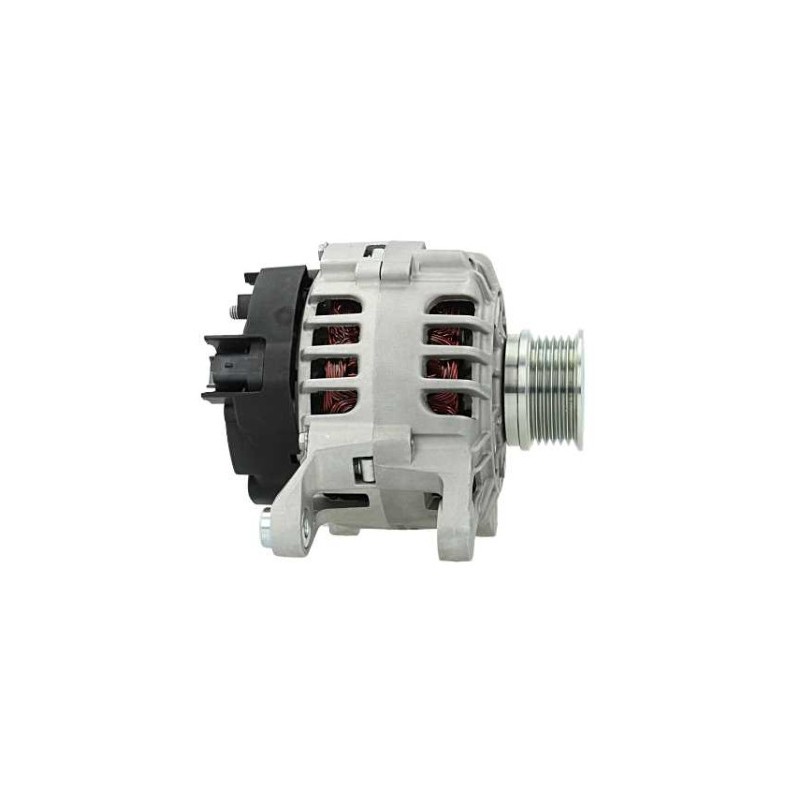

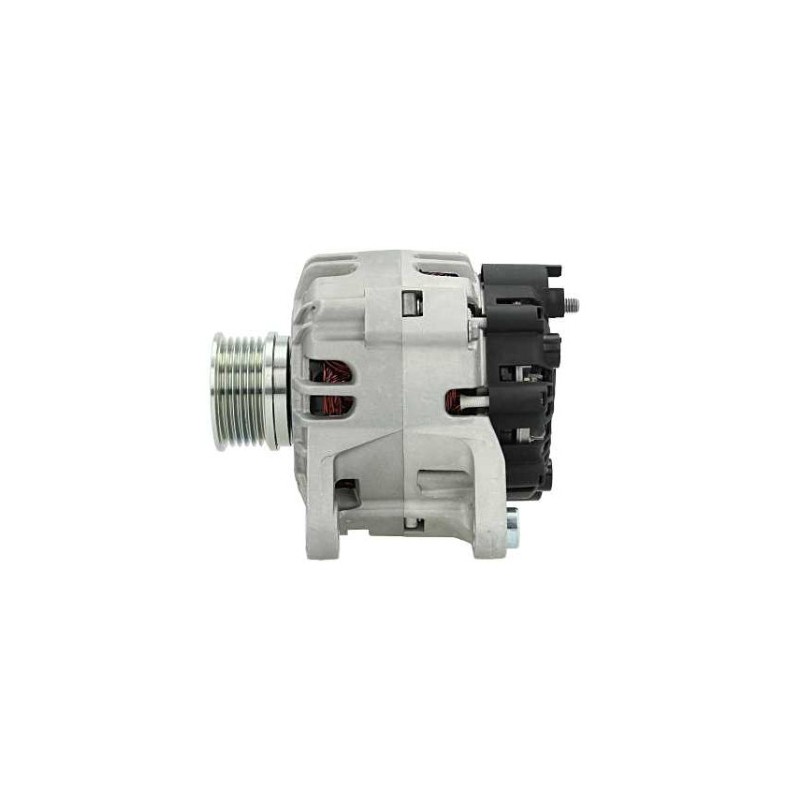

Alternator replacing TG9B047 / TG9B053 /2543530 / 2605647 / 2605647D
Alternator NEW replacing TG9B047 / TG9B053 /2543530 / 2605647 / 2605647D
0986083190 / DRA0854
RENAULT / DACIA 7711497535 / 8200674762 / 8200810621
NO CORE EXCHANGE NEEDED
More info
Spécification Electricals | ||
|---|---|---|
| Voltage | 14 | |
| Amp. | 90 | |
Spécification Physique | ||
|---|---|---|
| A | Pulley dist. | 39.00 |
| B | Width/holder arm | 14.50 |
| C | Mount. bracket dist | 61.00 |
| D | Bracket hole | 8.50 |
| E | Belt. adj. brackethole pos. | 45 |
| G | Belt. adj. bracket hole | 8.50 |
| H | Pulley dia. | 56.00 |
| I | Grooves/pulley | 6 |
| J | Radius | 90.00 |
| J | Radius 2 | 90.00 |
| K | Position B + | M8 |
| K | B+ position en min. | 8 |
| N | Rotation | Cr |

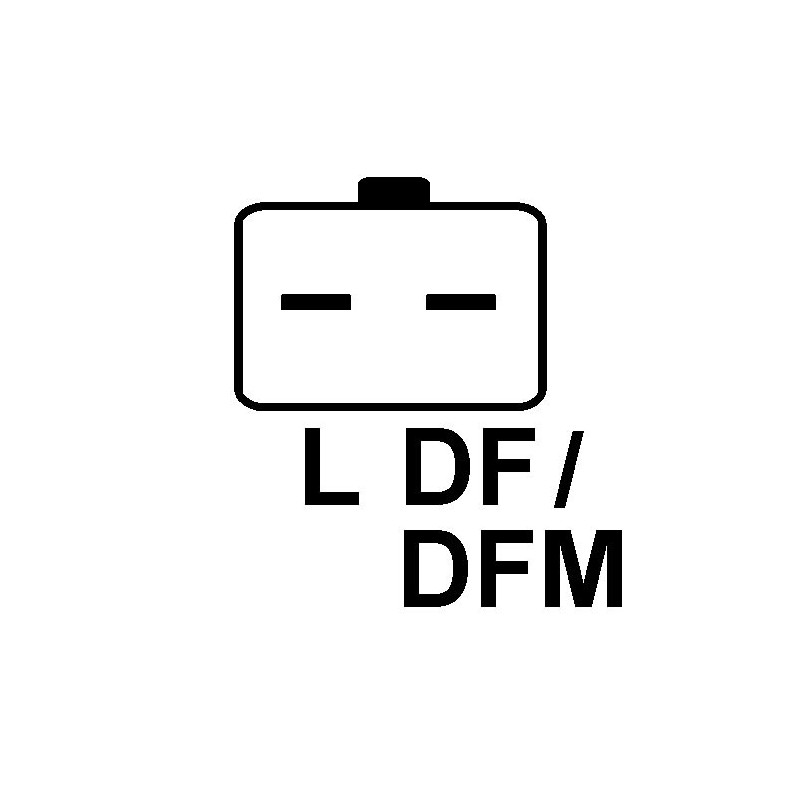

| O | Plug n° 1 | PL72 |
| R | Total length mm | 190.00 |
| Lamp | Active | |
Replacing | |
|---|---|
| 2543530 | VALEO |
| 2605647 | VALEO |
| 2605647D | VALEO |
| 7711497535 | RENAULT |
| 8200674762 | RENAULT |
| 8200810621 | RENAULT |
| CA2098IR | HC-PARTS |
| TG9B047 | VALEO |
| TG9B053 | VALEO |
generic brand
DACIA 23100-7175R / 23100-7633R,
DELCO REMY DRA0854
Mounted on :
DACIA - Europe (2007-2016)
| DACIA | Sandero | 1.4 | 06/08 | / |
| DACIA | Sandero | 1.6 | 06/08 | / |
| NISSAN | NP200 16V | / | / | |
| RENAULT | Sandero 1.4 | / | / | |
| RENAULT | Sandero 1.6 | / | / |
