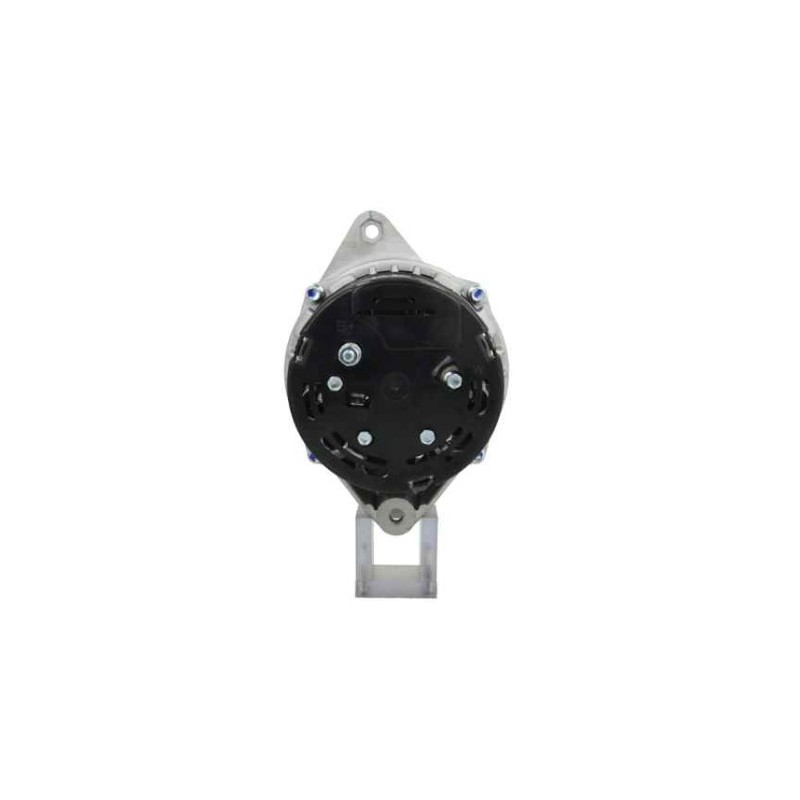

Alternator ISKRA 11201498 / 2121-43701010 / 21214-3701010 / 9412-3701 / aak5105 / MG534
Alternator NEW ISKRA 11201498 / LADA 2121-43701010 / 21214-3701010 / 9412-3701 / aak5105
0986083500 / 437819 / DRA3454 / IA0498 / LRA01599 / MG534 / AAK5105
Alternator as generic available under the reference w855501080
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Information:
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 80 | |

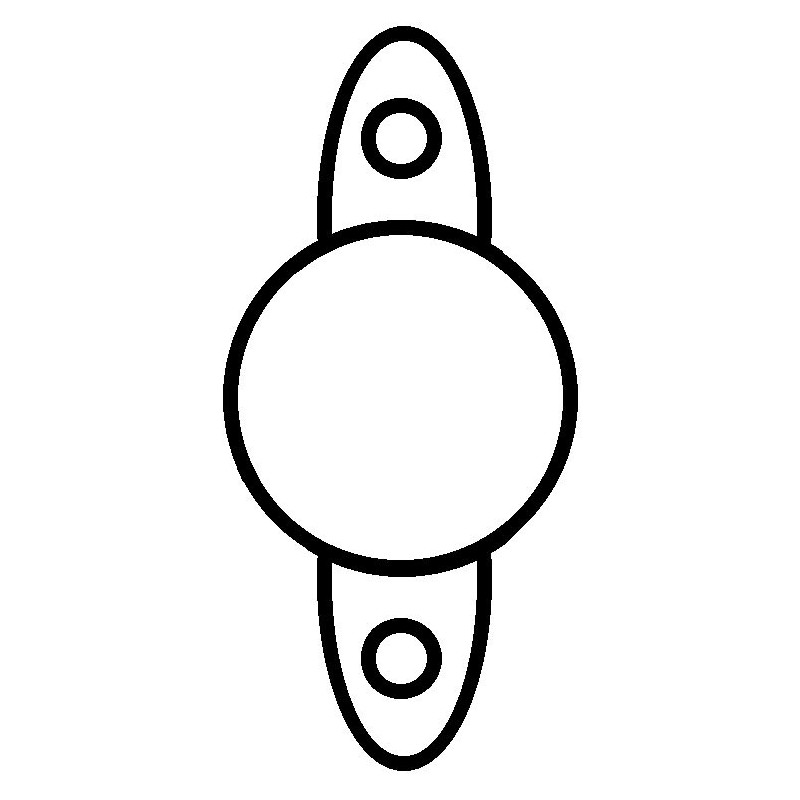

Physical Information | ||
|---|---|---|
| D | Bracket hole | 8.00 |
| G | Belt. adj. bracket hole | 8.00 |
| B | Width/holder arm | 56.00 |
| E | Belt. adj. brackethole pos. | 2 |
| H | Pulley dia. | 73.75 |
| A | Pulley dist. | 81.40 |
| i | Grooves/pulley | 1 |
| j | Radius | 85.00 |
| j | Radius 2 | 86.50 |

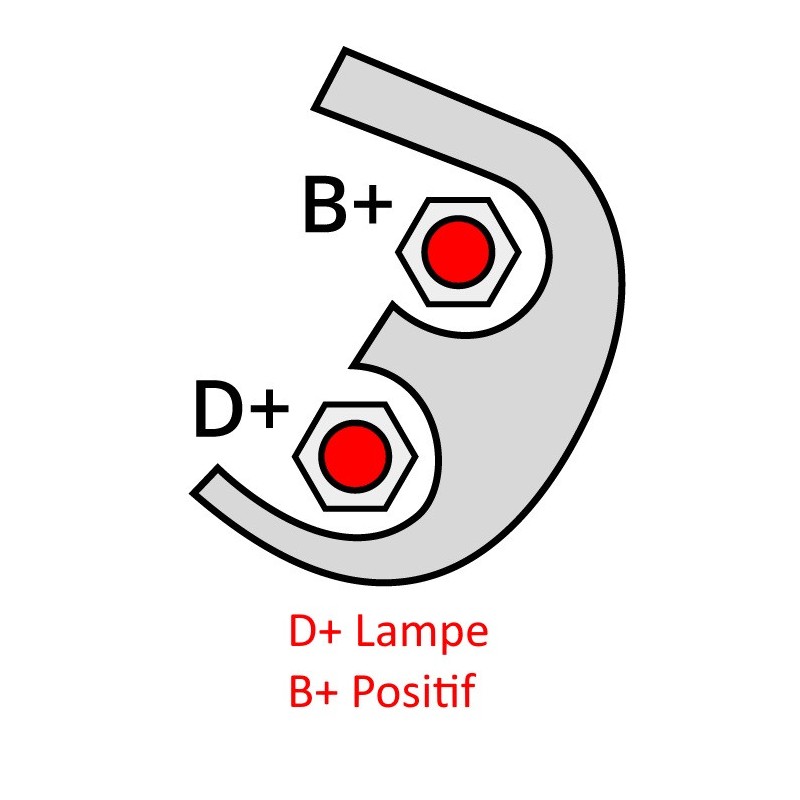

| k | Position B + | M6 |
| n | Rotation | CW |
| o | Plug no. 1 | PL_NA |
| R | Total length mm | 183.50 |
Brand LETRIKA ISKRA MAHLE
Replacing | |
|---|---|
| 11.201.498 | ISKRA |
| 2121-43701010 | LADA |
| 21214-3701010 | KATEK |
| 21214-3701010 | LADA |
| 9412.3701 | LADA |
| aak5105 | ISKRA |
| ca1472ir | HC-PARTS |
Mounted on :
Lada
| Model | Model série | Reference d origine du produit | Tipo of Gas | Start build | End built | Tipo engine | Engine Tipo | KW | Horse Power | Chassi type | Tipoe modèle | Engine in cm3 | Cylindres | Descrip- tion du type from |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 110 | 110 | 1.5 | Unleaded | 2000 10 | - | VAZ-2112 | 16V | 67 | 91 | 1499 | 4 | |||
| 111 | 111 | 1.5 | Unleaded | 2000 10 | - | VAZ-2111 | 56 | 76 | Break | 1499 | 4 | |||
| 111 | 111 | 1.5 | Unleaded | 2000 10 | - | VAZ-2112 | 16V | 67 | 91 | Break | 1499 | 4 | ||
| 112 | 112 | 1.5 | Unleaded | 2000 10 | - | VAZ-2112 | 16V | 67 | 91 | Hayon | 1499 | 4 | ||
| Niva | Niva | 1.7 | Bi-Fuel | 2002 09 | - | BA3 21214 | 57 | 78 | Hayon | LPG | 1690 | 4 | 2123 | |
| Niva | Niva | 1.7 | Unleaded | 1996 06 | - | BA321214 | i | 59 | 80 | 1700 | 1690 | 4 | 2121 | |
| Niva | Niva | 1.7 | Unleaded | 2000 10 | - | BA3 21214 | i | 60 | 82 | 4x4 | 1690 | 4 | 2121 | |
| Niva | Niva | 1.7 | Unleaded | 2010 09 | - | BA3 21214 | 61 | 83 | 4x4 | 1690 | 4 | 2121 |
