w12346N

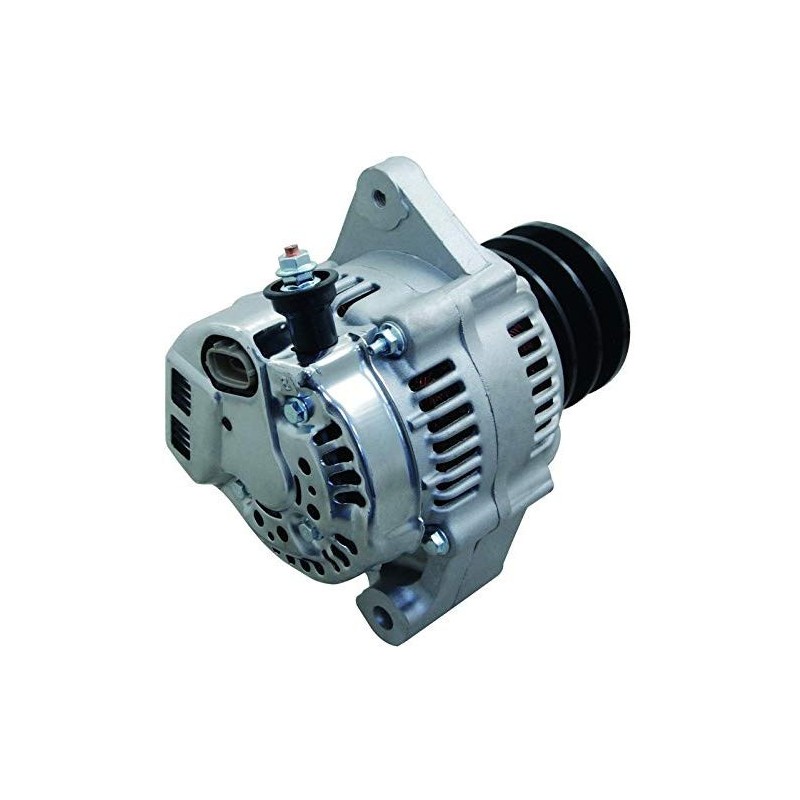

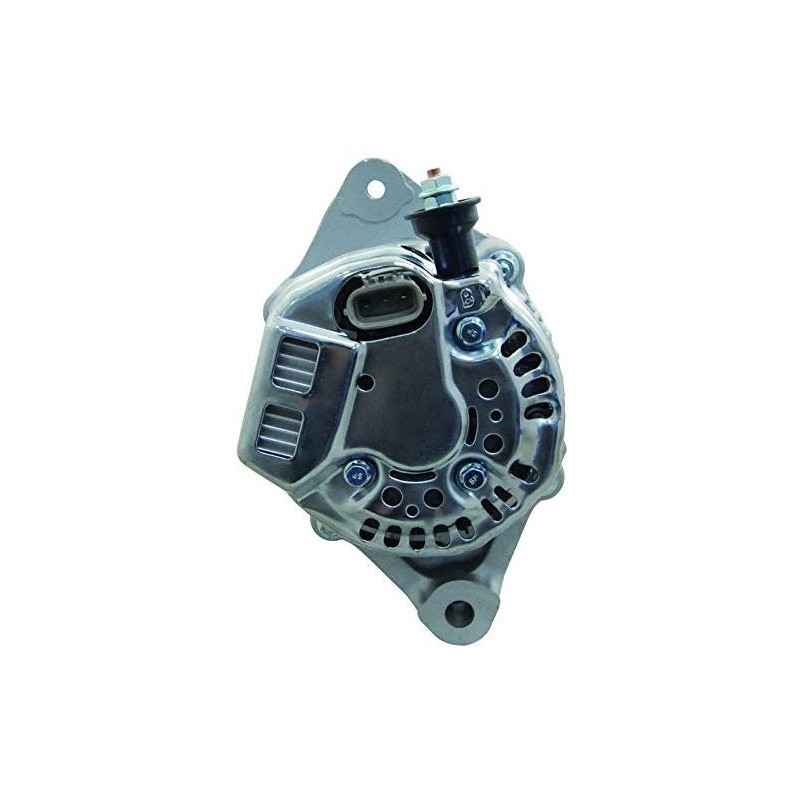

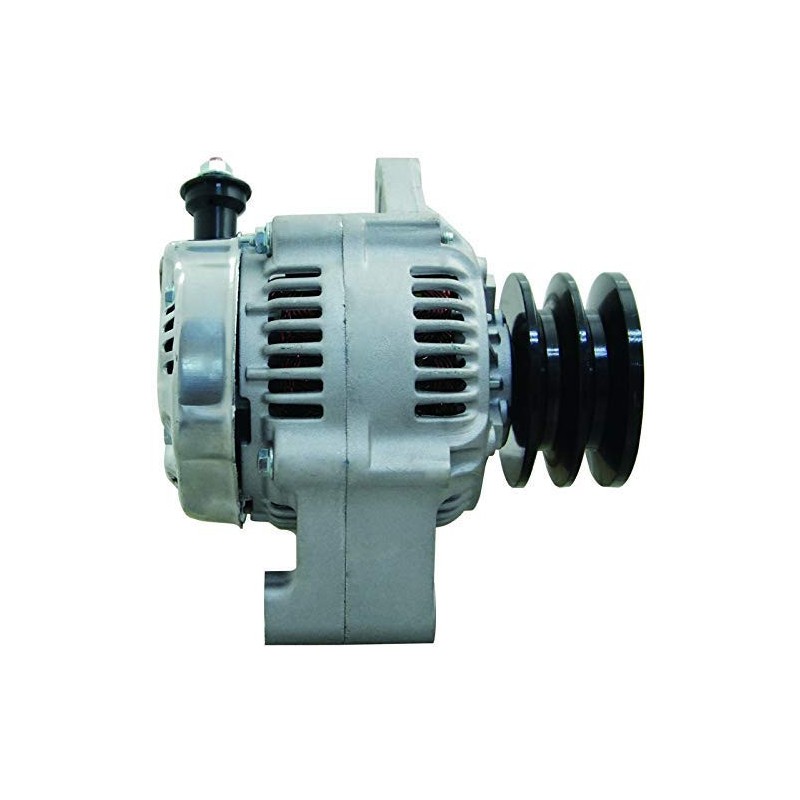

Alternator NEW replacing :

CATERPILLAR 0R4327, 0R9273, 105-2811, 105-2812, DENSO101211-2240, 101211-2310, DAN2030

NO CORE EXCHANGED NEEDED

Read more
€119.90 Tax included
Price may vary according to your VAT rate
Last items in stock Fast delivery
Add product to favorites
2-year warranty
No instructions, no return of the old
Secure payments

Features

Specs Electricals
Voltage 14
Amp. 55
Specs Physique
A Pulley dist. 95.00
B Width/holder arm 57.00
D Bracket hole 10.75
E Belt. adj. brackethole pos. 60
G Belt. adj. bracket hole M8
H Pulley dia. 76.00
I Grooves/pulley 2
J Radius 74.00
J Radius 2 79.00
K Position B + M6
K B+ position en min. 5
N Rotation Cr

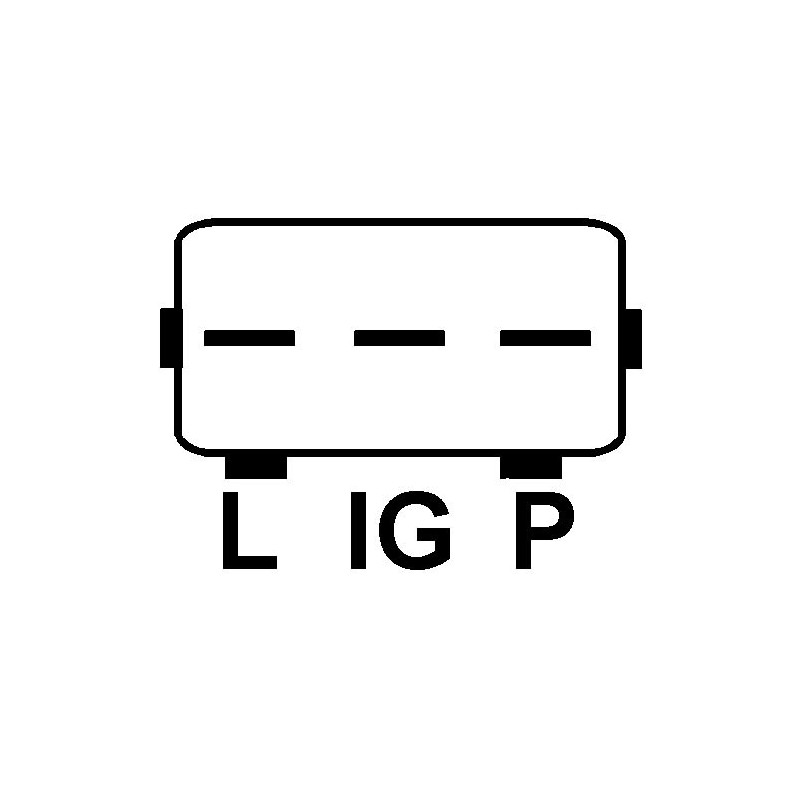

O Plug n° 1 PL128
Q Tipo prise W Plug
R Total length mm 160.00
Replacing
101211-2240 DENSO
101211-2310 DENSO
105-2811 CATERPILLAR
105-2812 CATERPILLAR

Mounted on :

Brand Model Typ Year
CATERPILLAR D5G 5.0 LGP [3046T] 01.2001-12.2008
CATERPILLAR 438C 4.4 [3054T] 01.1995-12.2000
CATERPILLAR 438C 4.4 [3054] 01.1995-12.2000
CATERPILLAR D5G XL 5.0 [3046T] 01.2001-12.2005
CATERPILLAR 438D 4.4 [3054T] 01.2001-12.2005
CATERPILLAR 442D 4.4 [3054T] 01.2001-12.2005
CATERPILLAR 908 3.0 [3034] 01.1998-12.2008
CATERPILLAR D3C 5.0 [3046] 01.1991-12.2001
CATERPILLAR TH62 4.4 [3054] 01.1995-12.2003
CATERPILLAR D3C 5.0 LGP [3046] 01.1994-12.2003
CATERPILLAR TH63 4.4 [3054] 01.1995-12.2003
CATERPILLAR D3C 5.2 [3204] 01.1984-12.2001
CATERPILLAR TH82 4.4 [3054] 01.1995-12.2003
CATERPILLAR D3C 5.2 [3204] 01.1990-12.1997
CATERPILLAR TH83 4.4 [3054] 01.1995-12.2003
CATERPILLAR D3C 5.2 [3204] 01.1991-12.1993
CATERPILLAR D3C 5.2 LGP [3204] 01.1987-12.2003
CATERPILLAR 933 5.0 [3046] 01.1996-12.2002
CATERPILLAR D3C 5.2 LGP [3204] 01.1997-12.2002
CATERPILLAR 933 5.0 LGP [3046] 01.1994-12.1997
CATERPILLAR D3G 5.0 [3046T] 01.2002-12.2008
CATERPILLAR 933C 5.0 [3046] 01.1994-12.2002
CATERPILLAR 933C 5.0 Hystat [3046] 01.2000-12.2003
CATERPILLAR 933C 5.0 LGP [3046] 01.1997-12.2003
CATERPILLAR 933C 5.0 LGP Hystat [3046] 01.2000-12.2003
CATERPILLAR 416B 4.4 [3054] 01.1991-12.1996
CATERPILLAR 416C 4.4 [3054D] 01.1996-12.2002
CATERPILLAR 939 5.0 [3046] 01.1993-12.2000
CATERPILLAR D4C 5.0 [3046] 01.1994-12.2002
CATERPILLAR 416D 4.4 [3054B] 01.2001-12.2008
CATERPILLAR 939C 5.0 [3046T] 01.1997-12.2008
CATERPILLAR D4C 5.0 LGP [3046] 01.1990-12.2001
CATERPILLAR 939C 5.0 [3046] 01.1997-12.2003
CATERPILLAR 420D 4.4 [3054T] 01.2001-12.2005
CATERPILLAR 939C 5.0 Hystat [3046T] 01.1999-12.2010
CATERPILLAR D4G 5.0 [3046] 01.2002-12.2008
CATERPILLAR 424D 4.4 [3054B] 01.2000-12.2004
CATERPILLAR 424DC 4.4 [3054B] 01.2000-12.2004
CATERPILLAR D4G 5.0 LGP [3046] 01.2002-12.2007
CATERPILLAR 426D 4.4 [3054] 01.1998-12.2001
CATERPILLAR D4G XL 5.0 [3046] 01.2002-12.2007
CATERPILLAR 428B 4.4 [3054] 01.1992-12.1995
CATERPILLAR 428C 4.4 [3054] 01.1996-12.2001
CATERPILLAR 428D 4.4 [3054T] 01.2001-12.2005
CATERPILLAR D5C 5.0 [3046] 01.1994-12.2000
CATERPILLAR 430D 4.4 [3054T] 01.2001-12.2005
CATERPILLAR D5C 5.0 Hystat [3046] 01.1994-12.2000
CATERPILLAR 432D 4.4 [3054T] 01.2001-12.2005
CATERPILLAR D5C 5.0 LGP [3046] 01.1993-12.2001
CATERPILLAR D5C XL 5.0 [3046] 01.1997-12.2006
CATERPILLAR D5C XL 5.0 [3046] 01.1997-12.2002
CATERPILLAR 436C 4.4 [3054T] 01.1996-12.2001
CATERPILLAR D5G 5.0 [3046T] 01.2001-12.2008
CATERPILLAR 436C 4.4 [3054] 01.1996-12.2001
