Alternator TWA TRA-230 replacing 12140077201 / 12817077200
€89.90
Alternator replacing VALEO TG15C144 / 2606017 / VOLKSWAGEN 06D903016D / 06D903016DX / XR837164
w115953

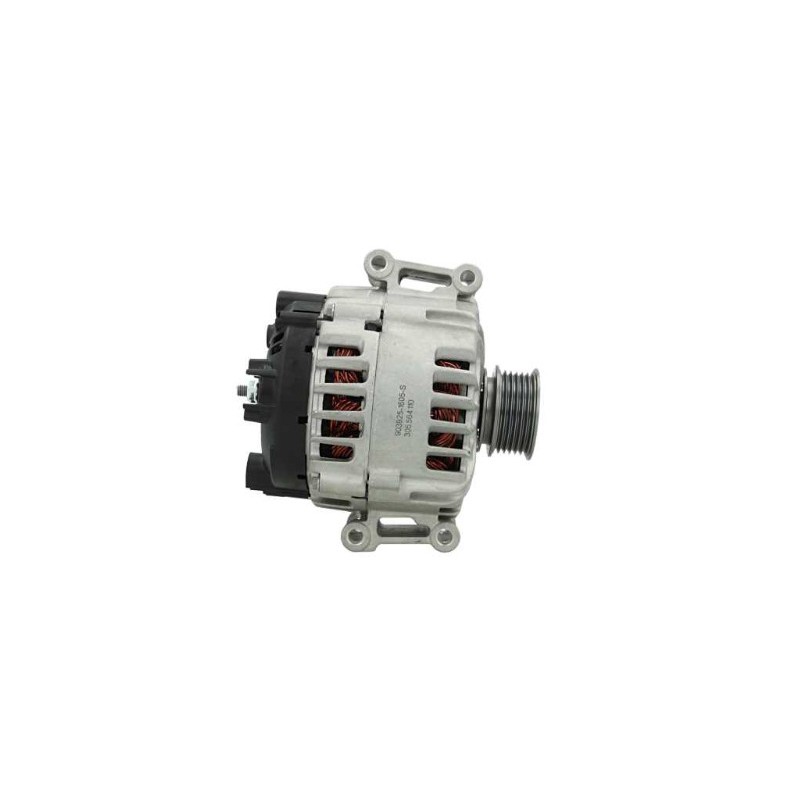

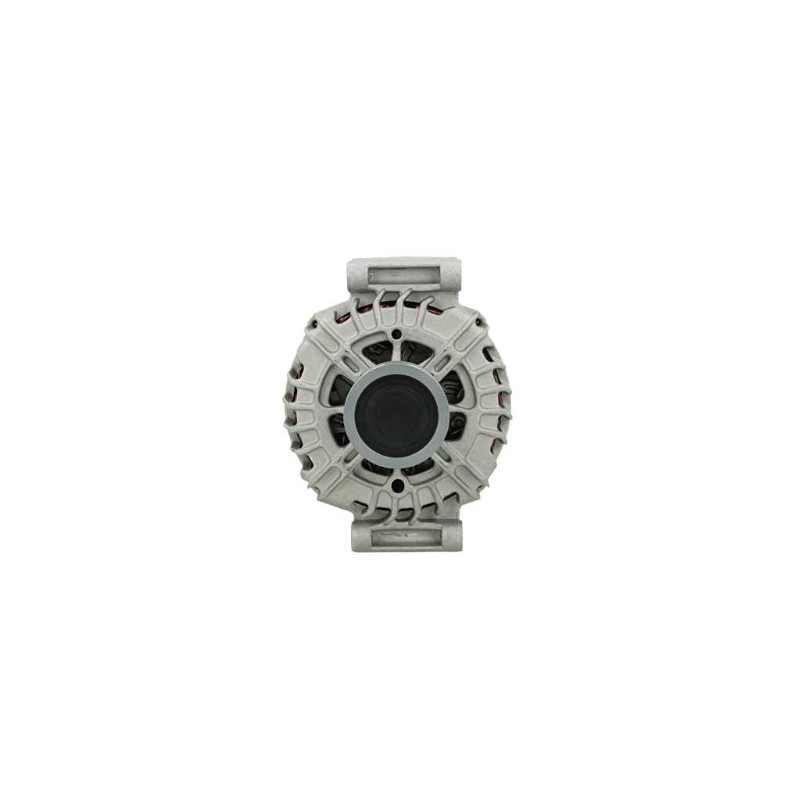

Alternator NEW replacing VALEO TG15C144 / 2606017 / 439656 / 440242
VOLKSWAGEN 06D903016D / 06D903016DX /
JAGUAR XR837164
VALEO alternator available under the reference w205548150
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
Features
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 150 | |
Physical Information | ||
|---|---|---|
| D | Bracket hole | 9.50 |
| G | Belt. adj. bracket hole | 9.50 |
| B | Width/holder arm | 70.00 |
| E | Belt. adj. brackethole pos. | 60 |
| C | Mount. bracket dist | 56.00 |
| H | Pulley dia. | 56.00 |
| A | Pulley dist. | 30.00 |
| i | Grooves/pulley | 6 |
| j | Radius | 81.50 |
| j | Radius 2 | 81.50 |
| k | Position B + | M8 |
| n | Rotation | CW |
| o | Plug no. 1 | PL86 |
generic brand
Replacing | |
|---|---|
| 06D903016D | VOLKSWAGEN |
| 06D903016DX | VOLKSWAGEN |
| 2606017 | VALEO |
| TG15C144 | VALEO |
| xr837164 | JAGUAR |
fits:
AUDI
| A6 | A6 | 2.0 | Unleaded | 2005 06 | - | BPJ | TFSi | 125 | 170 | 1984 | 4 | 4F2 | |
| A6 | A6 | 2.0 | Unleaded | 2007 01 | - | BYK | TFSi | 125 | 170 | 1984 | 4 | 4F2 | |
| A6 | A6 | 2.0 | Unleaded | 2005 06 | - | BPJ | TFSi | 125 | 170 | Break | 1984 | 4 | 4F5 |
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
