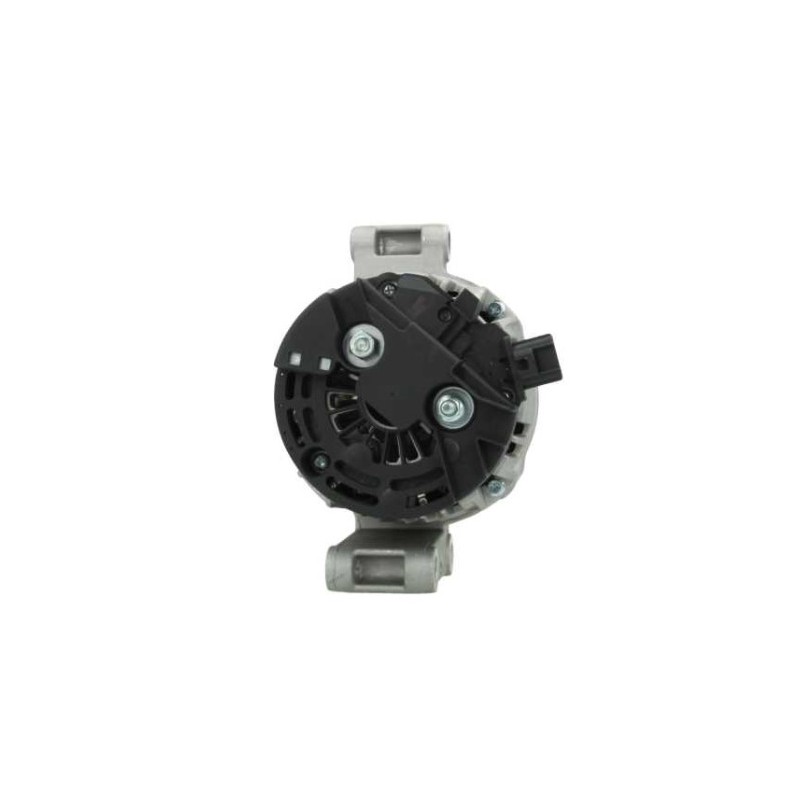

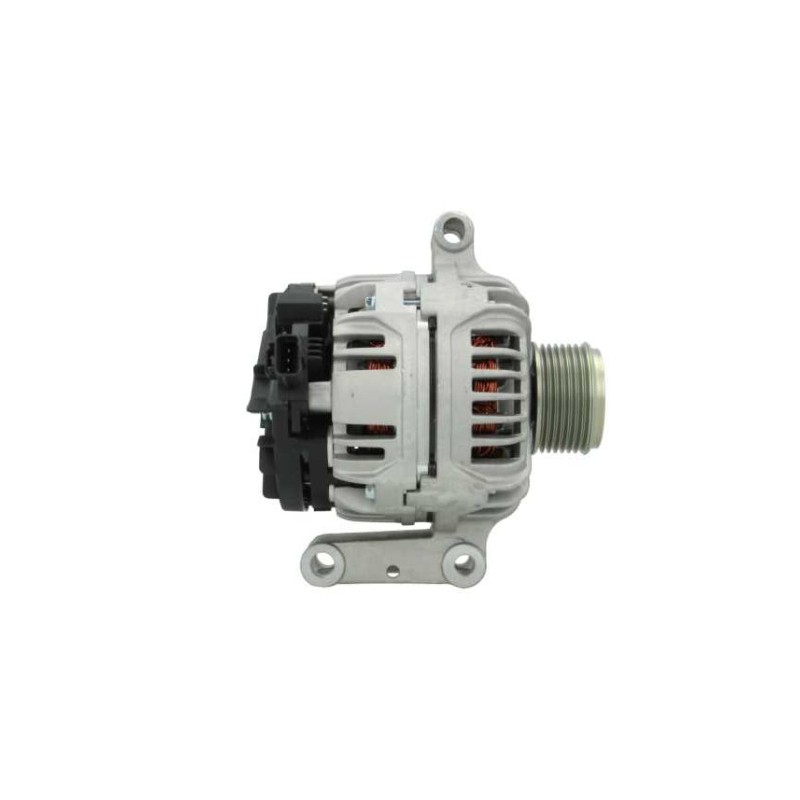

Alternator replacing YC1T10300BB / B120416351 / 4332279 / 4098414 / 0124315100 / 0124315027
Alternator NEW replacing YC1T10300BB / B120416351 / 4332279 / 4098414 / 0124315100 / 0124315027
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
| Voltage | 14 | |
| Amp. | 75 | |
| A | Pulley dist. | 38.60 |
| B | Width/holder arm | 55.25 |
| C | Mount. bracket dist | 74.50 |
| D | Bracket hole | 12.75 |
| D | Trou from fixation support 2 | 12.75 |
| E | Belt. adj. brackethole pos. | 60 |
| G | Belt. adj. bracket hole | 11.90/12.40 |
| H | Pulley dia. | 59.00 |
| I | Grooves/pulley | 7 |
| J | Radius | 90.00 |
| J | Radius 2 | 90.00 |
| K | Position B + | M6 |
| K | B+ position en min. | 17 |
| N | Rotation | Cr |

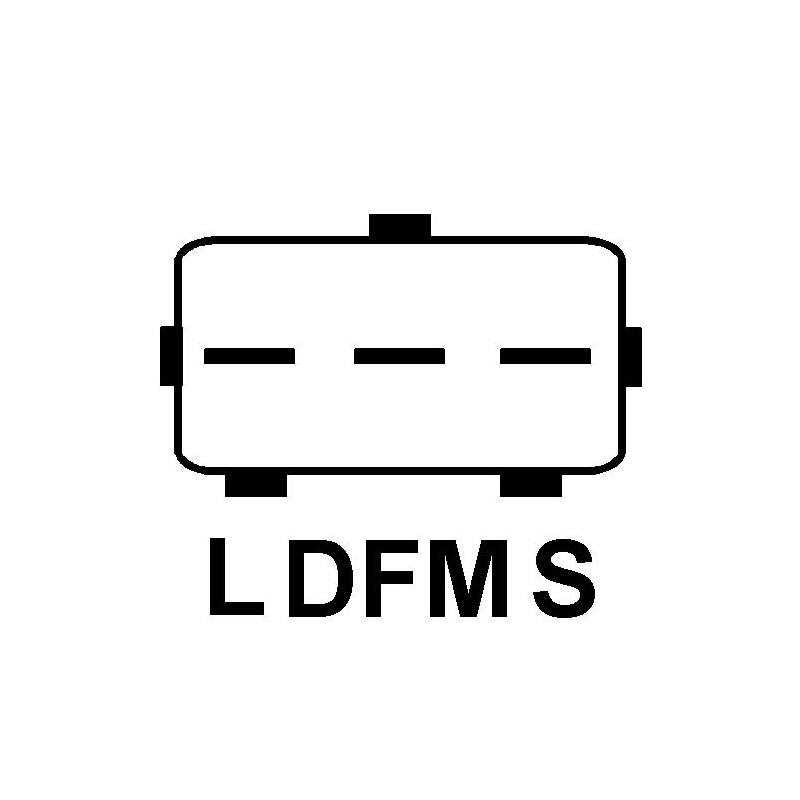

| O | Plug n° 1 | PL81 |
| R | Total length mm | 218.50 |
generic brand
| 0124315019 | BOSCH |
| 0124315027 | BOSCH |
| 0124315100 | BOSCH |
| 2C3U10300BB | FORD |
| 4069776 | FORD |
| 4098414 | FORD |
| 4332279 | FORD |
| B120416351 | BOSCH |
| CA1639IR | HC-PARTS |
| YC1T10300BB | FORD |
| YC1T10300BC | FORD |
| YC1T10300BD | FORD |
| YC1T10300BE | FORD |
| YC1T10300BG | FORD |
| YC1T10300BH | FORD |
| YC1T10300BJ | FORD |
| YC1U10300BB | FORD |
| YC1U10300DA | FORD |
| YC1U10300DB | FORD |
| YC1U10300DC | FORD |
| YC1U10300DE | FORD |
fits:
| Model | litre | Tipo of Gas | Start build | Tipo engine | engine | KW | chevaux | châssis | cm3 |
| Transit | 2.4 | Diesel | 2001 07 | DOFA | TDE | 92 | 125 | Pick-up | 2402 |
| Transit | 2.4 | Diesel | 2004 03 | FXFA | TDE | 85 | 115 | Pick-up | 2402 |
| Transit | 2.4 | Diesel | 2004 03 | H9FA | TDCi | 101 | 137 | Boîte/Trucksnette | 2402 |
| Transit | 2.4 | Unleaded | 2001 07 | DOFA | TDE | 92 | 125 | De bus | 2402 |
| Transit | 2.4 | Diesel | 2000 01 | D2FB | Diesel Di | 66 | 90 | Pick-up | 2402 |
| Transit | 2.4 | Diesel | 2000 01 | D2FE | Diesel Di | 66 | 90 | Pick-up | 2402 |
| Transit | 2.4 | Diesel | 2004 03 | FXFA | TDE | 85 | 115 | De bus | 2402 |
| Transit | 2.4 | Diesel | 2000 01 | D2FA | Diesel Di | 66 | 90 | De bus | 2402 |
| Transit | 2.4 | Diesel | 2000 01 | D2FB | Diesel Di | 66 | 90 | Boîte/Trucksnette | 2402 |
| Transit | 2.4 | Diesel | 2000 01 | D2FA | Diesel Di | 66 | 90 | Pick-up | 2402 |
| Transit | 2.4 | Diesel | 2000 01 | F4FA | Diesel Di | 55 | 75 | De bus | 2402 |
| Transit | 2.4 | Diesel | 2000 01 | F4FA | Diesel Di | 55 | 75 | Pick-up | 2402 |
| Transit | 2.4 | Diesel | 2001 07 | DOFA | TDE | 92 | 125 | Boîte/Trucksnette | 2402 |
| Transit | 2.4 | Diesel | 2004 03 | FXFA | TDE | 85 | 115 | Boîte/Trucksnette | 2402 |
| Transit | 2.4 | Diesel | 2004 03 | H9FA | TDCi | 101 | 137 | Pick-up | 2402 |
| Transit | 2.4 | Diesel | 2004 03 | H9FA | TDCi | 101 | 137 | De bus | 2402 |
| Transit | 2.4 | Diesel | 2000 01 | D4FA | Diesel Di | 88 | 120 | Pick-up | 2402 |
| Transit | 2.4 | Diesel | 2000 01 | D4FA | Diesel Di | 88 | 120 | De bus | 2402 |
| Transit | 2.4 | Diesel | 2000 01 | D2FB | Diesel Di | 66 | 90 | De bus | 2402 |
| Transit | 2.4 | Diesel | 2000 01 | D2FE | Diesel Di | 66 | 90 | De bus | 2402 |
| Transit | 2.4 | Diesel | 2000 01 | D2FA | Diesel Di | 66 | 90 | Boîte/Trucksnette | 2402 |
| Transit | 2.4 | Diesel | 2000 01 | D2FE | Diesel Di | 66 | 90 | Boîte/Trucksnette | 2402 |
| Transit | 2.4 | Diesel | 2000 01 | D4FA | Diesel Di | 88 | 120 | Boîte/Trucksnette | 2402 |
| Transit | 2.4 | Diesel | 2000 01 | F4FA | Diesel Di | 55 | 75 | Boîte/Trucksnette | 2402 |
