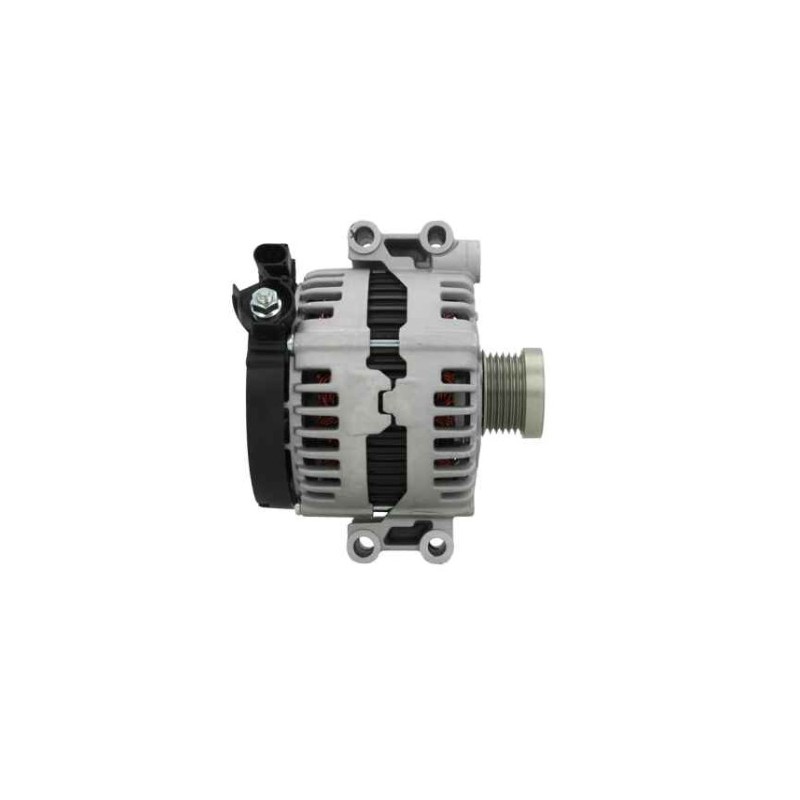

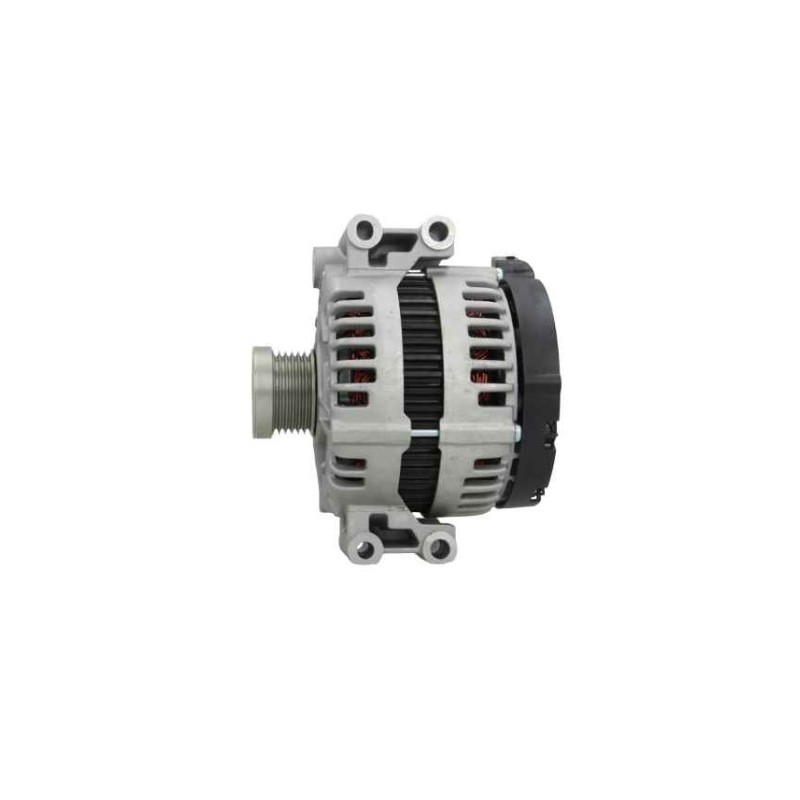

Alternator replacing 7550967 / 7551254 / 12317551254 / 0121615110 / 0121615010
Alternator NEW replacing :
BMW 7550967 / 7551254 / 12317551254
BOSCH 0121615110 / 0121615010 / 0986047970
DELCO REMY DRA0161 / DRA1061
NO CORE EXCHANGE NEEDED
More info
Information:
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 150 | |

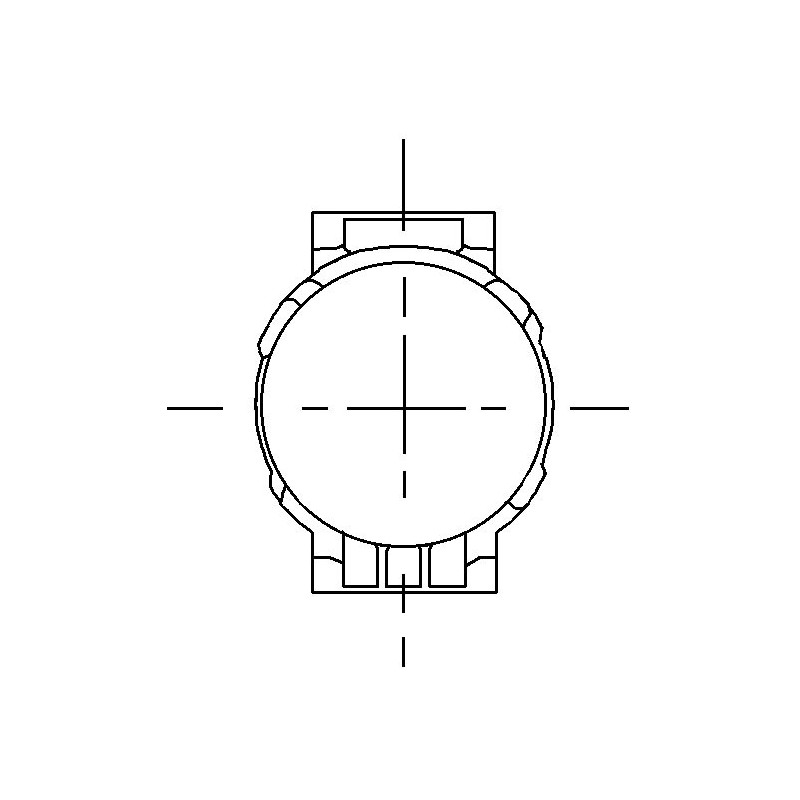

Spécification Physique | ||
|---|---|---|
| A | Pulley dist. | 30.00 |
| B | Width/holder arm | 63.00 |
| C | Mount. bracket dist | 41.00 |
| D | Bracket hole | 9.00 |
| E | Belt. adj. brackethole pos. | 87 |
| E | Ceinture from soutien réglable/ pos. 2 | 87 |
| G | Belt. adj. bracket hole | 9.20 |
| H | Pulley dia. | 49.00 |
| I | Grooves/pulley | 6 |
| J | Radius | 87.00 |
| J | Radius 2 | 87.00 |
| K | Position B + | M8 |
| K | B+ position en min. | 9 |
| N | Rotation | Cr |

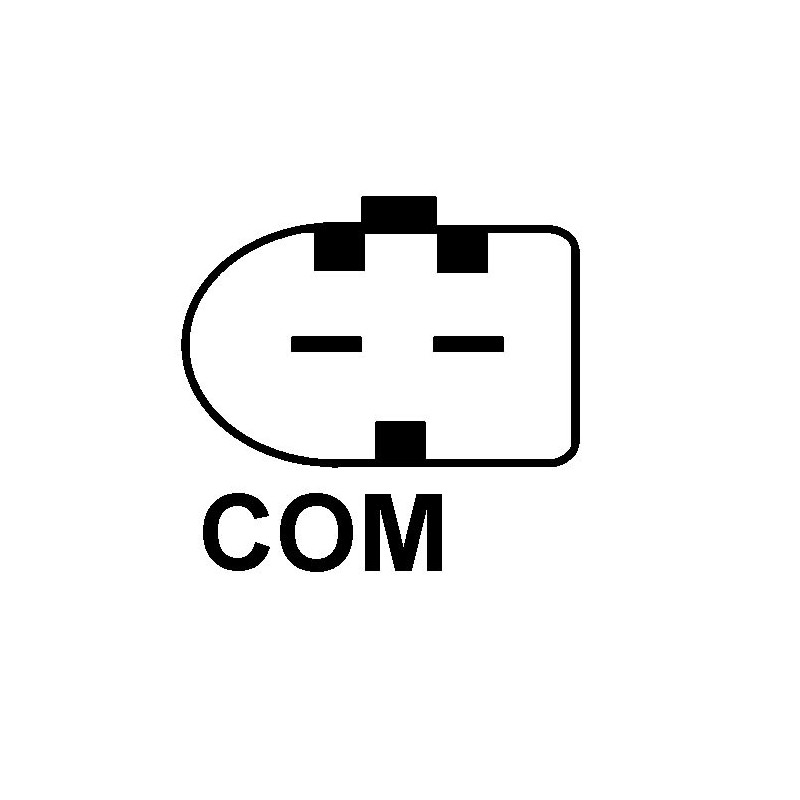

| O | Plug n° 1 | PL86 |
| R | Total length mm | 170.00 |
Generic Brand
Replacing | |
|---|---|
| 0121615010 | BOSCH |
| 0121615110 | BOSCH |
| 12317550967 | BMW |
| 12317551254 | BMW |
| 7550967 | BMW |
| 7551254 | BMW |
Mounted on :
| brand | Model | Tipo | year |
| BMW | 125 3.0 i | [N52B30A] | 01.2008-12.2012 |
| BMW | 130 3.0 i | [N52B30] | 01.2005-12.2012 |
| BMW | 325 2.5 i | [N52B25] | 01.2007-12.2011 |
| BMW | 325 2.5 Xi | [N52B25A] | 01.2005-12.2011 |
| BMW | 325 2.5 Xi | [N52B25C] | 01.2005-12.2011 |
| BMW | 325 3.0 i | [N52B30A] | 01.2007-12.2011 |
| BMW | 325 3.0 i | [N52B30] | 01.2007-12.2011 |
| BMW | 325 3.0 i | [N53B30A] | 01/01/07 |
| BMW | 325 3.0 i | [N53B30] | 01/01/07 |
| BMW | 325 3.0 xDrive | [N52B30A] | 01.2008-12.2011 |
| BMW | 325 3.0 xi | [N53B30A] | 01.2007-12.2011 |
| BMW | 330 3.0 i | [N52B30A] | 01.2005-12.2011 |
| BMW | 330 3.0 i | [N52B30] | 01.2005-12.2011 |
| BMW | 330 3.0 i | [N53B30A] | 01/01/06 |
| BMW | 330 3.0 i | [N53B30A] | 01.2007-12.2011 |
| BMW | 330 3.0 i | [N53B30] | 01/01/06 |
| BMW | 330 3.0 i | [N53B30] | 01.2007-12.2011 |
| BMW | 330 3.0 xDrive | [N53B30A] | 01.2008-12.2011 |
| BMW | 330 3.0 xi | [N53B30A] | 01.2006-12.2011 |
| BMW | 523 2.5 i | [M52B25A] | 01.2005-12.2010 |
| BMW | 523 2.5 i | [N52B25] | 01.2005-12.2010 |
| BMW | 525 3.0 i | [N52B30A] | 01.2007-12.2010 |
| BMW | 525 3.0 i | [N52B30] | 01.2007-12.2010 |
| BMW | 525 3.0 xDrive | [N53B30A] | 01.2008-12.2010 |
| BMW | 525 3.0 xDrive | [N53B30] | 01.2008-12.2010 |
| BMW | 525 3.0 Xi | [N53B30A] | 01.2007-12.2008 |
| BMW | 530 3.0 i | [N53B30A] | 01.2007-12.2010 |
| BMW | 530 3.0 i | [N53B30] | 01.2007-12.2010 |
| BMW | 530 3.0 xDrive | [N53B30A] | 01.2008-12.2010 |
| BMW | 530 3.0 Xi | [M52B30A] | 01.2007-12.2010 |
| BMW | 530 3.0 Xi | [N53B30A] | 01.2007-12.2010 |
| BMW | 630 3.0 i | [N52B30A] | 01.2007-12.2010 |
| BMW | 630 3.0 i | [N52B30] | 01.2007-12.2010 |
| BMW | 630 3.0 i | [N53B30] | 01.2007-12.2010 |
| BMW | X1 3.0 xDrive 25i | [N52B30A] | 01/01/10 |
| BMW | X3 2.5 i | [N52B25A] | 01.2006-12.2008 |
| BMW | X3 2.5 xDrive 25i | [N52B25A] | 01.2008-12.2010 |
| BMW | X3 3.0 xDrive 30i | [N52B30A] | 01.2008-12.2010 |
| BMW | X3 3.0si | [N52B30A] | 01.2006-12.2008 |
