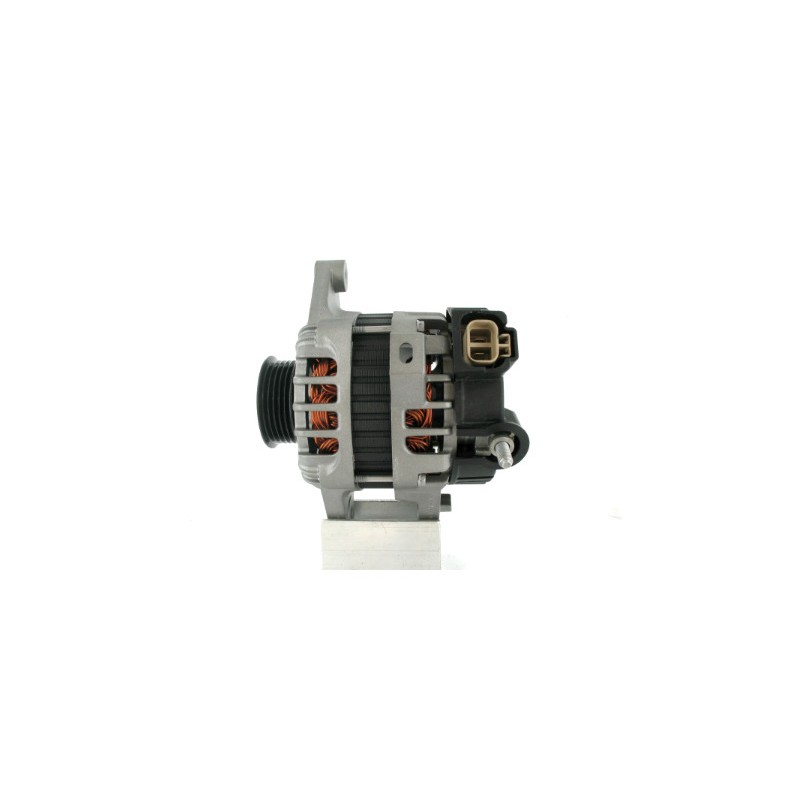

Alternator replacing 2655633 / 37300-03100 /37300-03200
Alternator NEW replacing VALEO 2655633 / KIA 37300-03100 /37300-03200
0986083930 / ALT0049sa / DRA0631 / LRA03502 / N5110526
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Information:
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 70 | |
Generic brand

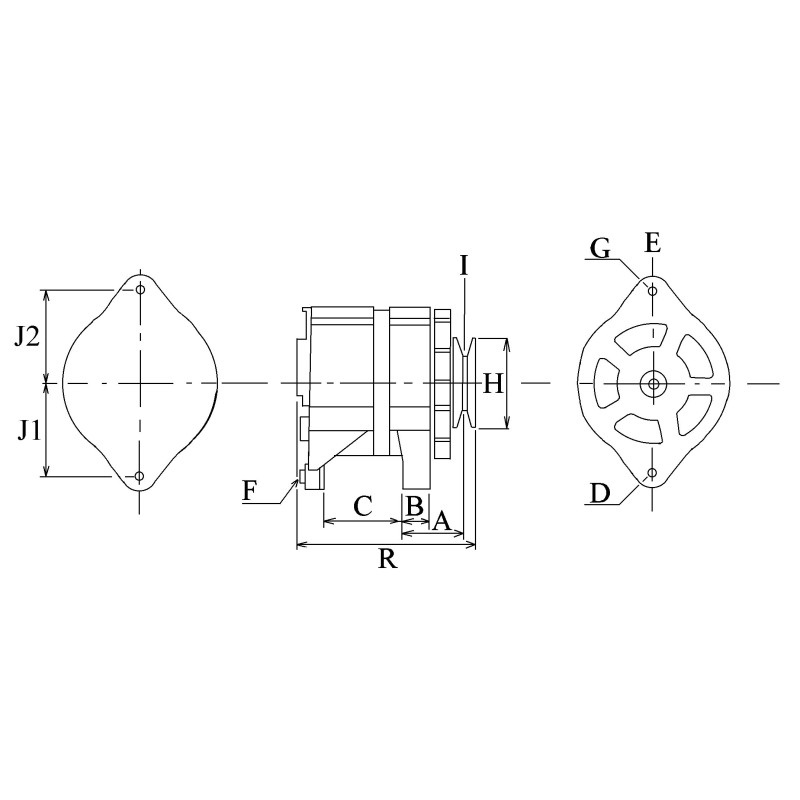

Physical Information | ||
|---|---|---|
| D | Bracket hole | 10.50 |
| G | Belt. adj. bracket hole | M8 |
| B | Width/holder arm | 15.00 |
| E | Belt. adj. brackethole pos. | 60 |
| C | Mount. bracket dist | 45.70 |
| H | Pulley dia. | 57.50 |
| A | Pulley dist. | 35.00 |
| i | Grooves/pulley | 5 |
| j | Radius | 81.50 |
| j | Radius 2 | 85.00 |
| k | Position B + | M8 |
| n | Rotation | CW |

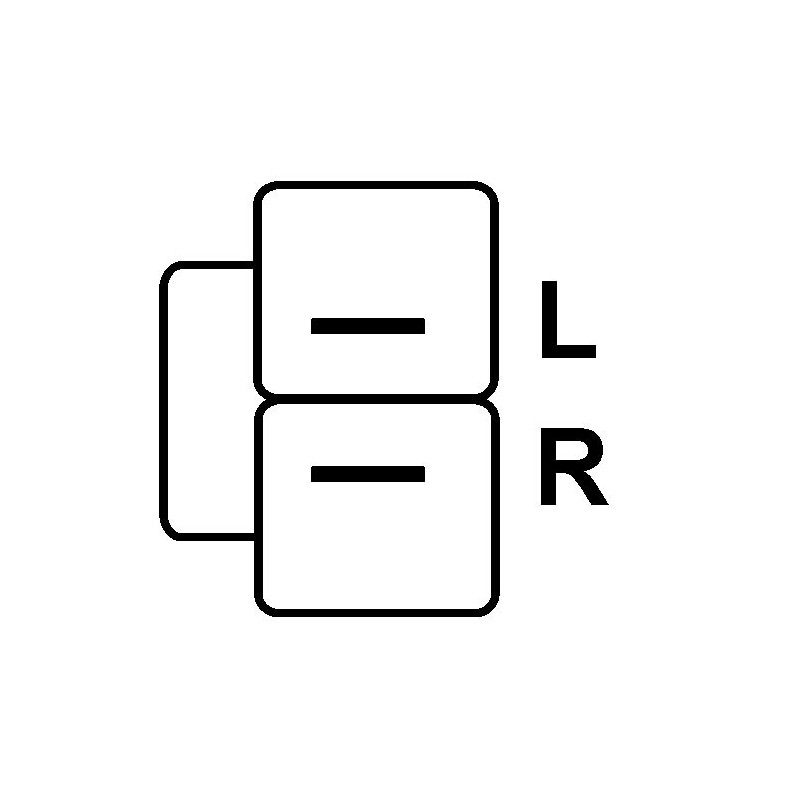

| o | Plug no. 1 | PL89 |
| R | Total length mm | 166.50 |
Replacing | |
|---|---|
| 2655633 | VALEO |
| 37300-03100 | KIA |
| 37300-03200 | KIA |
| ca2128ir | HC-PARTS |
generic brand
Mounted on :
| 10 | i10 | 1.2 | Unleaded | 2008 11 | G4LA | 57 | 78 | Hayon | 1248 | 4 | |
| i20 | i20 | 1.2 | Unleaded | 2008 09 | G4LA | 57 | 78 | Hayon | 1248 | 4 |
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
