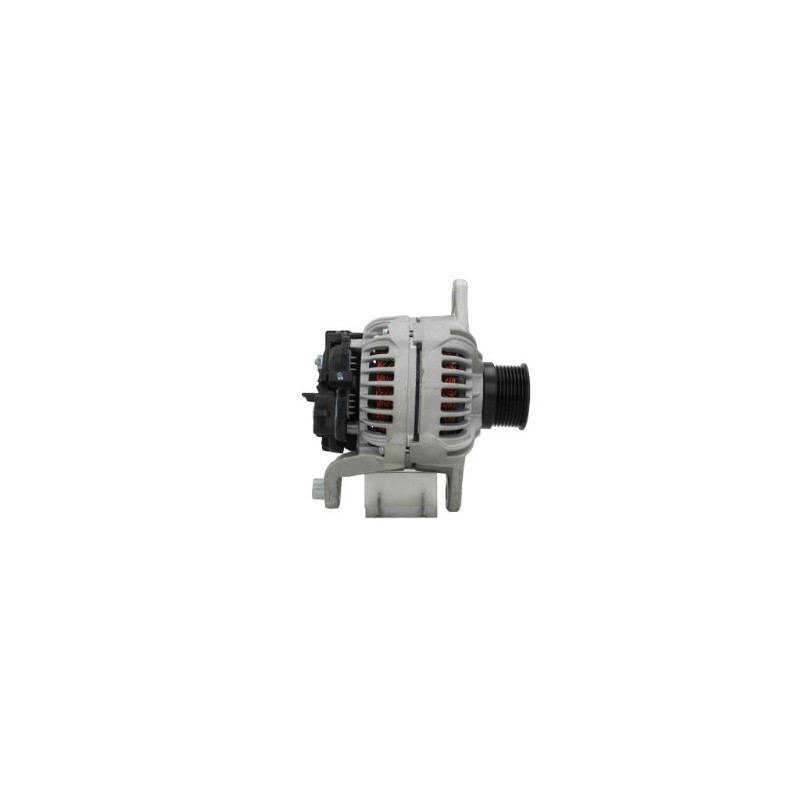

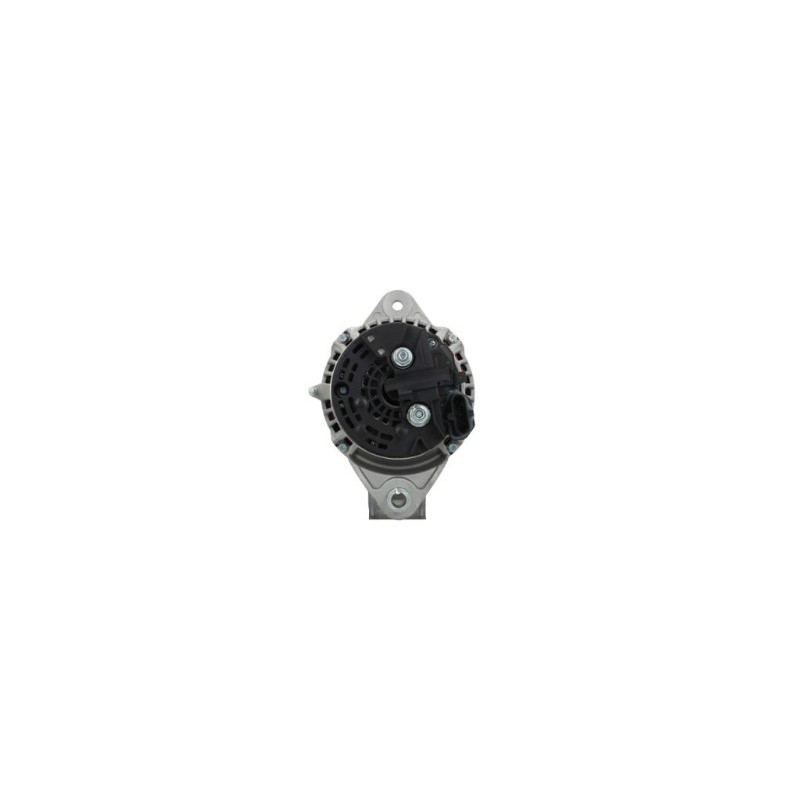

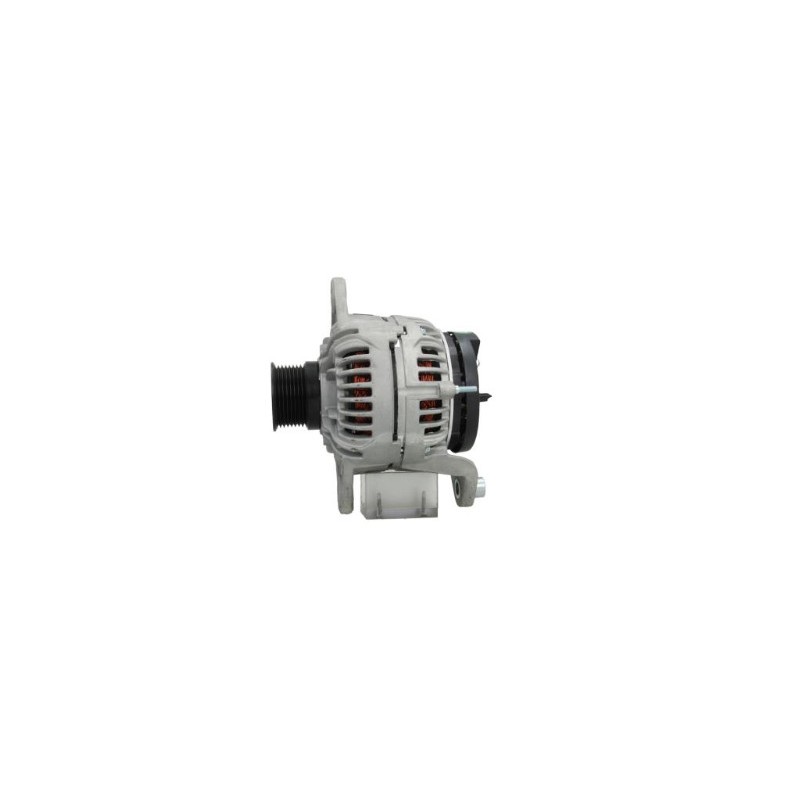

Alternator replacing 0124655024 / 0124655333 / 0124655334 / AAN5410
Alternator NEW replacing BOSCH 0124655024 / 0124655333 / 0124655334 / ISKRA 11209621
0986081010 / LRA03449 / 20770016 / 21429791 / 22218392
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Information:
Electrical Information | ||
|---|---|---|
| Voltage | 28 | |
| Amp | 120 | |
Physical Information | ||
|---|---|---|
| D | Bracket hole | 13.50 |
| G | Belt. adj. bracket hole | 11.80 |
| B | Width/holder arm | 13.60 |
| E | Belt. adj. brackethole pos. | 60 |
| C | Mount. bracket dist | 107.00 |
| H | Pulley dia. | 63.00 |
| A | Pulley dist. | 45.00 |
| i | Grooves/pulley | 8 |
| j | Radius | 99.00 |
| j | Radius 2 | 99.00 |
| k | Position B + | M8 |
| n | Rotation | CW |

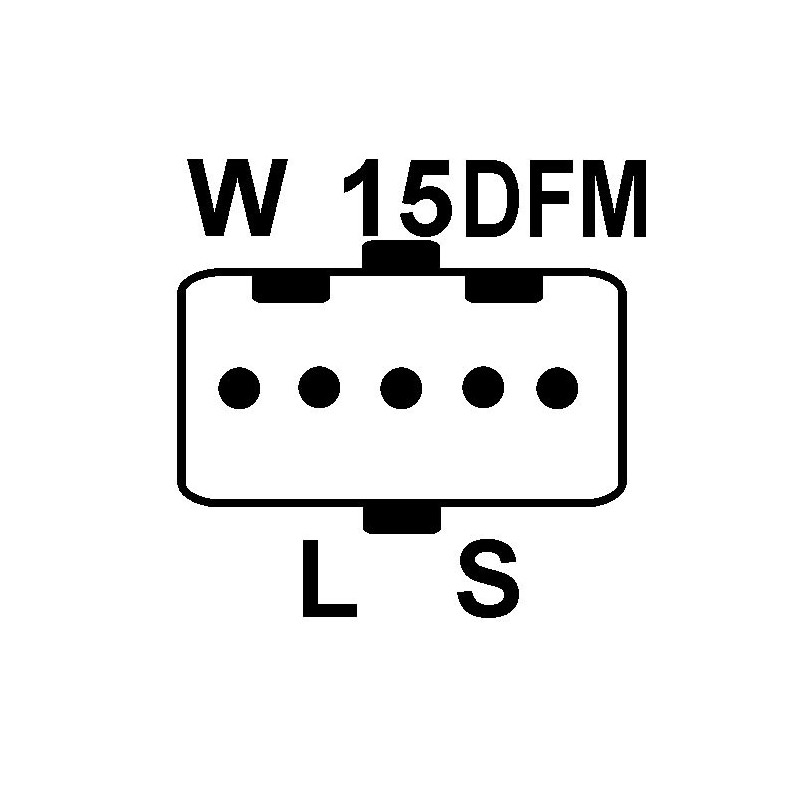

| o | Plug no. 1 | PL82 |
| Q | Tipo prise W | Plug |
| R | Total length mm | 220.00 |
Generic brand
Replacing | |
|---|---|
| 0124655024 | BOSCH |
| 0124655333 | BOSCH |
| 0124655334 | BOSCH |
| 11.209.621 | ISKRA |
| 20770016 | VOLVO |
| 21429791 | VOLVO |
| 22218392 | VOLVO |
| 72446647 | ISKRA |
| AAN5410 | ISKRA |
generic brand
Mounted on :
VOLVO
| Model | Model série | Reference d origine du produit | Tipo of Gas | Start build | Tipo engine | KW | Horse Power | Chassi type | Tipoe modèle | Engine in cm3 | Cylindres | Descrip- tion du type from |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FH 16 Series | FH 16/540, FH 16/550 | 16.1 | Diesel | 2003 01 | D16C550 | 396 | 540 | Trailer | 16120 | 6 | ||
| FH 16 II Series | FH 16/750 | 16.1 | Diesel | 2013 11 | 551 | 750 | Trailer | 16120 | ||||
| FH 16 Series | FH 16/540, FH 16/550 | 16.1 | Diesel | 2003 01 | D16G540 | 396 | 540 | Trailer | 16120 | 6 | ||
| FH 16 Series | FH 16/540, FH 16/550 | 16.1 | Diesel | 2003 01 | D16E540 | 396 | 540 | Trailer | 16120 | 6 | ||
| 7700 | 310 | 9.4 | Diesel | 2006 06 | D9B310 | 228 | 310 | De bus | 9364 | 6 | 7700 | |
| 7700 | 360 | 9.4 | Diesel | 2006 06 | D9B360 | 265 | 360 | De bus | 9364 | 6 | 7700 | |
| 7700 | 360 | 9.4 | Diesel | 2006 06 | D9B360 | 265 | 360 | De bus | 9364 | 6 | 7700 | |
| 7700 | 310 | 9.4 | Diesel | 2006 06 | D9B310 | 228 | 310 | De bus | 9364 | 6 | 7700 | |
| 7700 | 260 | 9.4 | Diesel | 2006 06 | D9B260 | 191 | 260 | De bus | 9364 | 6 | 7700 | |
| 7700 | 260 | 9.4 | Diesel | 2006 06 | D9B260 | 191 | 260 | De bus | 9364 | 6 | 7700 |
| 9700 Series | 9700 | 12.8 | Diesel | 2009 01 | D13C460 | 338 | 460 | De bus | 12800 | 6 |
| 9700 Series | 9700 | 12.8 | Diesel | 2009 01 | D13C460 | 338 | 460 | De bus | 12800 | 6 |
| 9700 Series | 9700 | 12.8 | Diesel | 2009 01 | D13C420 | 309 | 420 | De bus | 12800 | 6 |
| 9900 Series | 9900 | 12.8 | Diesel | 2009 01 | D13C460 | 338 | 460 | De bus | 12800 | 6 |
| 9900 Series | 9900 | 12.8 | Diesel | 2009 01 | D13C460 | 338 | 460 | De bus | 12800 | 6 |
| 9900 Series | 9900 | 12.8 | Diesel | 2009 01 | D13C420 | 309 | 420 | De bus | 12800 | 6 |
| 9900 Series | 9900 | 12.8 | Diesel | 2009 01 | D13C420 | 309 | 420 | De bus | 12800 | 6 |
| B Series | B 9 | 9.4 | Diesel | 2005 09 | D9B310 | 228 | 310 | De bus | 9364 | 6 |
| B Series | B 9 | 9.4 | Diesel | 2005 09 | D9B310 | 228 | 310 | De bus | 9364 | 6 |
| B Series | B 9 | 9.4 | Diesel | 2005 09 | D9B360 | 265 | 360 | De bus | 9364 | 6 |
| FH Series | FH 16/550 | 16.1 | Diesel | 2003 01 | D16C550 | 396 | 540 | Trailer | 16120 | 6 |
| FH Series | FH 16/750 | 16.1 | Diesel | 2012 05 | D16G750 | 551 | 750 | Pick-up | 16120 | 6 |
| FH Series | FH 16/750 | 16.1 | Diesel | 2012 05 | D16G750 | 551 | 750 | Trailer | 16120 | 6 |
| FH Series | FH 16/550 | 16.1 | Diesel | 2005 05 | D16C550 | 396 | 540 | Trailer | 16120 | 6 |
| FH Series | FH 16/550 | 16.1 | Diesel | 2005 05 | D16C550 | 396 | 540 | Pick-up | 16120 | 6 |
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
