Alternator replacing BOSCH
Alternator MAHLE / ISKRA / 11.201.396 / 11.201.913 / AAK3320 / IA0913
€189.90

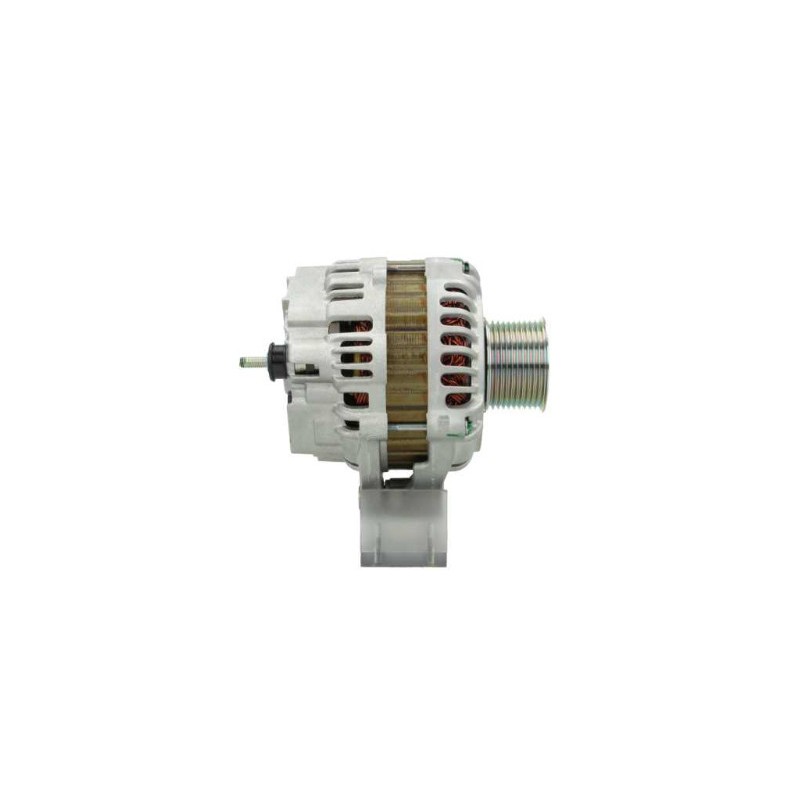

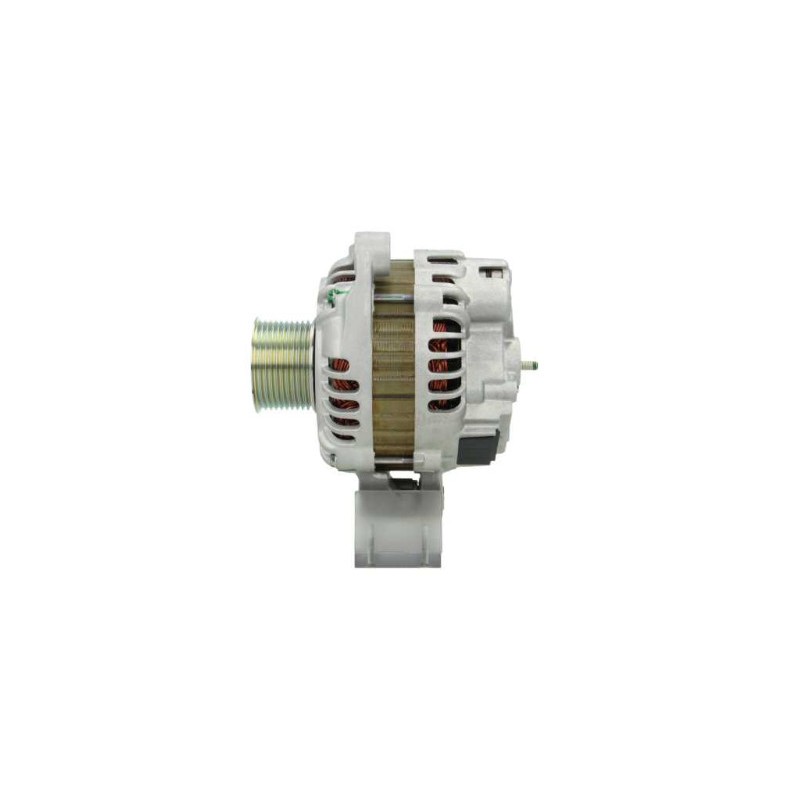

Alternator MITSUBISHI A004TR5791 / A004TR5791ZT / A4TR5791
Alternator MITSUBISHI A004TR5791 / A004TR5791ZT / A4TR5791
504282826 / DRA1423
Available as generic w115798
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
Features
Electrical Information | ||
|---|---|---|
| Voltage | 28 | |
| Amp | 120 | |
Physical Information | ||
|---|---|---|
| D | Bracket hole | 10.50 |
| G | Belt. adj. bracket hole | M8 |
| B | Width/holder arm | 58.00 |
| E | Belt. adj. brackethole pos. | 7 |
| H | Pulley dia. | 62.00 |
| A | Pulley dist. | 90.00 |
| i | Grooves/pulley | 10 |
| j | Radius | 90.00 |
| j | Radius 2 | 90.00 |
| k | Position B + | M8 |
| n | Rotation | CW |

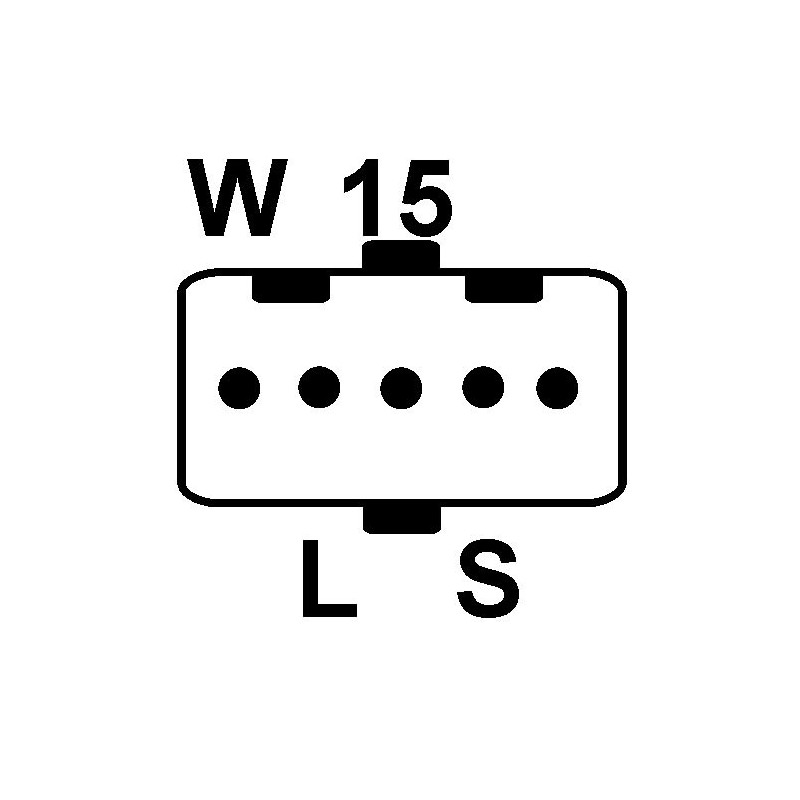

| o | Plug no. 1 | PL182 |
| Q | Tipo prise W | Plug |
| R | Total length mm | 198.00 |
Replacing | |
|---|---|
| 504282826 | IVECO |
| A004TR5791 | MITSUBISHI |
| A004TR5791ZT | MITSUBISHI |
| A4TR5791 | MITSUBISHI |
| A4TR5791ZT | MITSUBISHI |
generic brand
Fits :
TruckS IVECO EuroTech / EUroTrakker / Stralis / Trakker
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
