w111078

Alternator NEW replacing DUCELLIER 516032 / BOSCH 9120144228 / 9120144229 / 9120144240 / 9120144241 / 0986032340 / 0986032341

FIAT 7546342 / 7546343 / 77110410 / 77110411

MAGNETI MARELLI 63303502 / 63303701 / 63303703 / 63303721 / 63303731

432702 / 436113 / DRA2341 / LRA832 / LRA00832 / IA0347

NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY

Read more
€108.90 Tax included
Price may vary according to your VAT rate
Last items in stock Fast delivery
Add product to favorites
2-year warranty
No instructions, no return of the old
Secure payments

Reference

0986032340 BOSCH 13460 EFEL
0986032341 BOSCH 20264N WAI
11.0307 LAUBER ALT4150 ELECTROLOG
11.201.093 ISKRA / LETRIKA 0003934961 VW
111035 CARGO 076903023G VW
111078 CARGO 2702061013 TOYOTA
20100190 PRESTOLITE 2702061100 TOYOTA
20104211BN REAL 2702061130 TOYOTA
20104211OE REAL 4242498 FIAT
20119811OE REAL 4274759 FIAT
2021118 SANDO 4274762 FIAT
2030112 SANDO 4274812 FIAT
21188N WAI 4274813 FIAT
24041 LUCAS 4383593 FIAT
28-0877 ELSTOCK 4384014 FIAT
30307RI KUHNER 4395131 FIAT
32680330 HERTH+BUSS 4417595 FIAT
4141 CEVAM 4434084 FIAT
436113 VALEO 4450594 FIAT
4451759 FIAT 4451758 FIAT
4456152 FIAT 4474812 FIAT
4458618 FIAT 4551758 FIAT
46231655 FIAT 46207934 FIAT
505.012.045 WAI 46231684 FIAT
516032 DUCELLIER 46231687 FIAT
554098RI KUHNER 46621396 ZASTAVA
55607 EAI 5952011 FIAT
5947366 FIAT 5958060 FIAT
5947376 FIAT 5958394 FIAT
5973034 FIAT 5958395 FIAT
5973035 FIAT 5962646 AUTOBIANCHI
63303502 MAGNETI MARELLI 5962646 FIAT
63303701 MAGNETI MARELLI 5967595 FIAT
63303703 MAGNETI MARELLI 5967596 FIAT
63306701 MAGNETI MARELLI 7533853 FIAT
63307106 MAGNETI MARELLI 7541823 FIAT
63307108 MAGNETI MARELLI 7565558 FIAT
63308701 MAGNETI MARELLI 7580207 FIAT
63320002 MAGNETI MARELLI 77110910 FIAT
63321001 MAGNETI MARELLI 77161410 FIAT
7546342 FIAT 77175410 FIAT
7546343 FIAT 77176410 FIAT
77110410 FIAT 77320410 FIAT
77110411 FIAT 77367411 FIAT
8EL725709-001 HELLA 7765558 FIAT
9032341 FRIESEN 992235 FIAT
9120144228 BOSCH A002T32171 MITSUBISHI
9120144229 BOSCH A2T32171 MITSUBISHI
9120144240 BOSCH LT13535A HITACHI
9120144241 BOSCH SE141903020A VW
AAK1128 ISKRA / LETRIKA XO39349610 VW
AEA8132 AUTOELECTRO STX100296 STARDAX
ALP12N-20 FEMSA STX100630 STARDAX
ALP12N-24 FEMSA STX100859 STARDAX
ALT1090 SIOM STX100904 STARDAX
ALT12032 WOODAUTO STX100977 STARDAX
ALT321120 SIOM STX101379 STARDAX
ALTL735 3EFFE STX101379R STARDAX
CA252IR HC PARTS 505.012.045.050 WAI
CA307IR HC PARTS 505.012.045.461 WAI
CAL21118GS CASCO 505.012.045.462 WAI
CAL30112AS CASCO F032111078 CARGO
CAL30112GS CASCO F032111035 CARGO
DAN608 DENSO A132.727 WAI
DAN645 DENSO 30307 KUHNER
DRA2341 DELCO
DRA2341N DELCO
LRA00832 LUCAS
LRA832 LUCAS
SA409 SOVEREIGN
VA203 VALEO
210225 ERA
63303001010 MAGNETI MARELLI
063303001 MAGNETI MARELLI
440454 LOGISTIK
ANM34561X ANDEL

Features

Information:

Electrical Information
Voltage 14
Amp 45
Physical Information
D Bracket hole 10.50
G Belt. adj. bracket hole 10.45/25.75
B Width/holder arm 23.50
E Belt. adj. brackethole pos. 23
H Pulley dia. 70.00
A Pulley dist. 53.25
i Grooves/pulley 1
j Radius 102.35
j Radius 2 118.85
k Position B + M6
n Rotation COUNTER CLOCKWISE

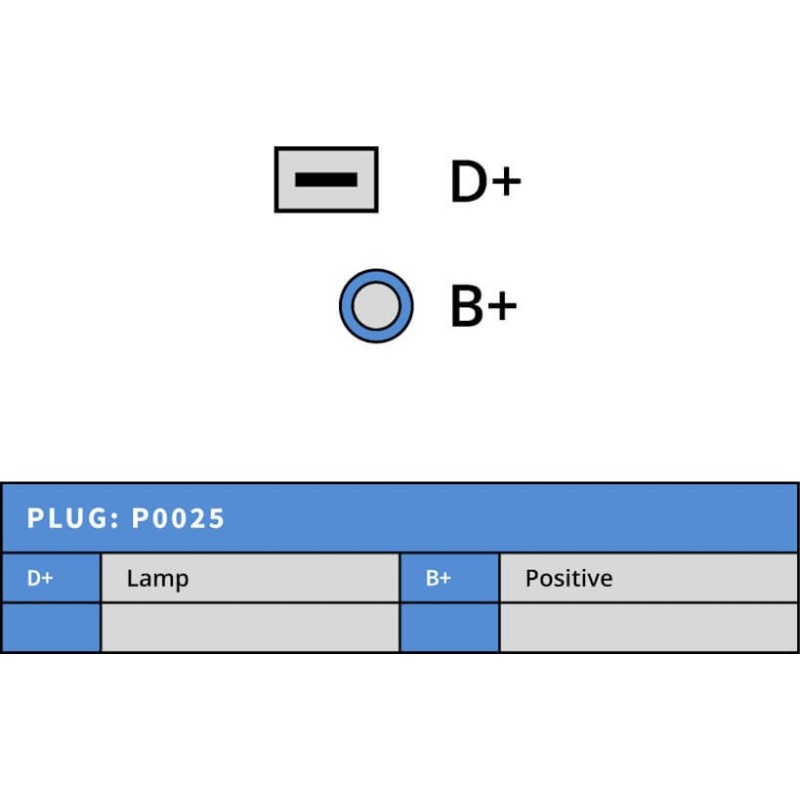

o Plug no. 1 PL_NA
R Total length mm 169.00
Replacing
11.201.347 ISKRA
24041 LUCAS
24041a LUCAS
24041E LUCAS
24041f LUCAS
24041H LUCAS
4451759 FIAT
4456152 FIAT
4458618 FIAT
46231655 FIAT
516032 DUCELLIER
5947366 FIAT
5947376 FIAT
5973034 FIAT
5973035 FIAT
63303502 MAGNETI MARELLI
63303701 MAGNETI MARELLI
63303703 MAGNETI MARELLI
63303721 MAGNETI MARELLI
63303731 MAGNETI MARELLI
63303733 MAGNETI MARELLI
63305862 MAGNETI MARELLI
63306701 MAGNETI MARELLI
63306721 MAGNETI MARELLI
63306731 MAGNETI MARELLI
63307106 MAGNETI MARELLI
63307108 MAGNETI MARELLI
63307126 MAGNETI MARELLI
63307128 MAGNETI MARELLI
63308701 MAGNETI MARELLI
63308731 MAGNETI MARELLI
63320002 MAGNETI MARELLI
63321001 MAGNETI MARELLI
7546342 FIAT
7546343 FIAT
77110410 FIAT
77110411 FIAT
9120144228 BOSCH
9120144229 BOSCH
9120144240 BOSCH
9120144241 BOSCH
aak1128 ISKRA
aak4167 ISKRA
alp12n-20 FEMSA
alp12n-24 FEMSA
ca307ir HC-PARTS
554098RI KUHNER

generic brand

NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
