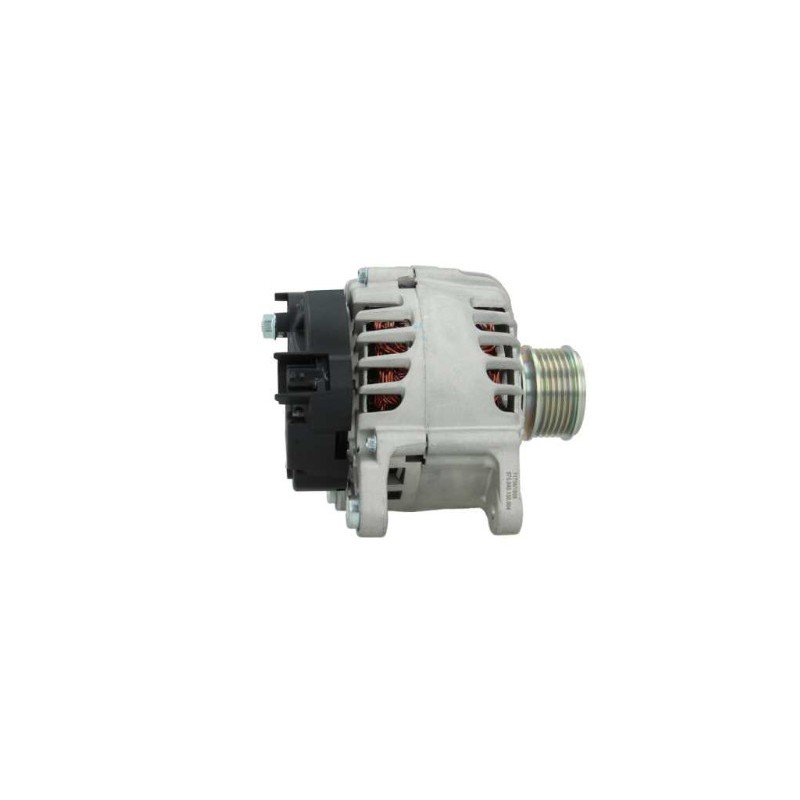

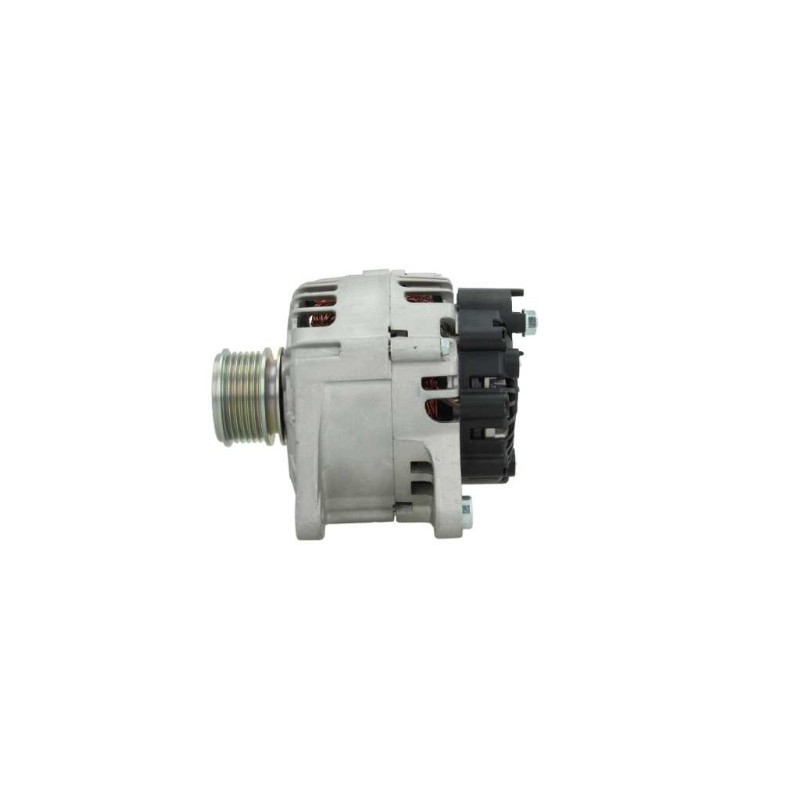

Alternator VALEO FG15T056 / 2612716A
VALEO Brand NEW alternator FG15T056 / 2612716A / NISSAN 23100-4554R / MERCEDES BENZ 4159063500 / A4159063500
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Information:
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 150 | |
Physical Information | ||
|---|---|---|
| D | Bracket hole | 8.50 |
| G | Belt. adj. bracket hole | 8.50 |
| B | Width/holder arm | 14.20 |
| E | Belt. adj. brackethole pos. | 45 |
| C | Mount. bracket dist | 60.90 |
| H | Pulley dia. | 55.00 |
| A | Pulley dist. | 38.75 |
| i | Grooves/pulley | 6 |
| j | Radius | 90.00 |
| j | Radius 2 | 90.00 |
| k | Position B + | M8 |
| n | Rotation | CW |
| o | Plug no. 1 | PL131 |
| G | Belt. adj. bracket hole 2 2 | M8 |
| R | Total length mm | 195.70 |
Replacing | |
|---|---|
| 23100-4554R | NISSAN |
| 2612716A | VALEO |
| 4159063500 | MERCEDES BENZ |
| a4159063500 | MERCEDES BENZ |
| FG15T056 | VALEO |
| 231004554R |
| 231007239R |
| 2612716A |
| 286862 |
| 439808 |
| 440462 |
| 575940150 |
| 612716 |
| 9090691F |
| 931399 |
| DRA1399 |
| FG15T056 |
| FGN15T056 |
| LRA03752 |
Mounted on :
MERCEDES-BENZ Citan 1.5 Diesel
RENAULT KANGOO / MEGANE
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
