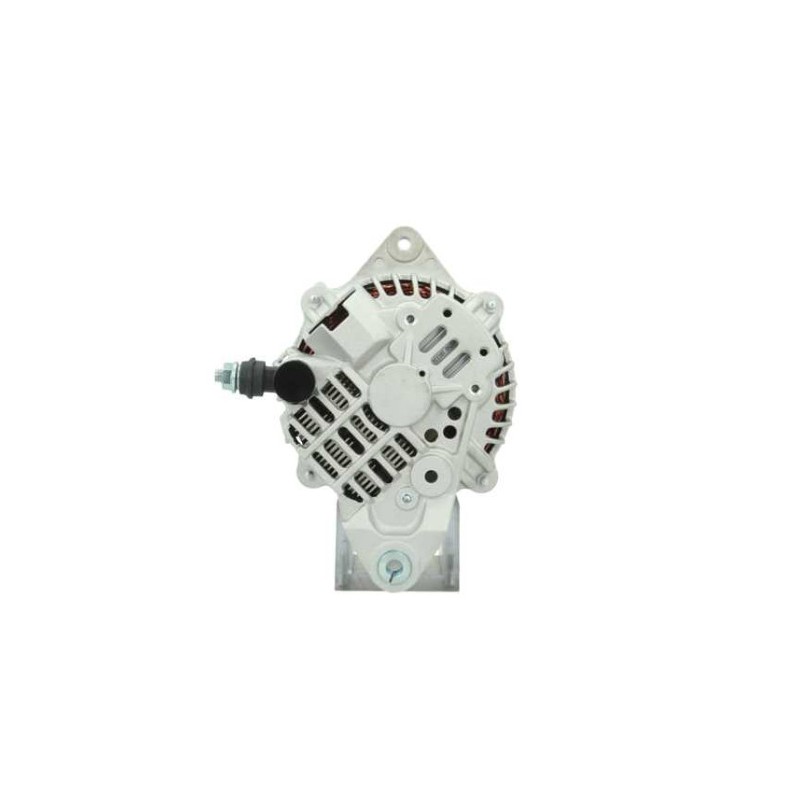

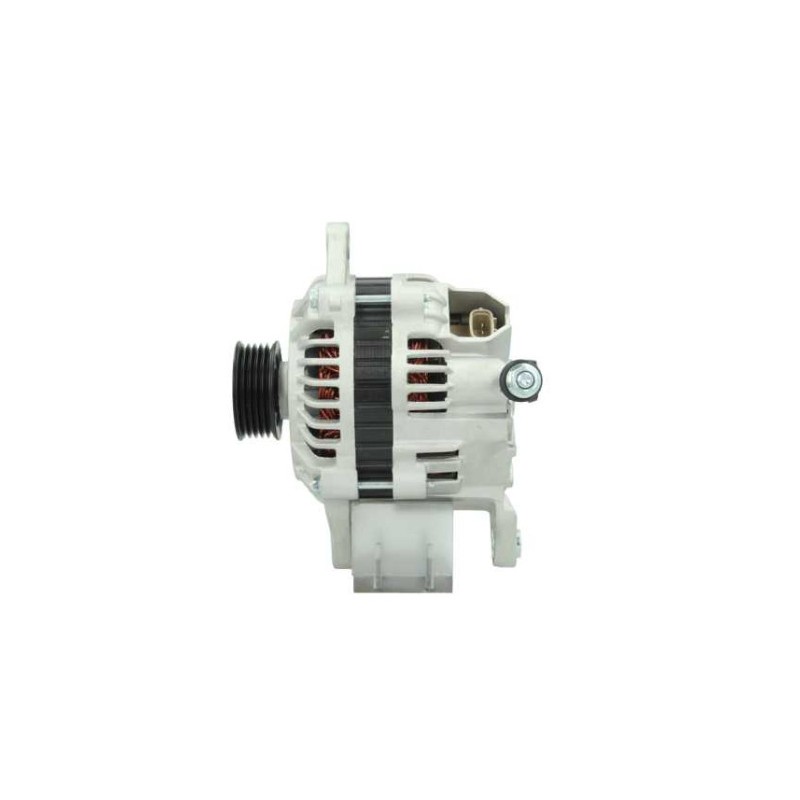

Alternator replacing A002TB2891 / A002TB2991 / A2TB2991 / A2TB6291 / A002TB2991
w113634
Alternator NEW replacing :
BOSCH 0986045731 , 0986UR0185
MITSUBISHI A002TB2891, A002TB2891ZC, MITSUBISHI Sales A2TB2891, A2TB2891ZC, SAAB 32-00-6062, SUBARU 23700-AA370, 23700-AA37A, 23700-AA37AR1
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
Features
Electrical information | ||
---|---|---|
Voltage | 14 | |
Amp. | 90 |
Physical Information | ||
---|---|---|
A | Pulley dist. | 46.45 |
B | Width/holder arm | 13.15 |
C | Mount. bracket dist | 79.70 |
D | Bracket hole | 8.65 |
E | Belt. adj. brackethole pos. | 60 |
G | Belt. adj. bracket hole | M8 |
H | Pulley dia. | 55.00 |
I | Grooves/pulley | 5 |
J | Radius | 89.00 |
J | Radius 2 | 84.50 |
K | Position B + | M8 |
K | B+ position en min. | 47 |
N | Rotation | Cr |

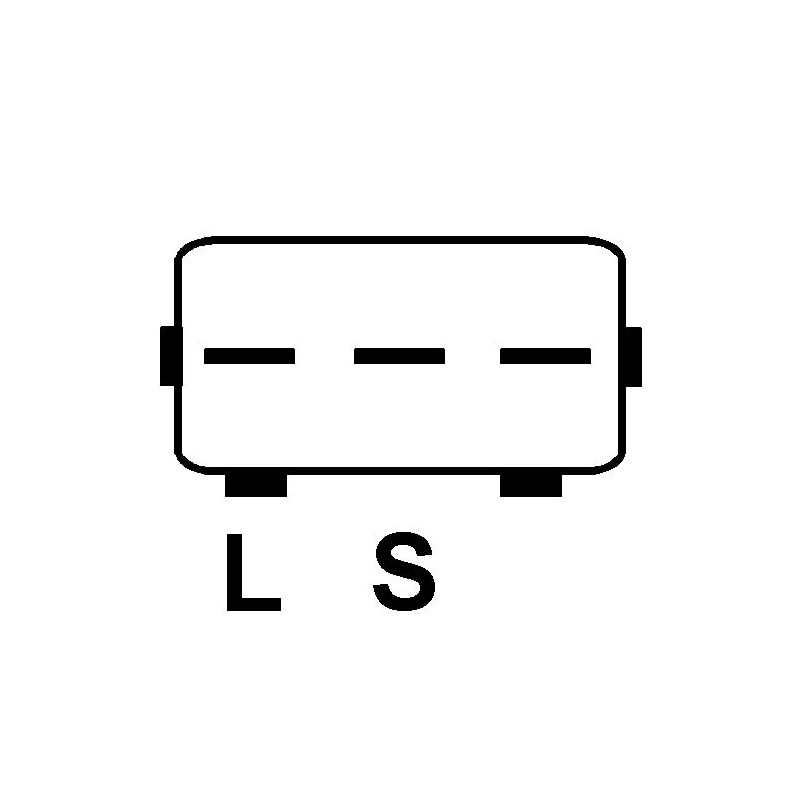

O | Plug n° 1 | PL85 |
R | Total length mm | 165.00 |
Replacing | |
---|---|
23700-AA370 | SUBARU |
23700-AA37A | SUBARU |
23700-AA390 | SUBARU |
23700-AA430 | SUBARU |
A002TB2891 | MITSUBISHI |
A002TB2891ZC | MITSUBISHI |
A002TB2991 | MITSUBISHI |
A002TB6291 | MITSUBISHI |
A2TB2891 | MITSUBISHI |
A2TB2891ZC | MITSUBISHI |
A2TB2991 | MITSUBISHI |
A2TB6291 | MITSUBISHI |
JA1704IR | HC-PARTS |
generic brand
Mounted on :
Brand | Model | Tipo | year |
SAAB | 9-2X 2.5 Linear | [251] | 01/01/05 |
SAAB | 9-2X 2.5 Linear | [253] | 01/01/05 |
SUBARU | Baja 2.5 | [EJ253] | 01.2003-01.2003 |
SUBARU | Baja 2.5 | [EJ253] | 01/01/04 |
SUBARU | Baja 2.5 Sport | [EJ253] | 01/01/05 |
SUBARU | Baja 2.5 Turbo | [EJ255] | 01/01/04 |
SUBARU | Baja 2.5 Turbo | [EJ255] | 01/01/05 |
SUBARU | Forester 2.0 | [EJ20] | 06.1998-09.2002 |
SUBARU | Forester 2.0 Turbo S | [EJ205] | 04.2001-09.2002 |
SUBARU | Forester 2.0 Turbo S | [EJ20] | 06.1998-04.2001 |
SUBARU | Forester 2.5 | [EJ25] | 01/12/03 |
SUBARU | Forester 2.5 Turbo XT | [255] | 01/01/04 |
SUBARU | Forester 2.5 Turbo XT | [255] | 01/01/05 |
SUBARU | Forester 2.5 X | [251] | 01.2003-01.2003 |
SUBARU | Forester 2.5 X | [251] | 01/01/04 |
SUBARU | Forester 2.5 X | [253] | 01/01/05 |
SUBARU | Forester 2.5 XS | [251] | 01.2003-01.2003 |
SUBARU | Forester 2.5 XS | [251] | 01/01/04 |
SUBARU | Forester 2.5 XS | [253] | 01/01/05 |
SUBARU | Impreza 1.6 | [EJ16E] | 12.1996-12.2000 |
SUBARU | Impreza 1.6 | [EJ16] | 01/12/00 |
SUBARU | Impreza 1.6 | [EJ16] | 06.2001-09.2006 |
SUBARU | Impreza 1.6 4WD | [EJ16E] | 12.1996-12.2000 |
SUBARU | Impreza 1.6 i | [EJ16] | 06.1998-12.2000 |
SUBARU | Impreza 1.6 i 4WD | [EJ16] | 06.1998-12.2000 |
SUBARU | Impreza 2.0 | [EJ201] | 09.1998-09.2000 |
SUBARU | Impreza 2.0 | [EJ20] | 01/12/00 |
SUBARU | Impreza 2.0 16V AWD | [EJ20] | 06.1998-12.2000 |
SUBARU | Impreza 2.0 4WD | [EJ205P] | 09.1998-09.2000 |
SUBARU | Impreza 2.0 4WD | [EJ20] | 12.1995-12.2000 |
SUBARU | Impreza 2.0 i 4WD | [EJ20] | 10.1995-12.2000 |
SUBARU | Impreza 2.0 i 4WD | [EJ20] | 06.1998-12.2000 |
SUBARU | Impreza 2.0 i Turbo 4WD | [EJ207] | 01/11/01 |
SUBARU | Impreza 2.0 i Turbo 4WD | [EJ20] | 03.1994-12.2000 |
SUBARU | Impreza 2.0 i Turbo GT 4WD | [EJ20] | 03.1994-12.2000 |
SUBARU | Impreza 2.0 Turbo | [EJ205] | 01/12/00 |
SUBARU | Impreza 2.0 Turbo GT 4WD | [EJ205] | 06.1998-12.2000 |
SUBARU | Impreza 2.0 Turbo GT 4WD | [EJ20T] | 06.1998-12.2000 |
SUBARU | Impreza 2.0 Turbo WRX | [EJ205] | 01/12/00 |
SUBARU | Impreza 2.0 Turbo WRX 4WD | [EJ205] | 01/12/02 |
SUBARU | Impreza 2.2 GX 4WD | 11.1995-08.1998 | |
SUBARU | Impreza 2.2 GX 4WD | [EJ22E] | 09.1998-09.2000 |
SUBARU | Impreza 2.5 RS | [253] | 01/01/05 |
SUBARU | Lagacy 2.0 | [EJ20] | 12.1998-08.2003 |
SUBARU | Lagacy 2.5 | [EJ25] | 12.1998-08.2003 |
SUBARU | Legacy 2.0 | [EJ20] | 04.1999-08.2003 |
SUBARU | Legacy 2.5 | [EJ251] | 01.2000-01.2000 |
SUBARU | Legacy 2.5 | [EJ252] | 01.2000-01.2000 |
SUBARU | Legacy 2.5 | [EJ253] | 01.2001-01.2002 |
SUBARU | Legacy 2.5 | [EJ253] | 01.2003-01.2003 |
SUBARU | Legacy 2.5 | [EJ253] | 01/01/04 |
SUBARU | Legacy 2.5 | [EJ25] | 10.1998-08.2003 |
SUBARU | Legacy 2.5 | [EJ25] | 01/09/03 |
SUBARU | Outback 2.5 | [EJ253] | 01.2001-01.2002 |
SUBARU | Outback 2.5 | [EJ253] | 01.2003-01.2003 |
SUBARU | Outback 2.5 | [EJ253] | 01/01/04 |
SUBARU | Outback 2.5 | [EJ25] | 10.2000-08.2003 |
