Starter replacing 100211-5090 / 100213-0941 / 100213-1011
Starter for TOYOTA Hiace 2.4 D
0986043001 / 100213-1050 / 100213-1130 / 100213-1140 / 100213-1150 / 100213-1230
100213-1240 / 100213-1250 / 27040-54130 / 27040-54160 / 27040-54190 / 27040-54191
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 70 | |

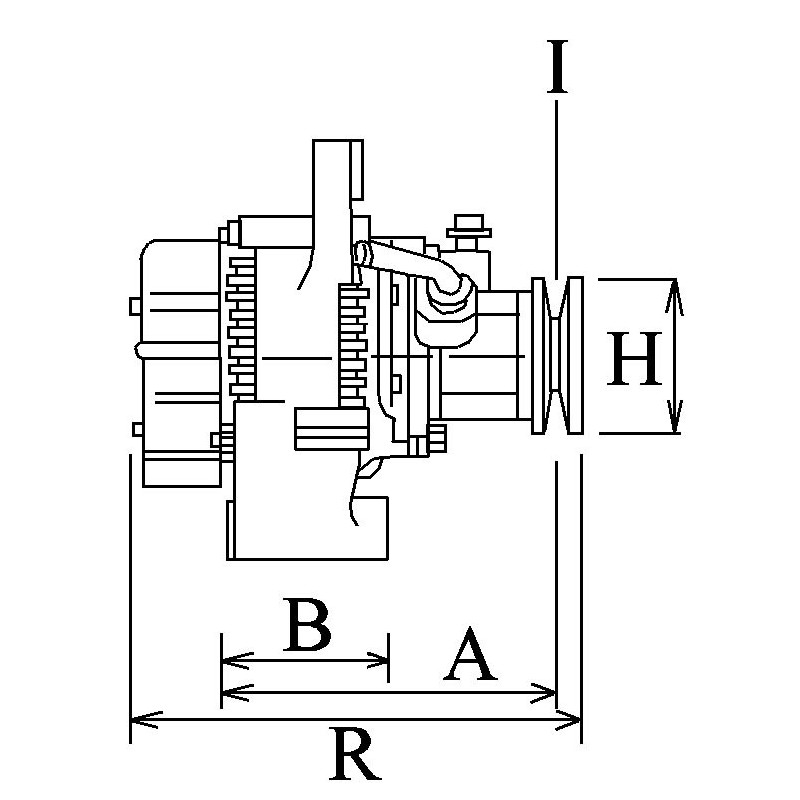

Physical Information | ||
|---|---|---|

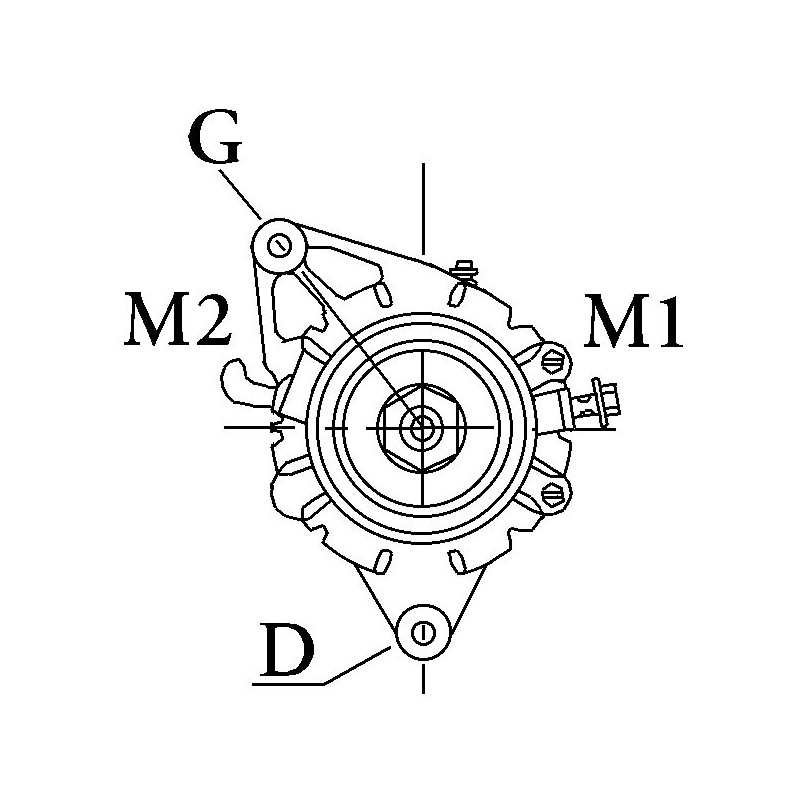

| D | Bracket hole | 10.35 |
| G | Belt. adj. bracket hole | M8 |
| B | Width/holder arm | 69.50 |
| E | Belt. adj. brackethole pos. | 2 |
| H | Pulley dia. | 76.80 |
| A | Pulley dist. | 146.50 |
| i | Grooves/pulley | 2 |

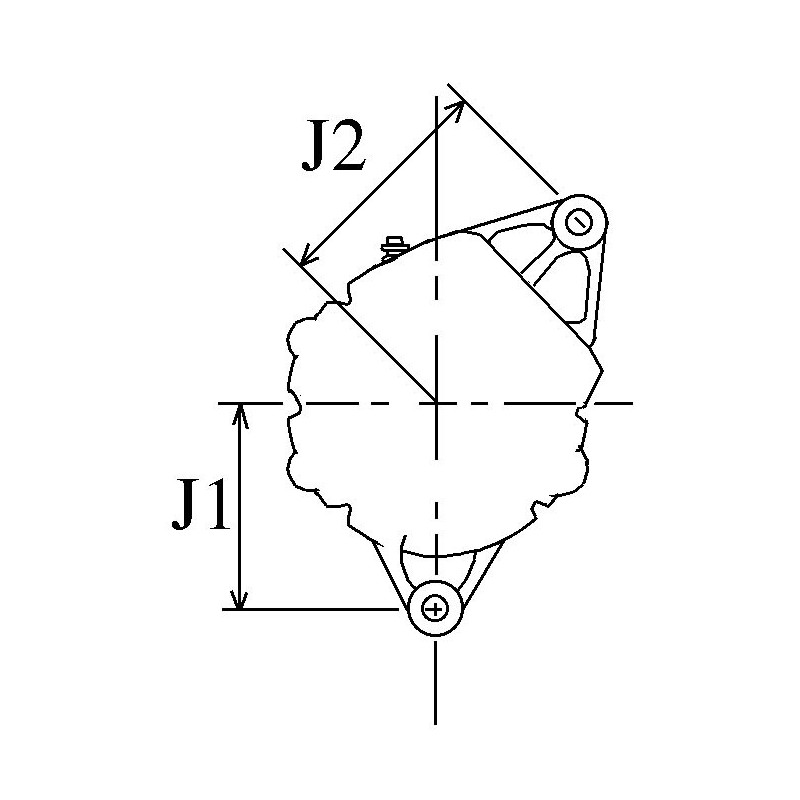

| j | Radius | 77.00 |
| j | Radius 2 | 84.00 |
| k | Position B + | M6 |
| n | Rotation | CW |

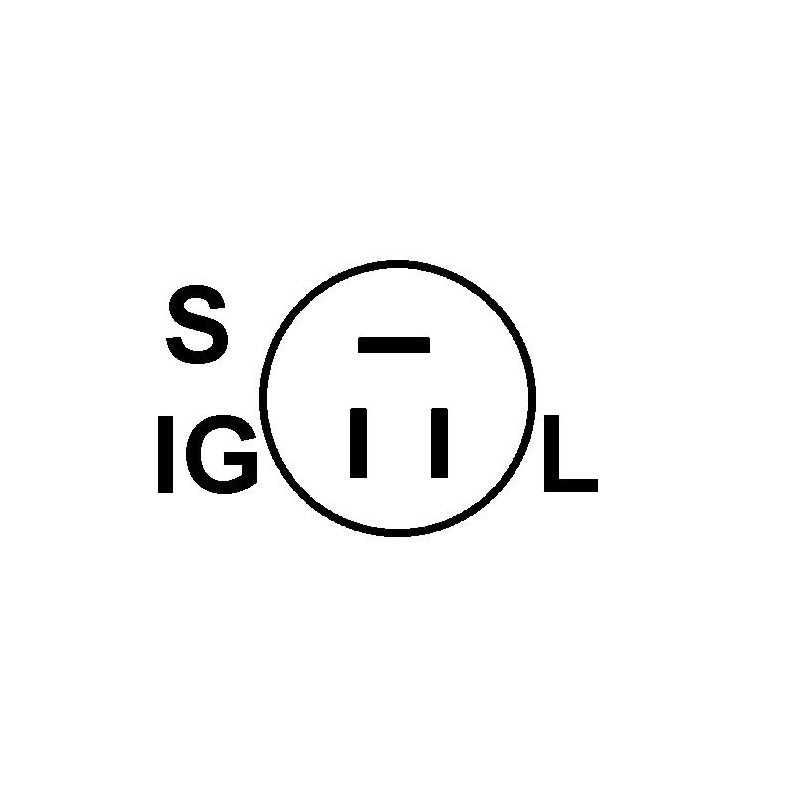

| o | Plug no. 1 | PL12 |
| R | Total length mm | 231.00 |
generic brand
Replacing | |
|---|---|
| 100211-5090 | DENSO |
| 100213-0941 | DENSO |
| 100213-1011 | DENSO |
| 100213-1050 | DENSO |
| 100213-1130 | DENSO |
| 100213-1140 | DENSO |
| 100213-1150 | DENSO |
| 100213-1230 | DENSO |
| 100213-1240 | DENSO |
| 100213-1250 | DENSO |
| 27040-54130 | TOYOTA |
| 27040-54160 | TOYOTA |
| 27040-54190 | TOYOTA |
| 27040-54191 | TOYOTA |
| 27040-54210 | TOYOTA |
| 27040-54220 | TOYOTA |
| 27040-54230 | TOYOTA |
| 27040-54240 | TOYOTA |
| 27060-54070 | TOYOTA |
| 27060-54080 | TOYOTA |
| ja881ir | HC-PARTS |
| 1002115090 | DENSO |
| 1002130941 | DENSO |
| 1002131011 | DENSO |
| 1002131130 | DENSO |
| 1002131140 | DENSO |
| 1002131150 | DENSO |
| 1002131240 | DENSO |
| 195706070 | PSH |
| 20130119 | PRESTOLITE |
| 20130119WP | PRESTOLITE |
| 2704054130 | TOYOTA |
| 2704054160 | TOYOTA |
| 2704054210 | TOYOTA |
| 2704054220 | TOYOTA |
| 2704054230 | |
| 2704054240 | TOYOTA |
| 2704054330 | TOYOTA |
| 2704054490 | TOYOTA |
| 2706054070 | TOYOTA |
| 2706054080 | TOYOTA |
| 437739 | VALEO |
| 5455SP | Spidan |
| 90295077 | WILSON |
| 933504 | EDR |
| ALT6053sa | Electrolog |
| ALTH049 | UNIPOINT |
| DRA3504 | DELCO REMY |
| F042A0H049 | UNIPOINT |
| F042A0H049FEB | UNIPOINT |
| HJA881IR | HC |
| J5112079 | Nipparts |
| JA881IR | HC |
| KTR391412140 | KTR |
| L61620 | ATL |
| LRA01436 | |
| TRA023 | TWA |
fits:
| Model série | Reference d origine du produit | Tipo of Gas | Start build | End built | Tipo engine | Engine Tipo | KW | Horse Power | Chassi type | Tipoe modèle | Engine in cm3 | Cylindres | Descrip- tion du type from |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Hiace | 2.4 | Diesel | 1990 02 | 1995 08 | 2L | Diesel | 55 | 75 | Boîte/Trucksnette | 2446 | 4 | _H10_ | |
| Hiace | 2.4 | Diesel | 1989 08 | 1995 08 | 2L | Diesel | 55 | 75 | De bus | 2446 | 4 | LH102 |
