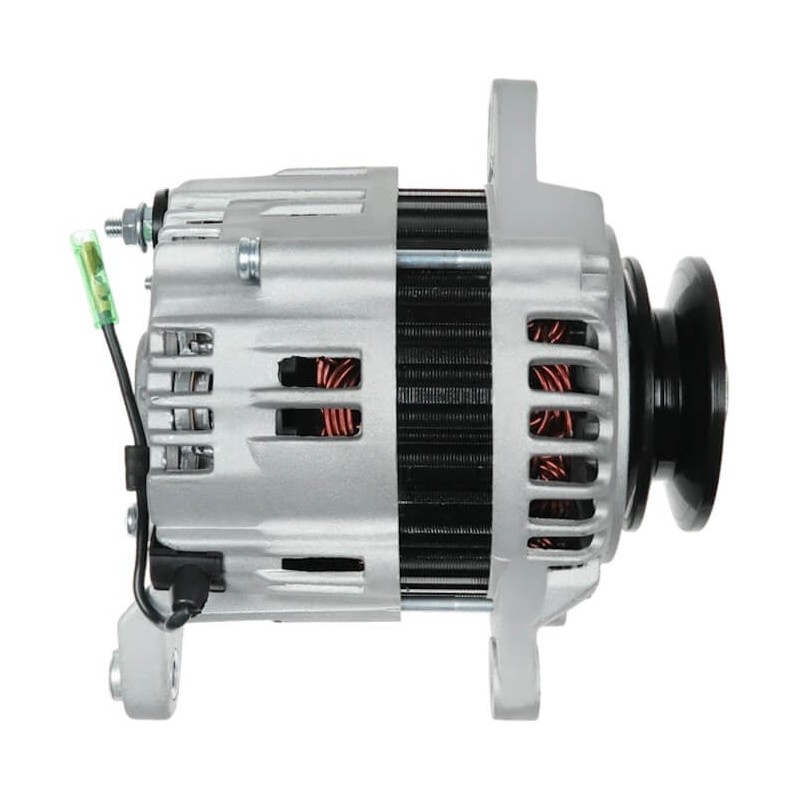

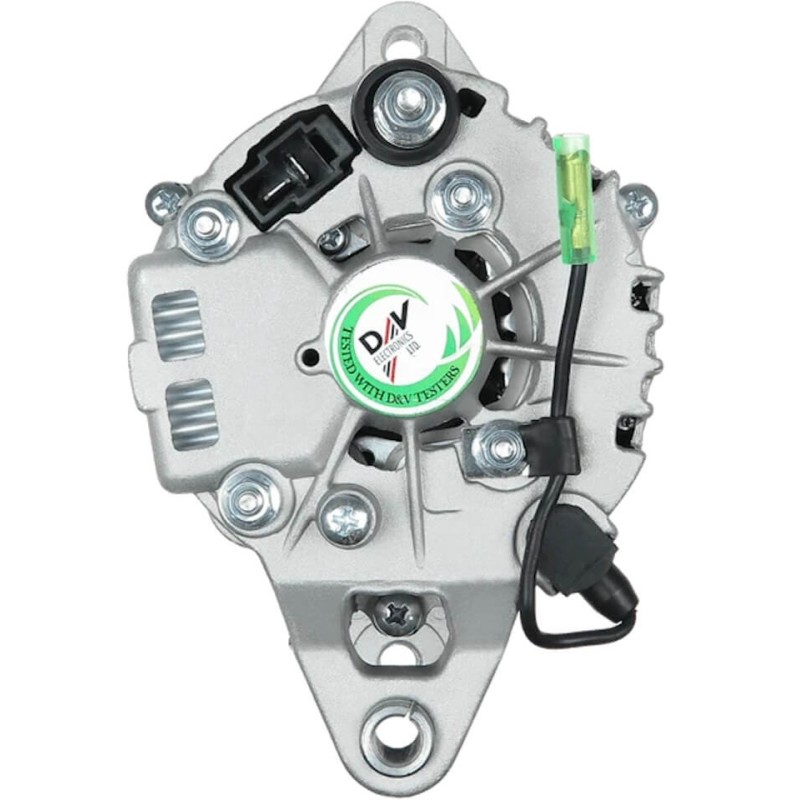

Alternator replacing LR150-715 / LR150-715A / LR150-714 / 8972012810 / 8972283180
Alternator new
Replacing | |
|---|---|
| 714-40090 | Jcb |
| 8972012810 | ISUZU |
| 8972283180 | ISUZU |
| LR150-714 | HITACHI |
| LR150-715 | HITACHI |
| LR150-715A | HITACHI |
NO CORE EXCHANGED NEEDED
More info
Electrical information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 50 | |
| Terminal | W | |
Physical information | ||
|---|---|---|
| A | Pulley dist. | 46.00 |
| B | Width/holder arm | 12.00 |
| C | Mount. bracket dist. | 81.50 |
| D | Bracket hole | 8.20 |
| E | Belt. adj. brackethole pos. | 60 |
| G | Belt. adj. bracket hole | 8.20 |
| H | Pulley dia. | 74.50 |
| I | Grooves/pulley | 1 |
| J | Radius | 75.00 |
| J | Radius 2 | 72.50 |
| K | B+ position | M6 |
| K | Position/B+ in min. | 60 |
| N | Rotation | CW |

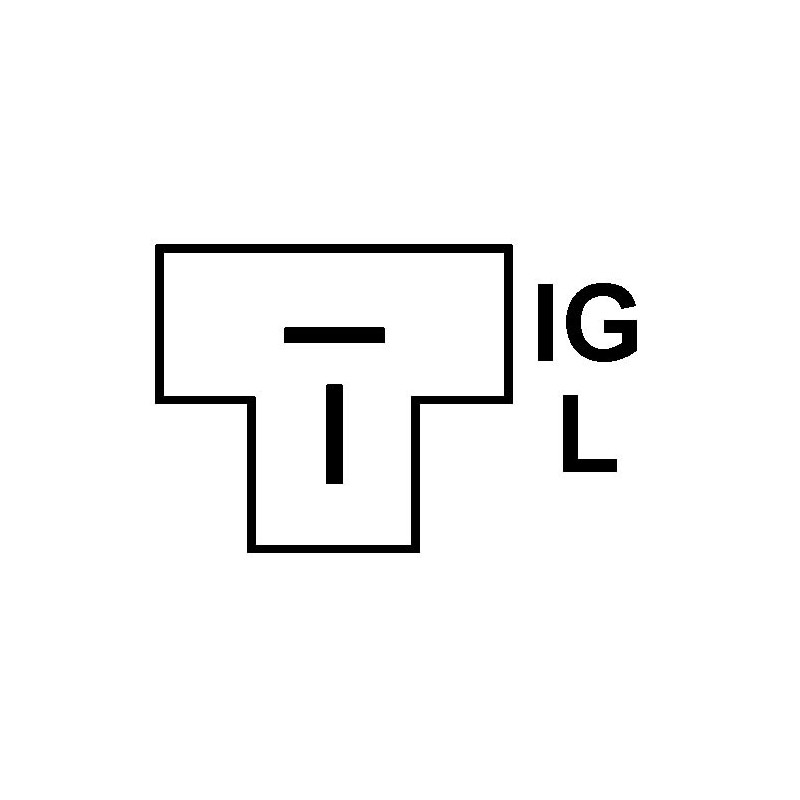

| O | Plug no. 1 | PL10 |
| R | Total length mm | 152.00 |
generic brand
replacing
| 115432 | CARGO |
| 135.553.050 | PSH |
| 140-06101 | DIXIE |
| 14863N | WAI / TRANSPO |
| 20145691 | REAL |
| 2020196 | SANDO |
| 204-10118 | ROBERT'S |
| 2585 | CEVAM |
| 553202RI | KUHNER |
| 897228-3181 | YANMAR |
| 8972283180 | ISUZU |
| 8972283181 | ISUZU |
| A-80112 | DIXIE |
| ALH0390 | KRAUF |
| ALT221920 | SIOM |
| ALT221920A | SIOM |
| ALTS731 | 3EFFE |
| ALTS731R | 3EFFE |
| CAL20196 | CASCO |
| CAL20196AS | CASCO |
| CAL20196ES | CASCO |
| CAL20196GS | CASCO |
| CAL20196OS | CASCO |
| CAL20196RS | CASCO |
| CGB-10715 | AINDE |
| EAA-224261 | EAA |
| LR150-715 | HITACHI |
| LR150-715B | HITACHI |
| PRAS731 | 3EFFE |
| UD90383A | AS-PL |
| A2106S | AS-PL |
| 447101 | LOGISTIK |
| A12HT0457A2 | SIDAT |
| ALT3040 | ELECTROLOG |
| LR150-715A | HITACHI |
| 8972012810 | ISUZU |
| LR150-714 | HITACHI |
For:
| Brand | Model | Typ |
| DOOSAN | DH55 | |
| GEHL | CTL70 | |
| ISUZU | Engine 2.8 | [4JB1] |
| MUSTANG | MTL20 | |
| TAKEUCHI | TL140 |
