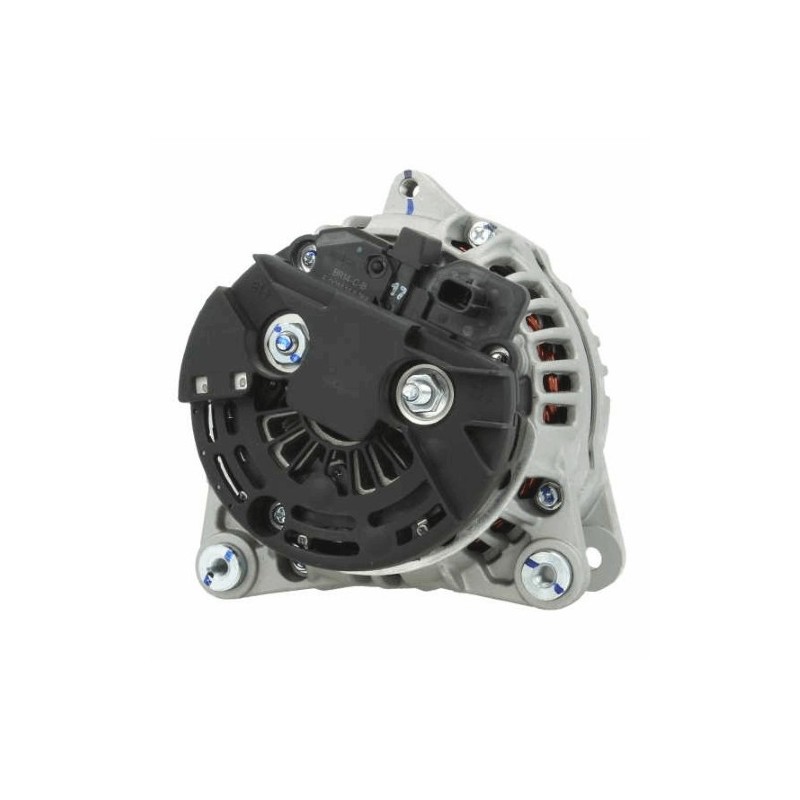

Alternator replacing 0124525078 / 0124525138 / 8200323127 / 8200737574
Alternator replacing 0124525078 / 0124525138 / Renault 8200323127 / 8200737574
DRA1489 / LRA03561
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Electrical information | |
|---|---|
| Voltage | 12 |
| Amp | 150 |

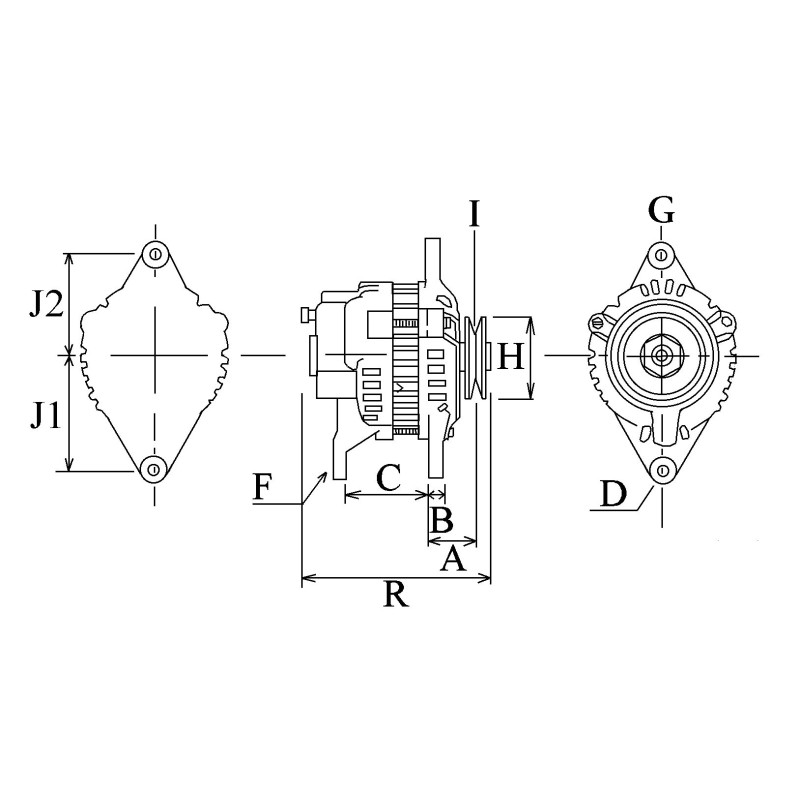

Physical information | ||
|---|---|---|
| A | Pulley dist. | 38.50 |
| B | Width/holder arm | 14.00 |
| C | Mount. bracket dist. | 61.00 |
| D | Bracket hole | 8.50 |
| E | Belt. adj. brackethole pos. | 45 |
| G | Belt. adj. bracket hole | 8.50 |
| G | Belt. adj. bracket hole 2 | M8 |
| H | Pulley dia. | 55.00 |
| I | Grooves/pulley | 6 |
| J | Radius | 90.00 |
| J | Radius 2 | 90.00 |
| K | B+ | M8 |
| K | Position/B+ in min. | 7 |
| N | Rotation | CW |

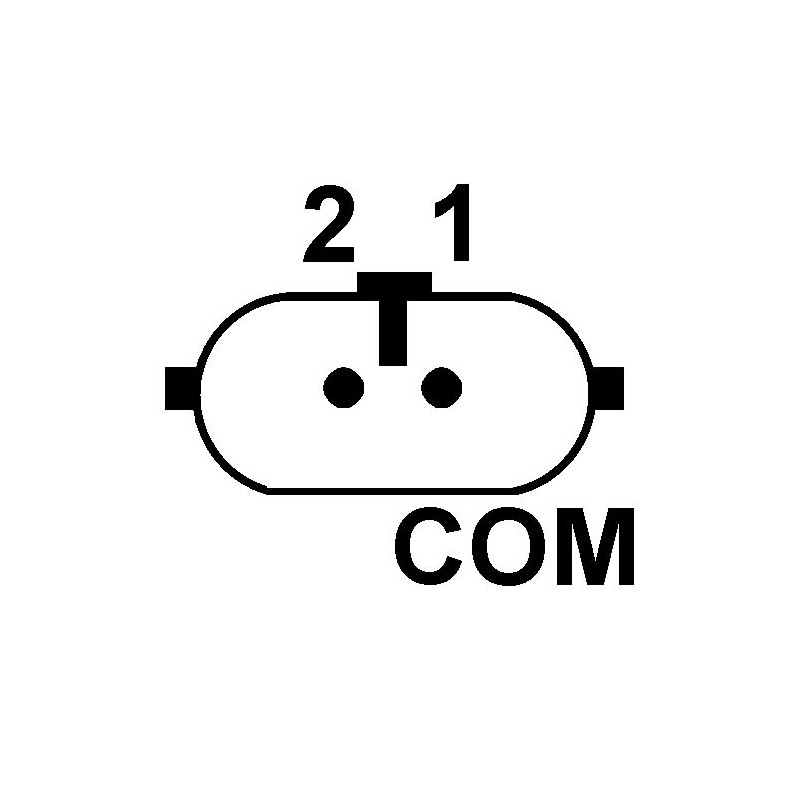

| O | Plug no. 1 | PL124 |
| R | Total length mm | 205.00 |
Replacing | |
|---|---|
| 0124525078 | Bosch |
| 0124525138 | Bosch |
| 8200323127 | Renault |
| 8200737574 | Renault |
generic brand
fits :
| Megane | Megane | 1.6 | Gasoline | 2006 05 | 2011 10 | K4M762[RA] | 16V | 81 | 110 | Estate | 1598 | 4 | KM0/1_ | |
| Megane | Megane CC | 1.6 | Diesel | 2010 06 | - | K4M866 | 16V | 81 | 110 | Convertible | Hi-Flex | 1598 | 4 | EZ0/1_ |
| Scénic | Grand Scénic | 1.6 | Diesel | 2009 02 | - | K4M866 | 81 | 110 | MPV | E85 | 1598 | 4 | JZ0/1_ | |
| Scénic | Grand Scénic | 1.6 | Gasoline | 2012 04 | - | K4M866 | 16V Bifuel | 79 | 107 | MPV | 1598 | 4 | JZ0/1_ | |
| Scénic | Scénic | 1.6 | Gasoline | 2012 04 | 2013 12 | K4M866 | 16V Bifuel | 79 | 107 | MPV | 1598 | 4 | JZ0/1_ | |
| Scénic | Scénic | 1.6 | Gasoline | 2009 02 | - | K4M866 | 16V Bifuel | 81 | 110 | MPV | 1598 | 4 | JZ0/1_ |
